Transmission Control Systems
G: TROUBLE CODE 38 TORQUE CONTROL SIGNALDIAGNOSIS: The signal circuit is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:

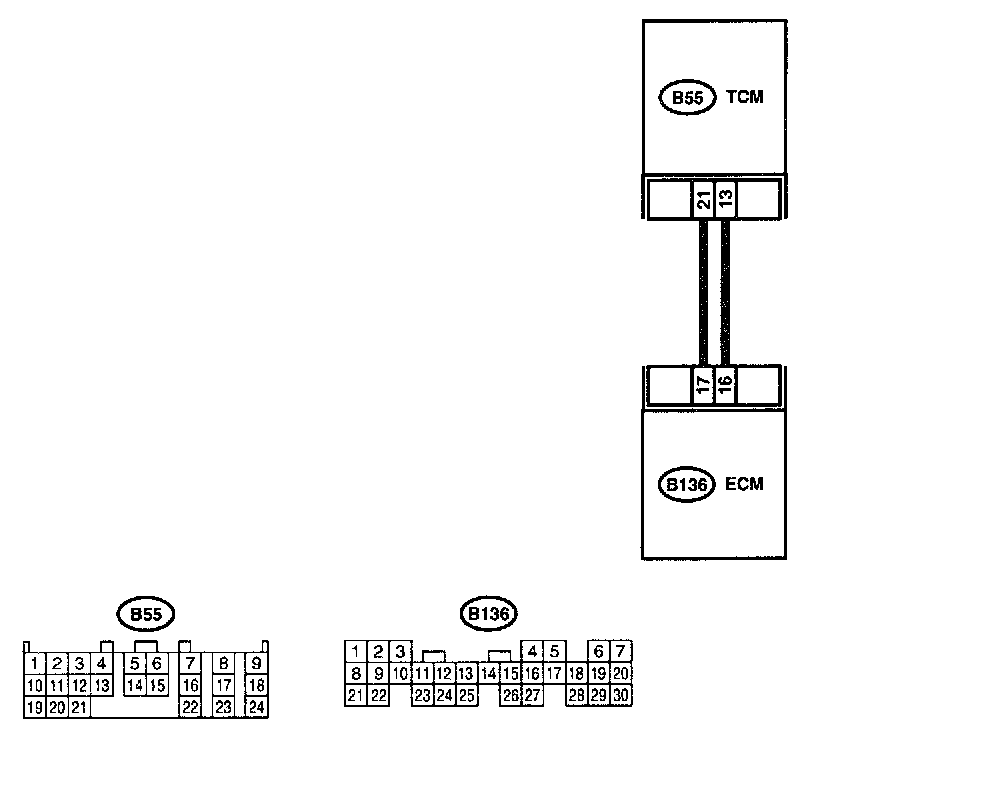

- 2.5L ENGINE MODEL

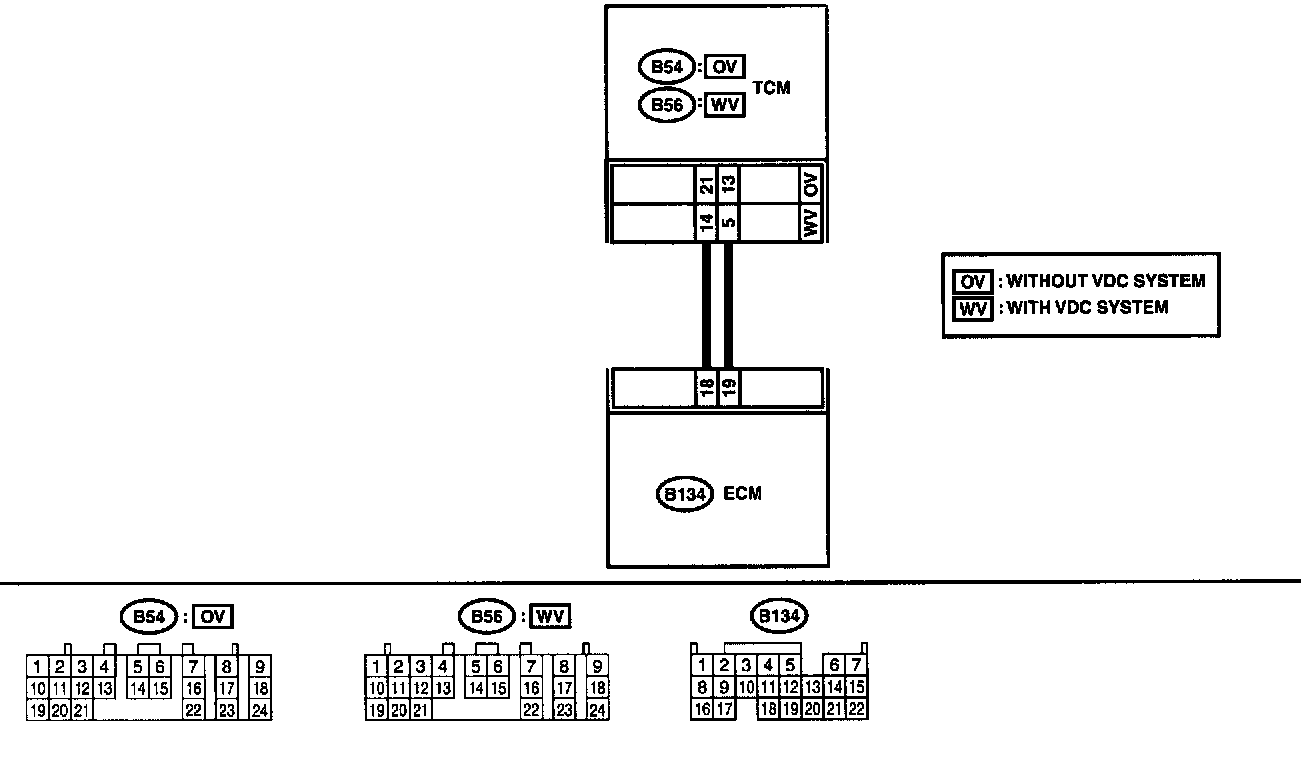

- 3.0L ENGINE MODEL
PROCEDURE:

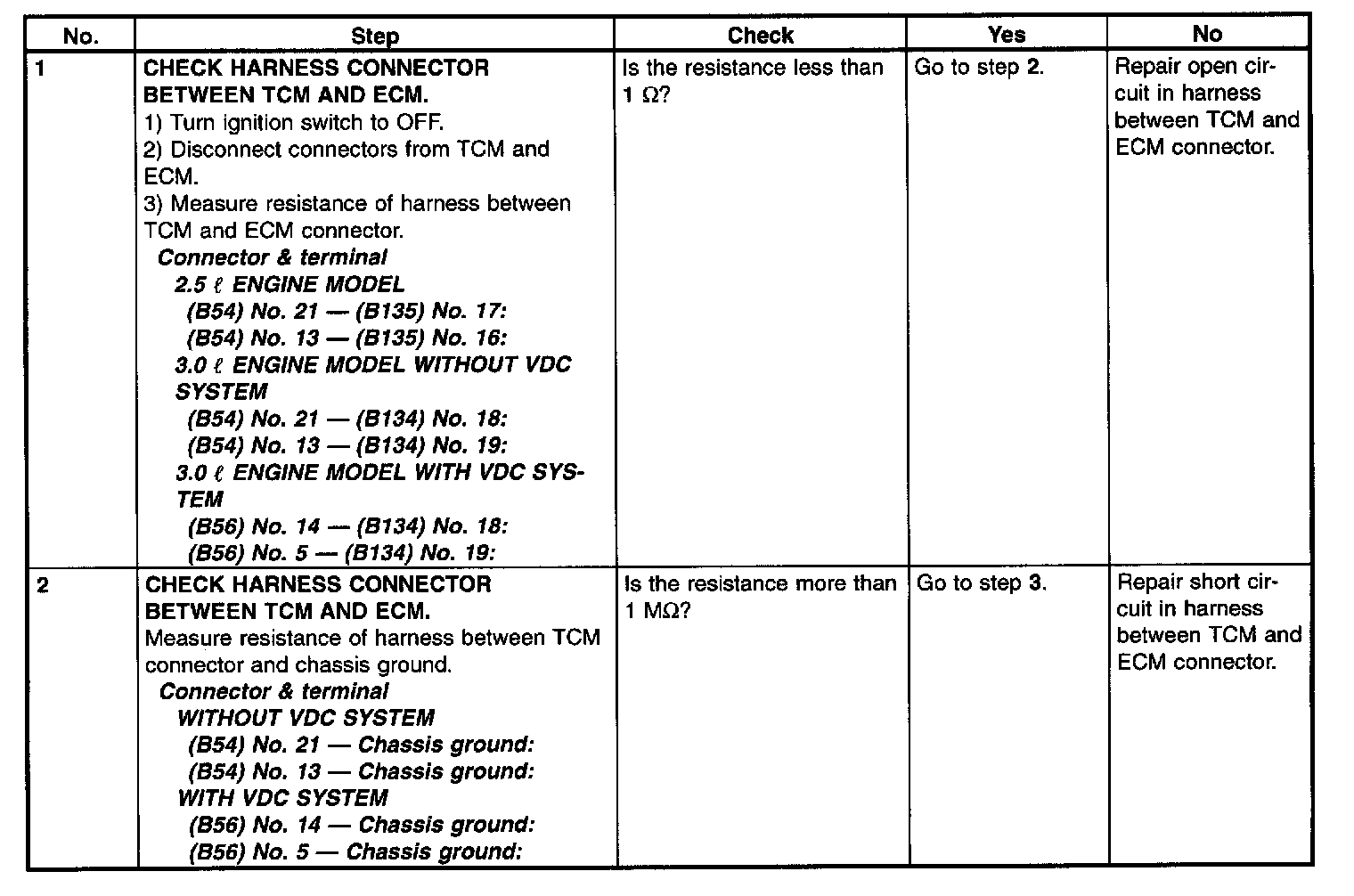

No.1 - 2

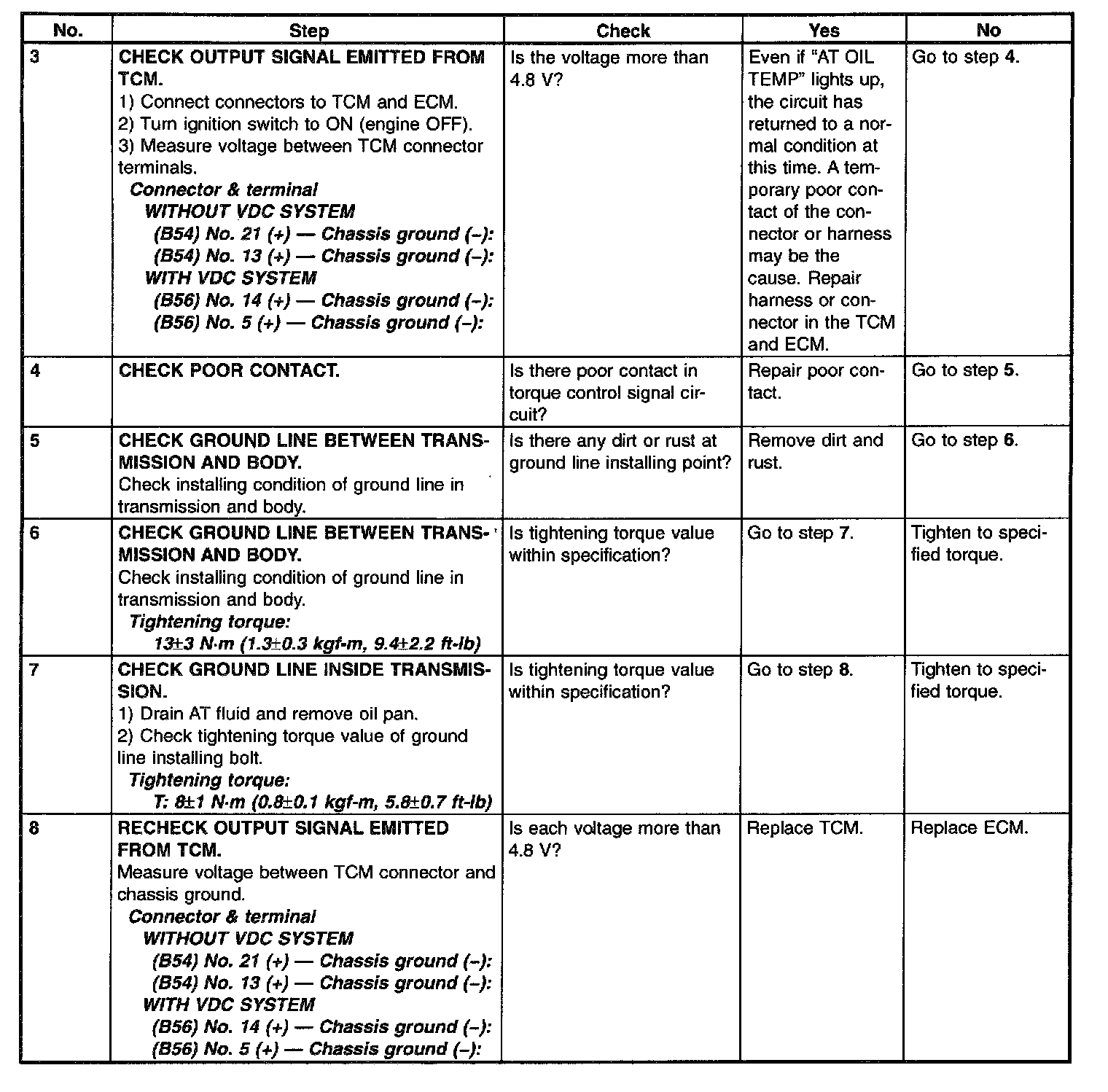

No.3 - 8
DIAGNOSIS: The signal circuit is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:
- 2.5L ENGINE MODEL
- 3.0L ENGINE MODEL
PROCEDURE:
No.1 - 2
No.3 - 8
