Transmission Control Systems
F: TROUBLE CODE 36 TORQUE CONVERTER TURBINE SPEED SENSORDIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

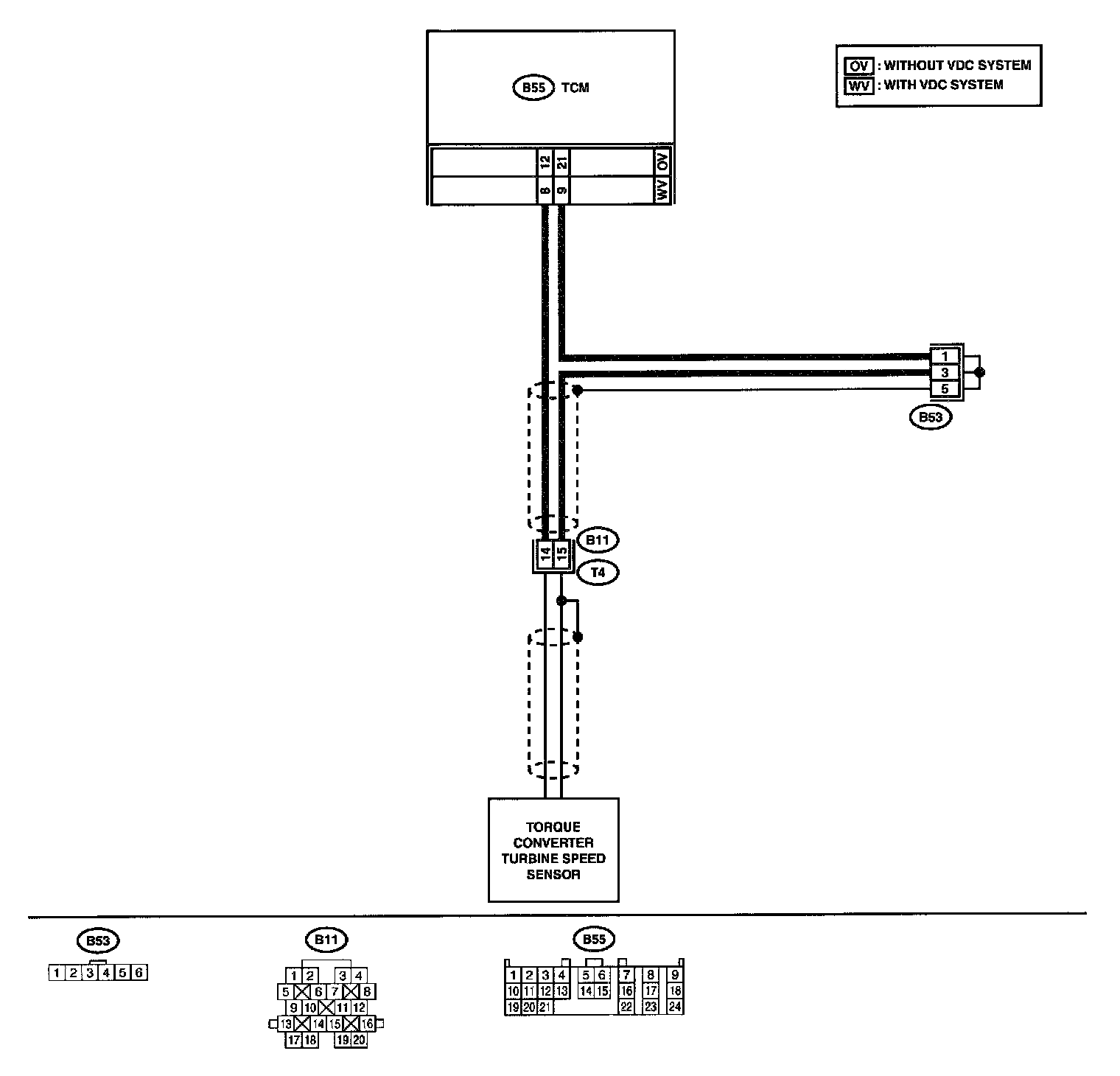

WIRING DIAGRAM:
PROCEDURE:

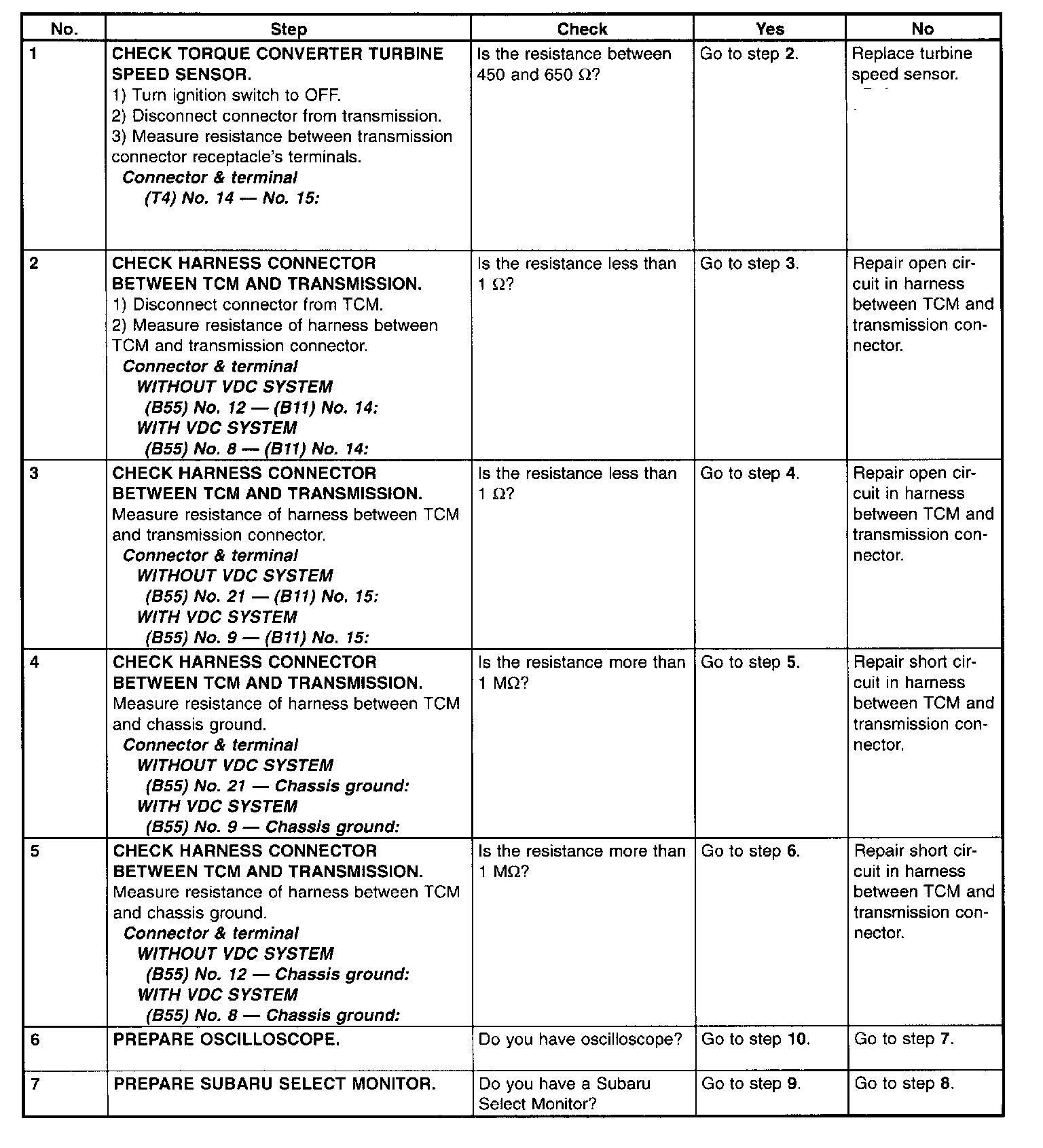

No.1 - 7

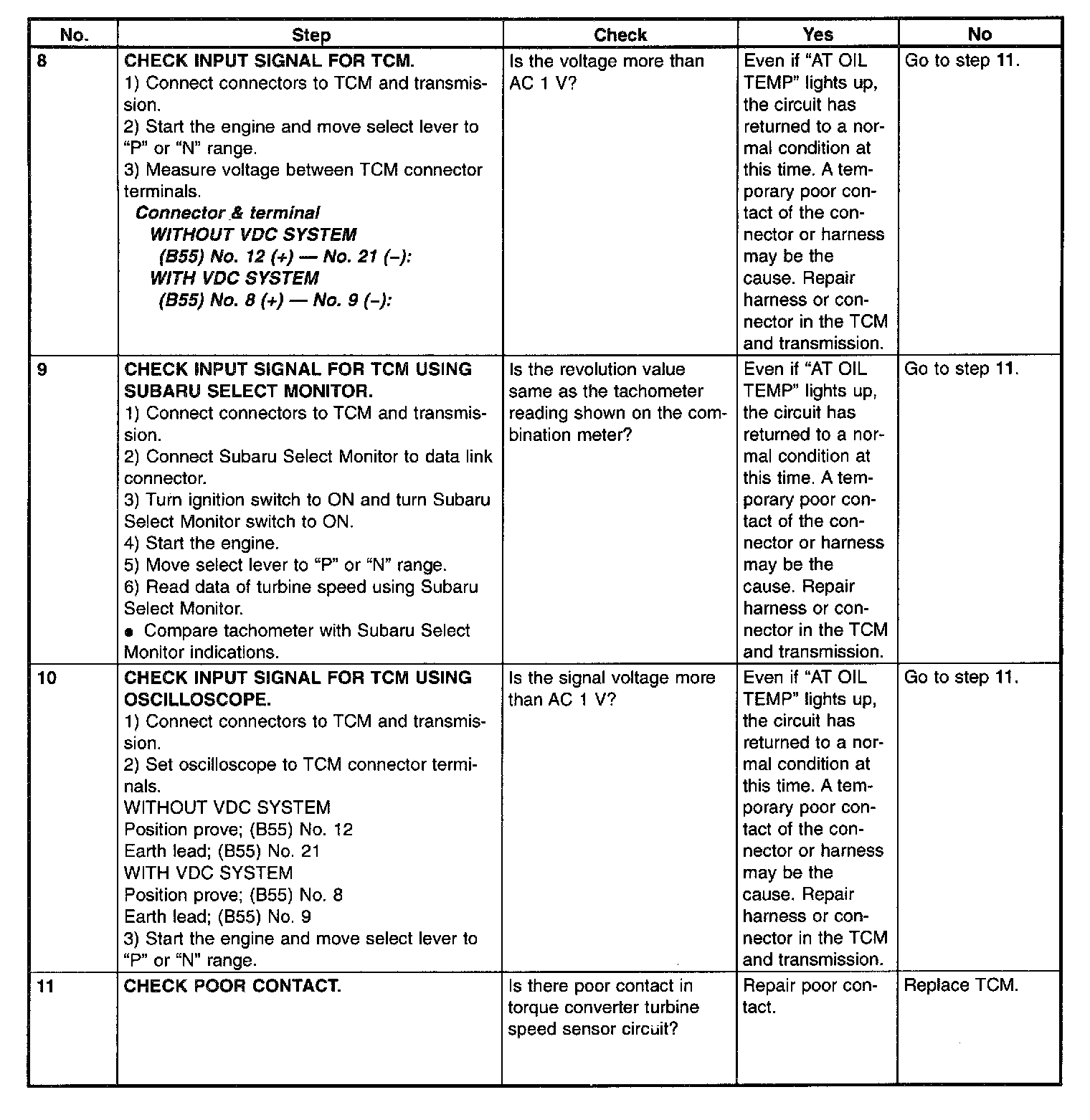

No.8 - 11
DIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:
PROCEDURE:
No.1 - 7
No.8 - 11
