ABS Trouble Code Charts For Warning Light Codes

Q: TROUBLE CODE 32 -ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (FRONT RH)-

R: TROUBLE CODE 34 -ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (FRONT LH)-

S: TROUBLE CODE 36 -ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (REAR RH)-

T: TROUBLE CODE 38 -ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (REAR LH)-

DIAGNOSIS:
- Faulty harness/connector
- Faulty outlet solenoid valve in ABSCM & H/U
TROUBLE SYMPTOM:
- ABS does not operate.

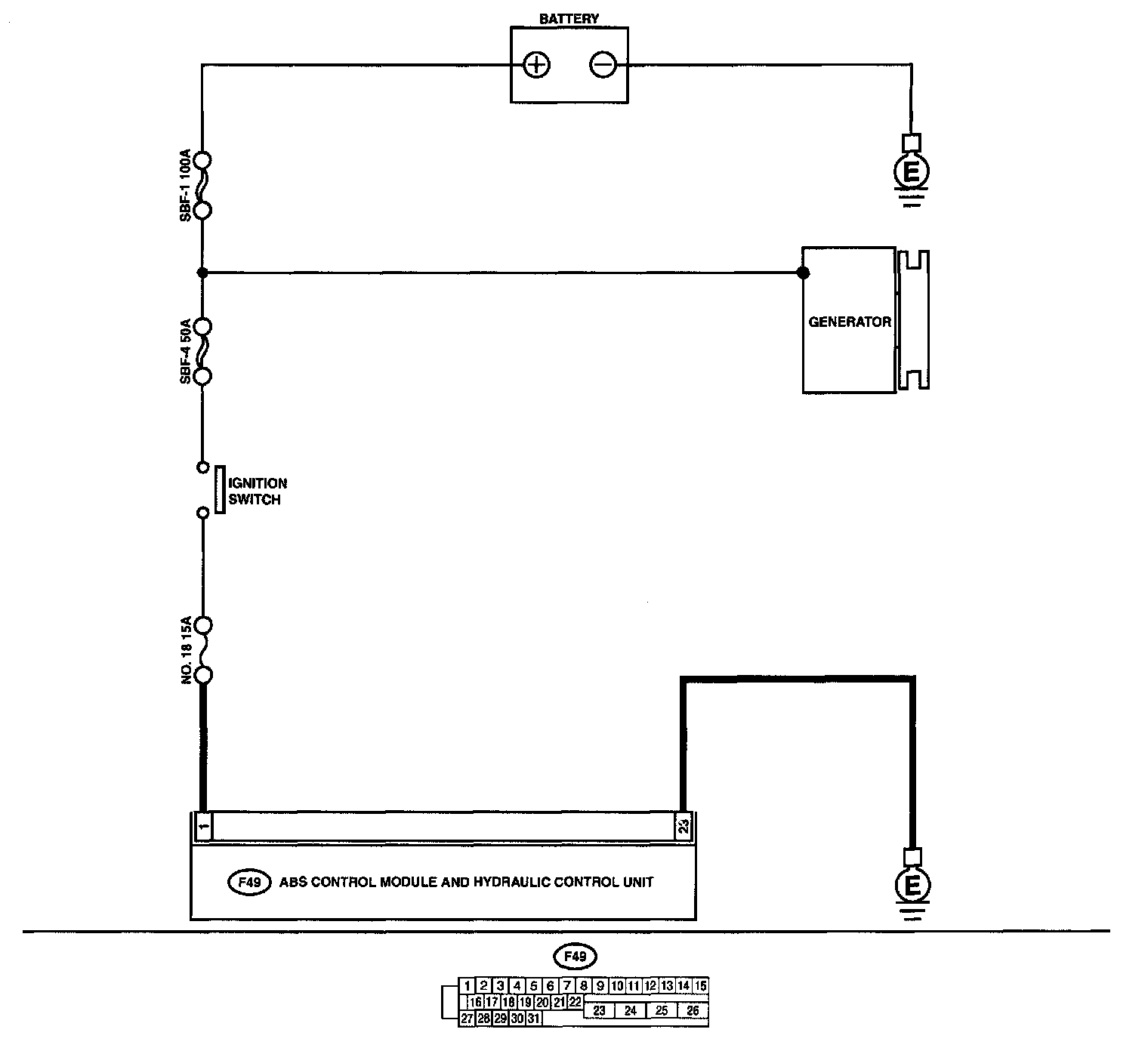

WIRING DIAGRAM

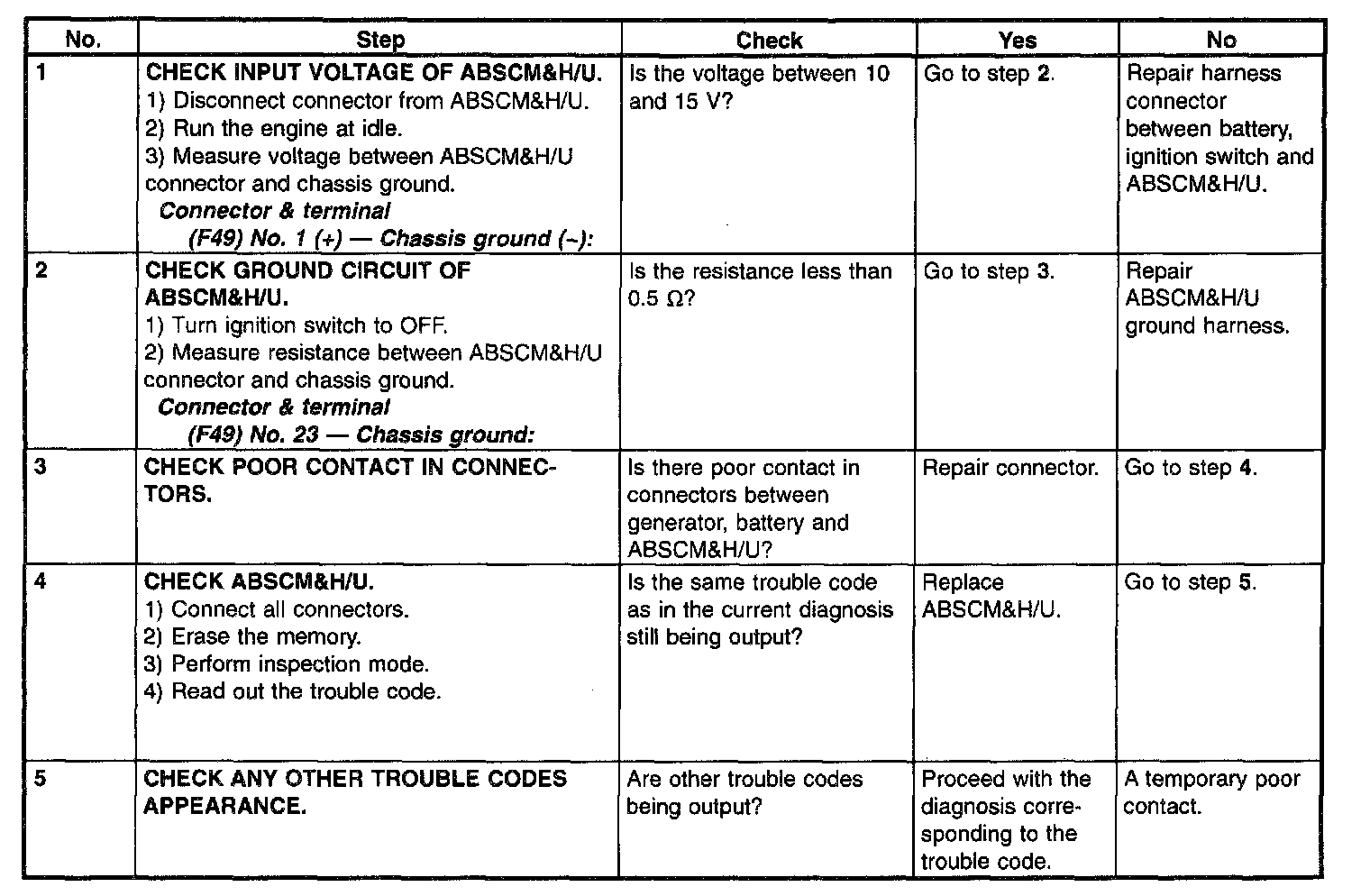

PROCEDURE
