Heating and Air Conditioning System

DTC 35 (MODE DOOR ACTUATOR)

TROUBLE SYMPTOM:

Wiring Diagram:

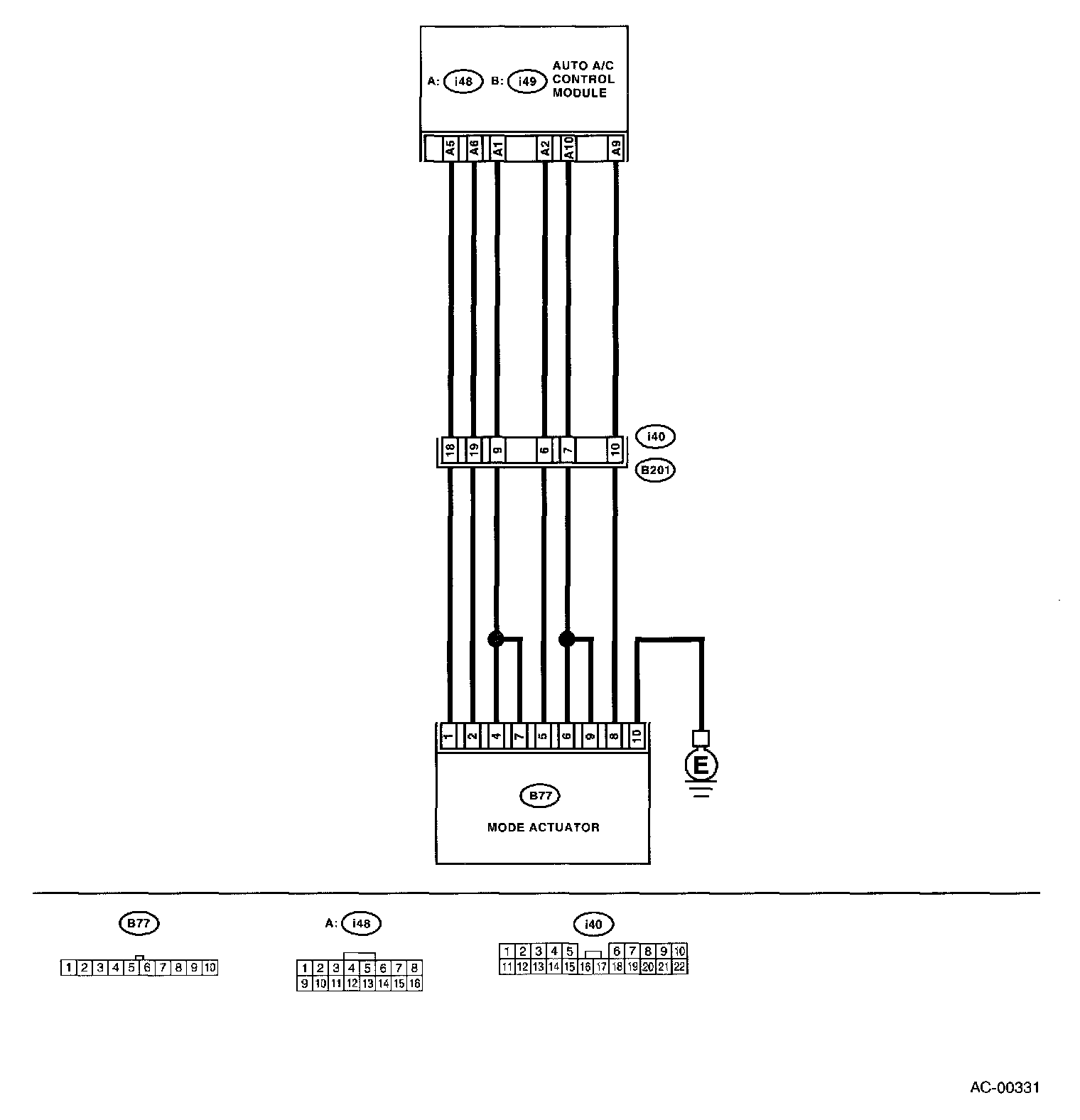

WIRING DIAGRAM:

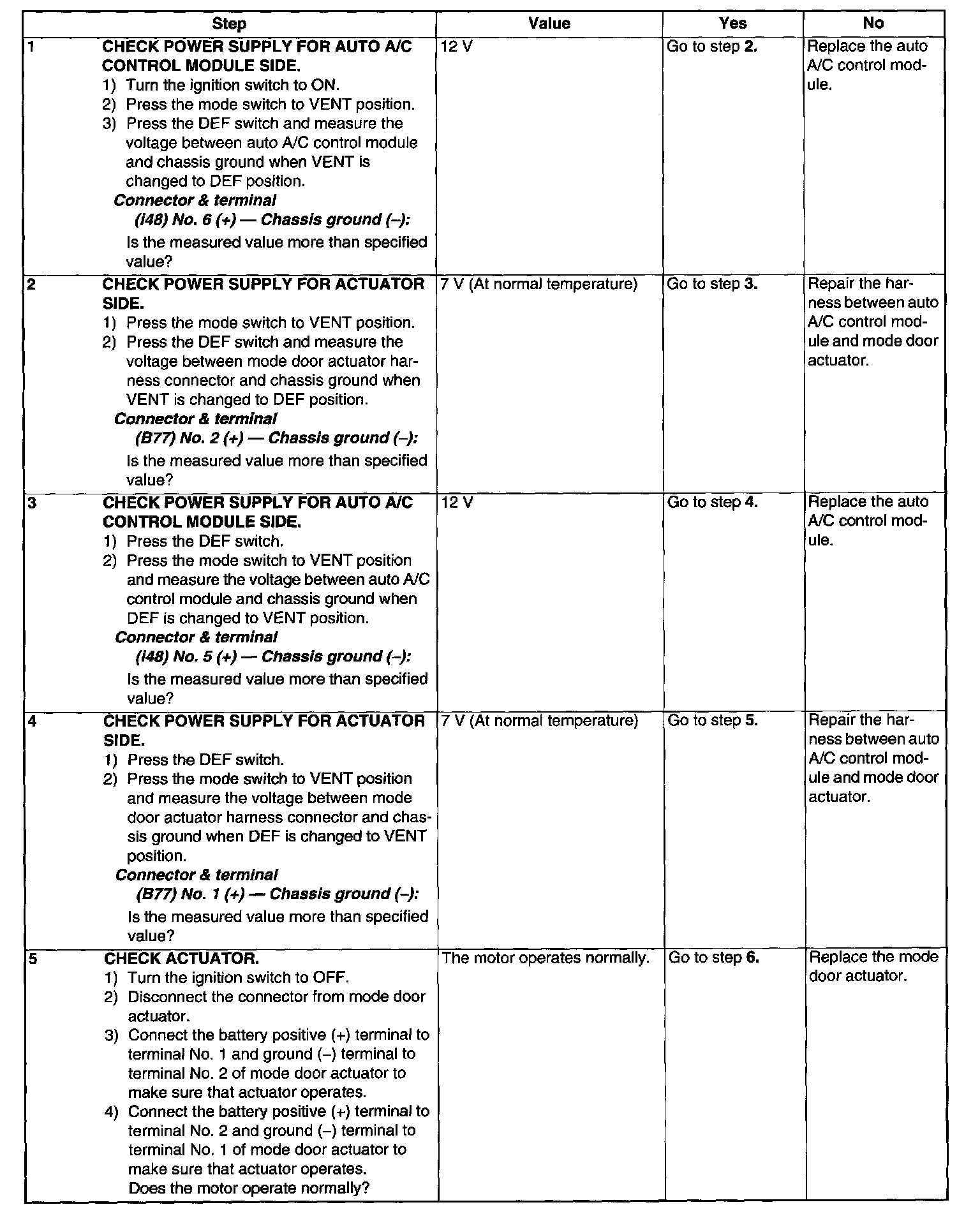

Step 1 - 5:

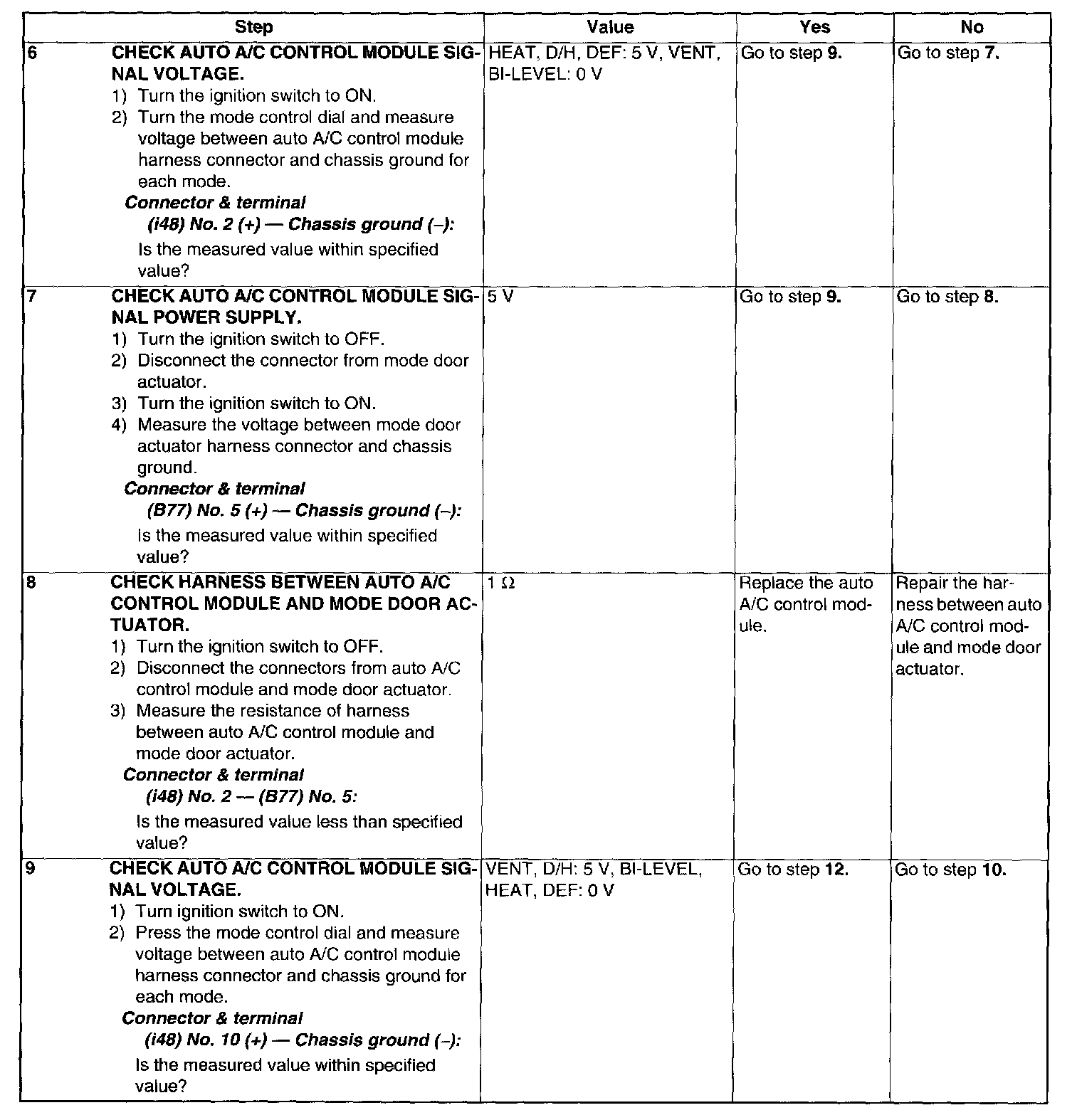

Step 6 - 9:

Step 10 - 13:

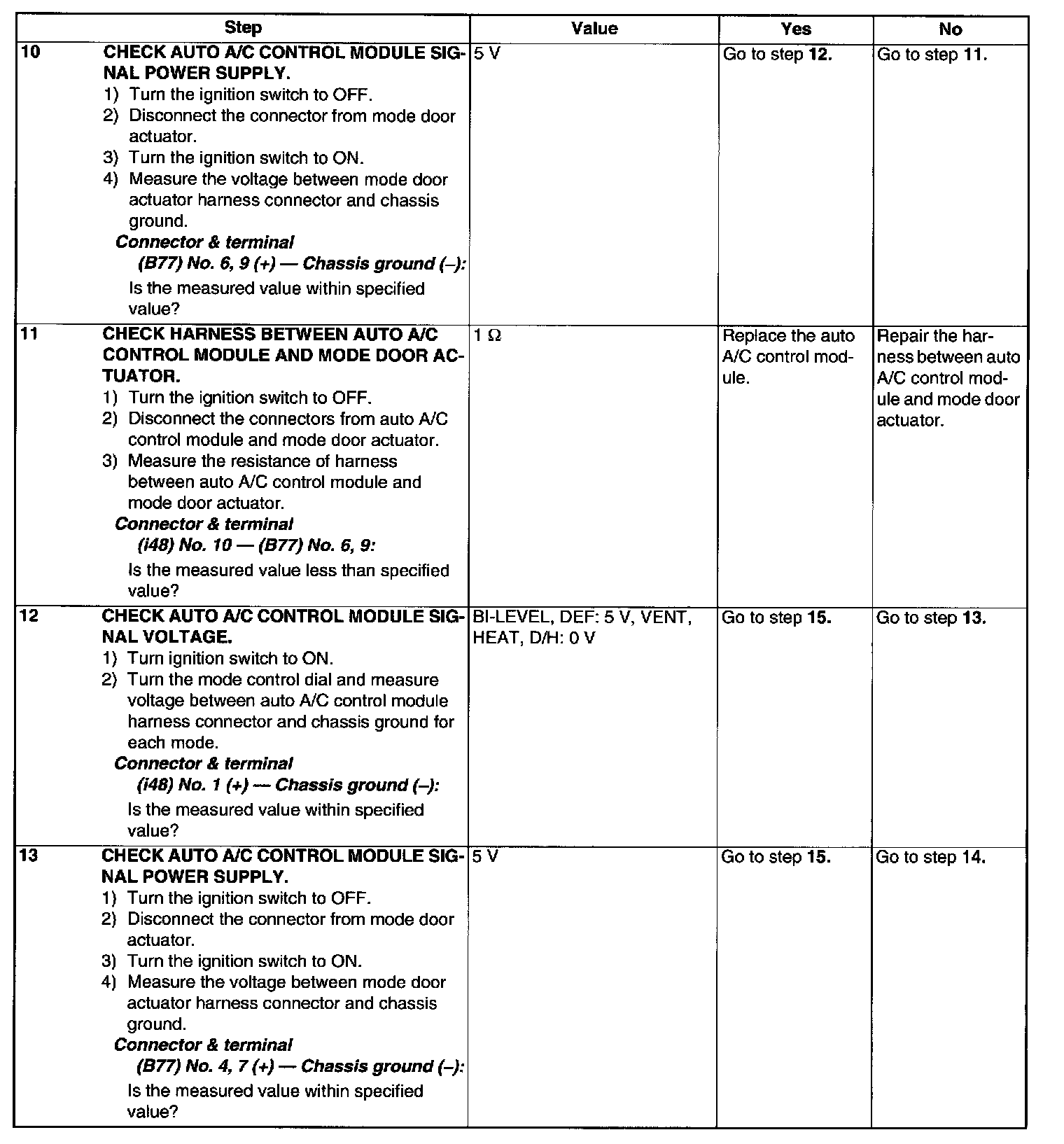

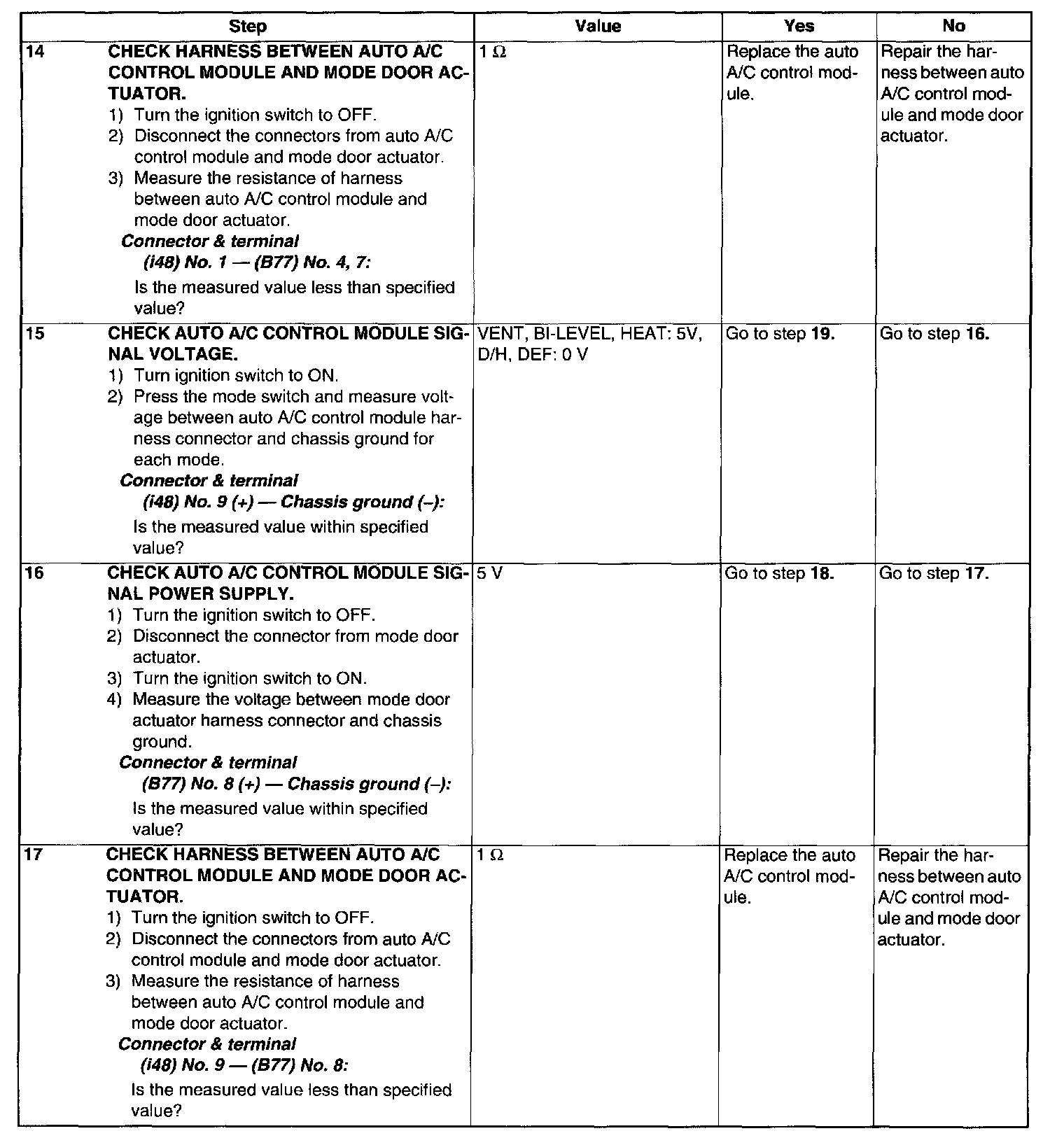

Step 14 - 17:

Step 18 - 19:

Air flow outlet is not changed.
