Vdc System Trouble Code Charts For Warning Light Codes

O: TROUBLE CODE 31 (FRONT RH INLET) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

P: TROUBLE CODE 33 (FRONT LH INLET) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

Q: TROUBLE CODE 35 (REAR RH INLET) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

R: TROUBLE CODE 37 (REAR LH INLET) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

S: TROUBLE CODE 61 (PRIMARY CUT) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

T: TROUBLE CODE 62 (SECONDARY CUT) ABNORMAL INLET AND CUT SOLENOID VALVE CIRCUIT(S)

DIAGNOSIS:
- Faulty harness/connector
- Faulty solenoid valve in VDCH/U
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

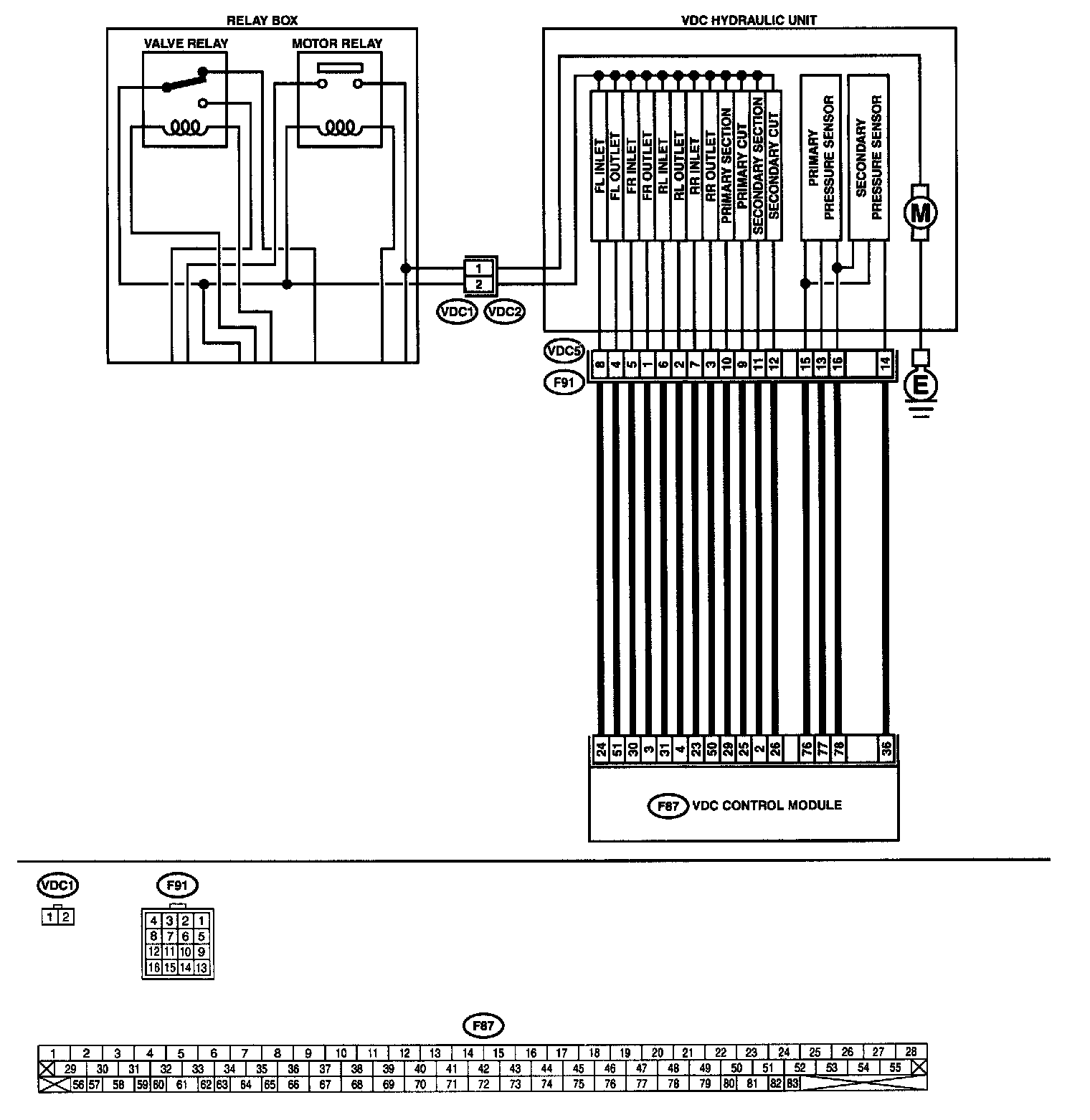

WIRING DIAGRAM

PROCEDURE:

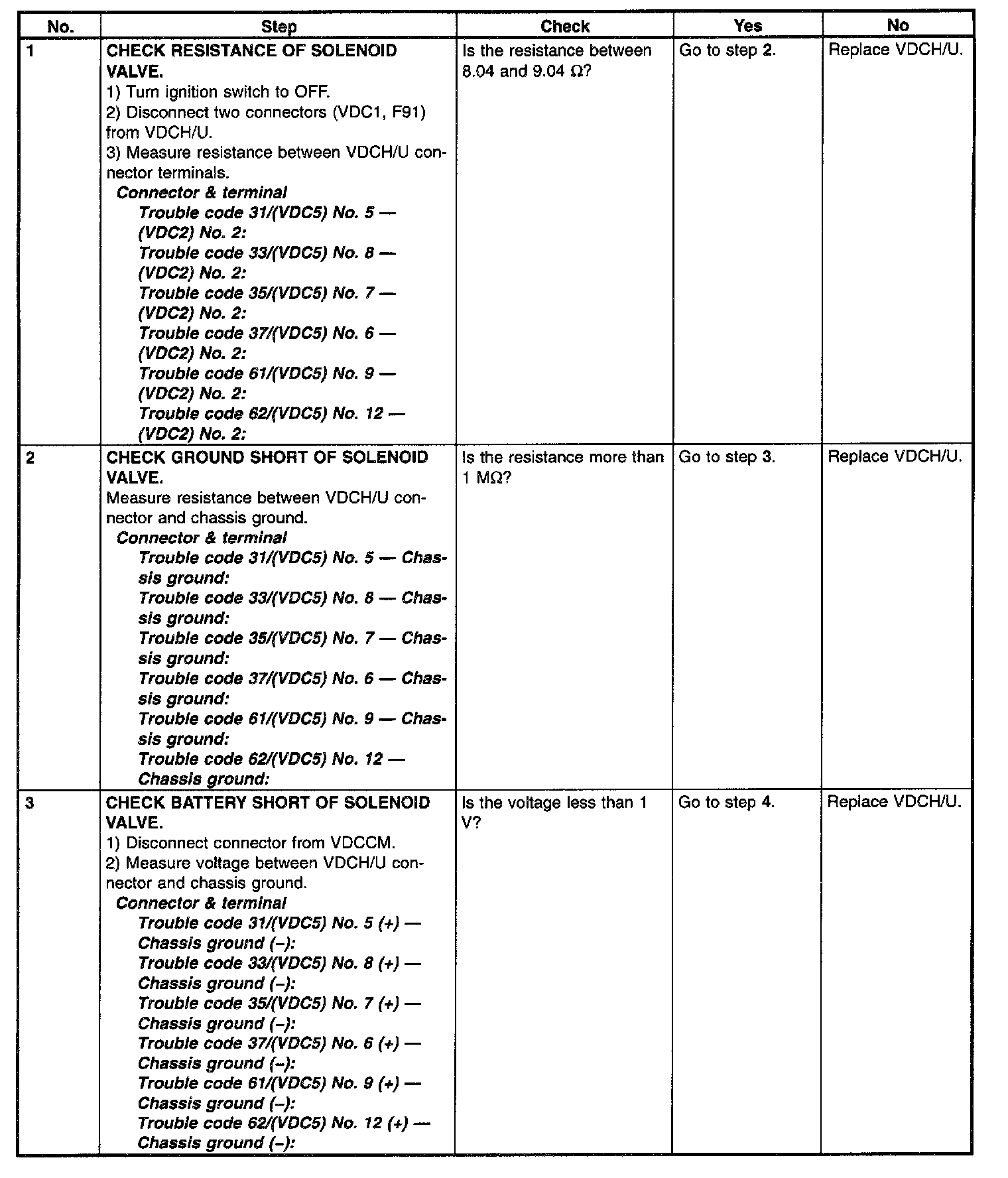

Part 1 of 3

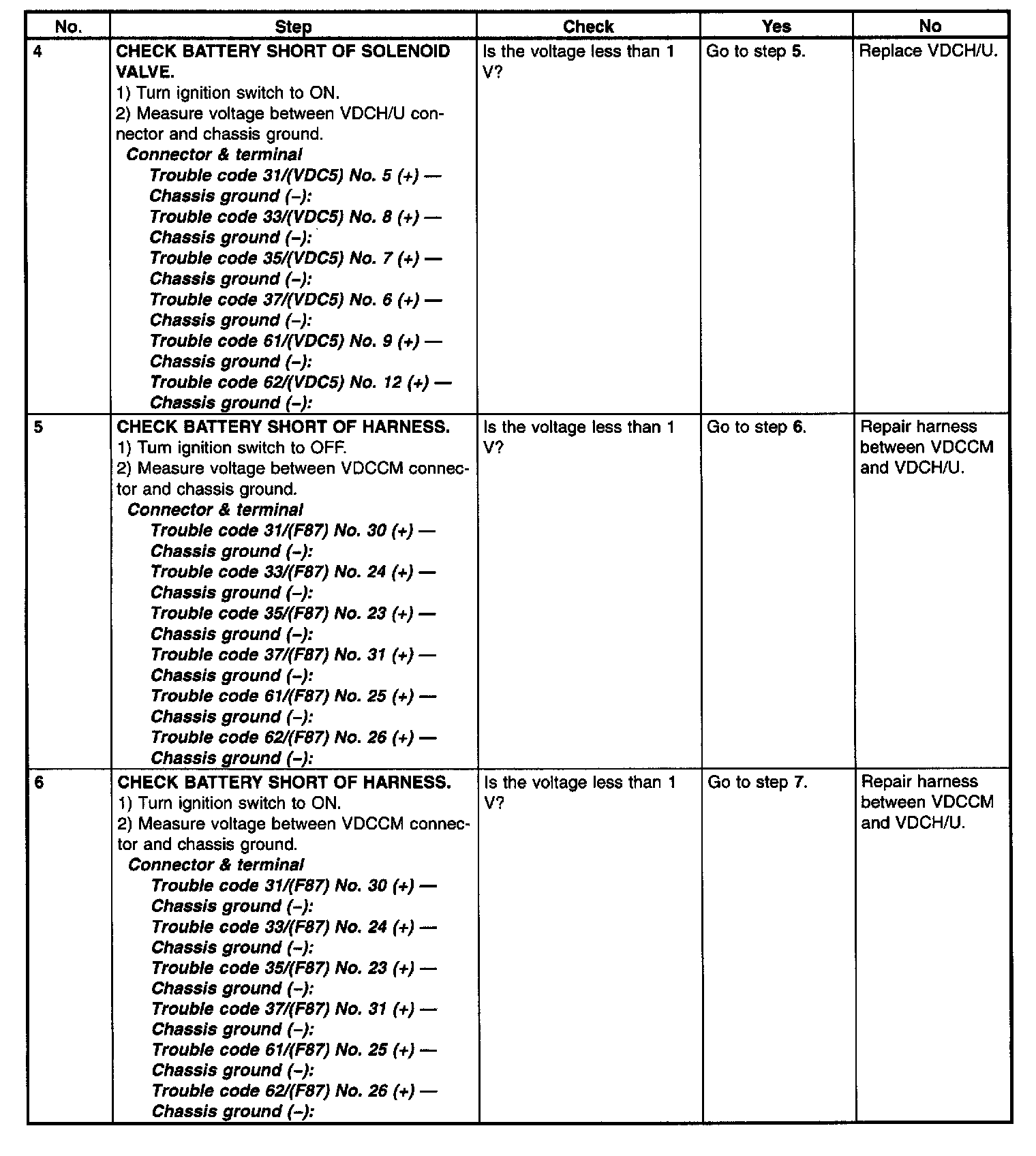

Part 2 of 3

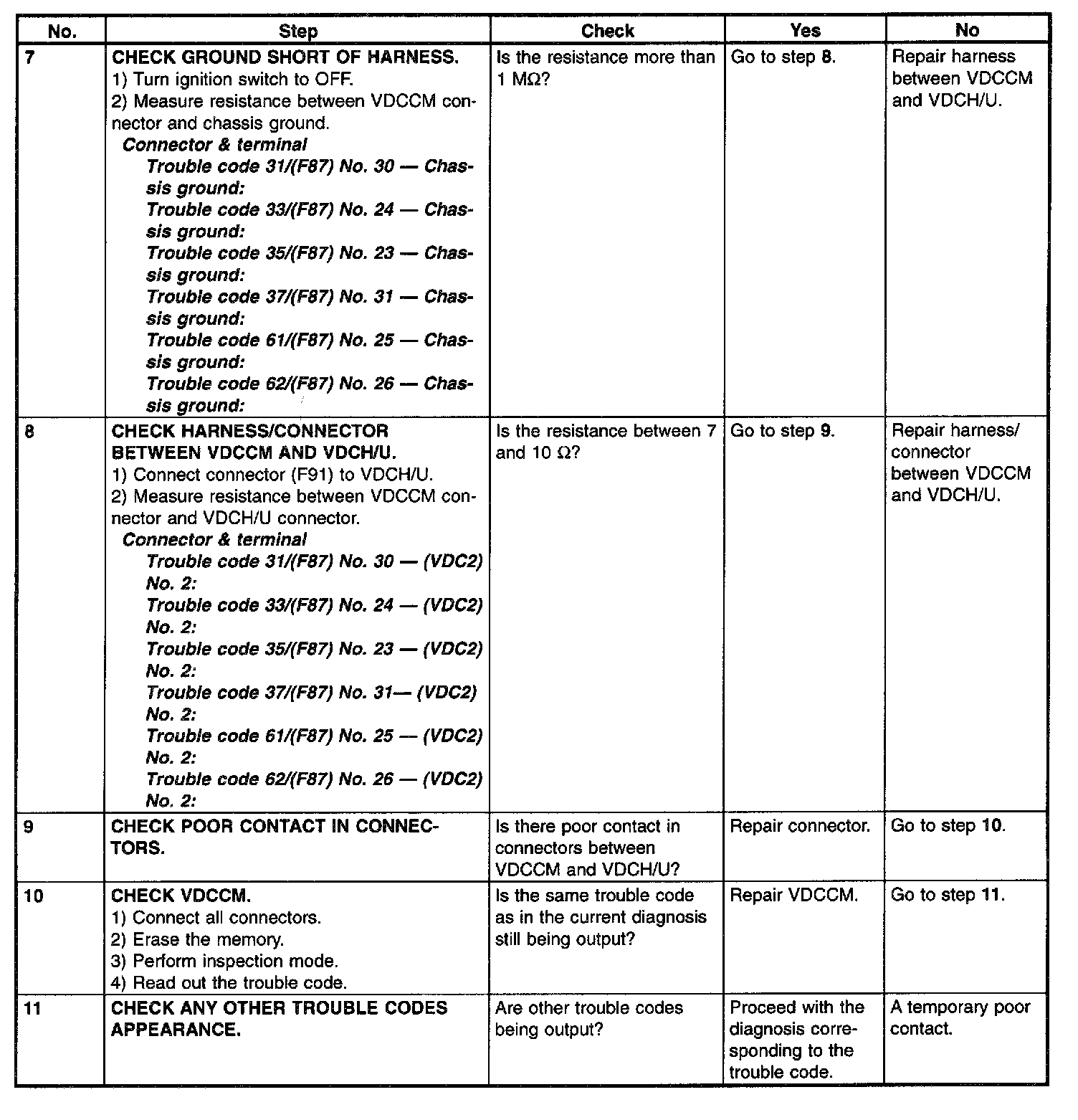

Part 3 of 3
