Transmission Control Systems

E: TROUBLE CODE 33 FRONT VEHICLE SPEED SENSOR
DIAGNOSIS:
- The vehicle speed signal is abnormal.
- The circuit in combination meter is faulty.
- The harness connector between TCM and vehicle speed sensor is in short or open.

TROUBLE SYMPTOM:
- Erroneous idling.
- Engine stalls.
- Poor driving performance.

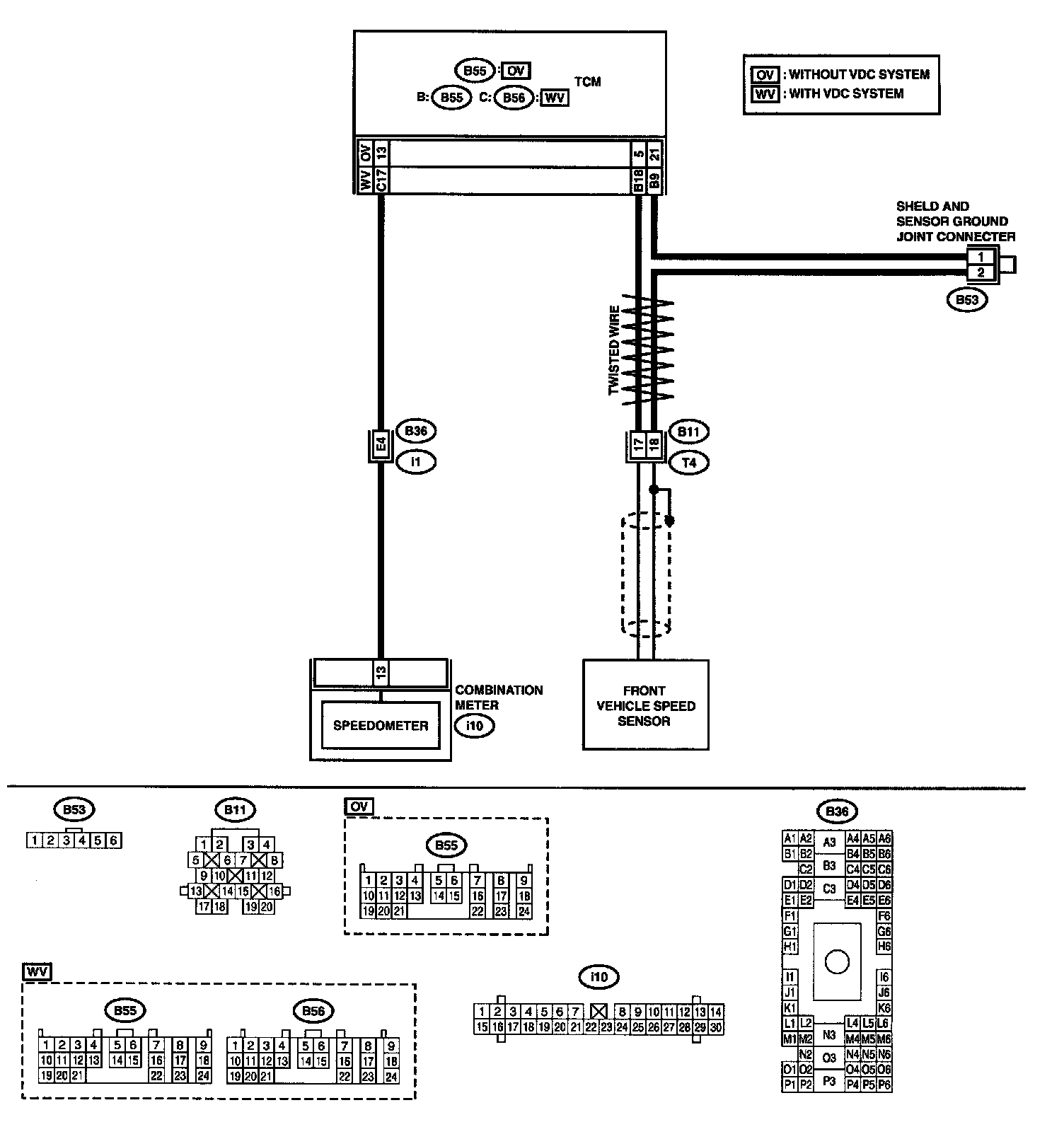

WIRING DIAGRAM:

PROCEDURE:

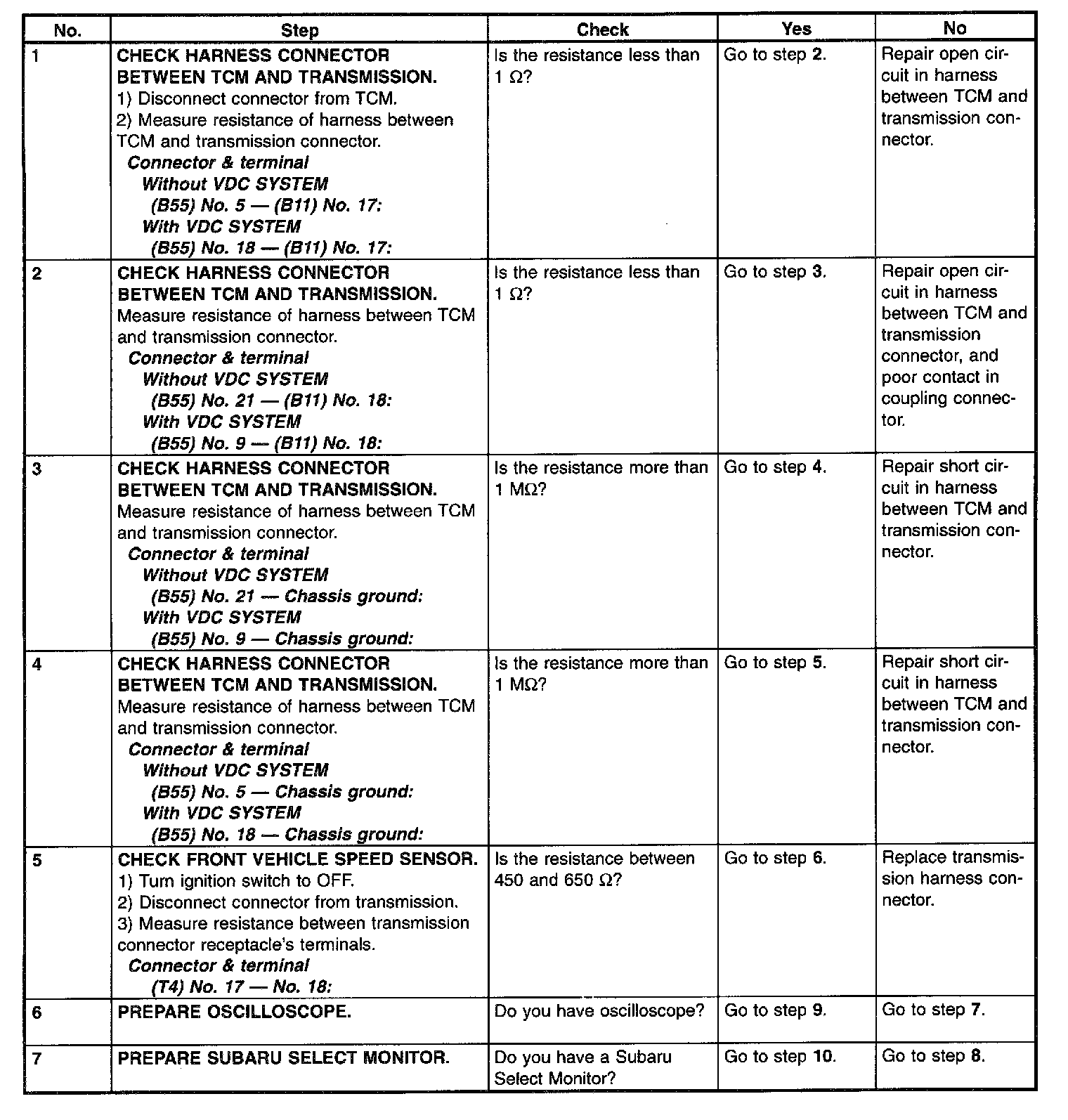

No.1 - 7

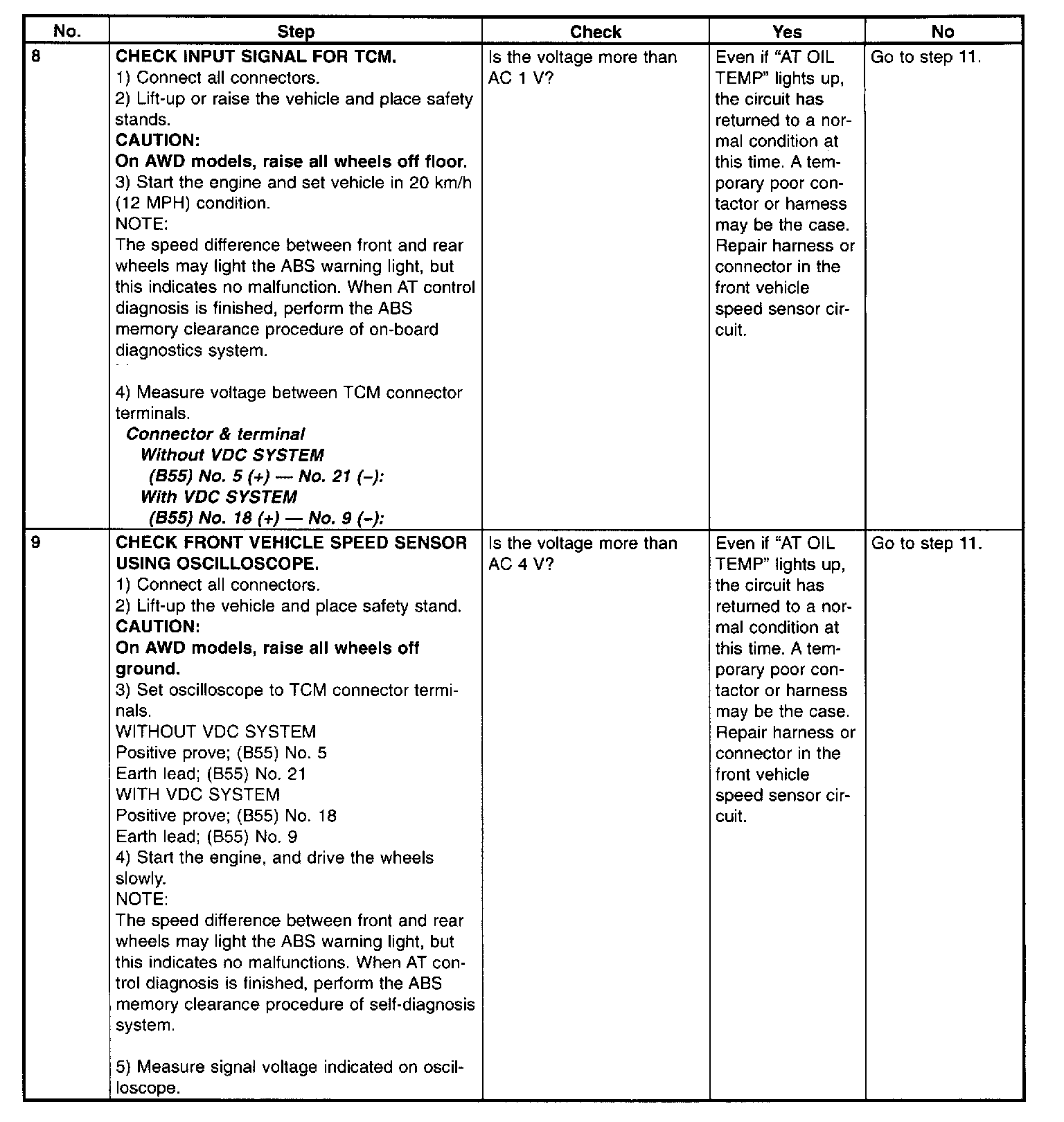

No.8 - 9

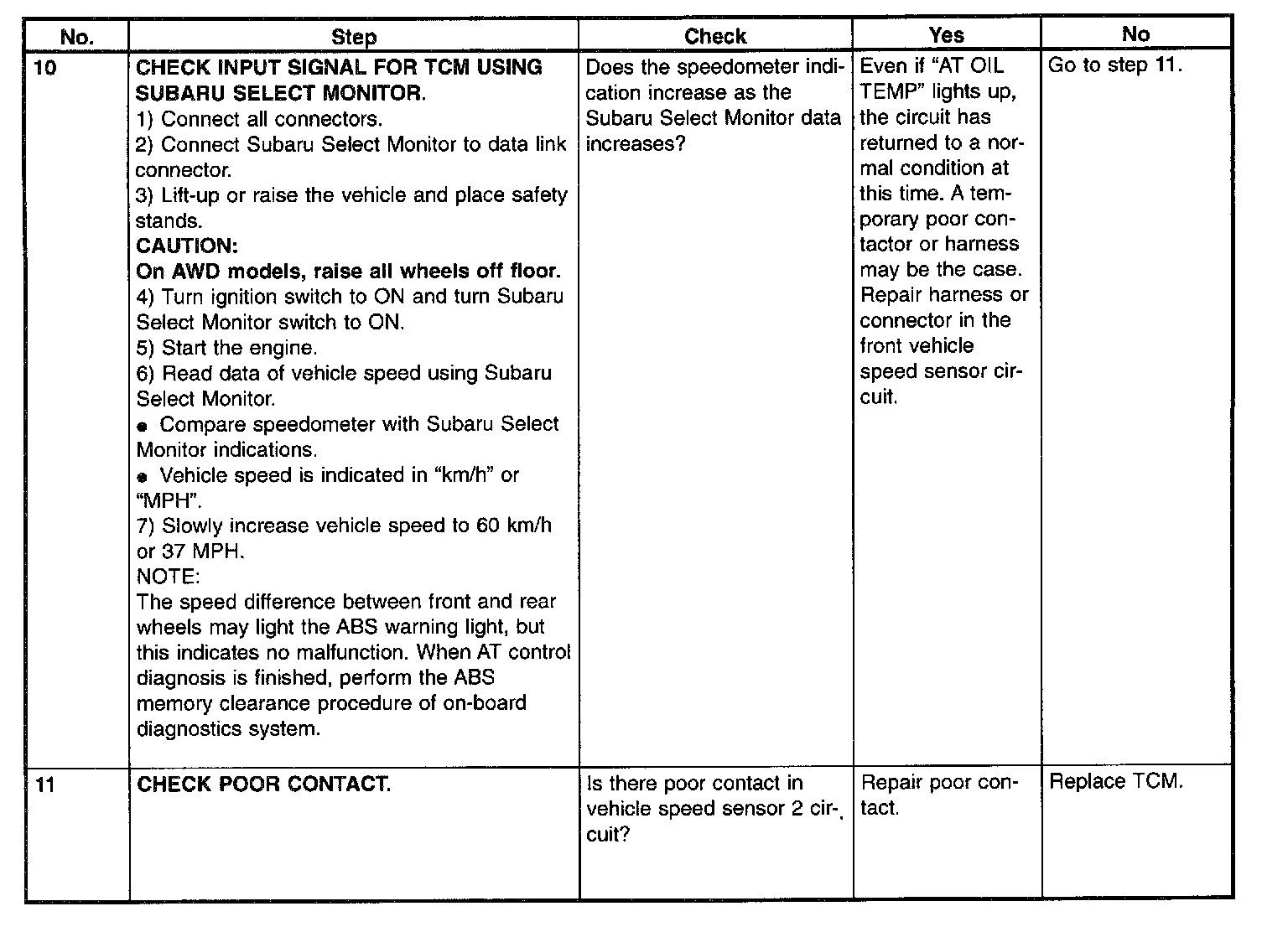

No.10 - 11
