ABS Trouble Code Charts For Warning Light Codes

M: TROUBLE CODE 31 -ABNORMAL INLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (FRONT RH)-

N: TROUBLE CODE 33 -ABNORMAL INLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (FRONT LH)-

O: TROUBLE CODE 35 -ABNORMAL INLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (REAR RH)-

P: TROUBLE CODE 37 -ABNORMAL INLET SOLENOID VALVE CIRCUIT(S) IN ABSCM & H/U (REAR LH)-

DIAGNOSIS:
- Faulty harness/connector
- Faulty inlet solenoid valve in ABSCM & H/U
TROUBLE SYMPTOM:
- ABS does not operate.

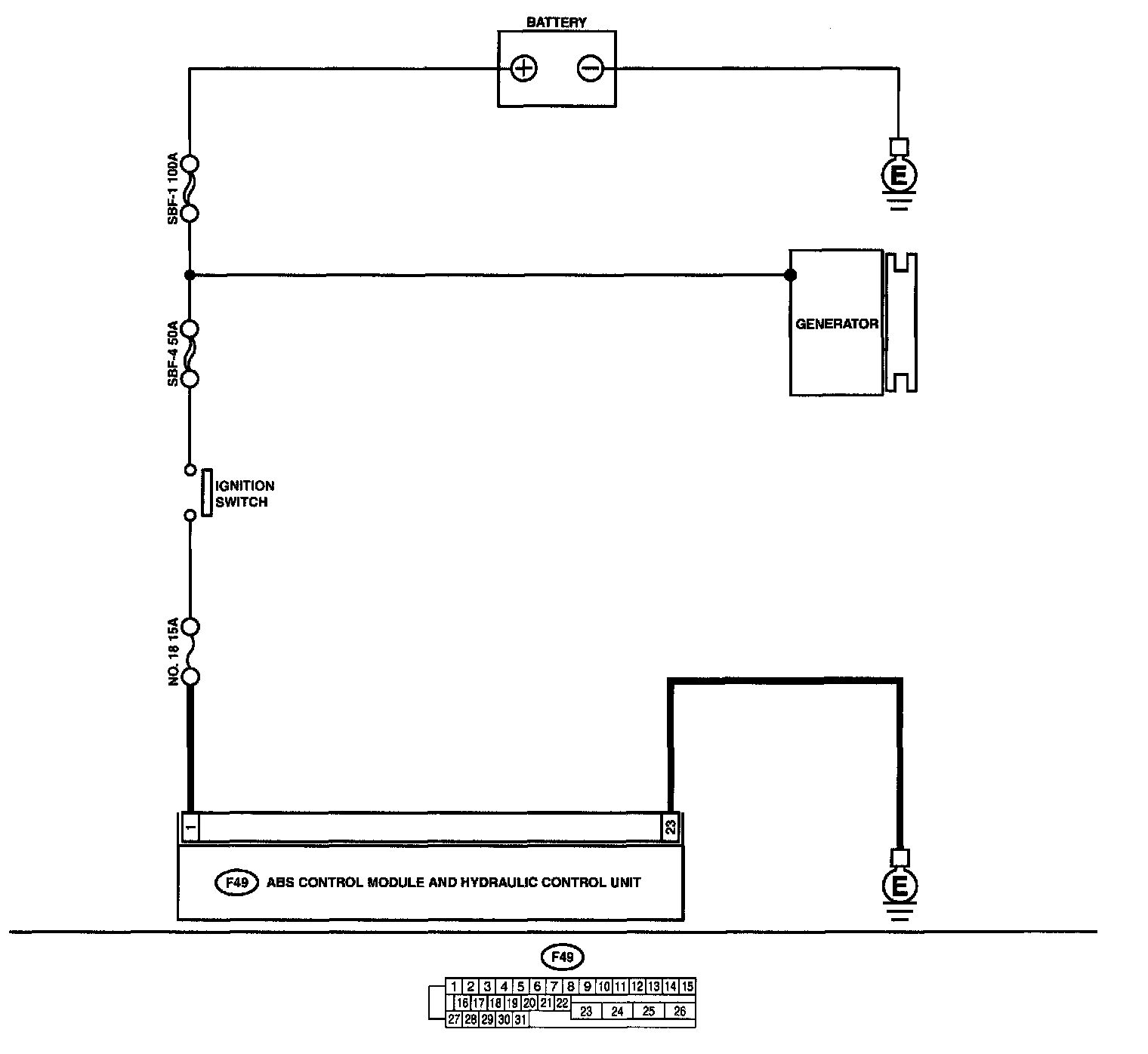

WIRING DIAGRAM

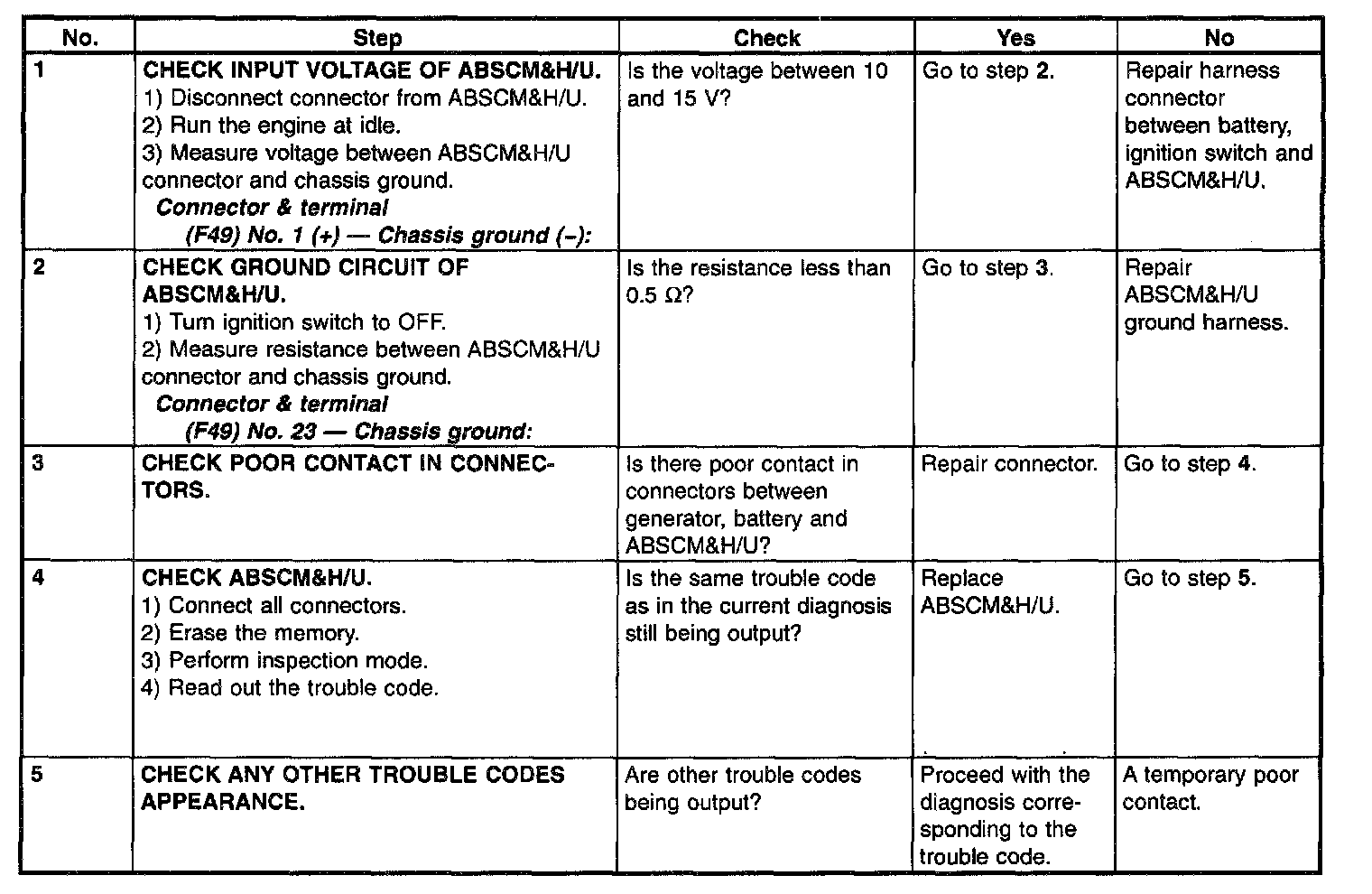

PROCEDURE
