Vdc System Trouble Code Charts For Warning Light Codes
N: TROUBLE CODE 29 ABNORMAL ABS SENSOR SIGNAL (ANY ONE OF FOUR)DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty tone wheel
- Wheels turning freely for a long time
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

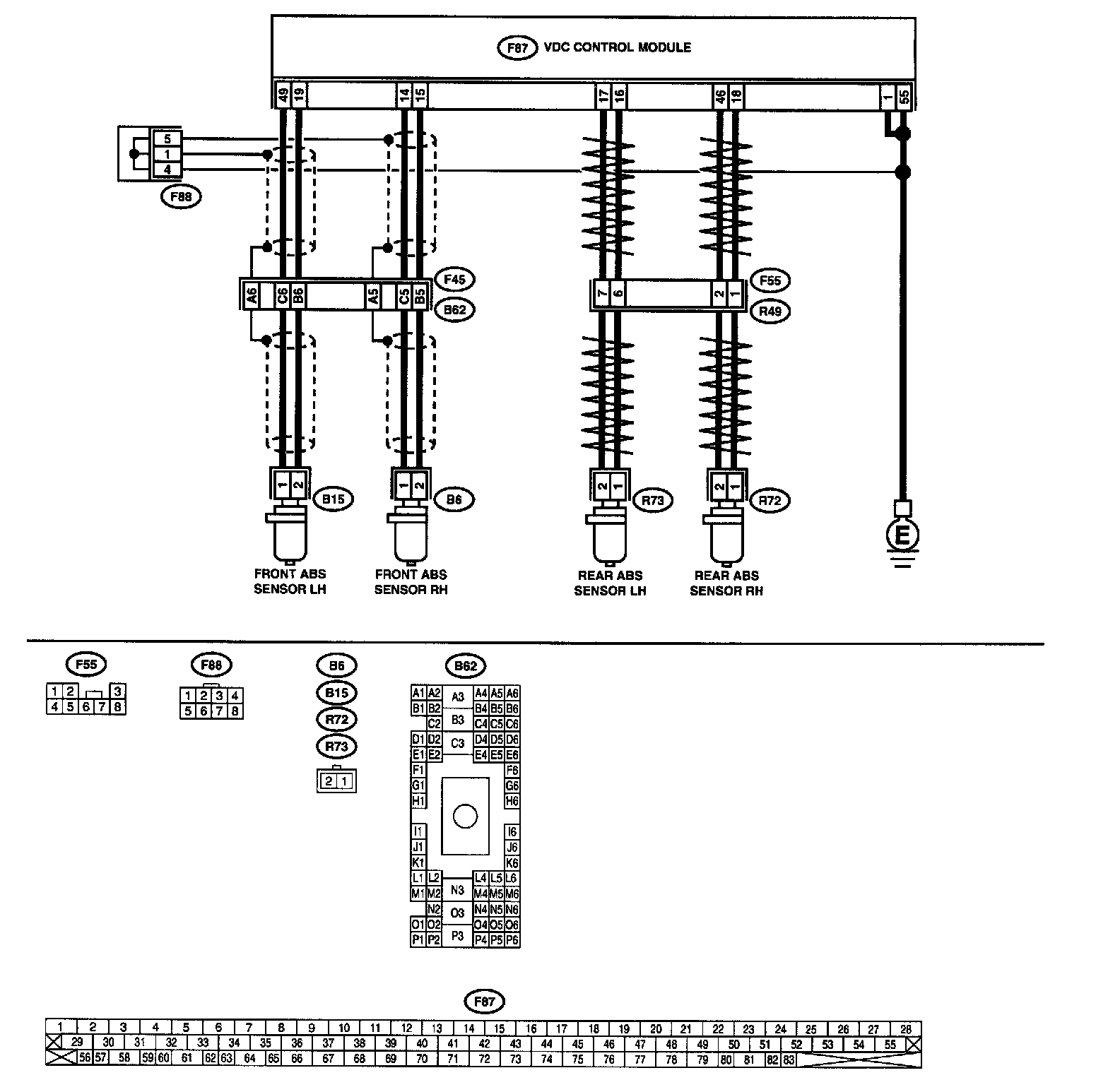

WIRING DIAGRAM
PROCEDURE:

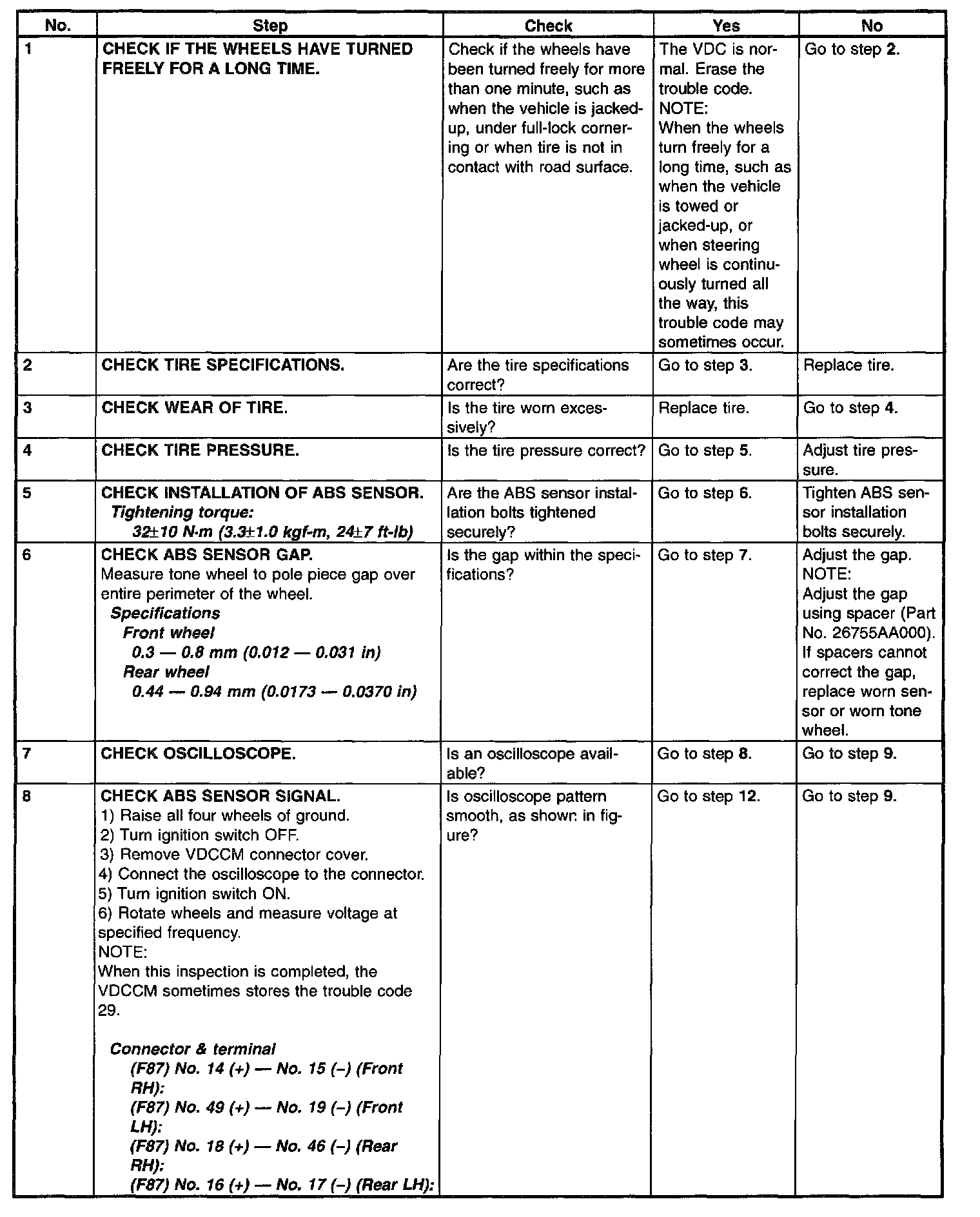

Part 1 of 2

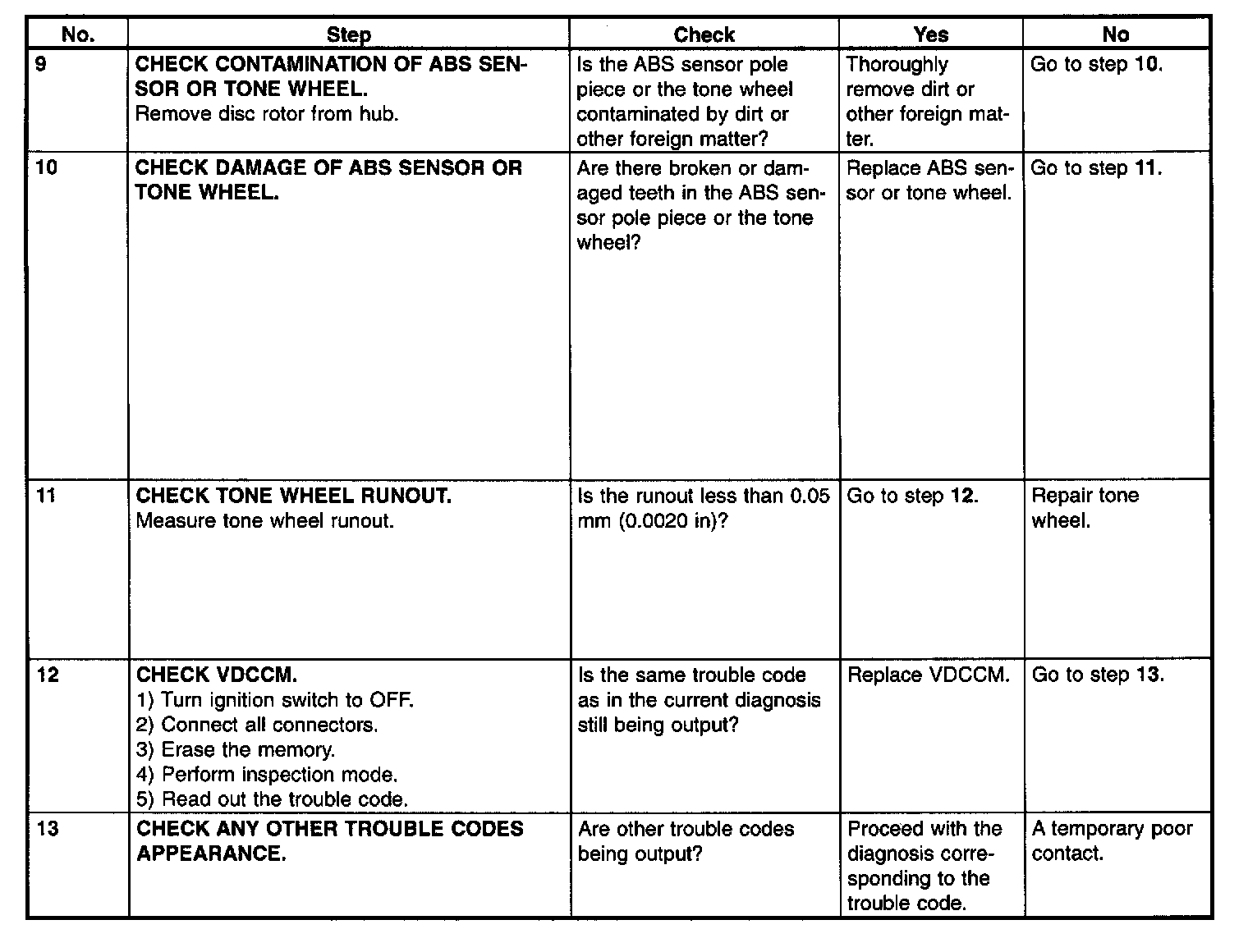

Part 2 of 2
