ABS Trouble Code Charts For Select Monitor Results

K: TROUBLE CODE 29 -ABNORMAL ABS SENSOR SIGNAL ON ANY ONE OF FOUR SENSOR-

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty tone wheel
- Wheels turning freely for a long time
TROUBLE SYMPTOM:
- ABS does not operate.

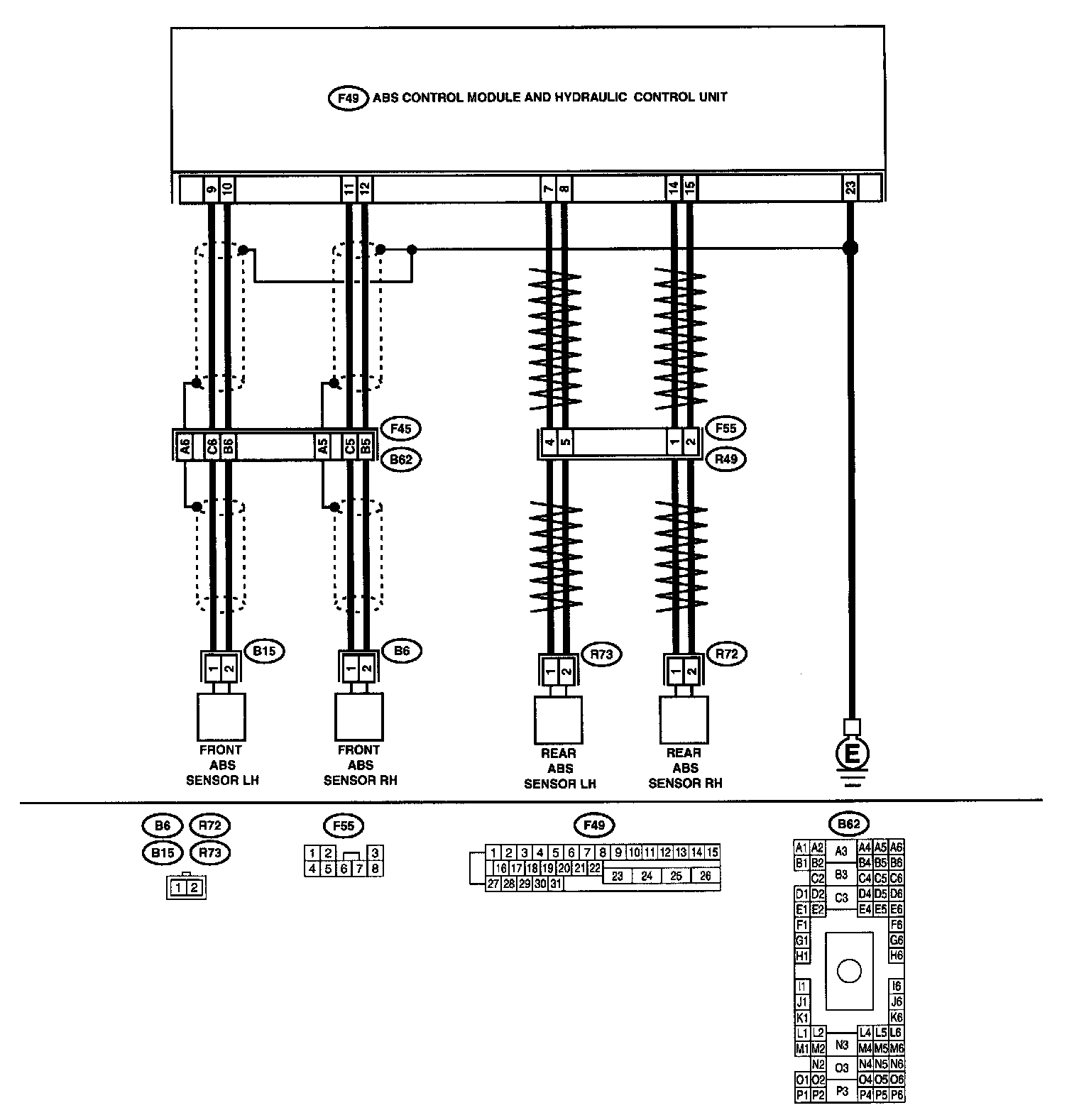

WIRING DIAGRAM

PROCEDURE:

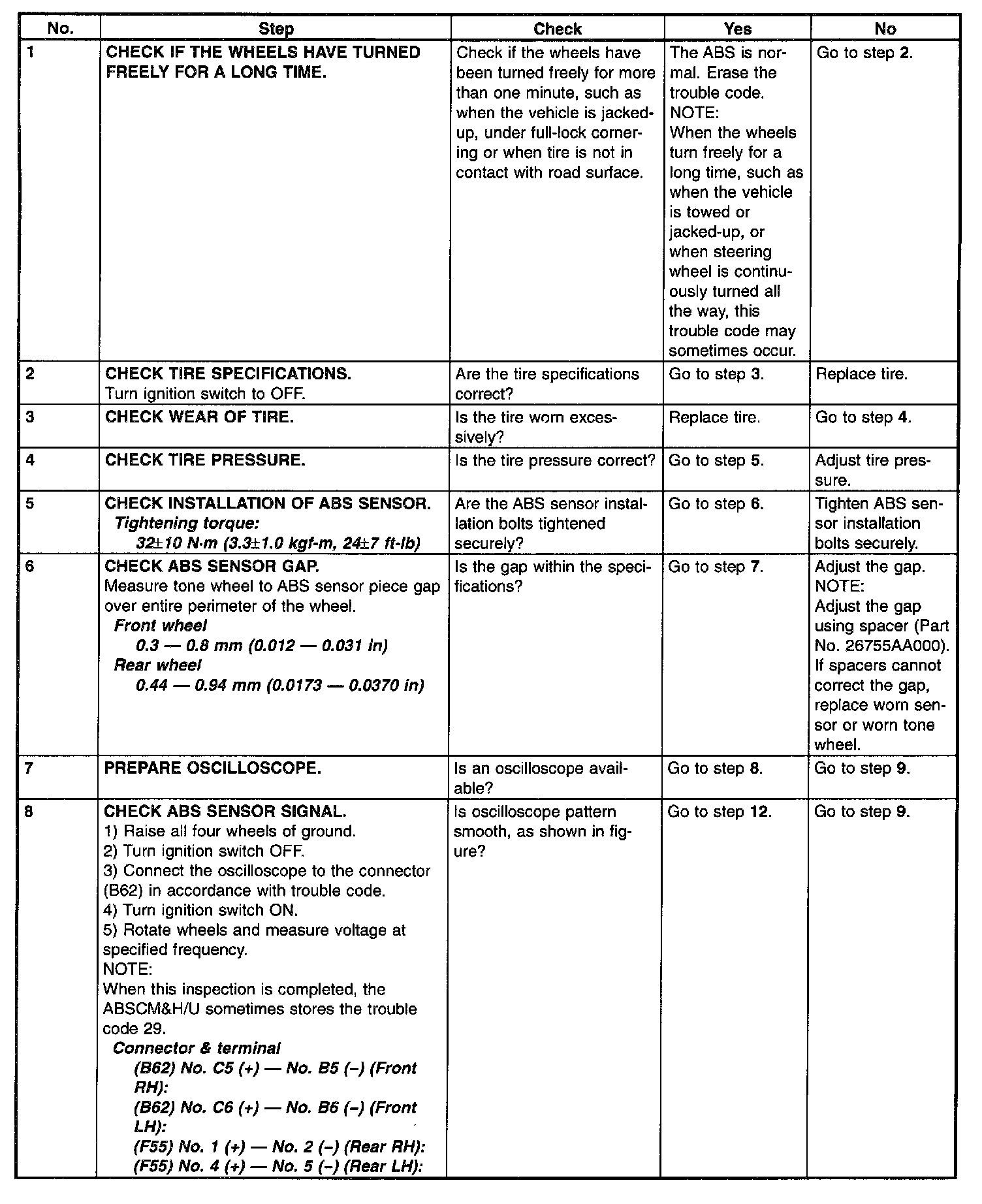

Part 1 of 2

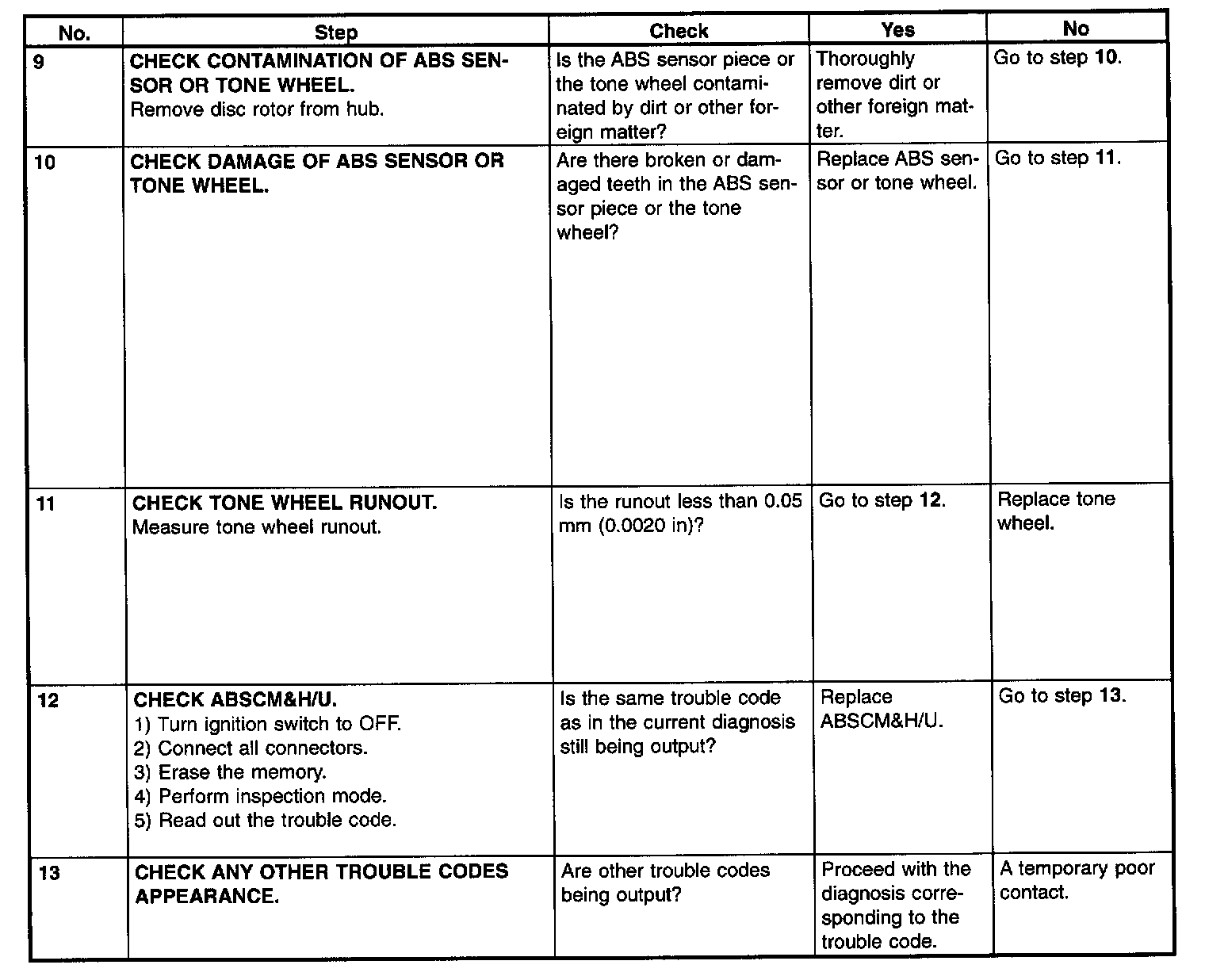

Part 2 of 2
