Vdc System Trouble Code Charts For Warning Light Codes

J: TROUBLE CODE 22 (FRONT RH) ABNORMAL ABS SENSOR (ABNORMAL ABS SENSOR SIGNAL)

K: TROUBLE CODE 24 (FRONT LH) ABNORMAL ABS SENSOR (ABNORMAL ABS SENSOR SIGNAL)

L: TROUBLE CODE 26 (REAR RH) ABNORMAL ABS SENSOR (ABNORMAL ABS SENSOR SIGNAL)

M: TROUBLE CODE 28 (REAR LH) ABNORMAL ABS SENSOR (ABNORMAL ABS SENSOR SIGNAL)

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty harness/connector
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

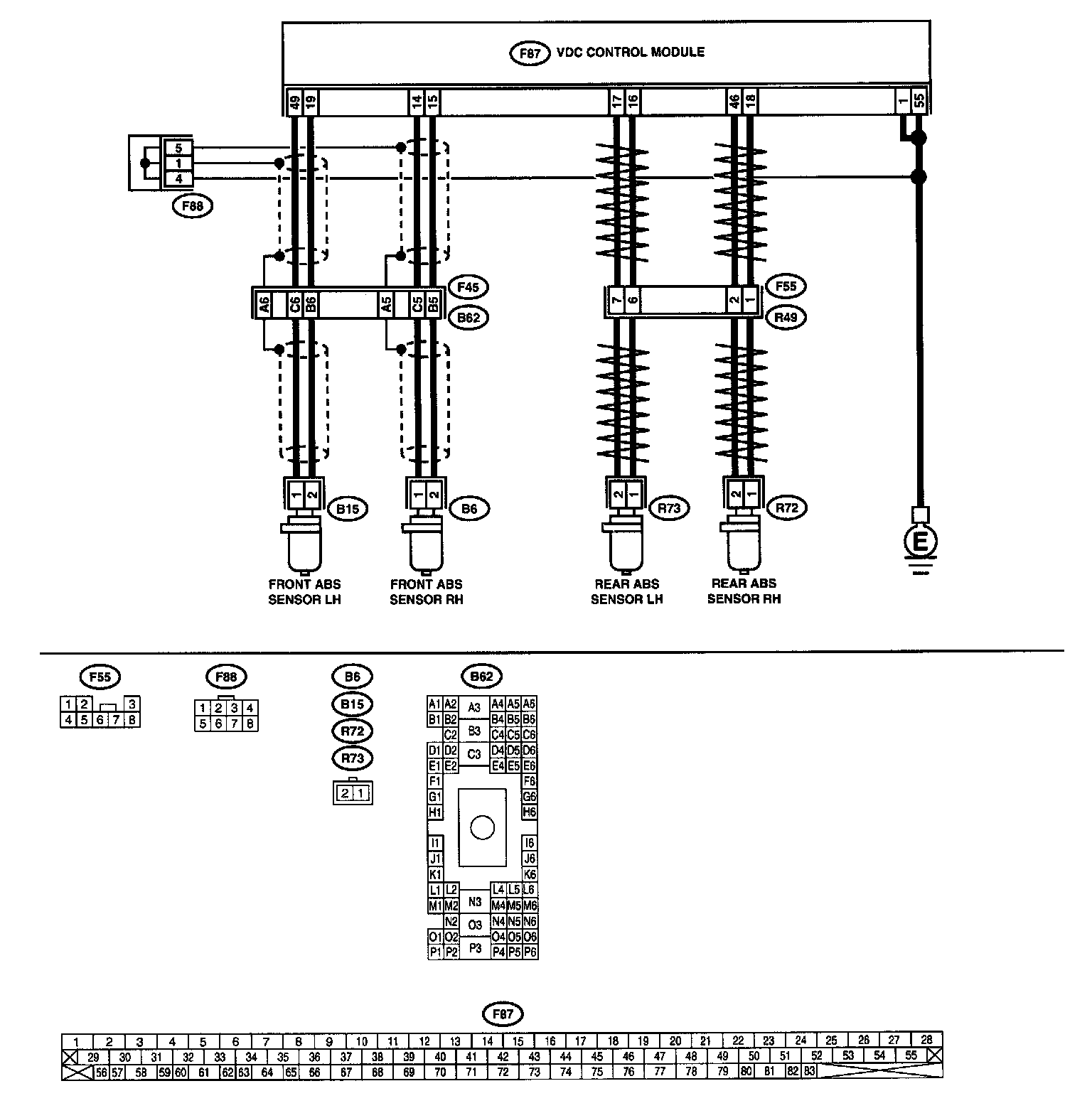

WIRING DIAGRAM

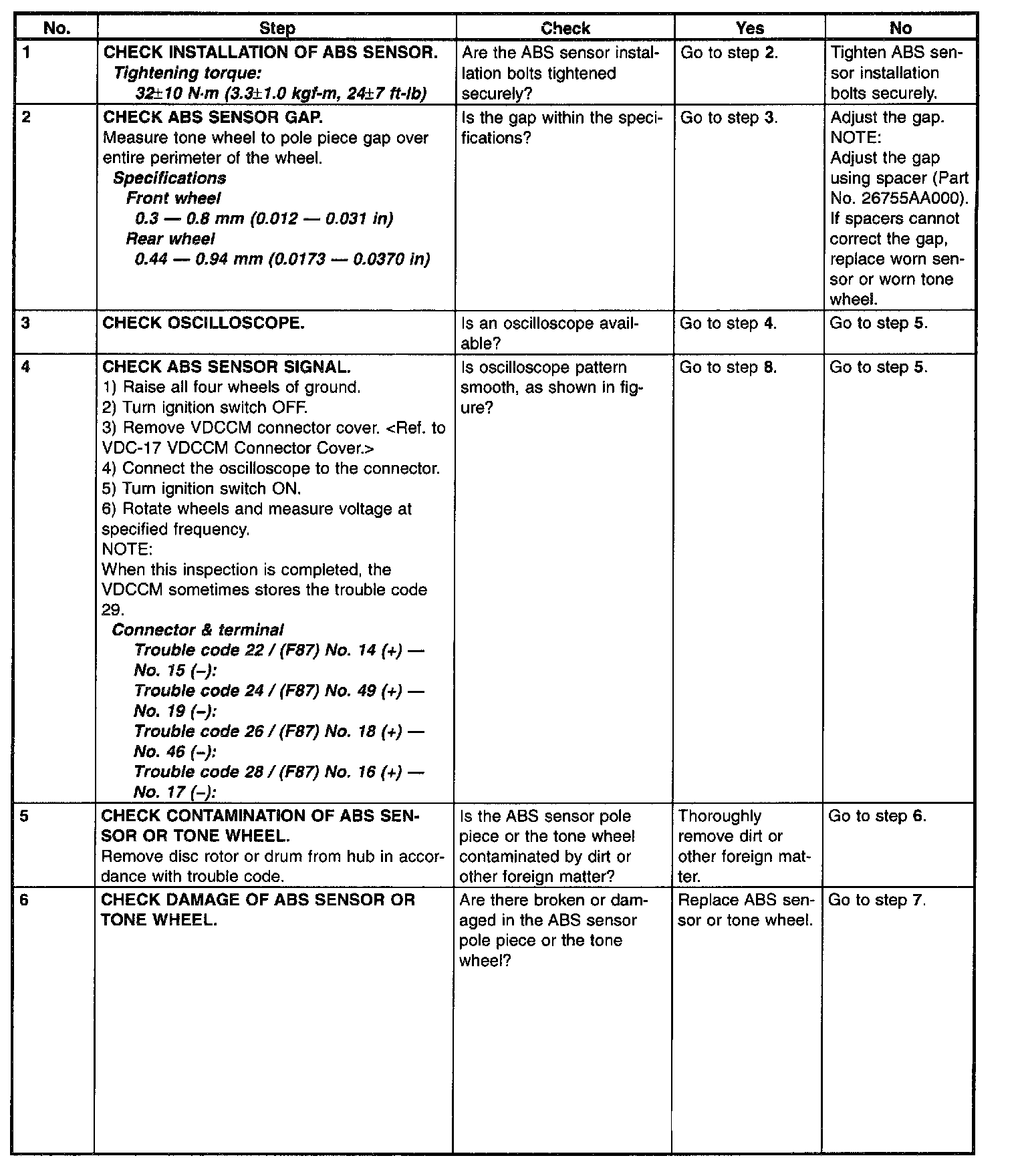

PROCEDURE:

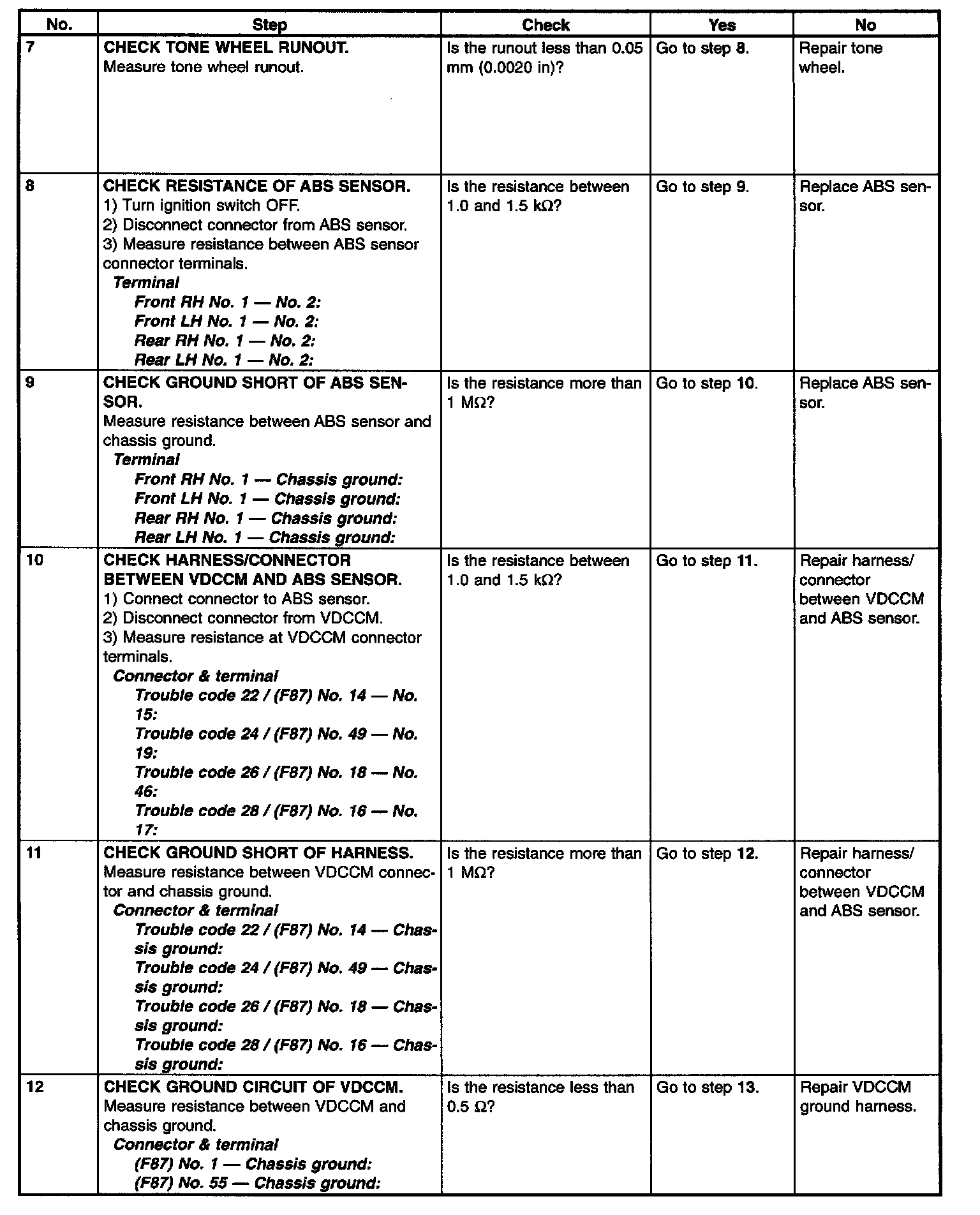

Part 1 of 3

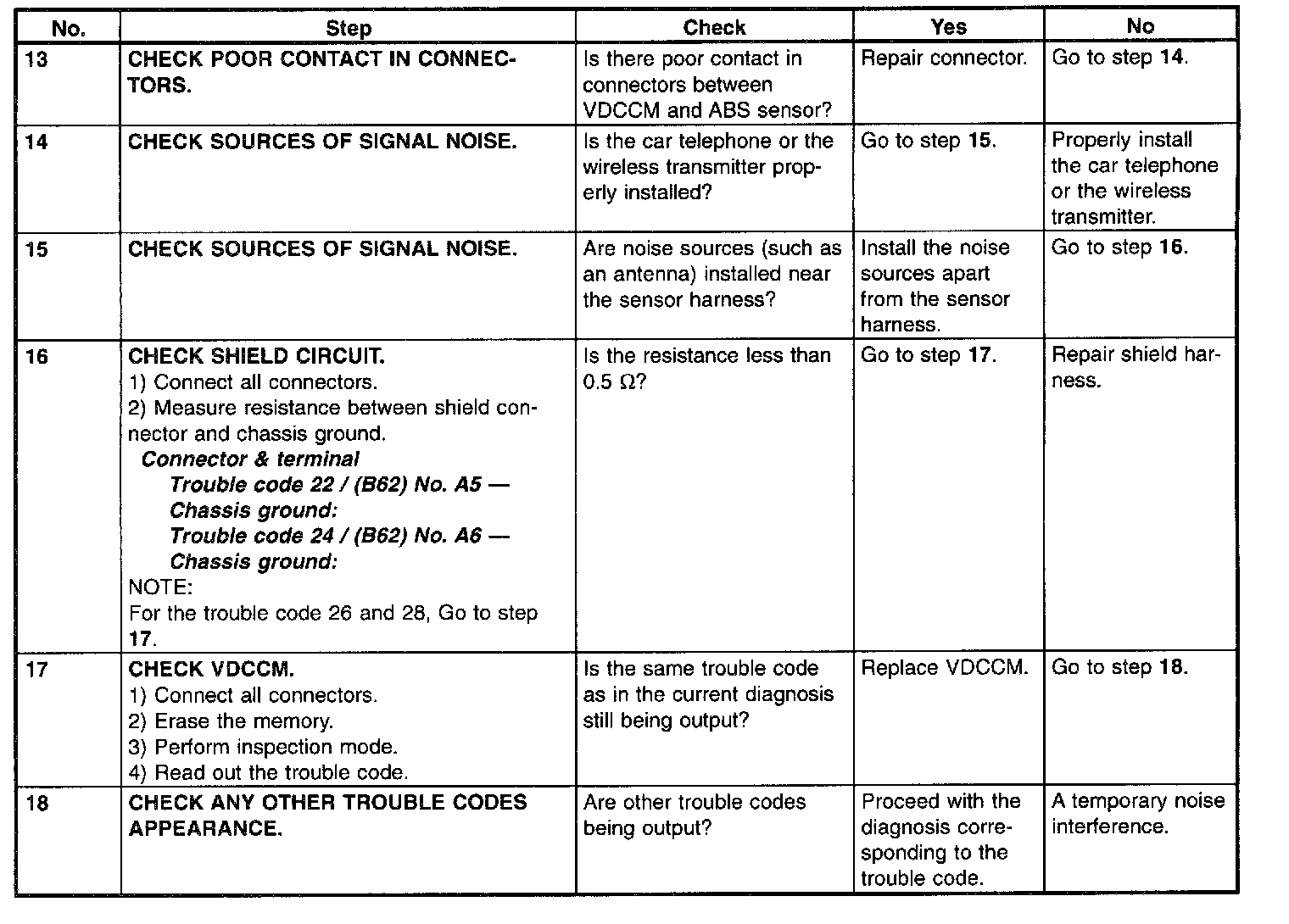

Part 2 of 3





Part 3 of 3
