Vdc System Trouble Code Charts For Select Monitor Results

F: TROUBLE CODE 22 FRONT RIGHT ABS SENSOR SIGNAL

G: TROUBLE CODE 24 FRONT LEFT ABS SENSOR SIGNAL

H: TROUBLE CODE 26 REAR RIGHT ABS SENSOR SIGNAL

I: TROUBLE CODE 28 REAR LEFT ABS SENSOR SIGNAL

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal)
- Faulty harness/connector
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

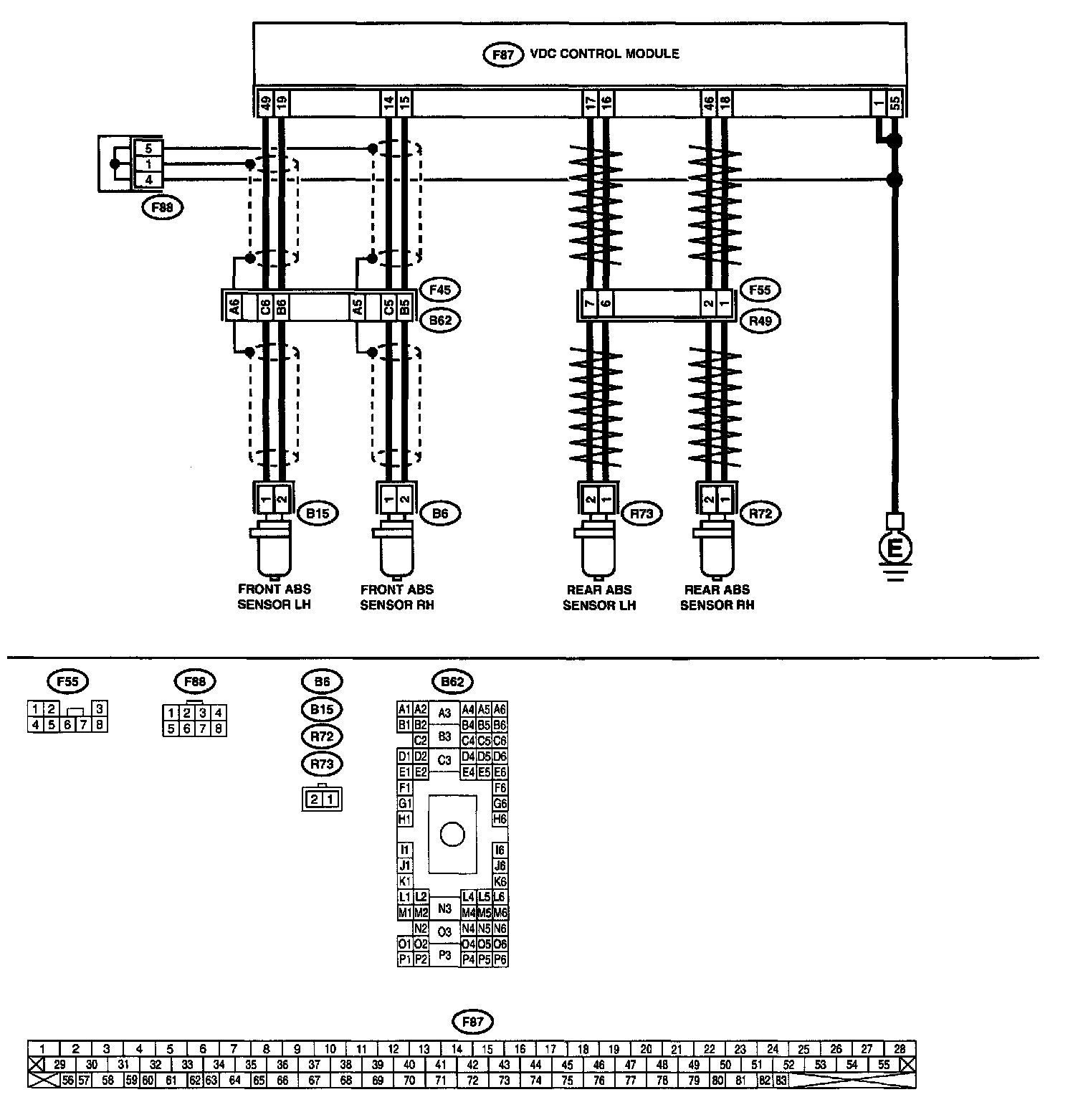

WIRING DIAGRAM

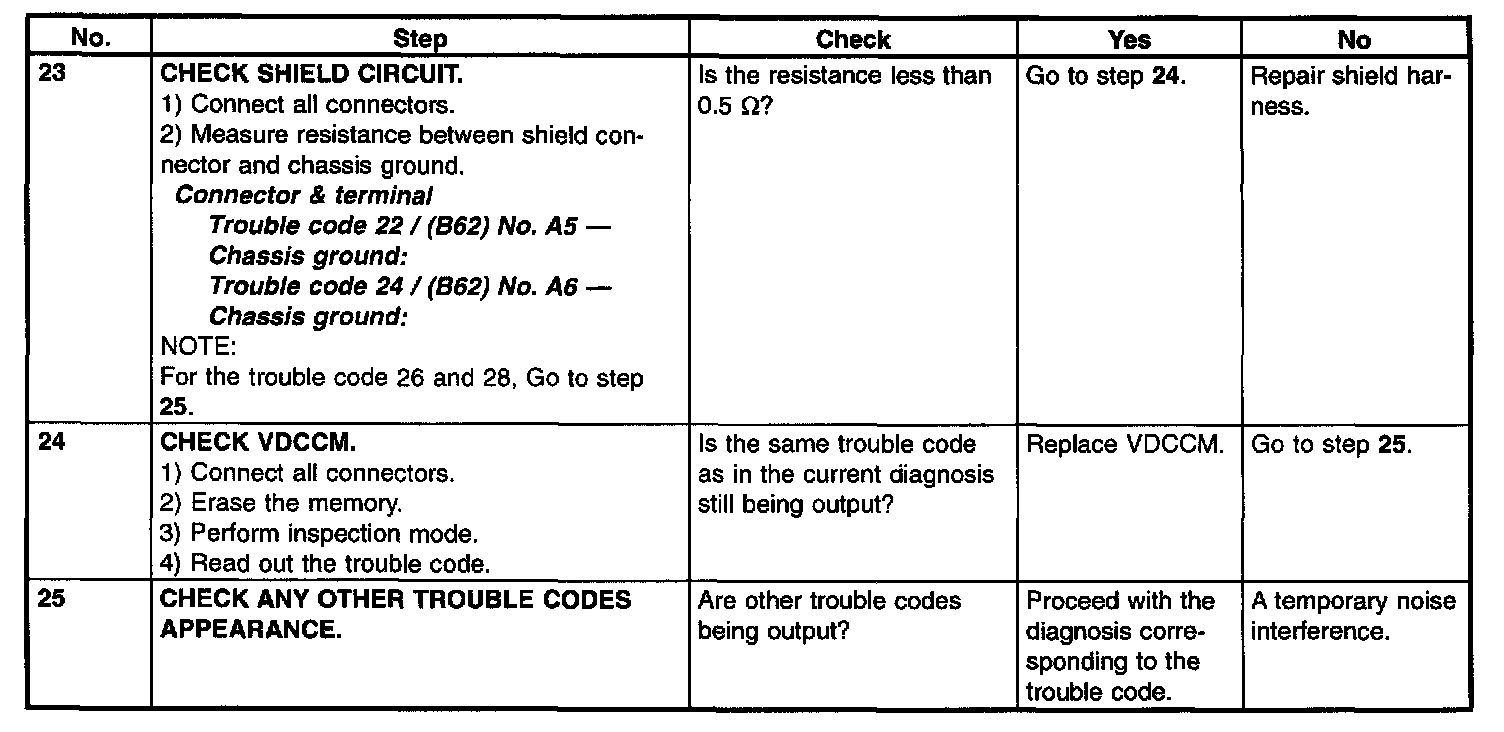

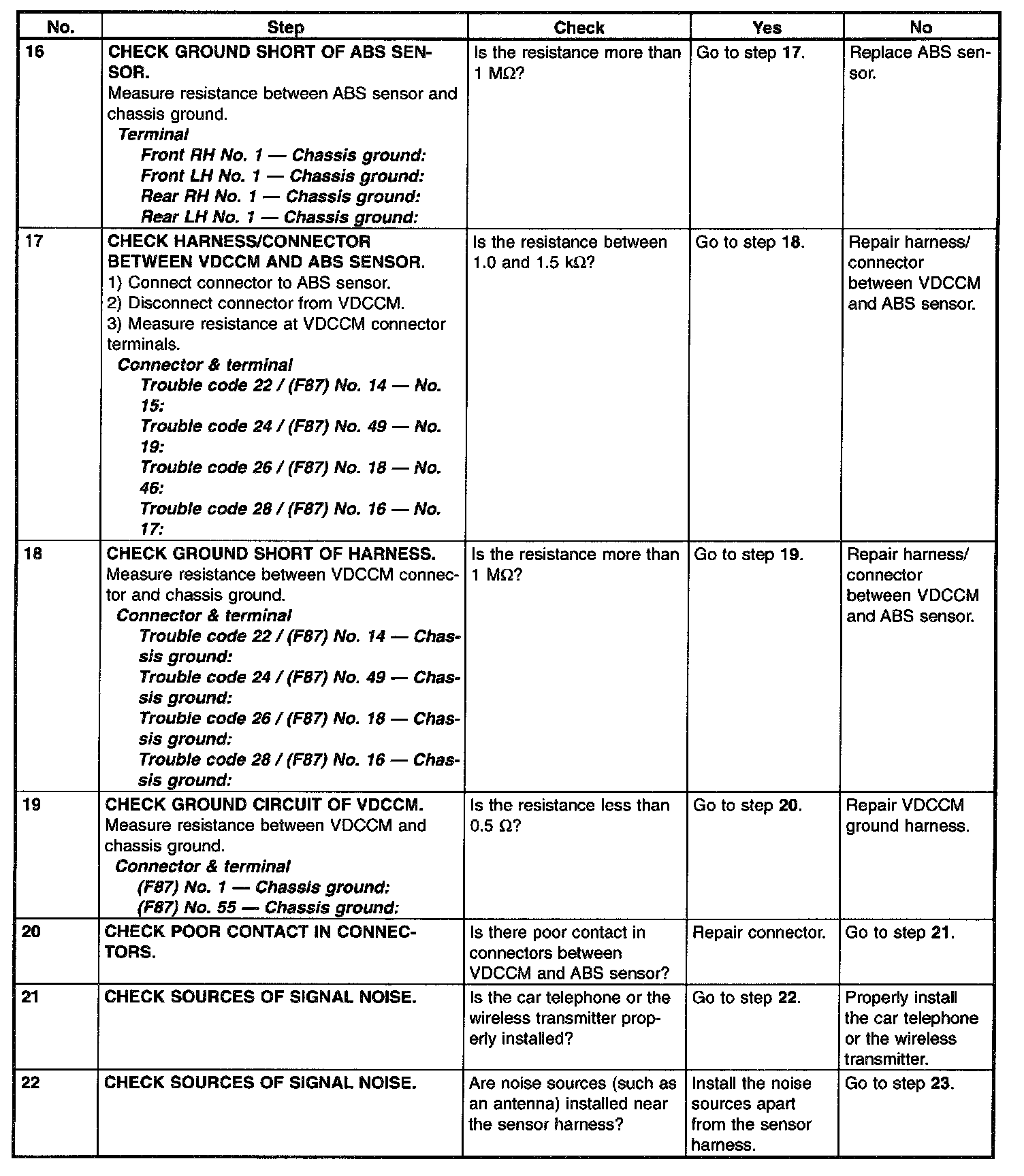

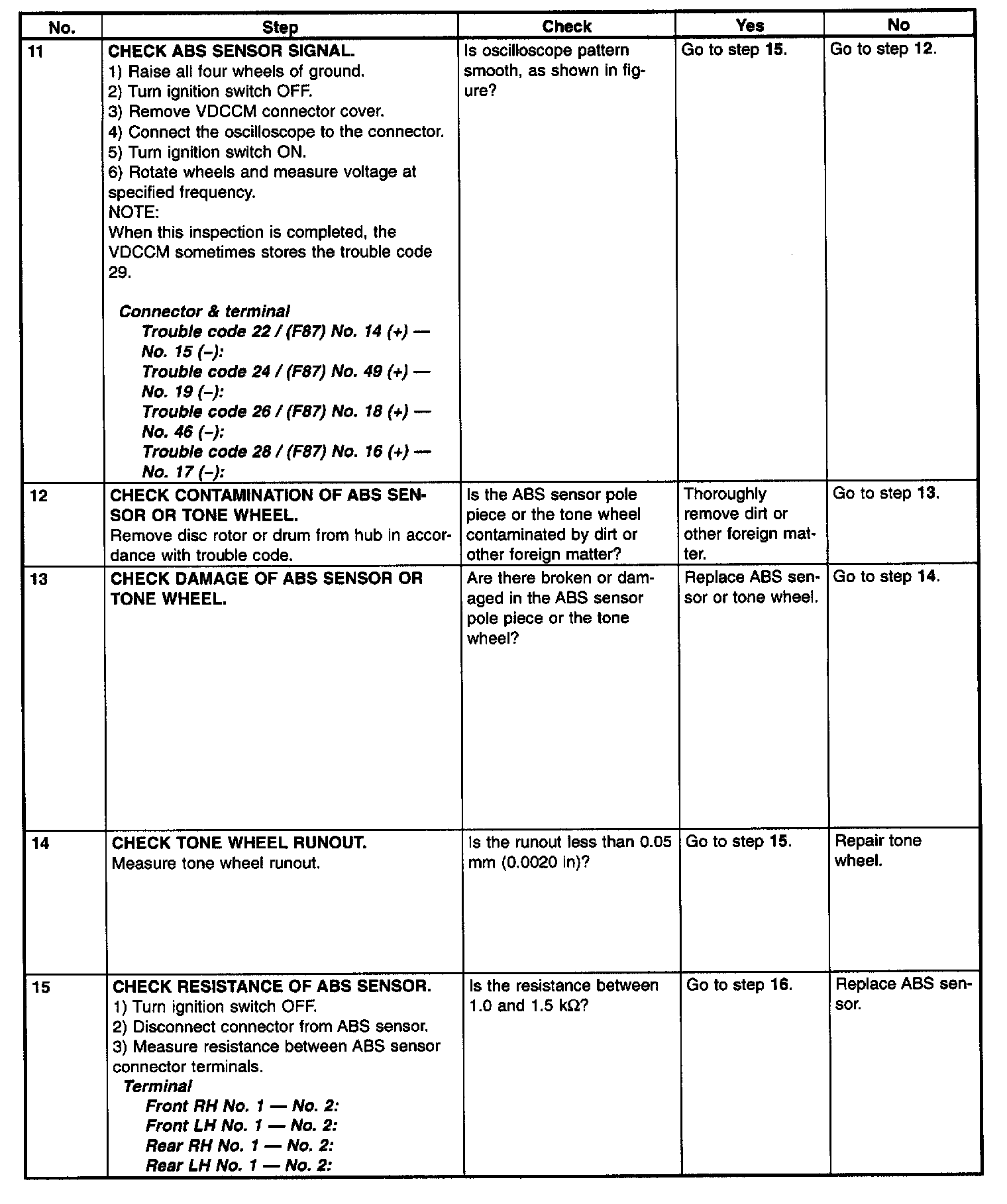

PROCEDURE:





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
