Vdc System Trouble Code Charts For Warning Light Codes

F: TROUBLE CODE 21 (FRONT RH) ABNORMAL ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH)

G: TROUBLE CODE 23 (FRONT LH) ABNORMAL ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH)

H: TROUBLE CODE 25 (REAR RH) ABNORMAL ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH)

I: TROUBLE CODE 27 (REAR LH) ABNORMAL ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH)

DIAGNOSIS:
- Faulty ABS sensor (Broken wire, input voltage too high)
- Faulty harness connector

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

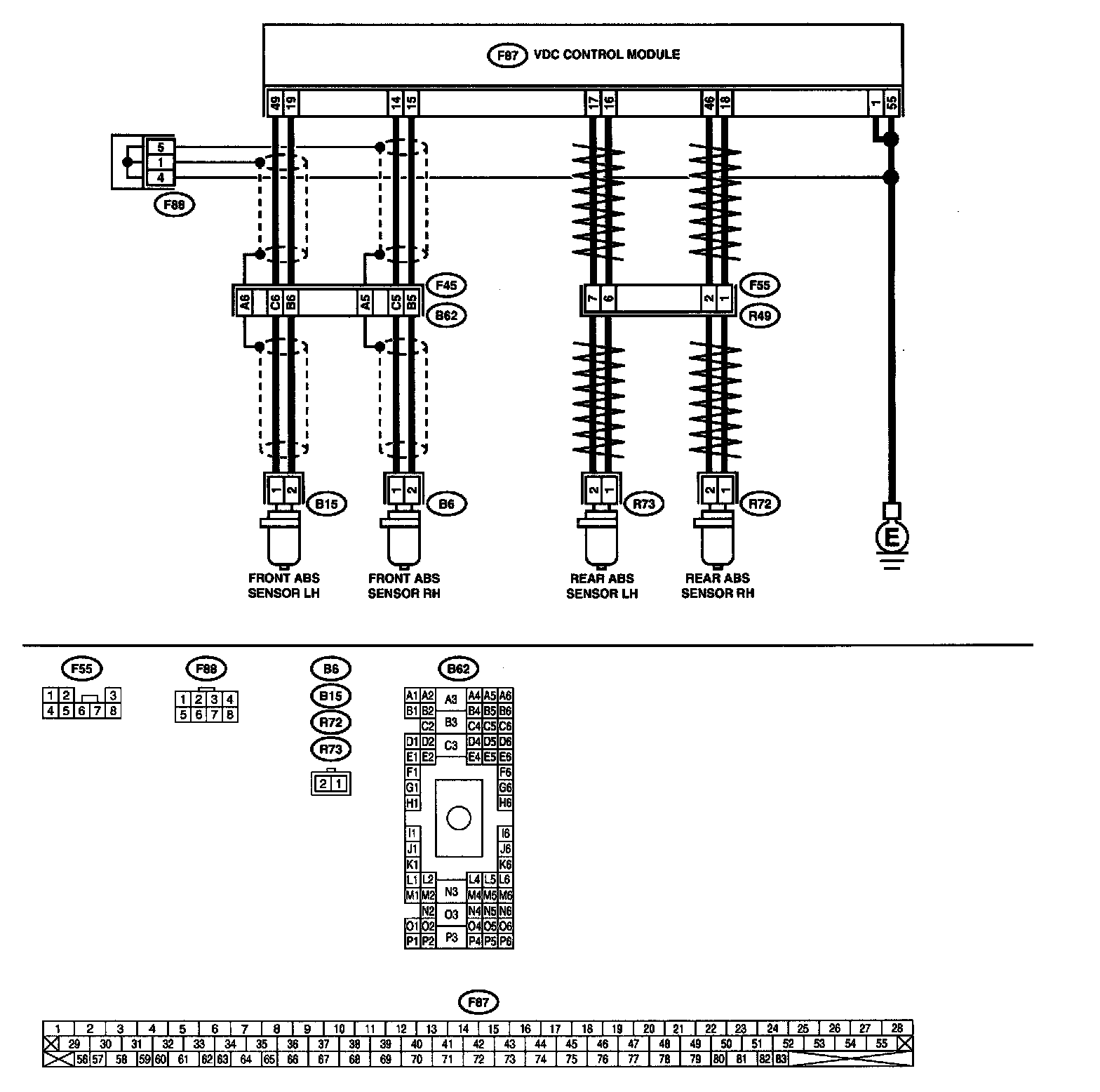

WIRING DIAGRAM

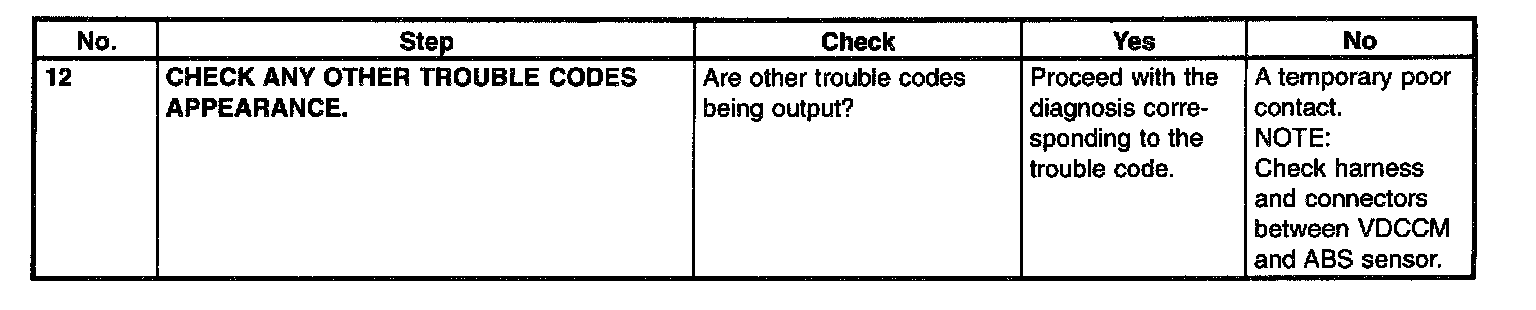

PROCEDURE:

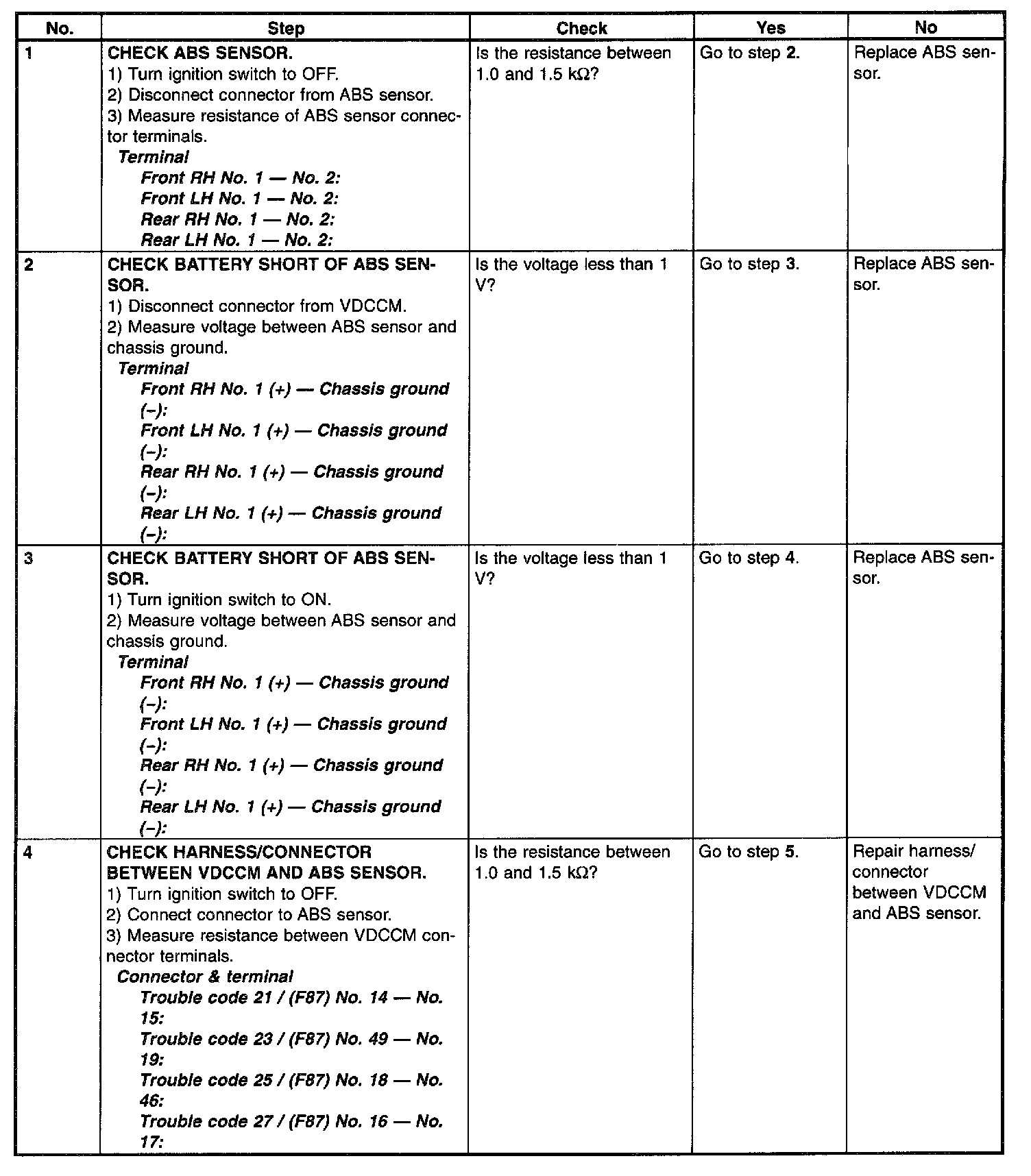

Part 1 of 3

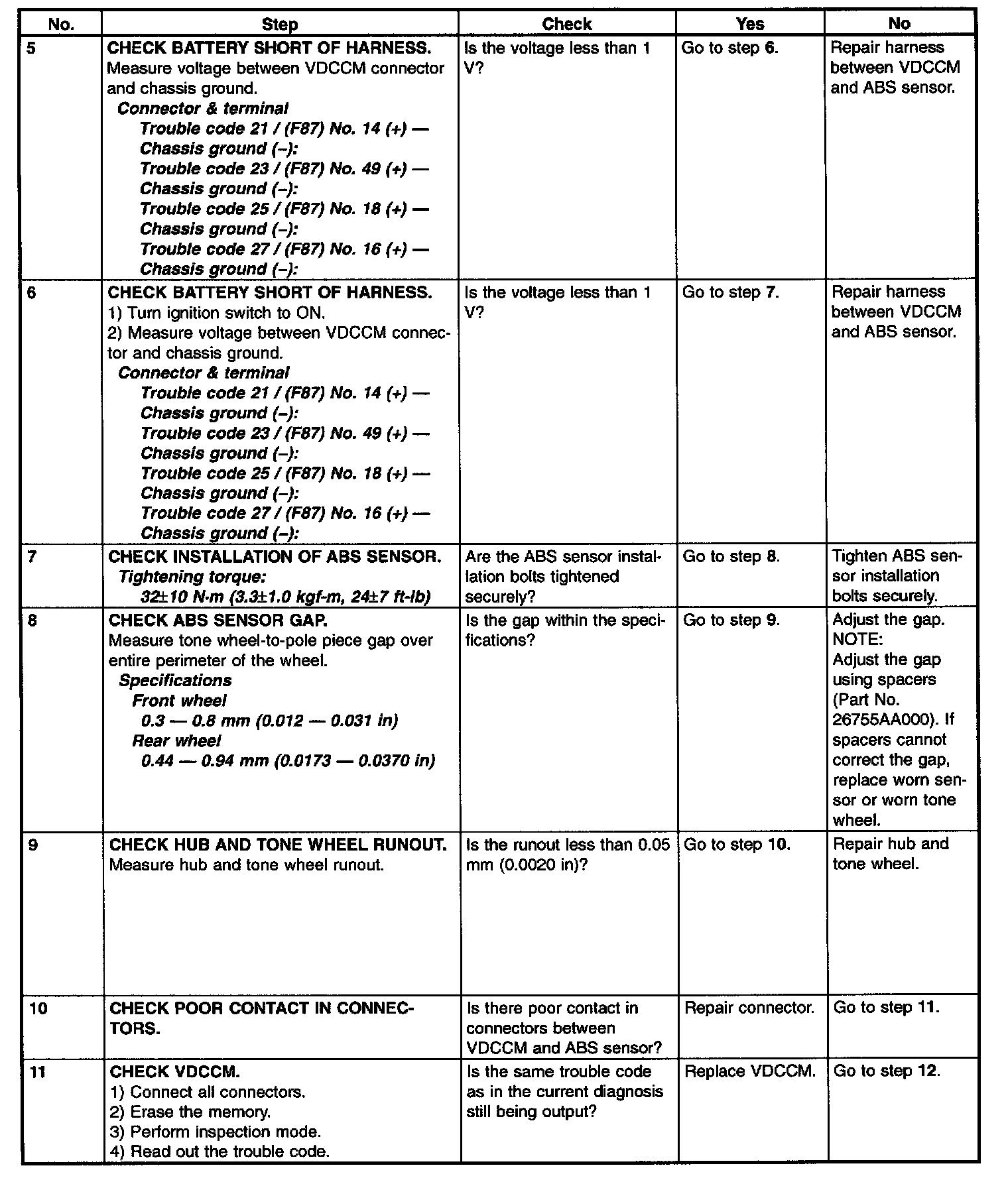

Part 2 of 3





Part 3 of 3
