Transmission Control Systems

C: TROUBLE CODE 27 ATF TEMPERATURE SENSOR
DIAGNOSIS: Input signal circuit of TCM to ATF temperature sensor is open or shorted.

TROUBLE SYMPTOM: Excessive shift shock.

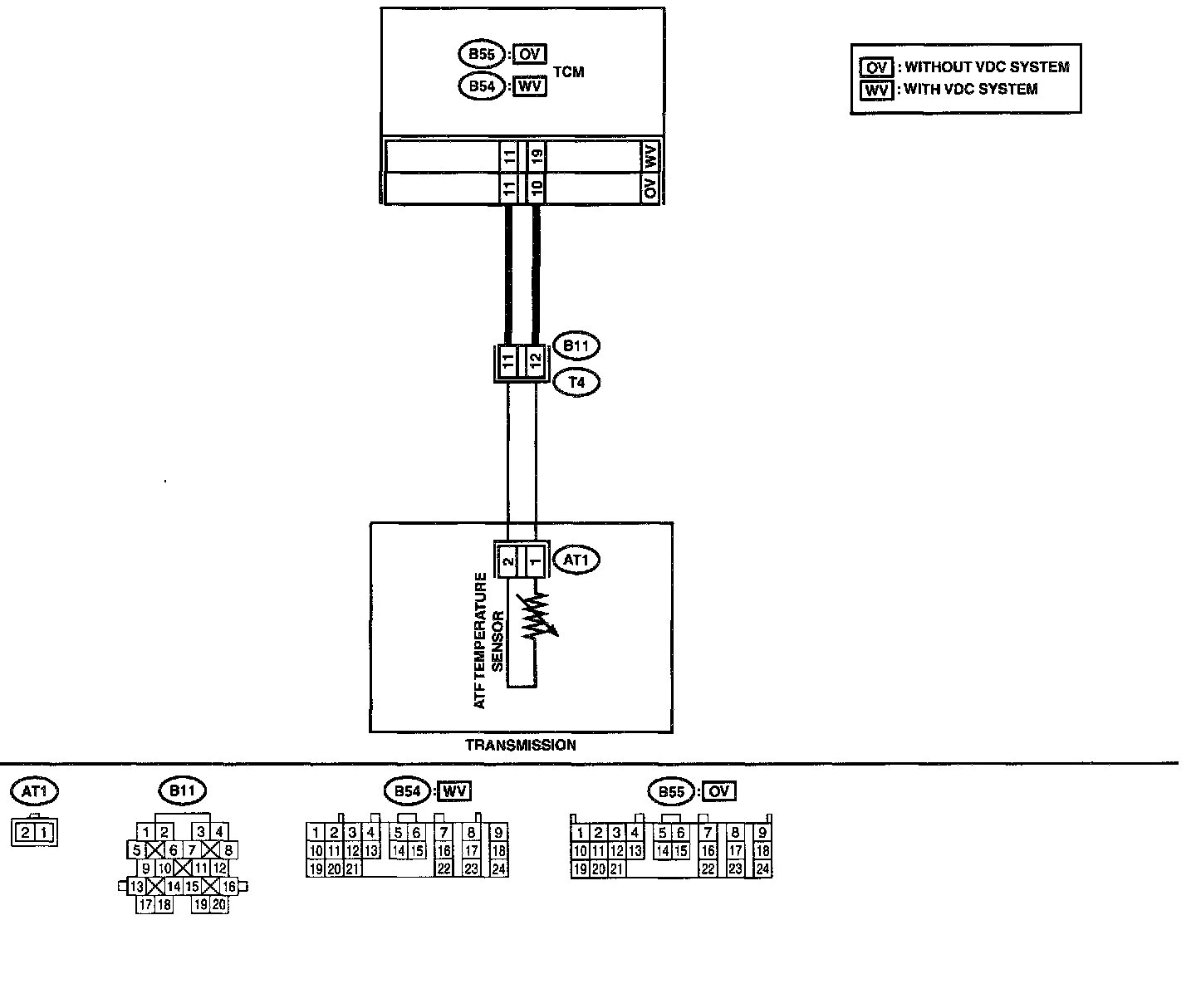

WIRING DIAGRAM:

PROCEDURE:

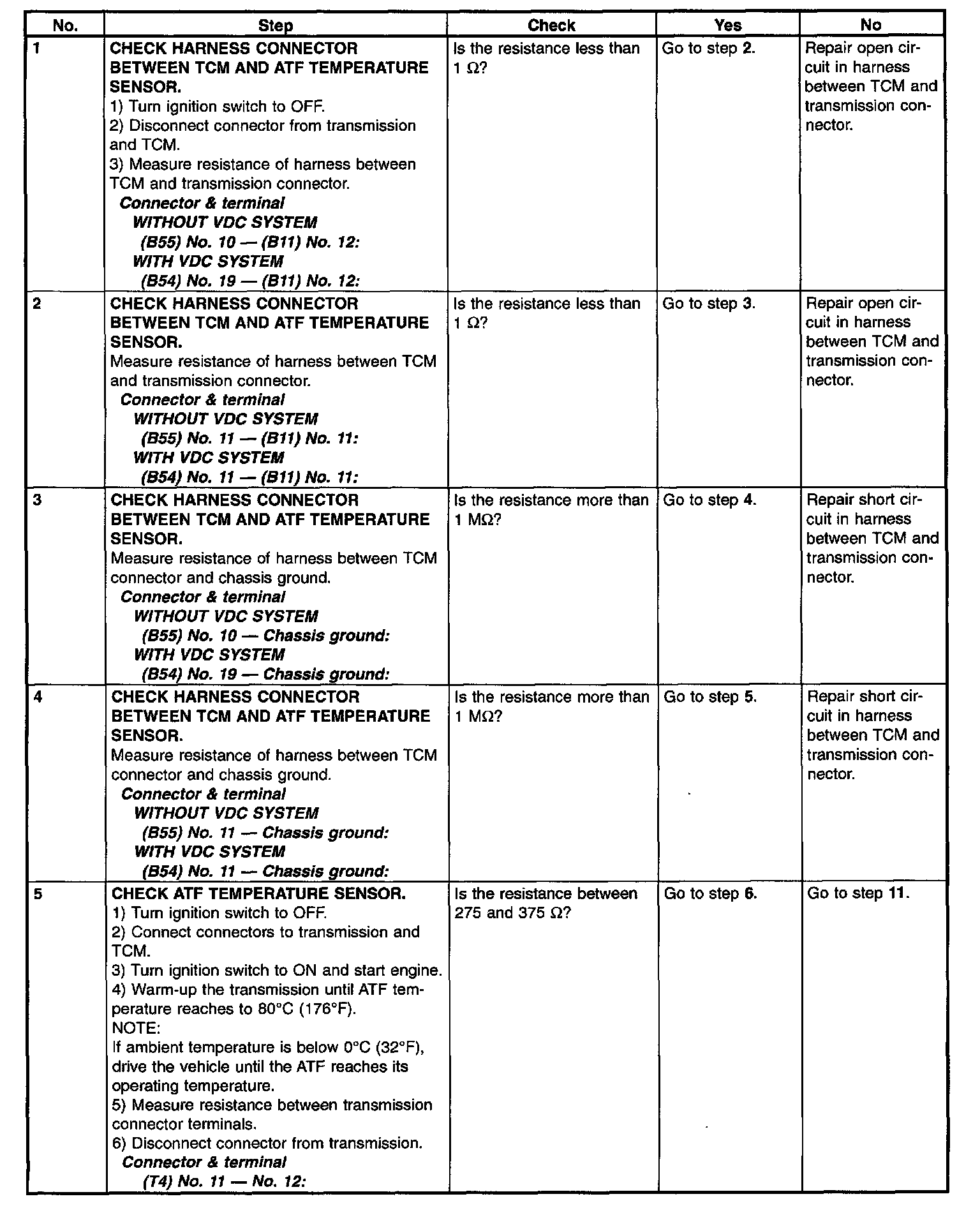

No.1 - 5

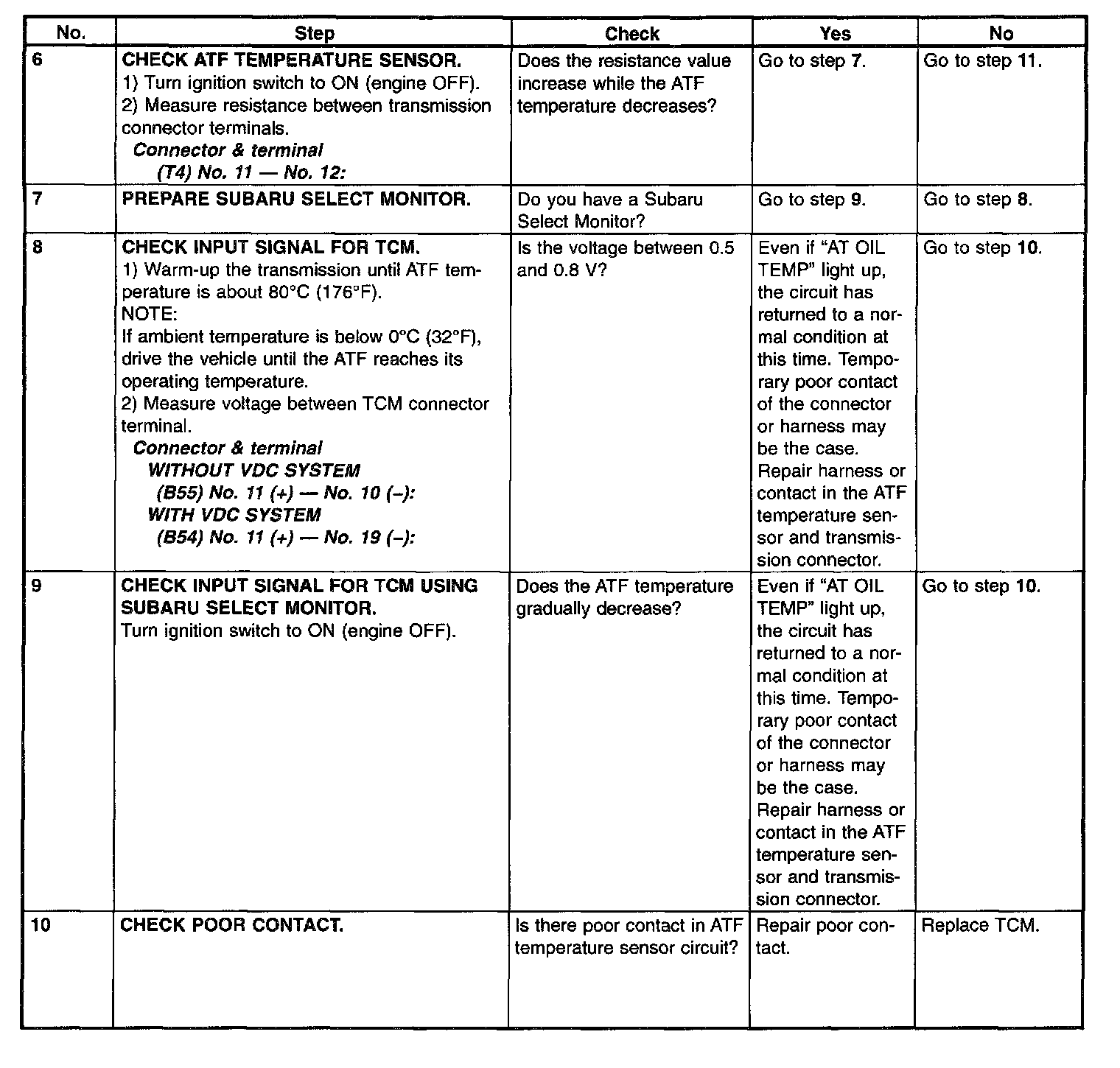

No.6 - 10

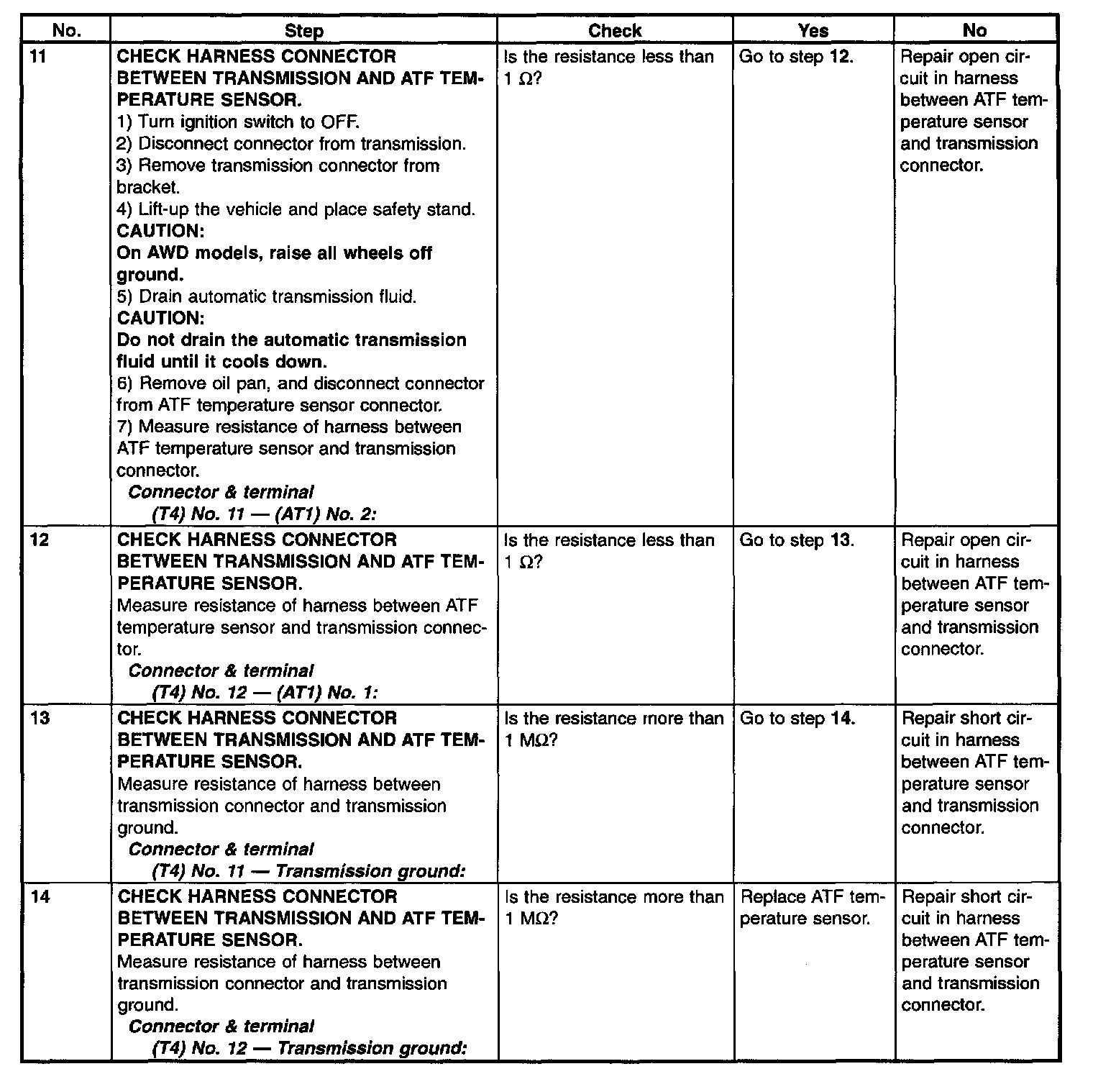

No.11 - 14
