Heating and Air Conditioning System



DTC 26 or -26 (Air Mix Door Actuator)

Trouble Symptom:
Outlet air temperature is not changed.

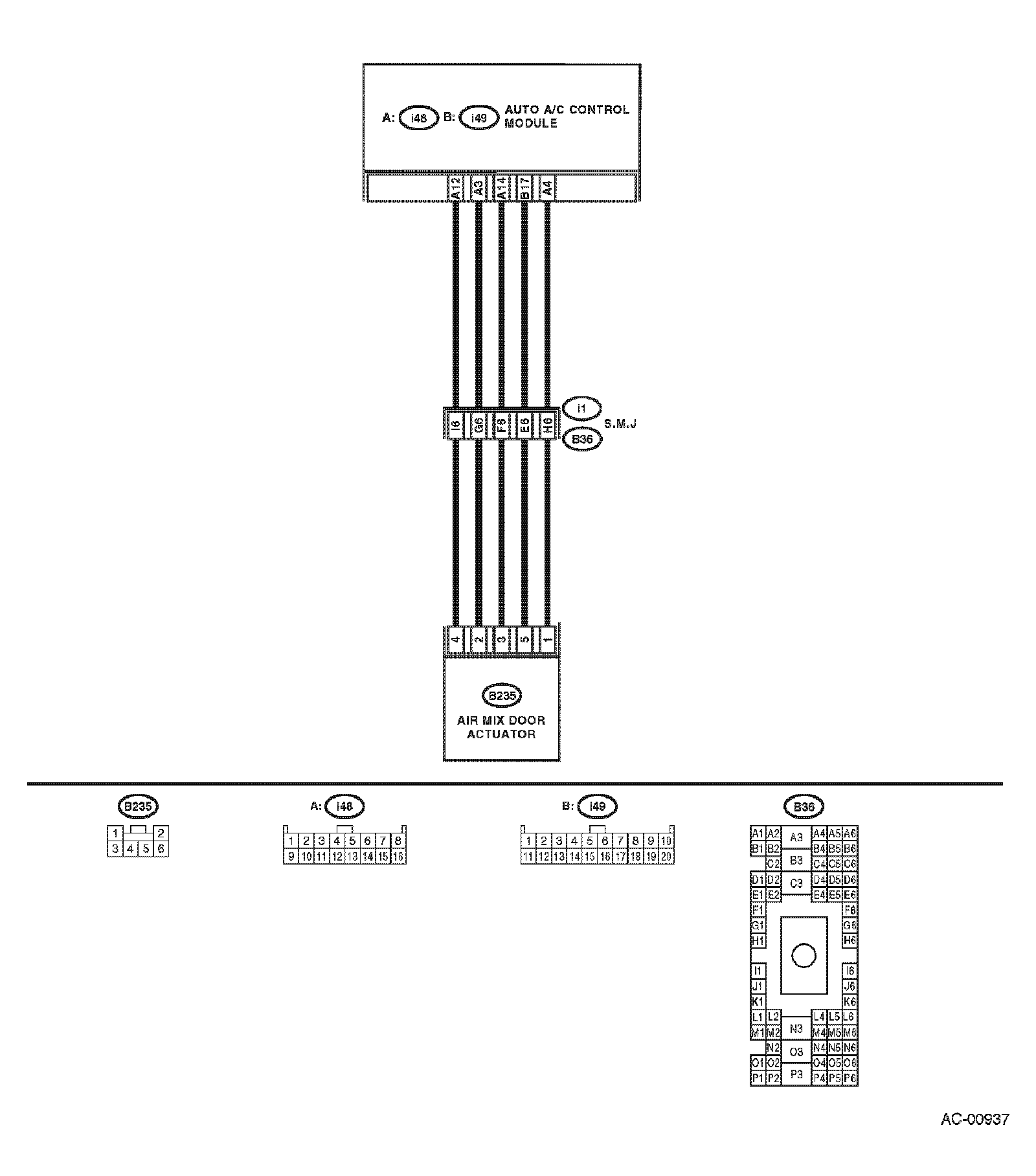

Wiring Diagram

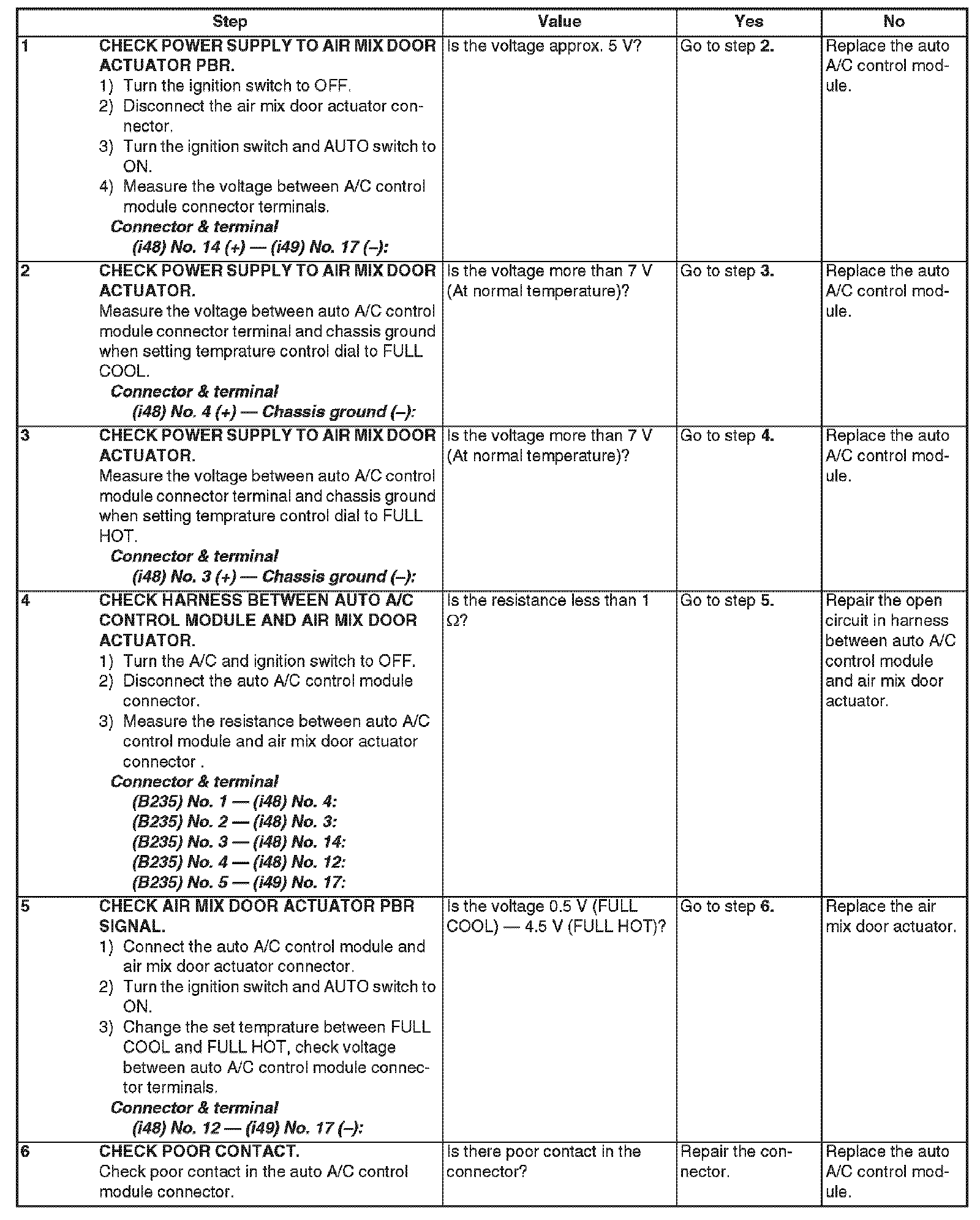

Diagnostic Procedure
