Restraint Systems

DIAGNOSIS:
- Airbag control module is faulty.
- Airbag main harness circuit is open.
- Fuse No.6 (in joint box) is blown.
- Body harness circuit is open.

CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
- Before replacing the airbag module, roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.
- When inspecting the airbag main harness, disconnect the driver's airbag module and passenger's airbag module connectors for safety reasons.

Wiring Diagram:

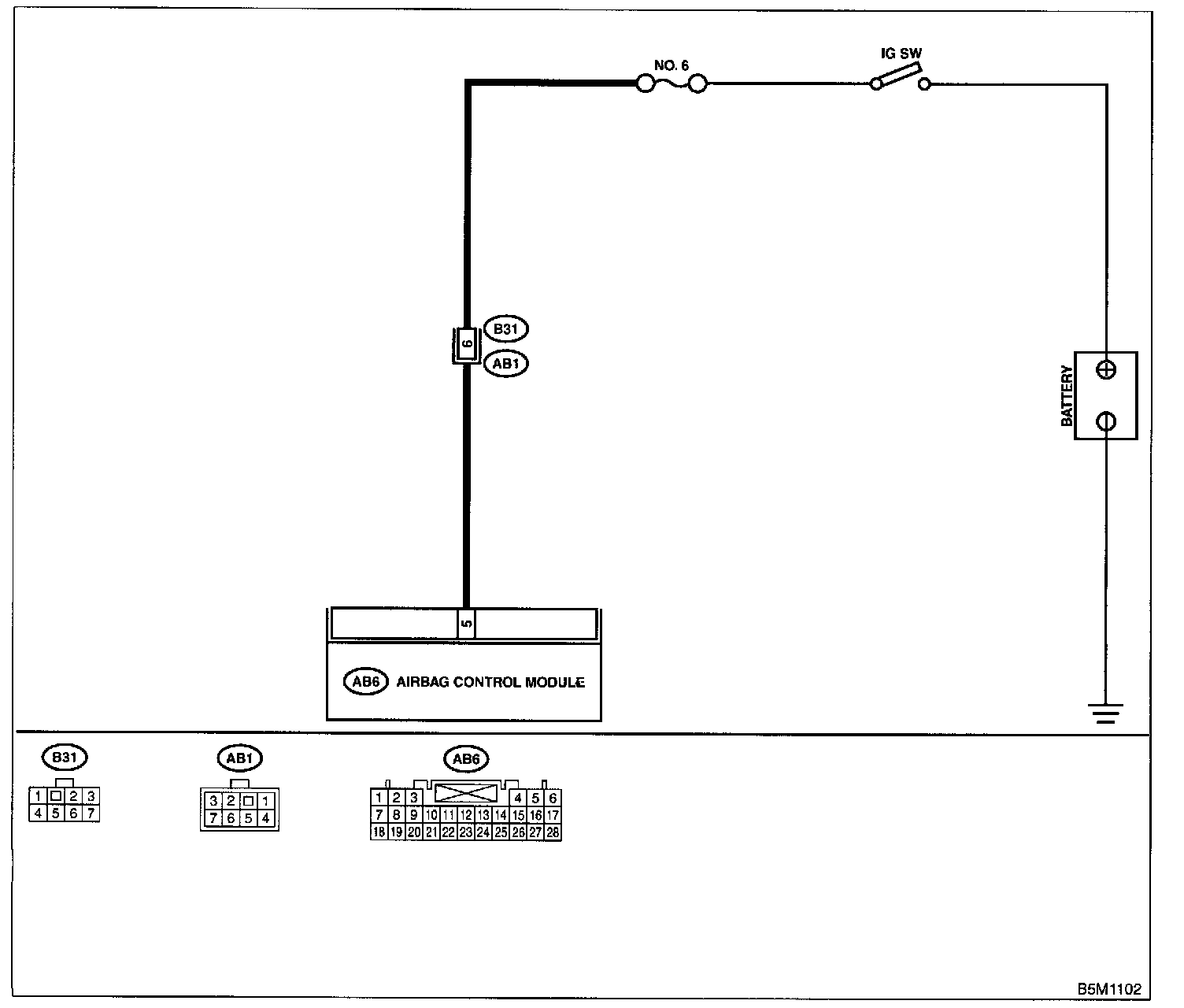

WIRING DIAGRAM

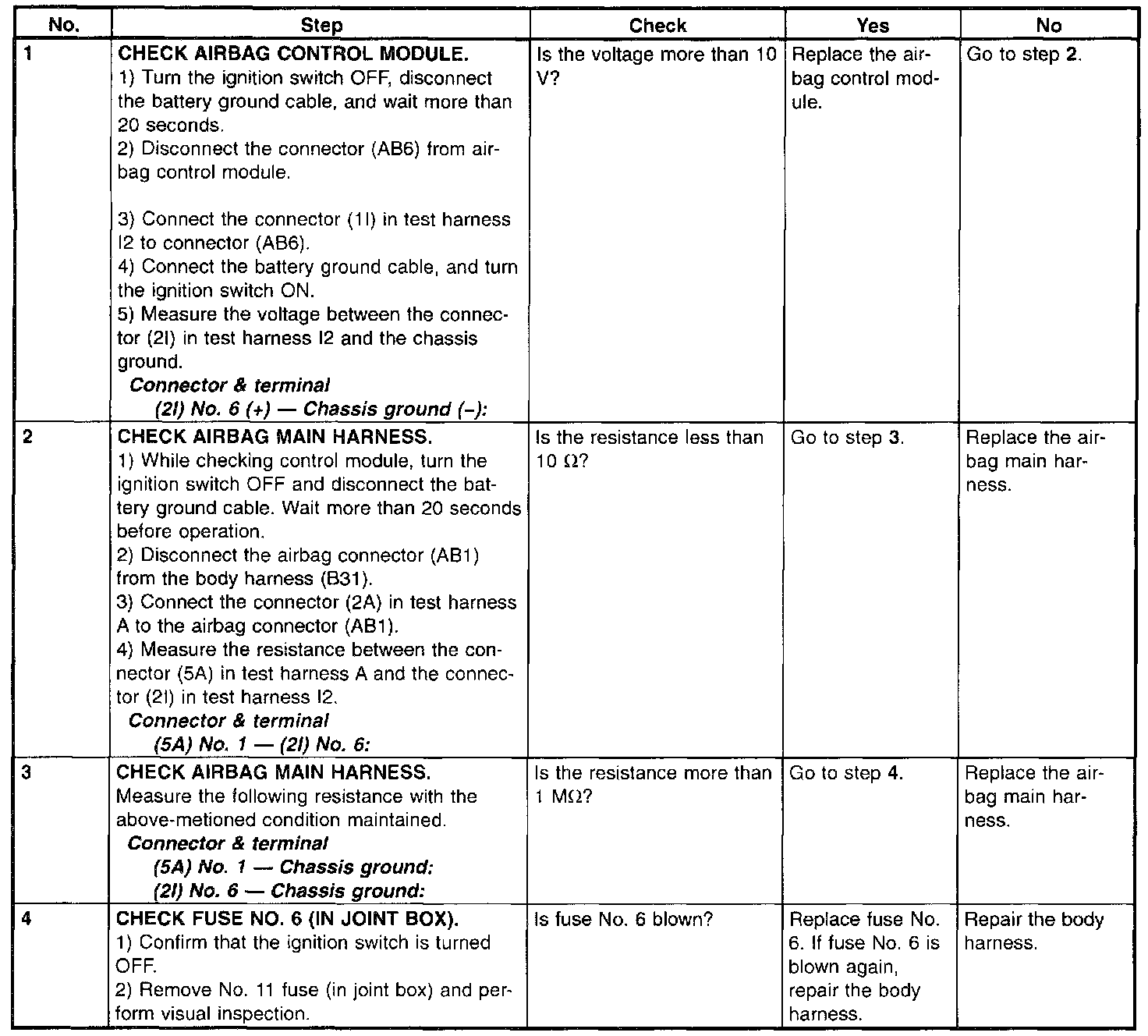

Step 1 - 4:

DIAGNOSTIC TROUBLE CODE CHARTS
