Heating and Air Conditioning System
Heating and Air Conditioning System
Trouble Code 24 or -24 (Evaporator Sensor)
DIAGNOSTIC PROCEDURE:

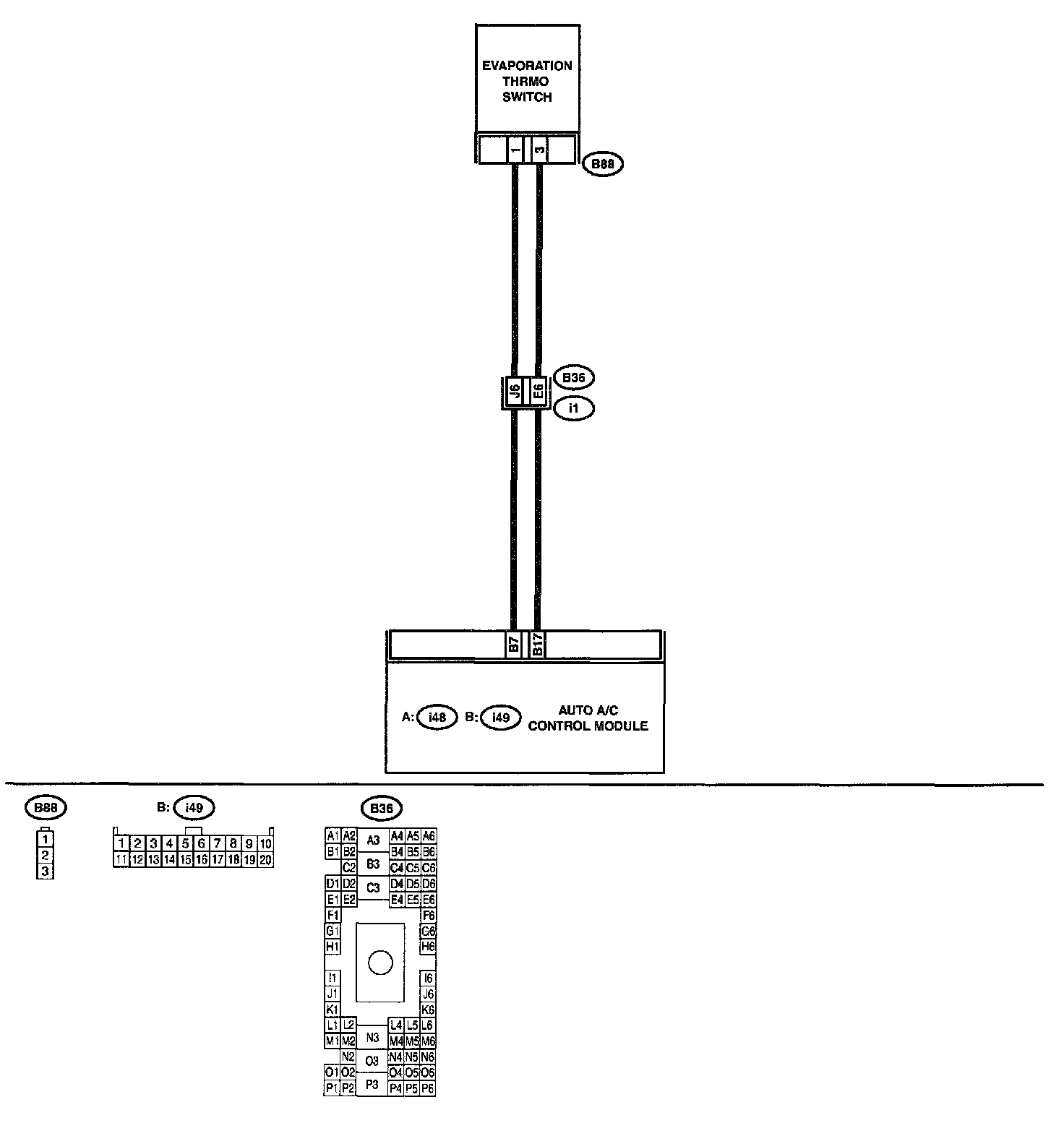

Wiring Diagram:

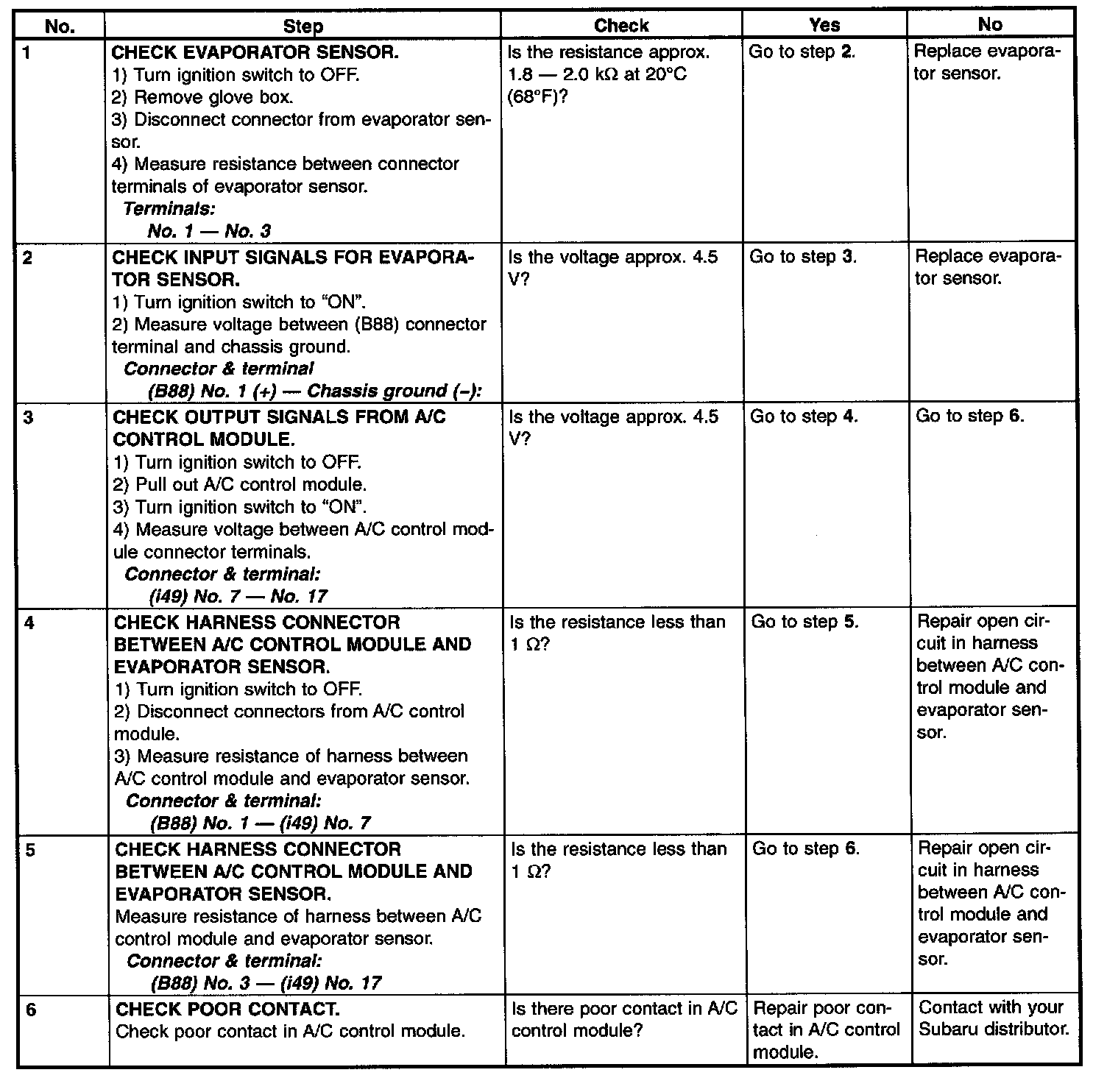

Step 1 - 6:
