DTC 22
>>
Cruise Control System
Cruise Control System

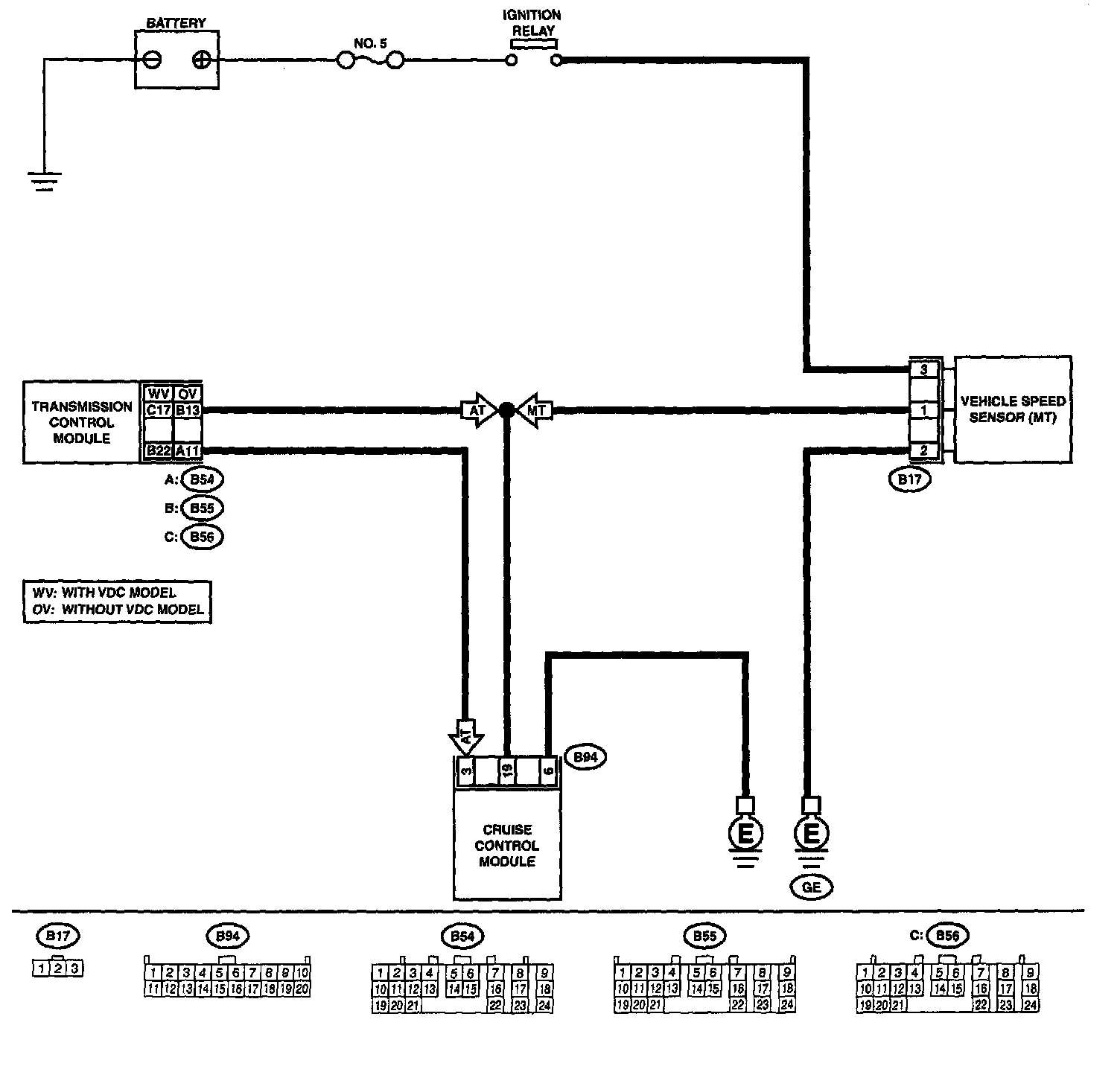

Wiring Diagram:

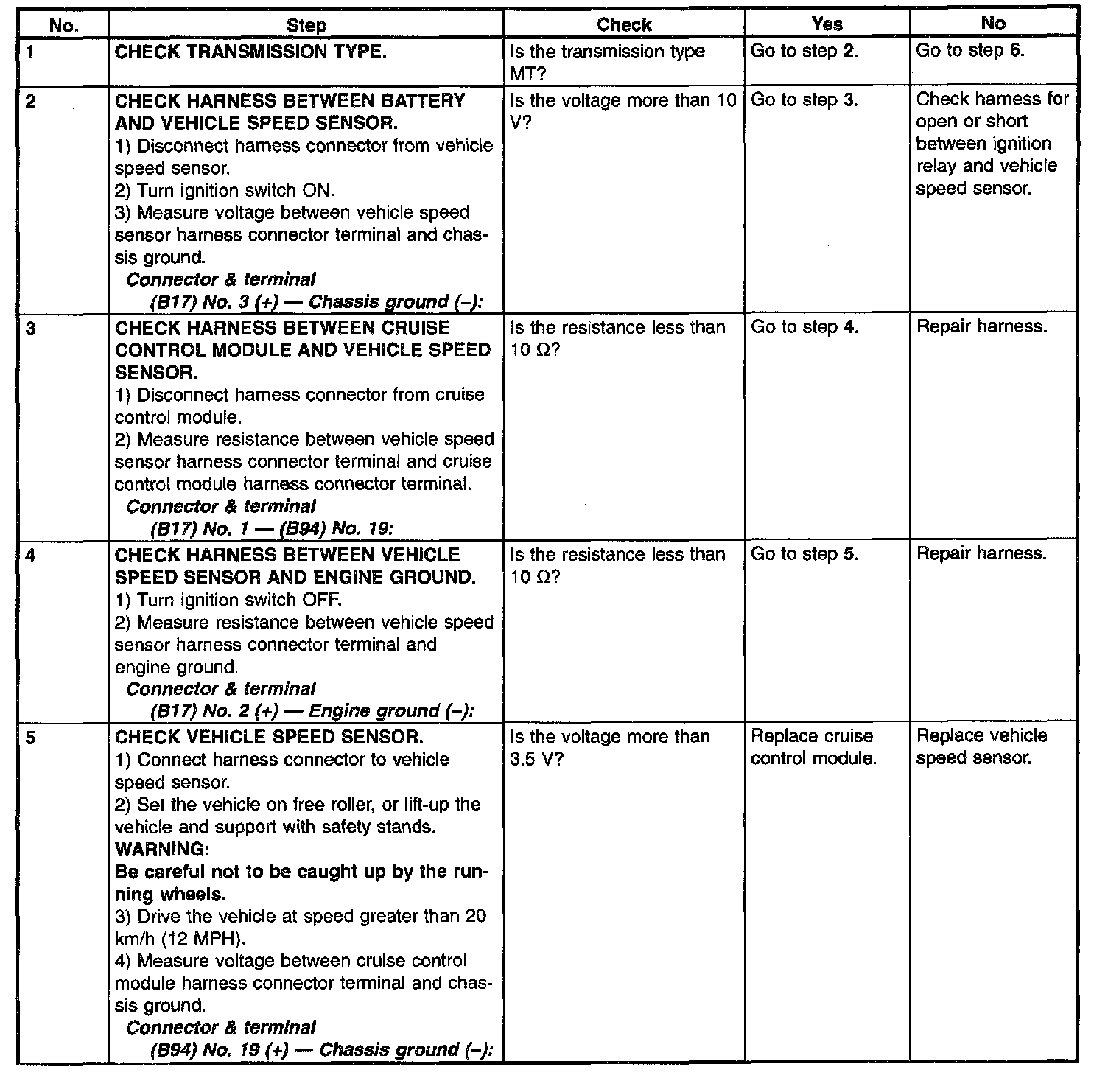

Step 1 - 5:

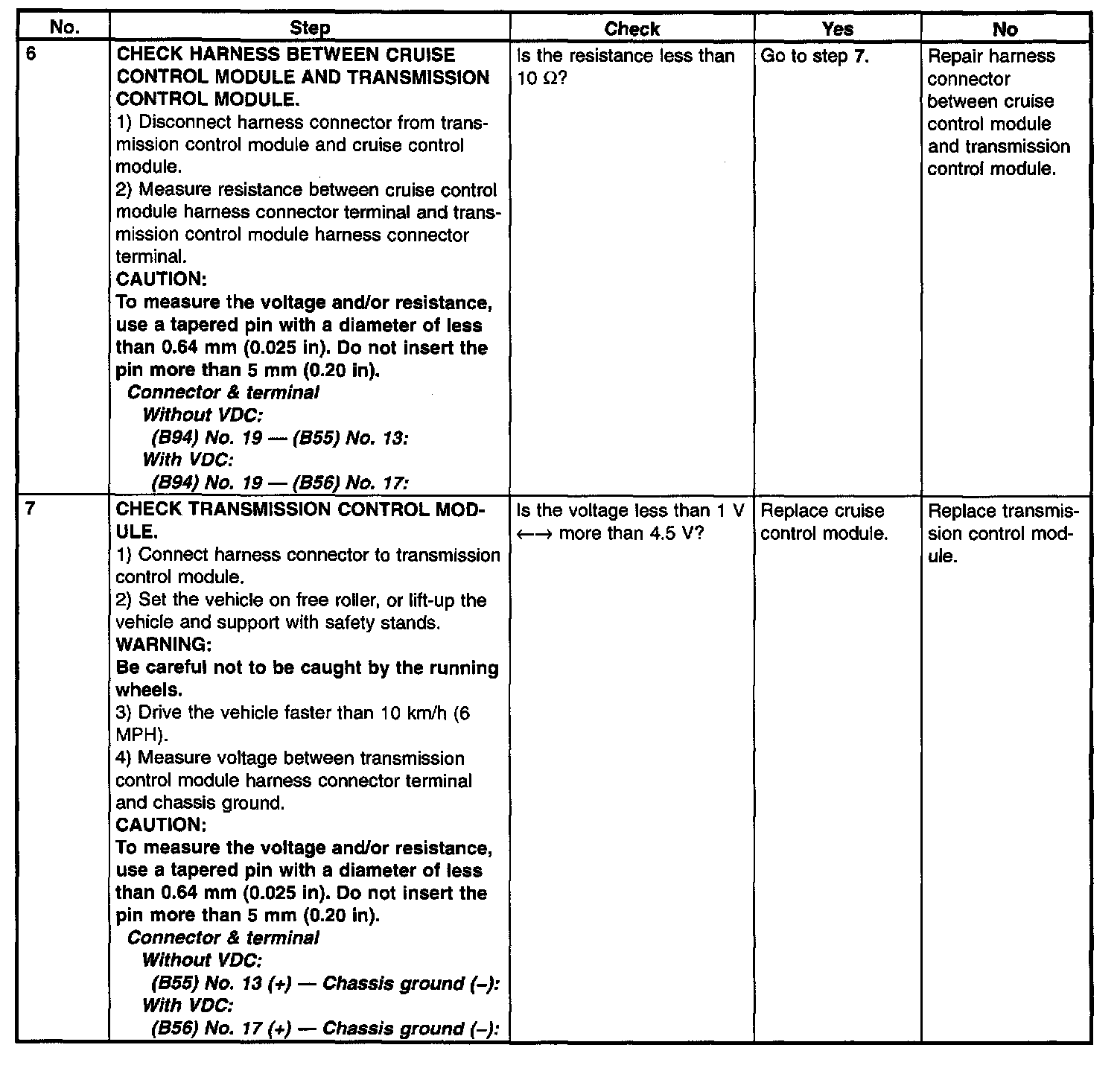

Step 6 - 7:
DIAGNOSIS
Disconnection or short circuit of vehicle speed sensor system.
