ABS Trouble Code Charts For Warning Light Codes

H: TROUBLE CODE 22 -ABNORMAL ABS SENSOR (FRONT RH)-

I: TROUBLE CODE 24 -ABNORMAL ABS SENSOR (FRONT LH)-

J: TROUBLE CODE 26 -ABNORMAL ABS SENSOR (REAR RH)-

K: TROUBLE CODE 28 -ABNORMAL ABS SENSOR (REAR LH)-

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty harness/connector
TROUBLE SYMPTOM:
- ABS does not operate.

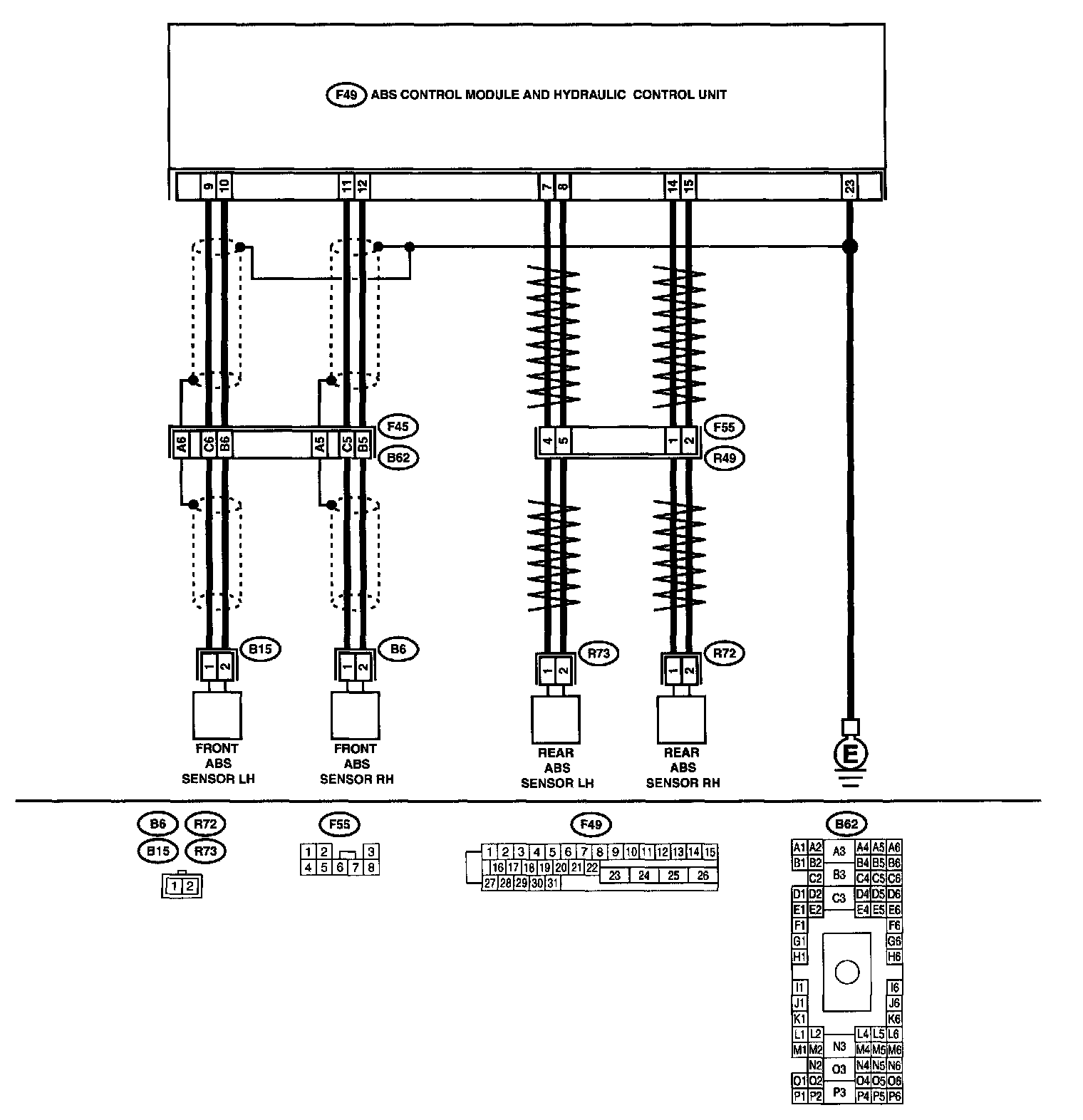

WIRING DIAGRAM

PROCEDURE:

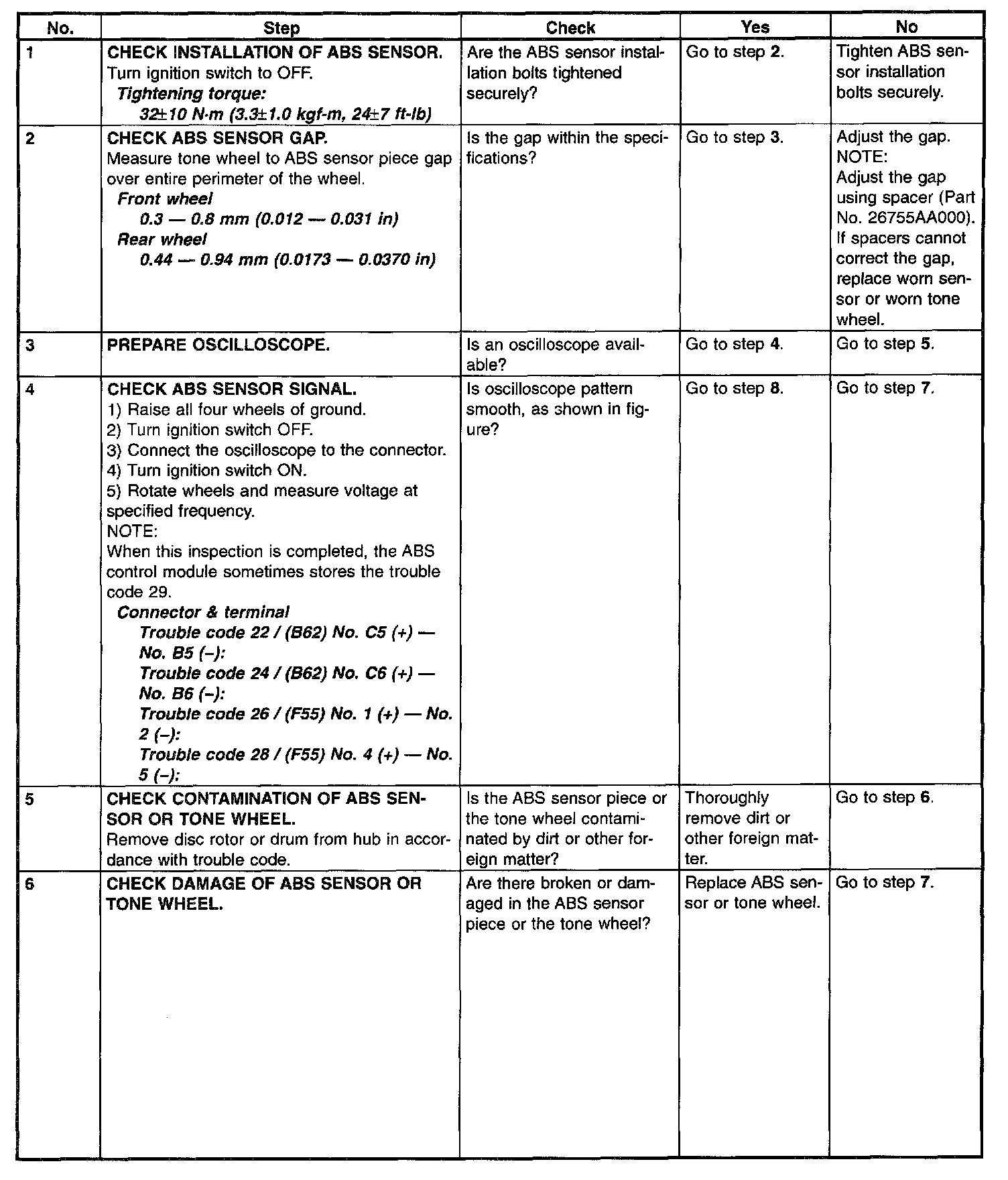

Part 1 of 3

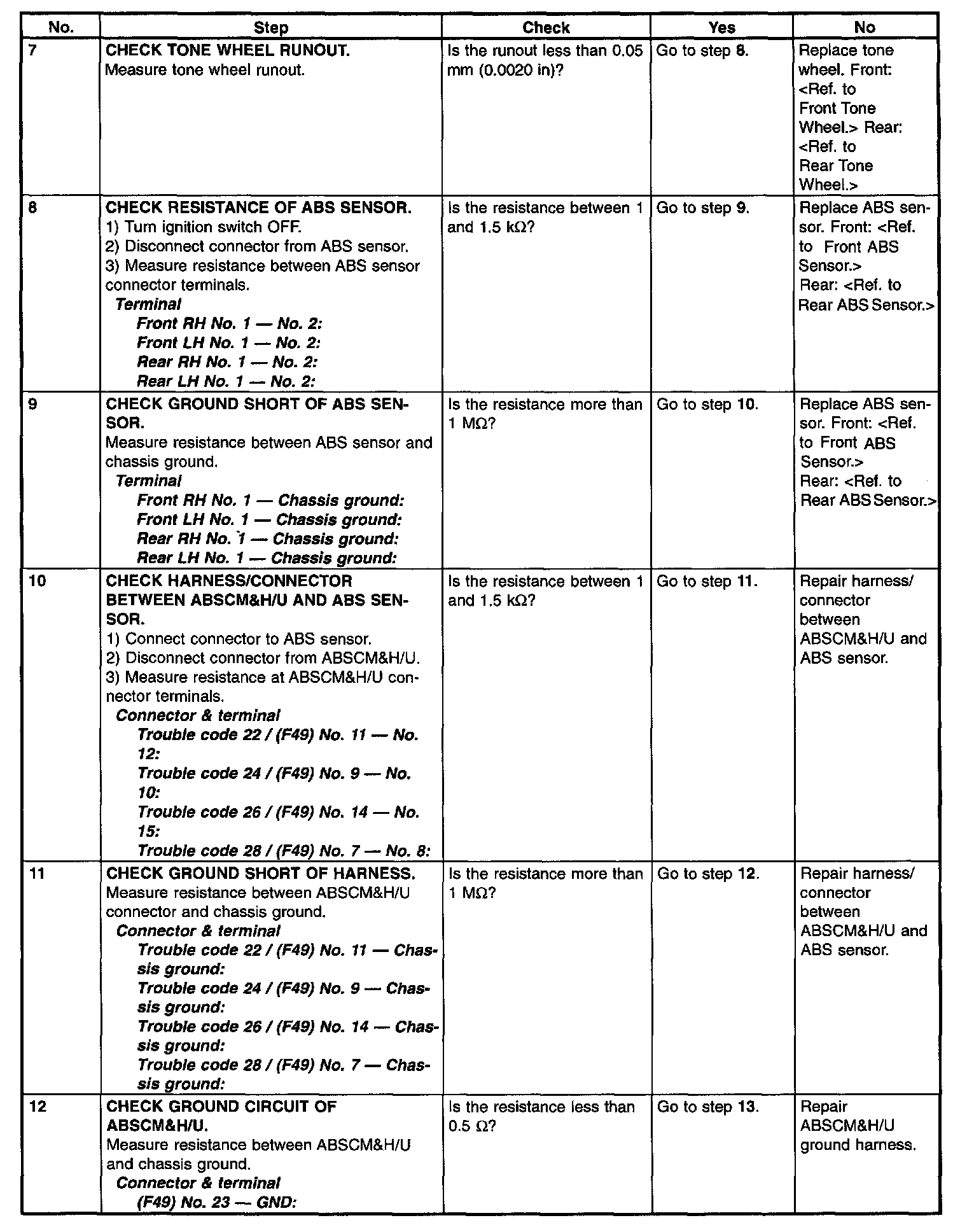

Part 2 of 3





Part 3 of 3
