Restraint Systems

DIAGNOSIS:
- Airbag control module is faulty.

CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
- Before replacing the airbag module, roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.

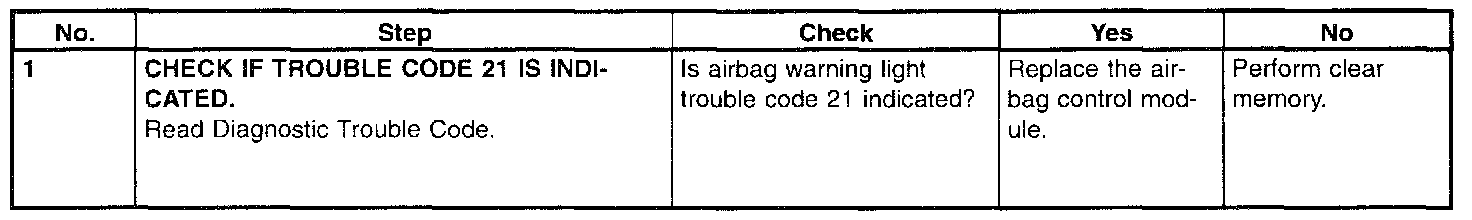

Step 1:

DIAGNOSTIC TROUBLE CODE CHARTS
