Heating and Air Conditioning System



DTC 21 or -21 (Ambient Sensor)

TROUBLE SYMTOM:
Fan speed, outlets and inlets are not switched when AUTO or ECON switch is ON.

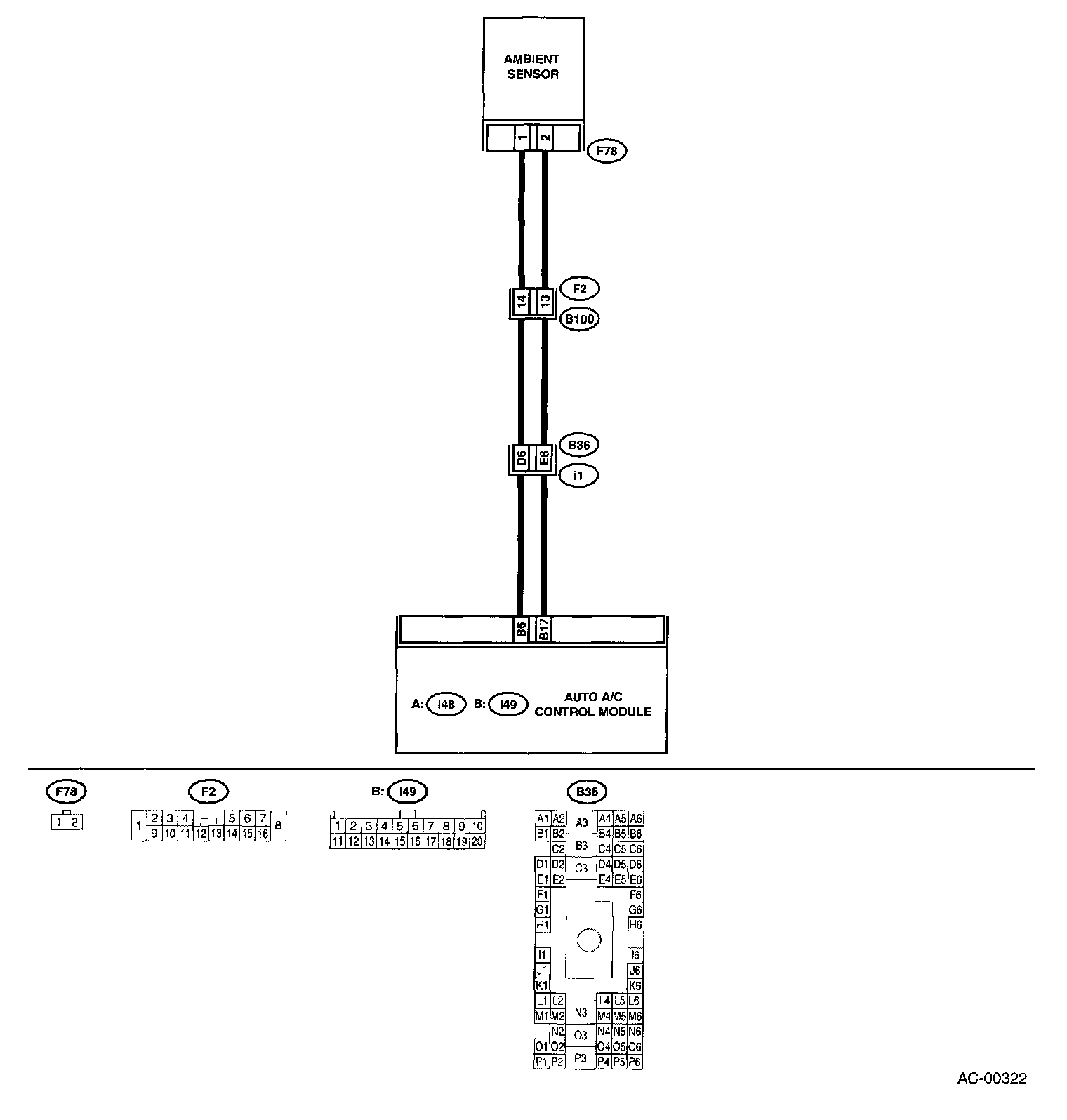

Wiring Diagram:





Wiring Diagram

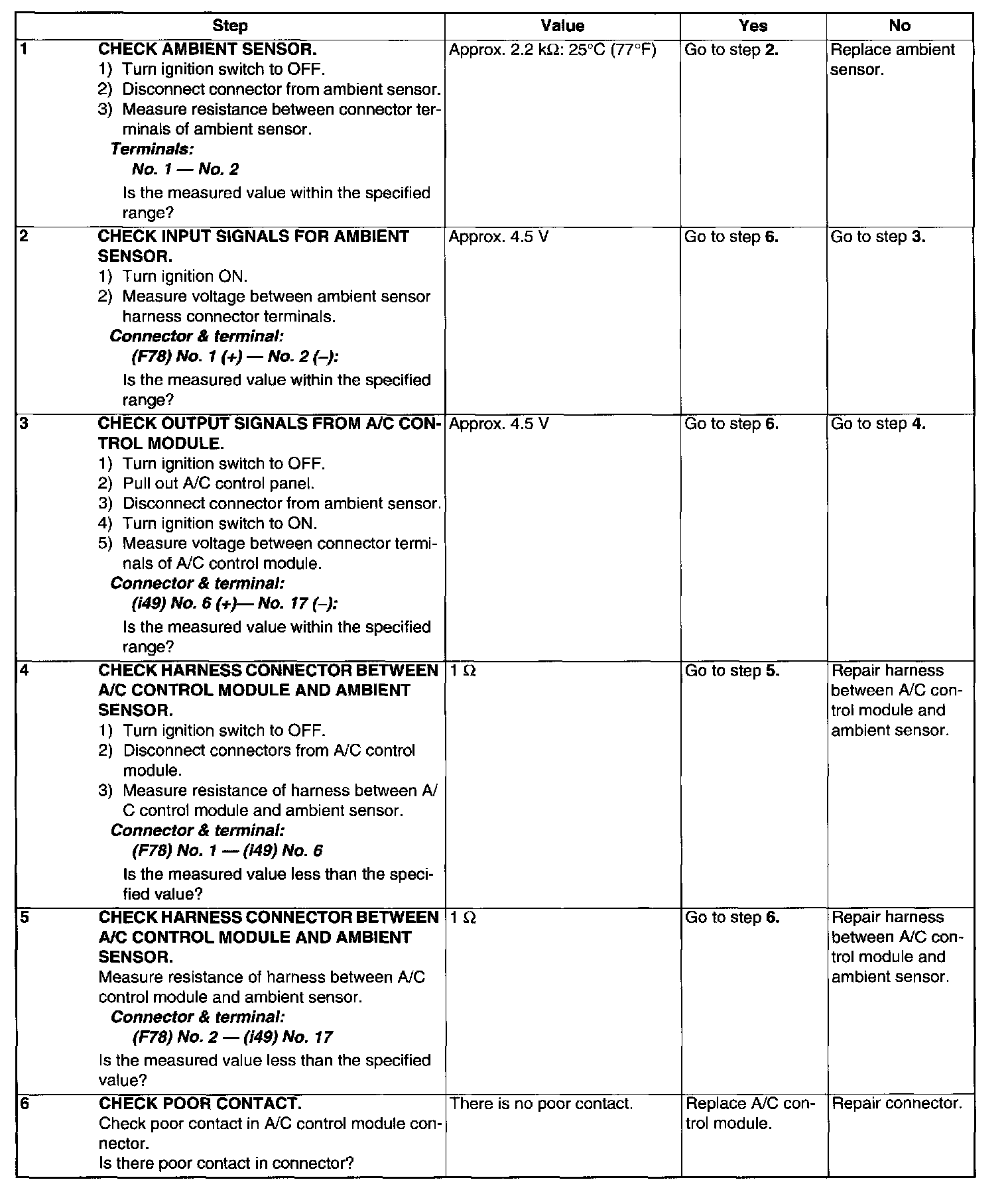

Step 1 - 6:





Diagnostic Procedure
