ABS Trouble Code Charts For Select Monitor Results

C: TROUBLE CODE 21 -OPEN OR SHORT CIRCUIT IN FRONT RIGHT ABS SENSOR CIRCUIT-

D: TROUBLE CODE 23 -OPEN OR SHORT CIRCUIT IN FRONT LEFT ABS SENSOR CIRCUIT-

E: TROUBLE CODE 25 -OPEN OR SHORT CIRCUIT IN REAR RIGHT ABS SENSOR CIRCUIT-

F: TROUBLE CODE 27 -OPEN OR SHORT CIRCUIT IN REAR LEFT ABS SENSOR CIRCUIT-

DIAGNOSIS:
- Faulty ABS sensor (Broken wire, input voltage too high)
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate.

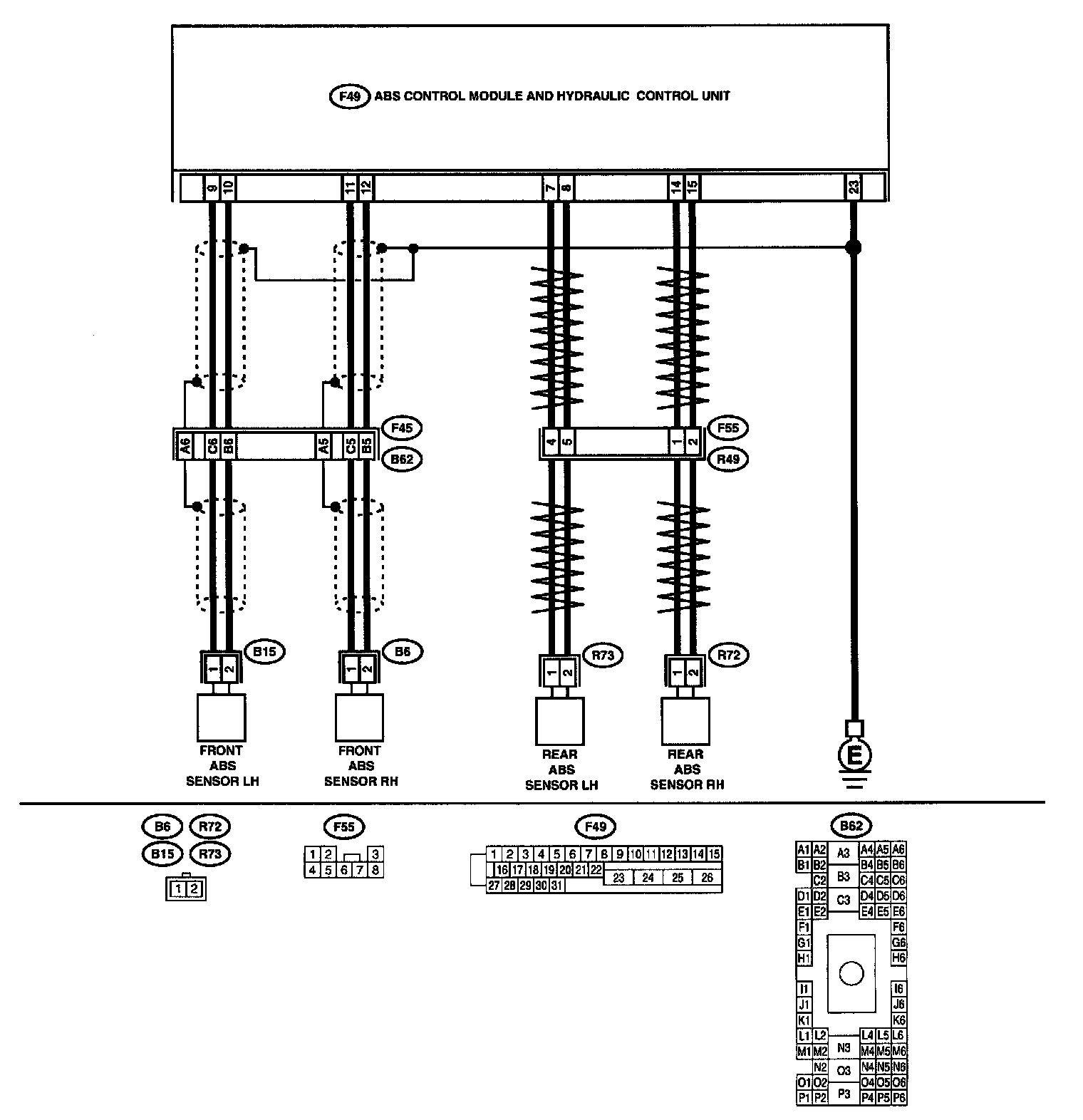

WIRING DIAGRAM

PROCEDURE:

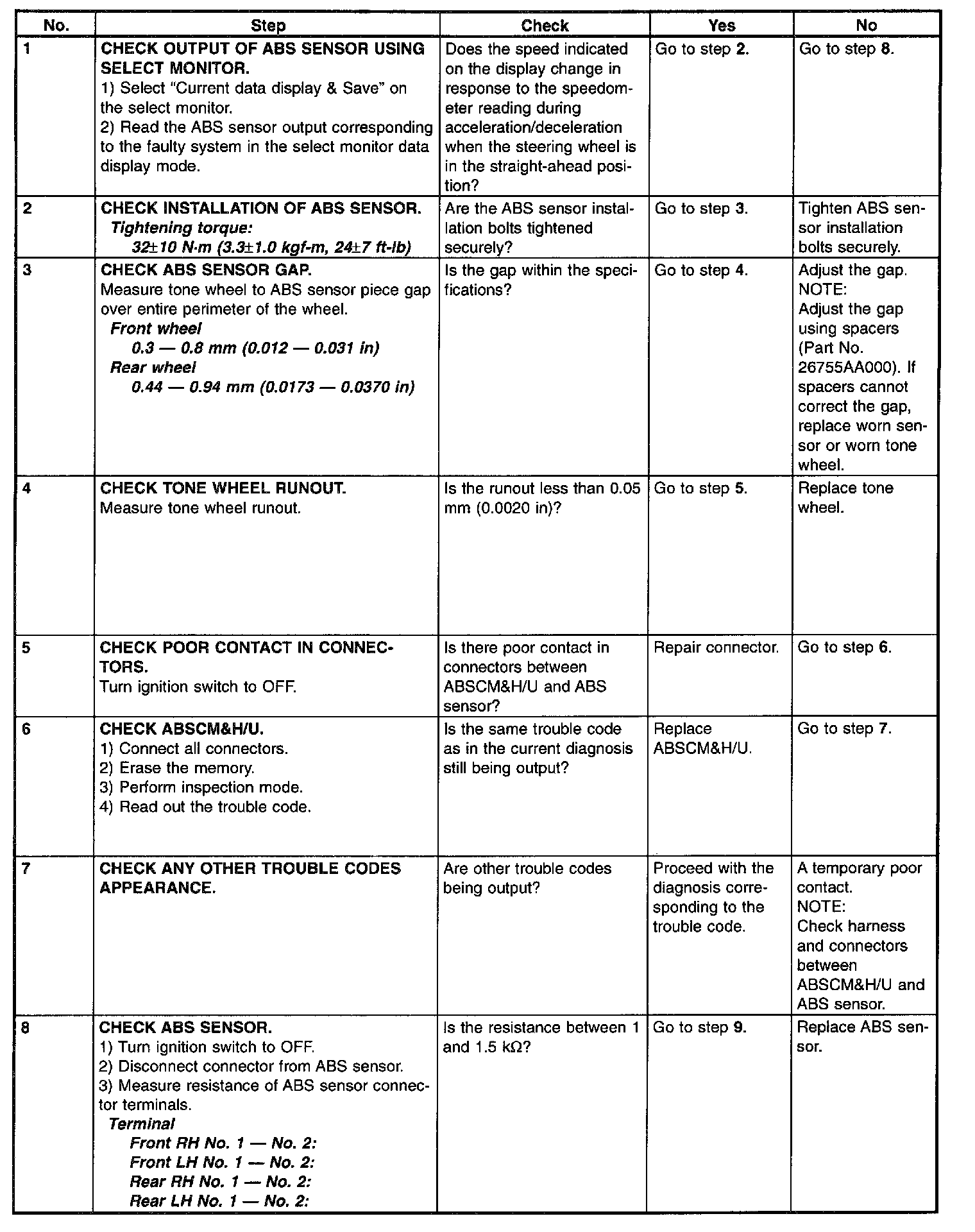

Part 1 of 4

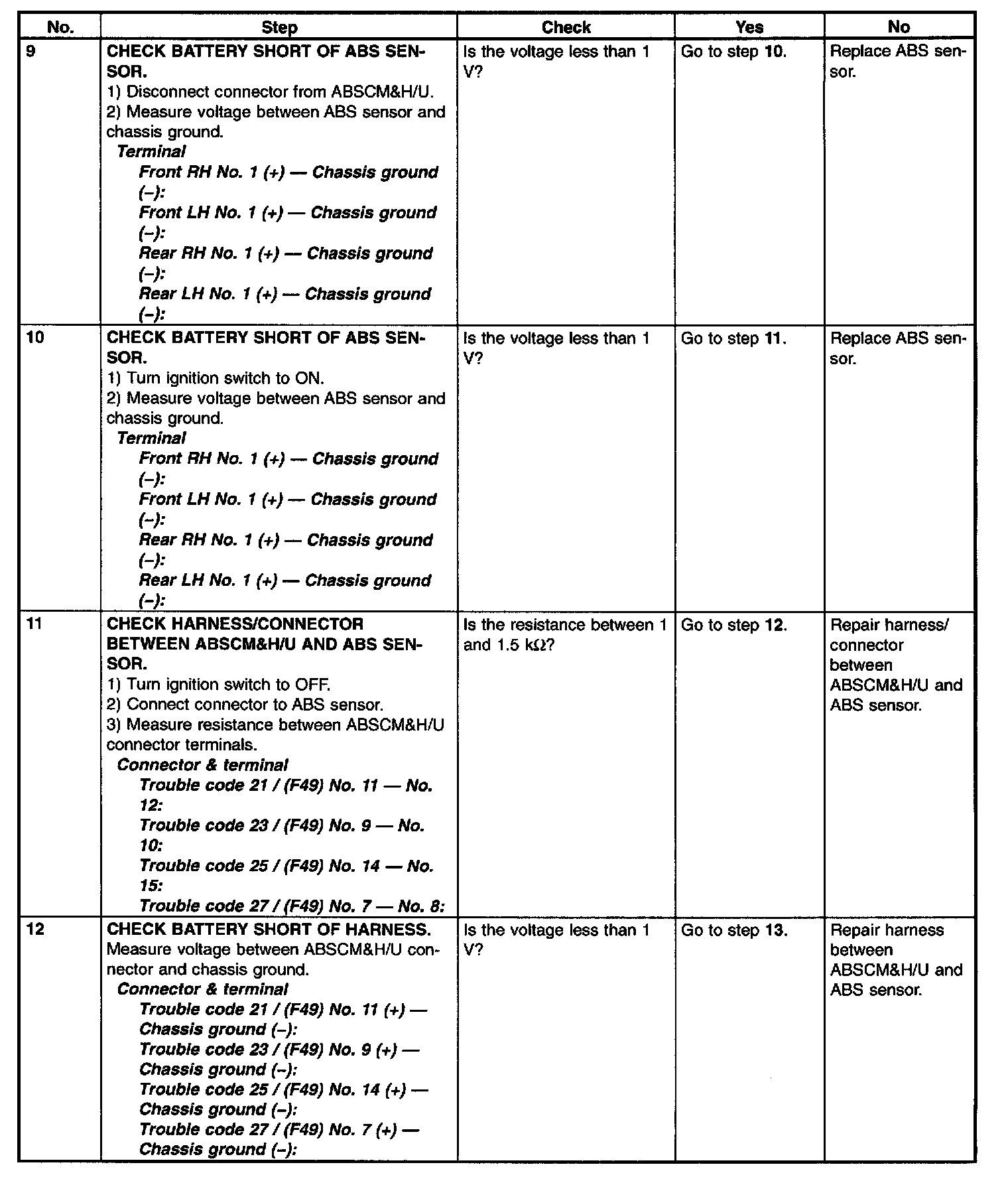

Part 2 of 4

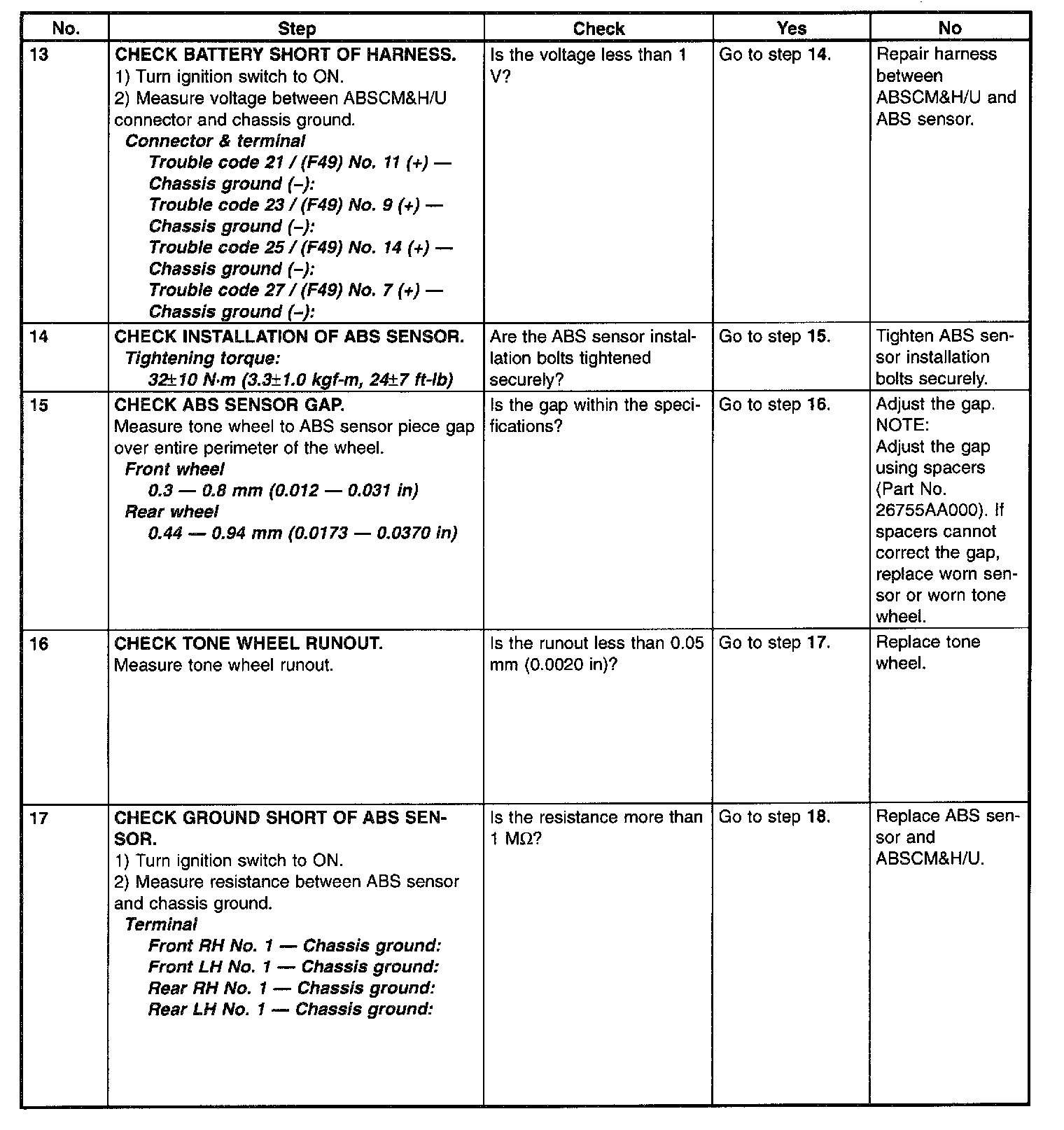

Part 3 of 4

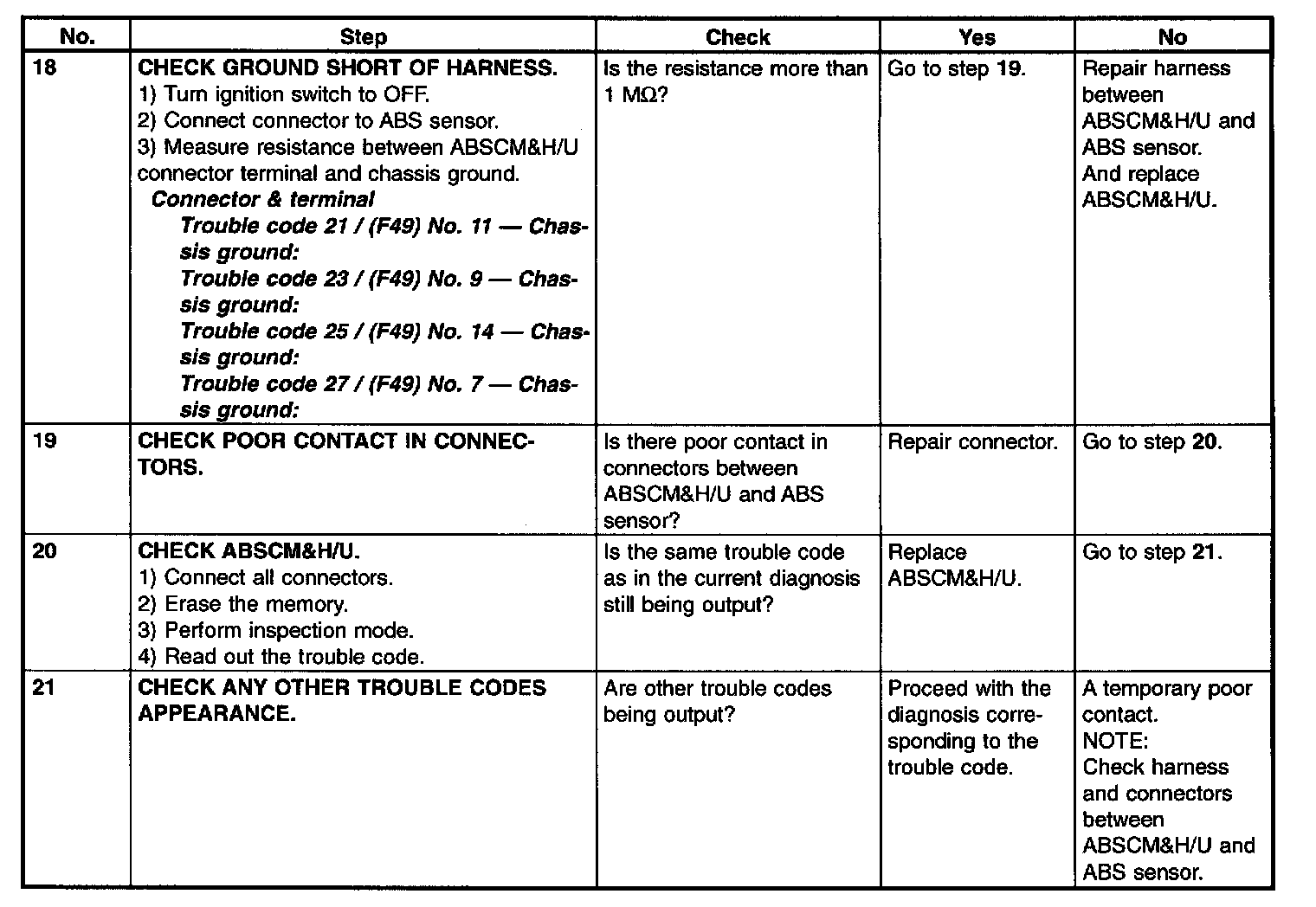

Part 4 of 4
