Transmission Control Systems

B: TROUBLE CODE 11 ENGINE SPEED SIGNAL
DIAGNOSIS: Engine speed input signal circuit is open or shorted.

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up).
- AT OIL TEMP warning remains on when vehicle speed is "0".

WIRING DIAGRAM:

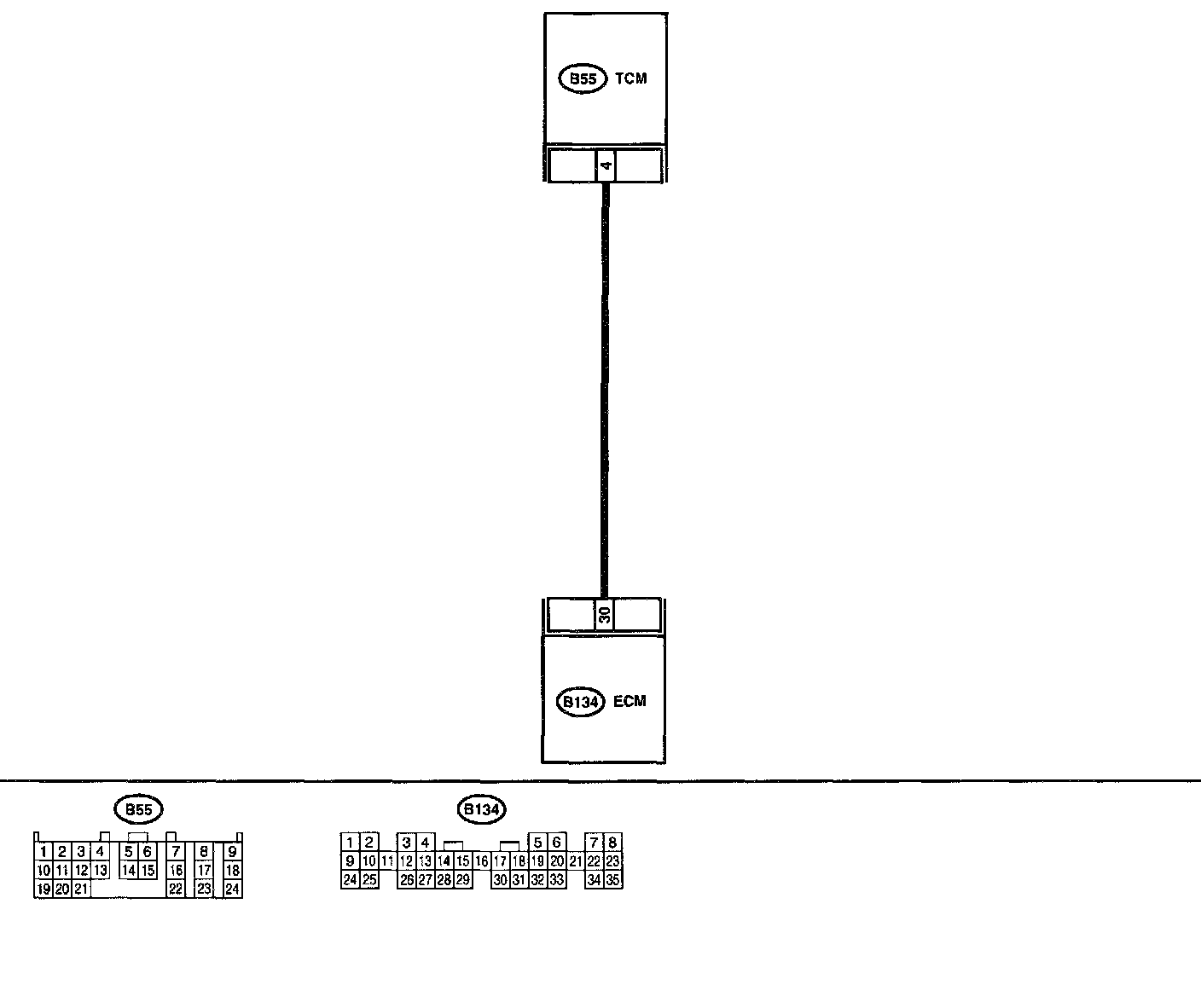

- 2.5L ENGINE MODEL

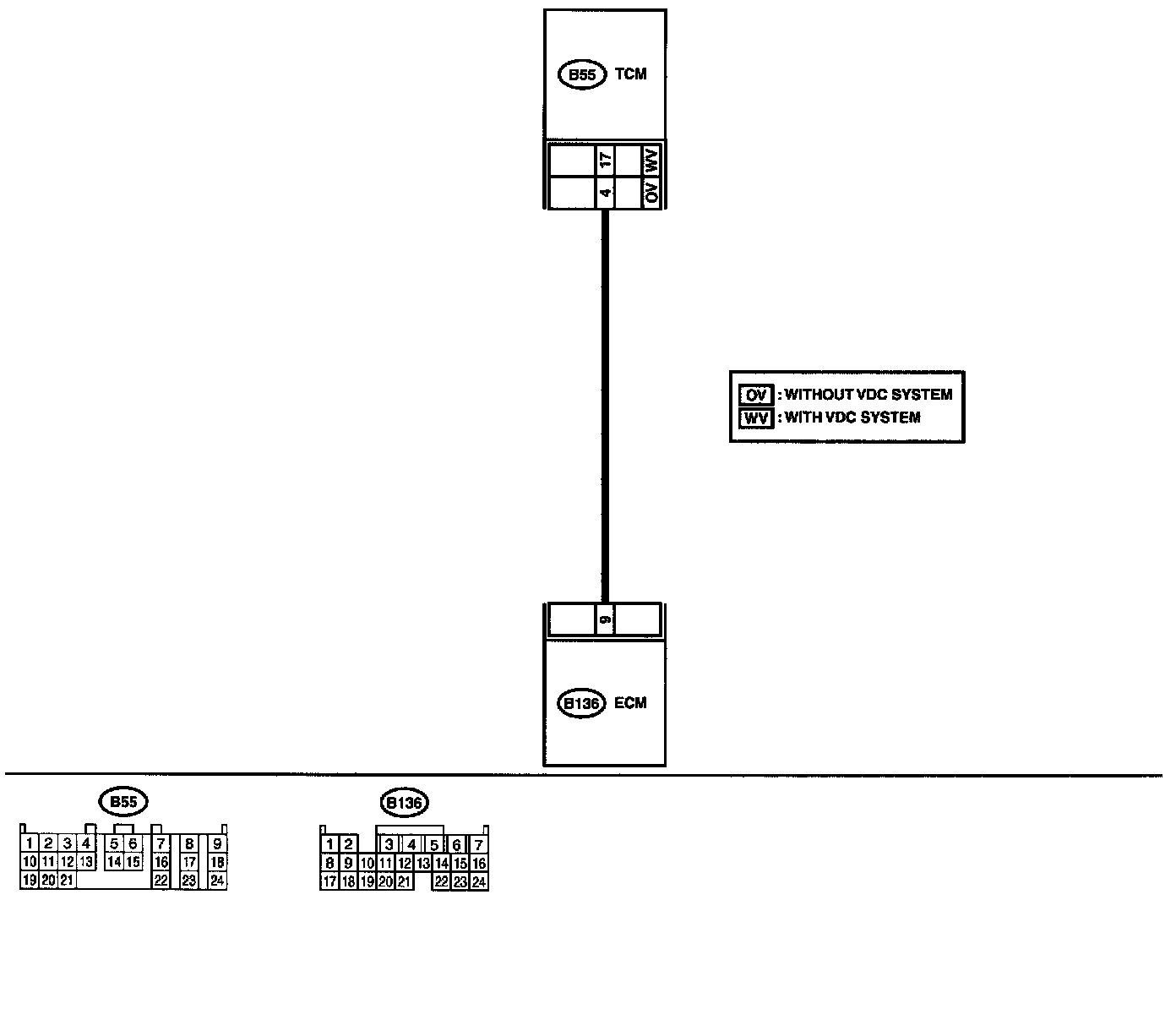

- 3.0L ENGINE MODEL

PROCEDURE:

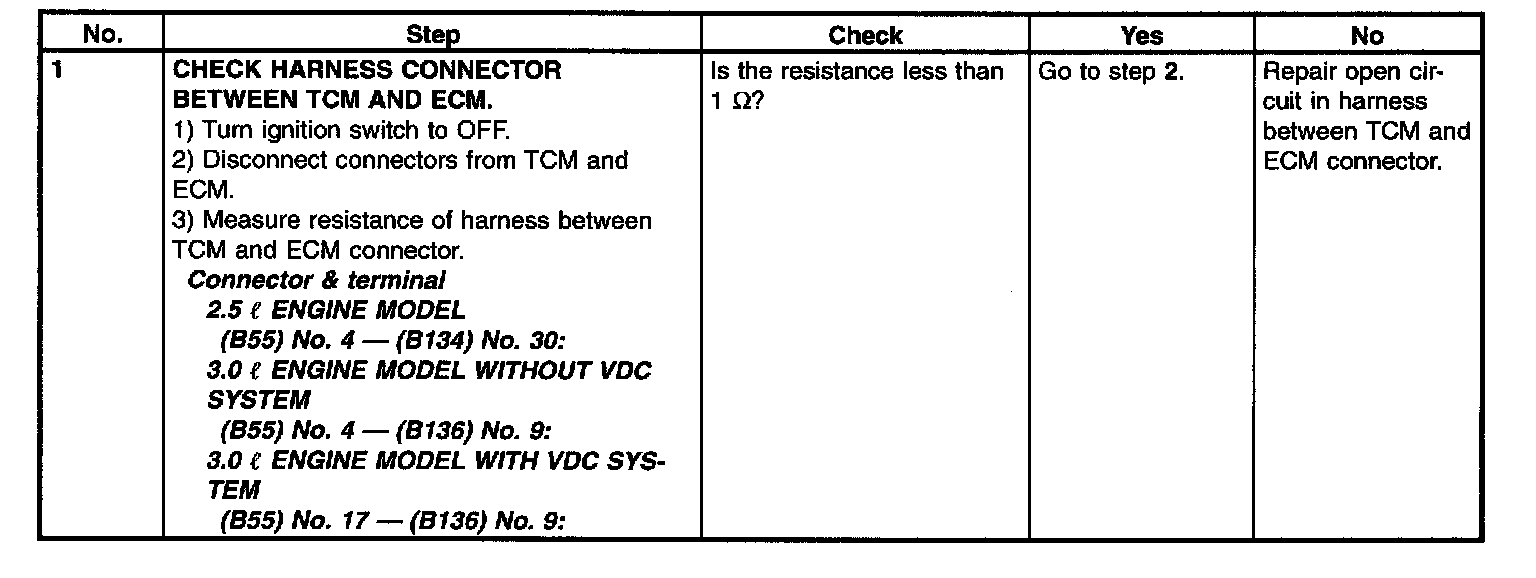

No.1

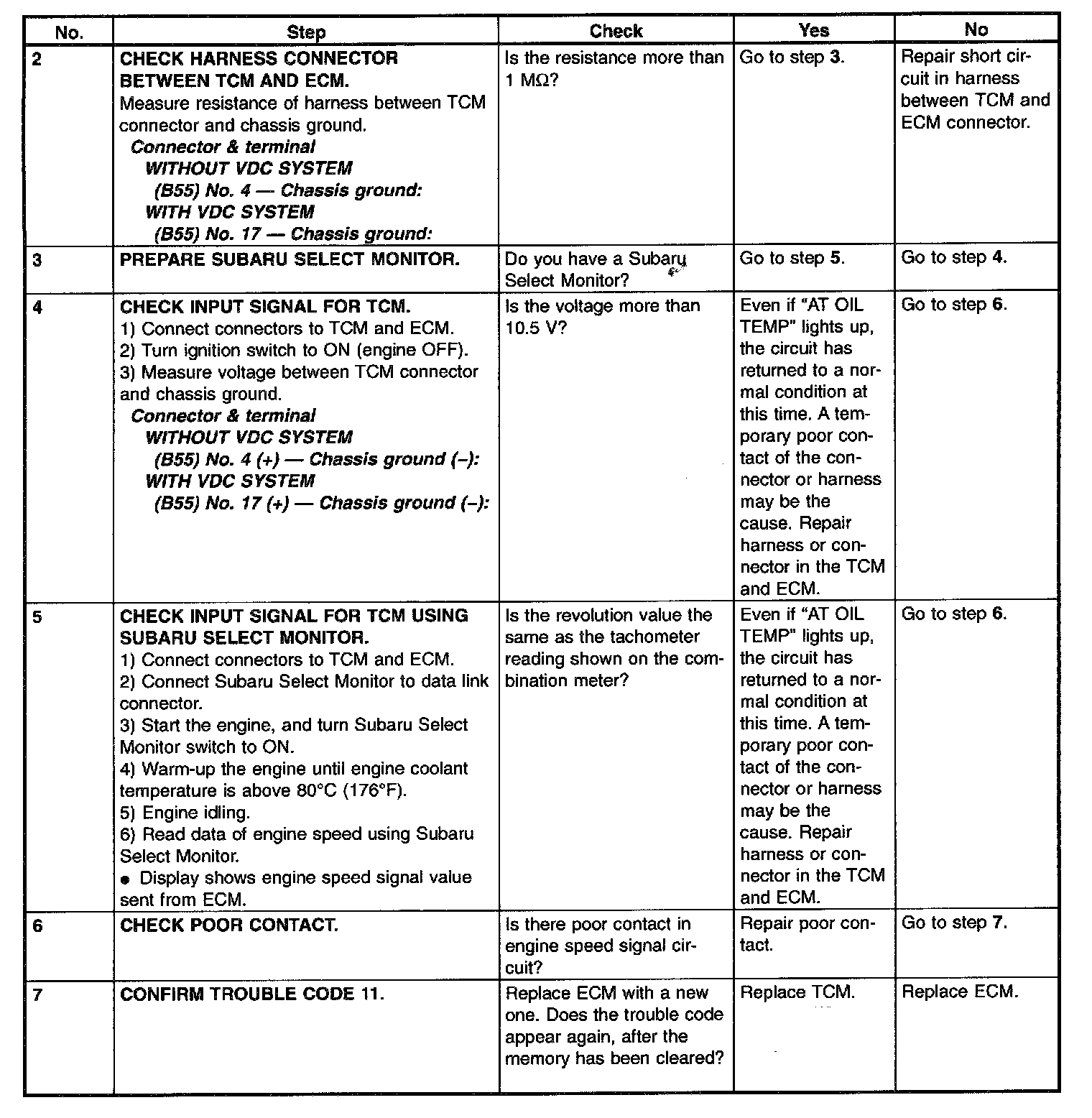

No.2 - 7
