With On-Board Diagnosis

WITHOUT SUBARU SELECT MONITOR

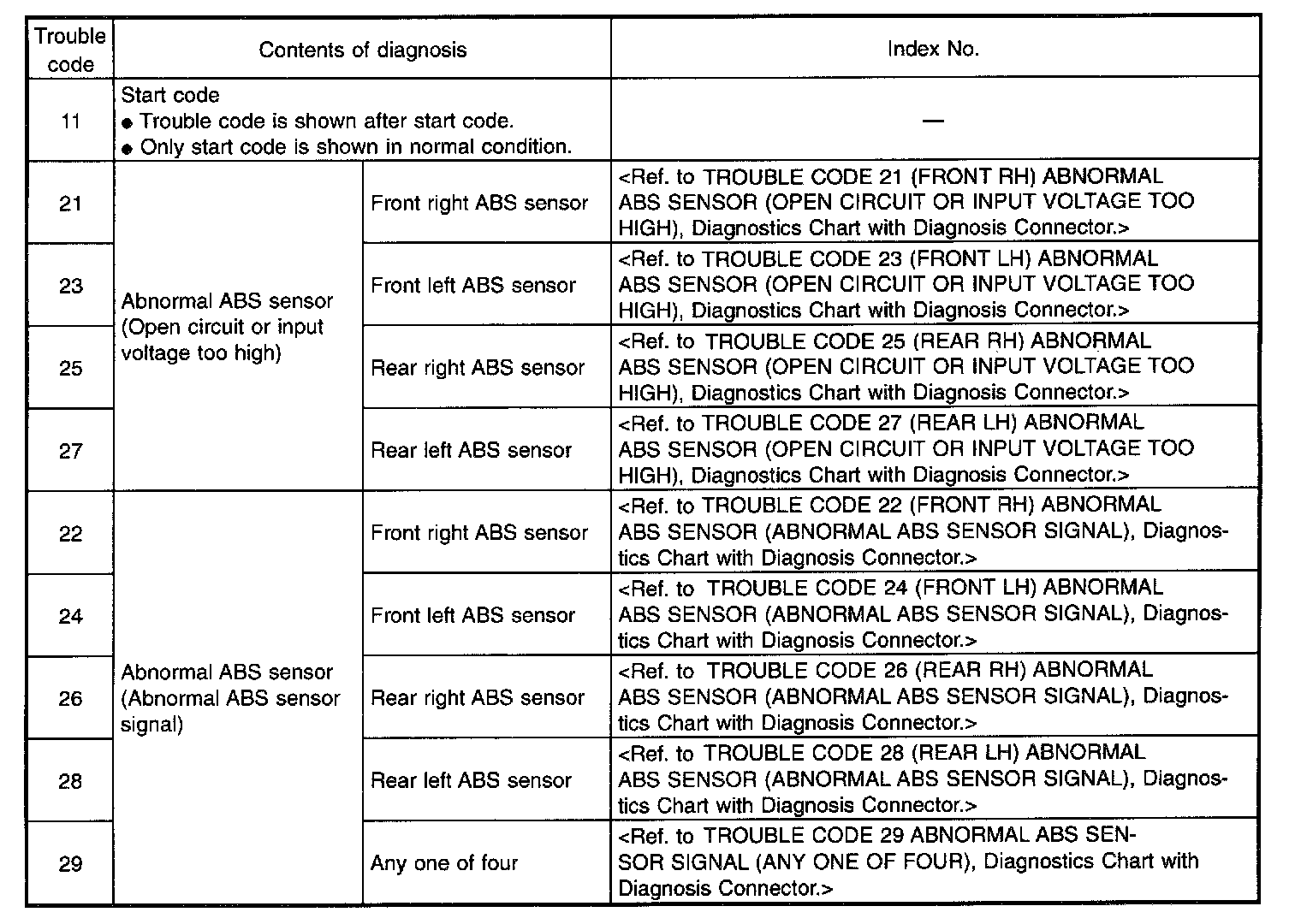

Part 1 of 4

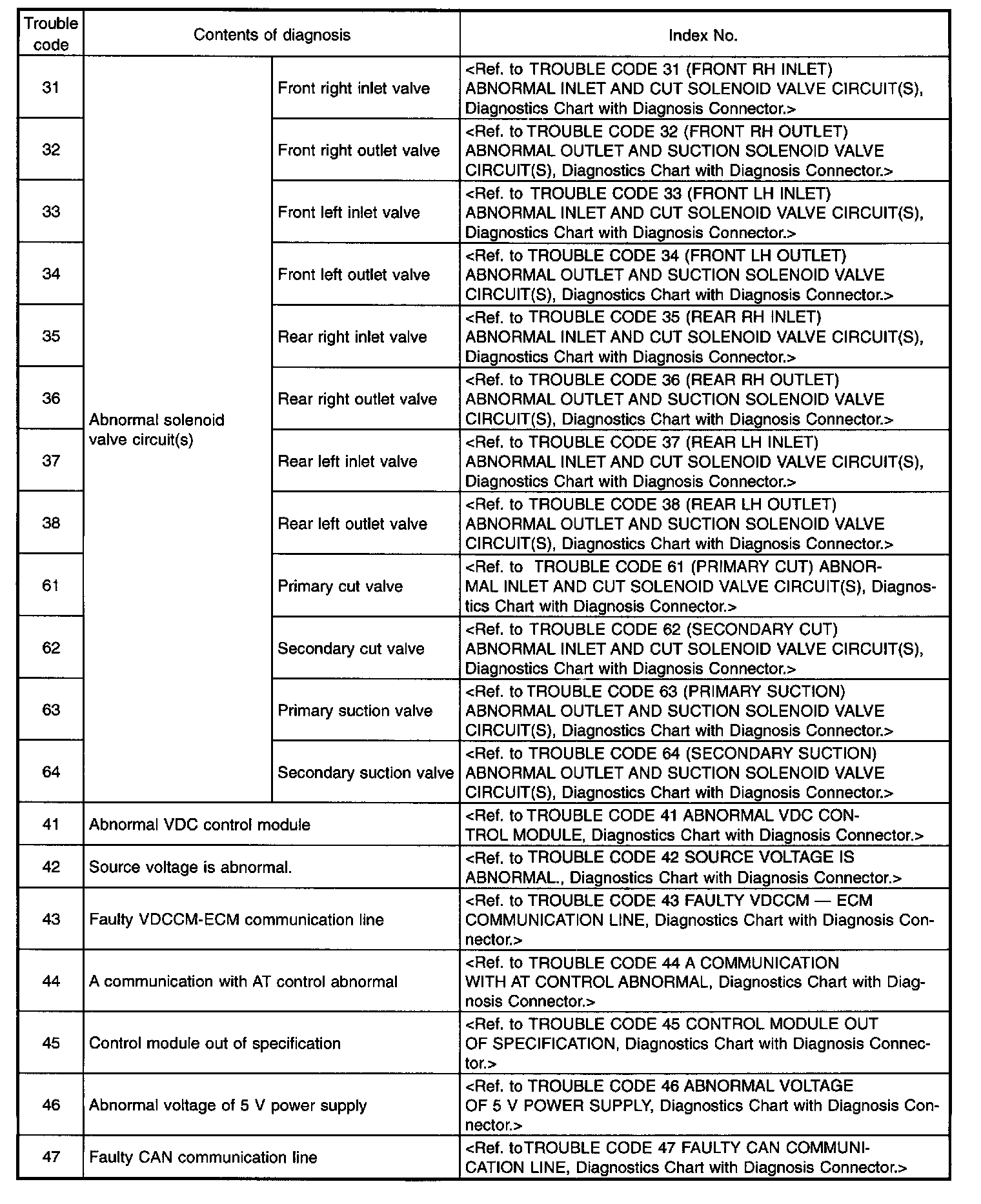

Part 2 of 4





Part 3 of 4





Part 4 of 4

If any of the above multiple trouble codes are present in memory, check the area corresponding to the first trouble code. If no problem is detected, check the areas corresponding to the other trouble codes in order of their appearance.
