Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Manufacturer Code Descriptions >> ABS >> ABS (without VDC) >> With Select Monitor

With Select Monitor

WITH SUBARU SELECT MONITOR

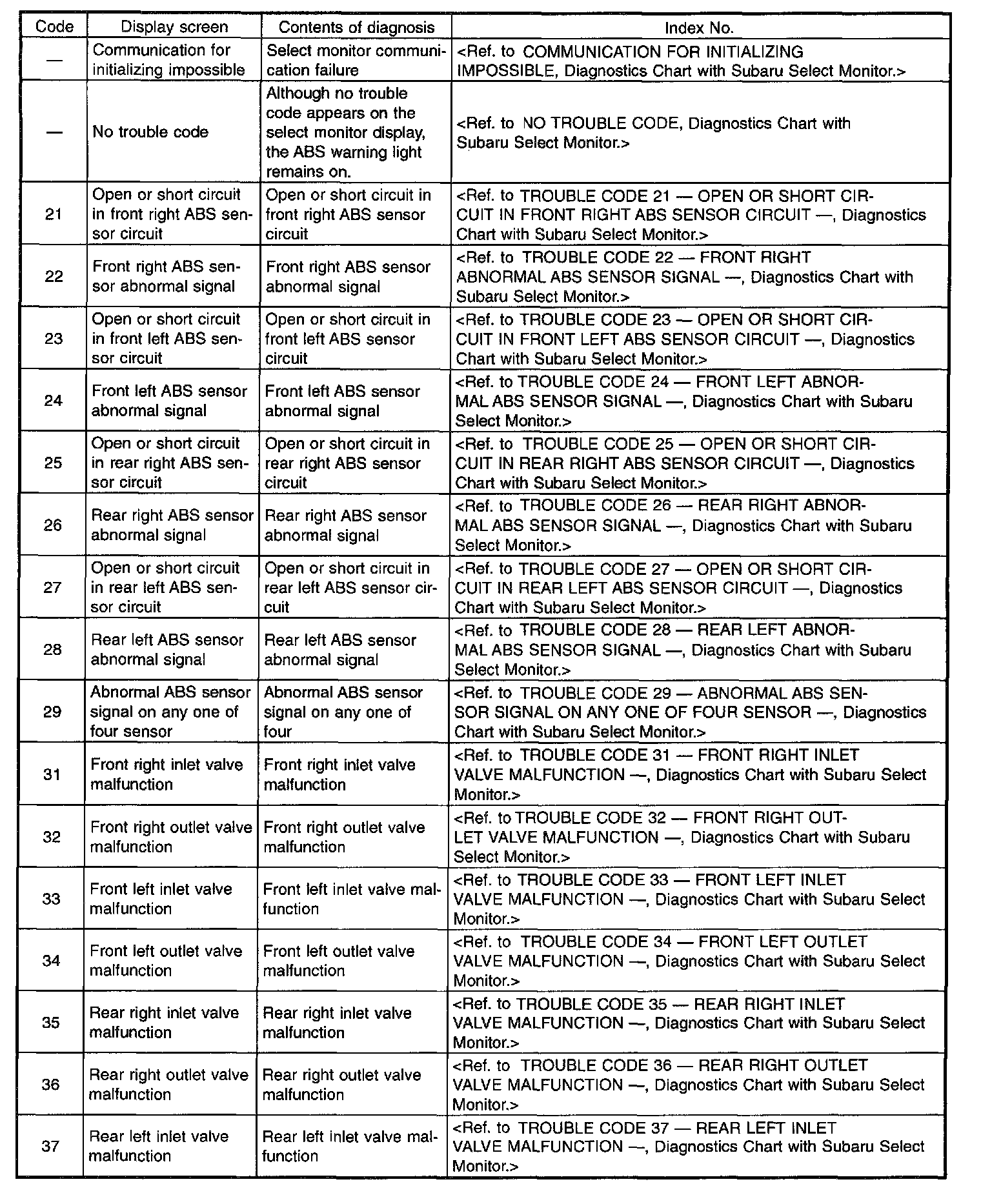

Part 1 of 2

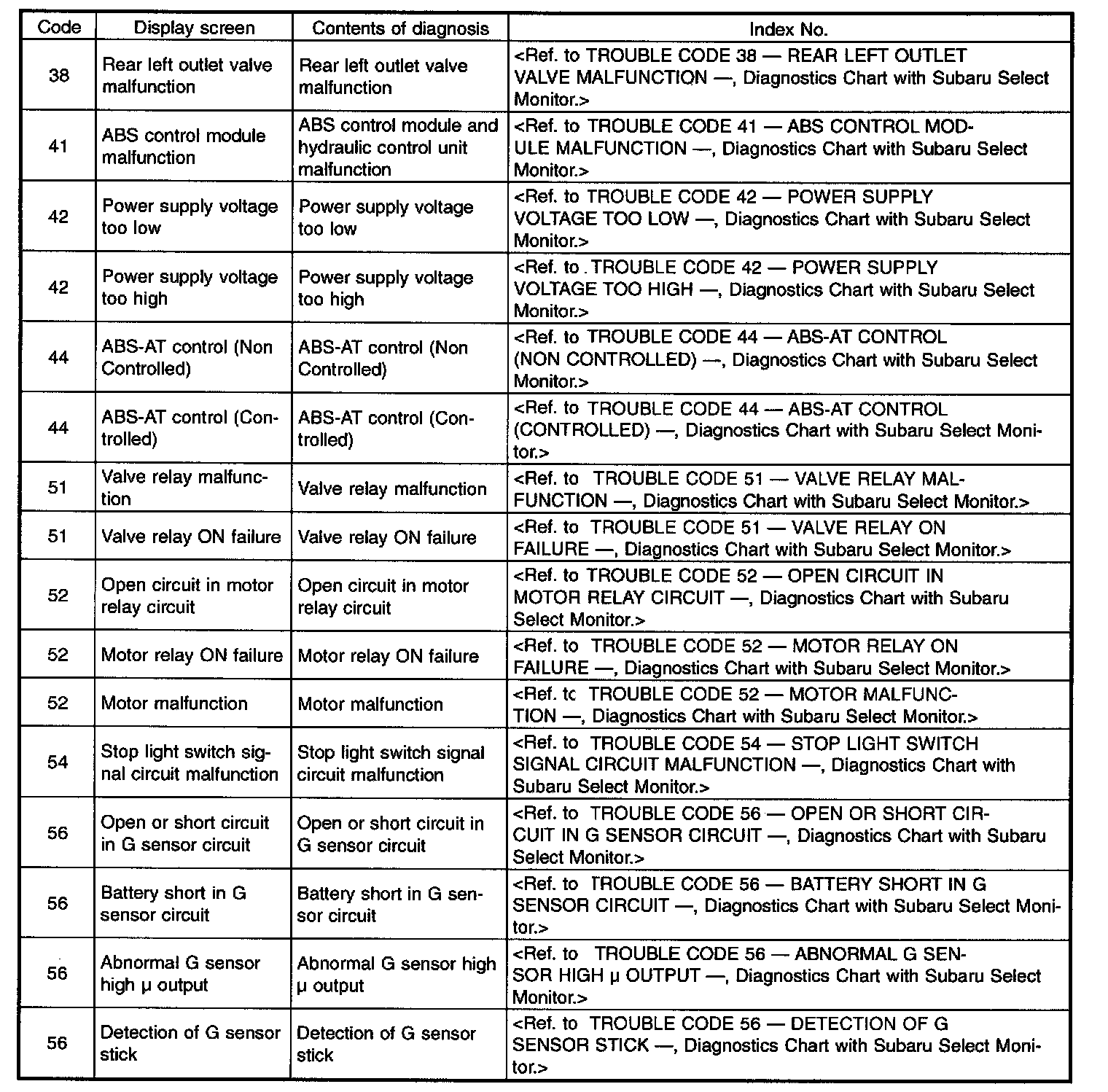

Part 2 of 2

NOTE: High [symbol - upside down h] means high friction coefficient against road surface.
