Reduction Driven Gear

A: DISASSEMBLY





1. Remove snap ring from reduction driven gear.

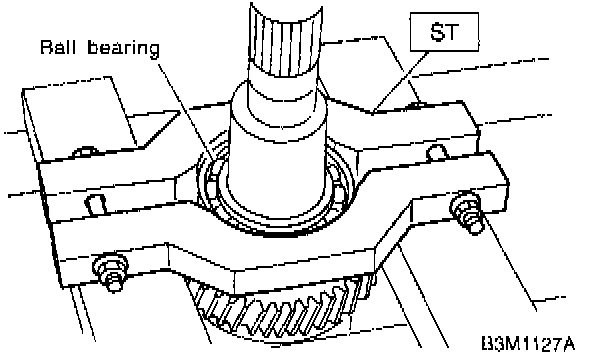

2. Using Service Tool ST, remove ball bearing from reduction driven gear.
ST 498077500 REMOVER

B: INSPECTION
Check ball bearing and gear for dents or damage.

C: ASSEMBLY

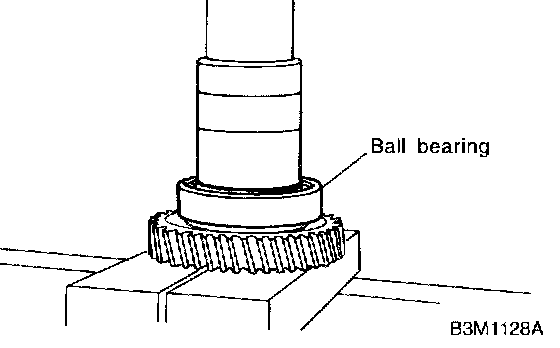

1. Using a press, install ball bearing to reduction driven gear.





2. Install snap ring to reduction driven gear.
