Home >> Subaru >> 2000 >> Legacy Brighton Wagon AWD F4-2.5L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Testing and Inspection

Combination Switch: Testing and Inspection

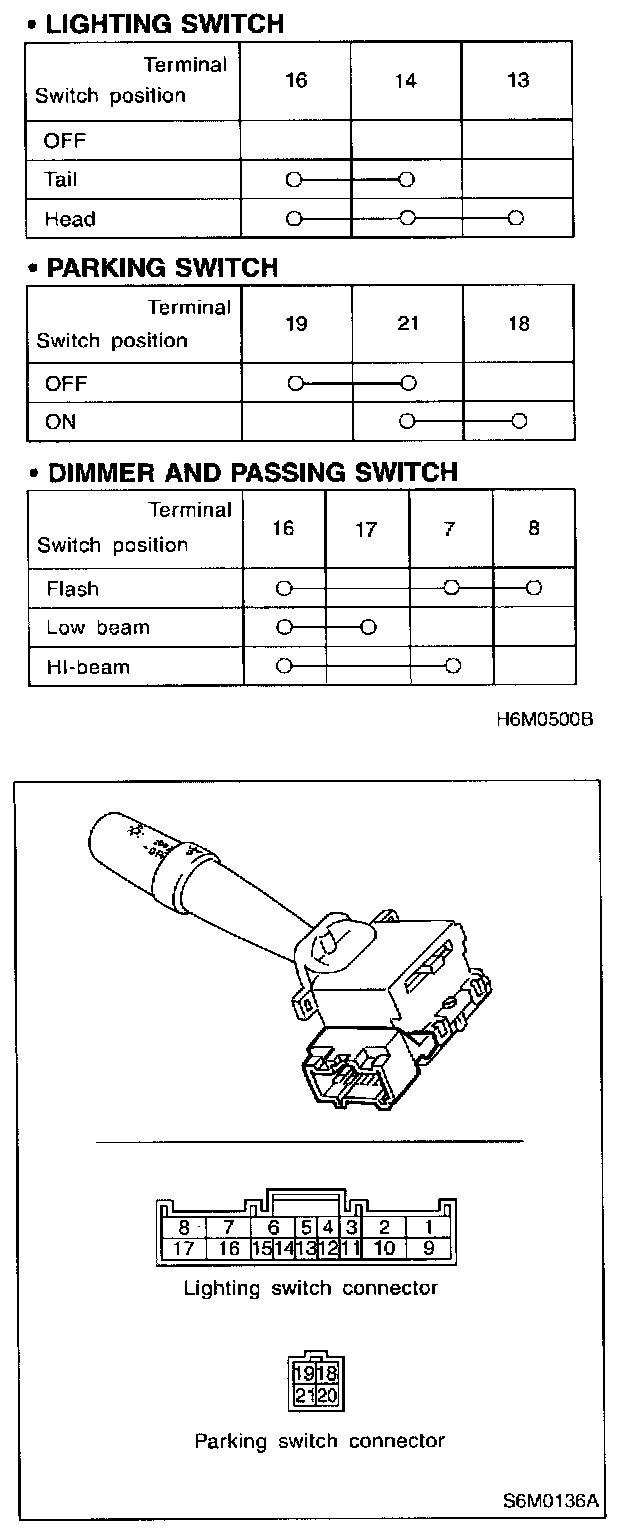

COMBINATION SWITCH (LIGHTING)
Move combination switch to respective positions and check continuity between terminals.
