Check Line Pressure Duty Solenoid

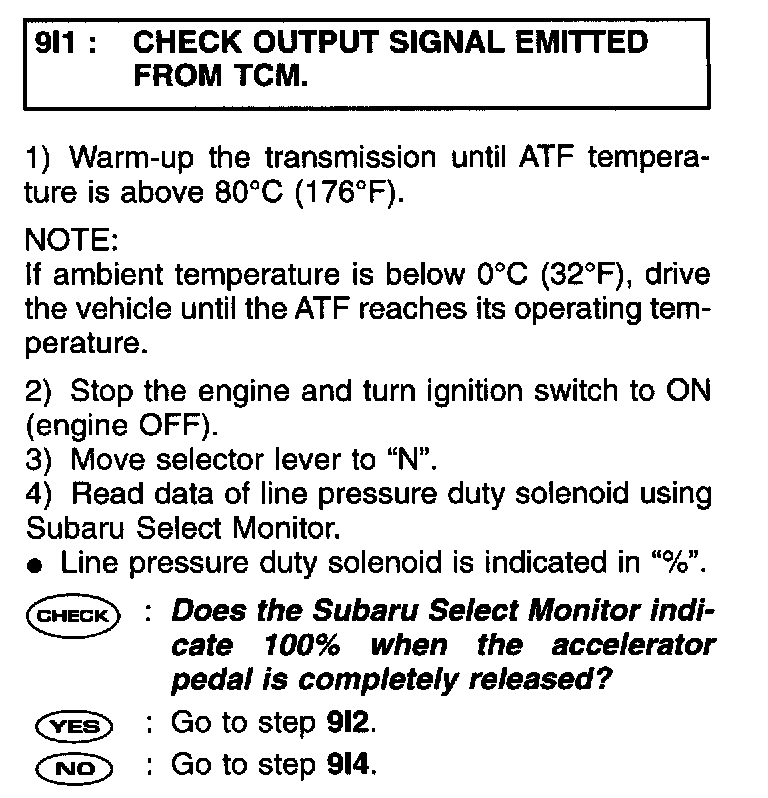

Step 9I1:

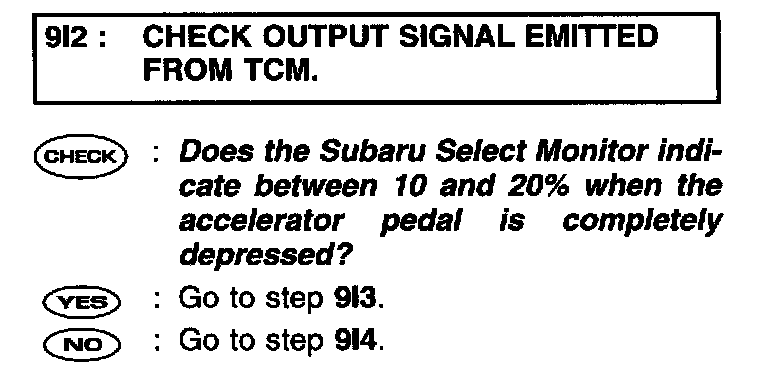

Step 9I2:

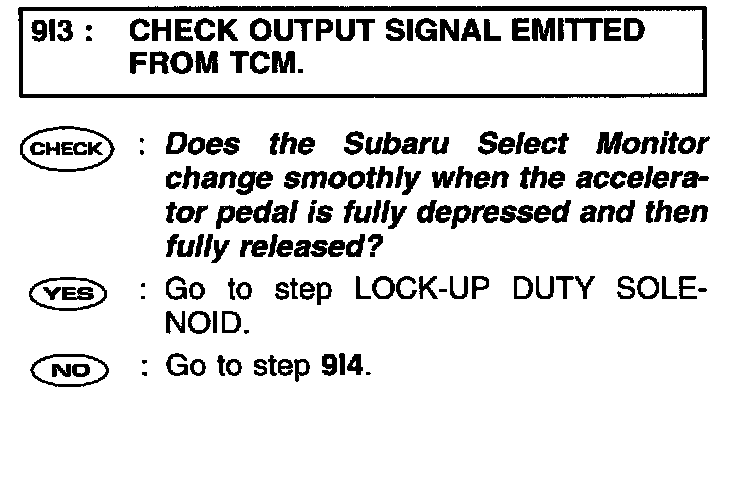

Step 9I3:

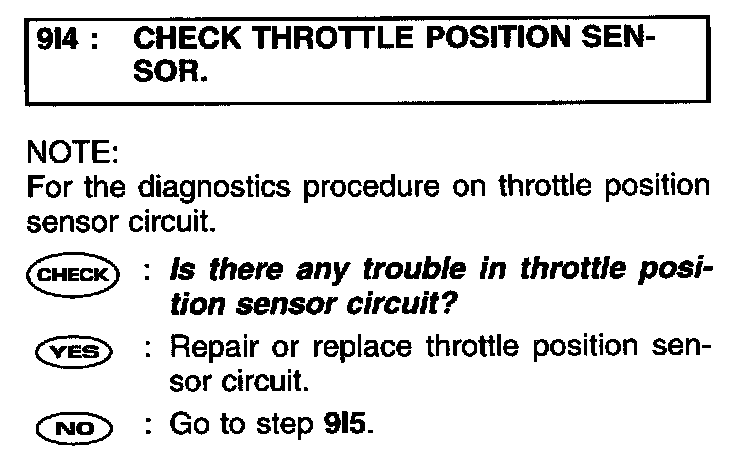

Step 9I4:

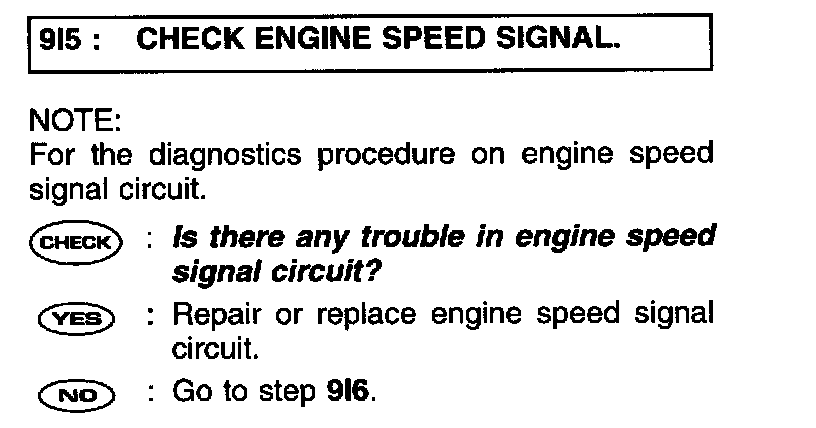

Step 9I5:

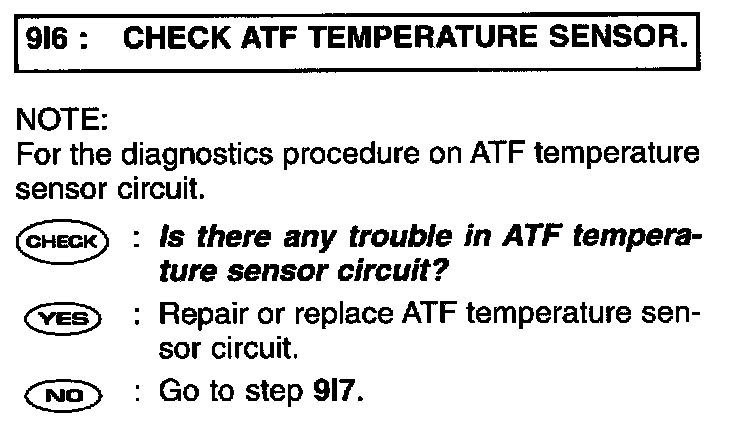

Step 9I6:





Step 9I7:
