Steps 9T1 - 9T40

DIAGNOSIS
Input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

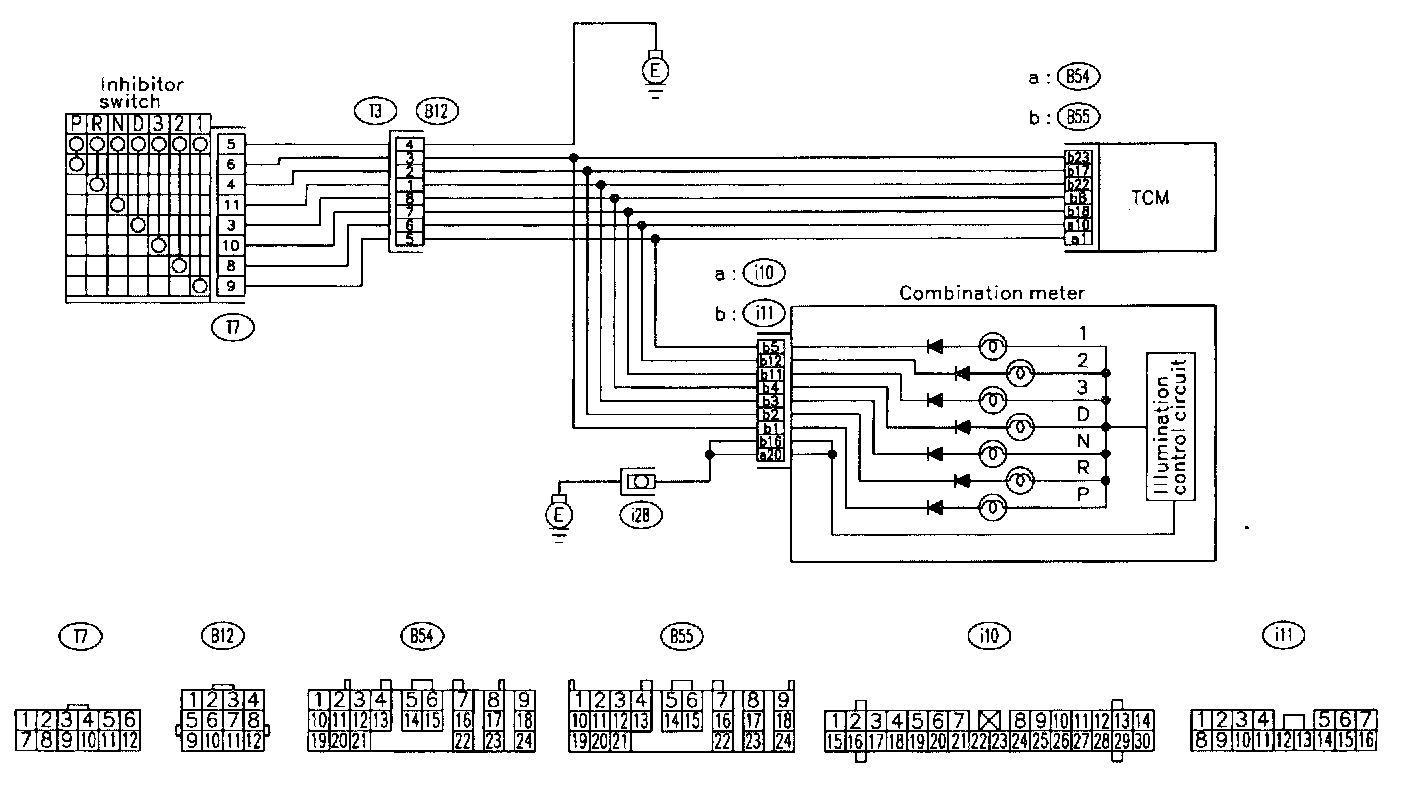

WIRING DIAGRAM

TEST STEPS:

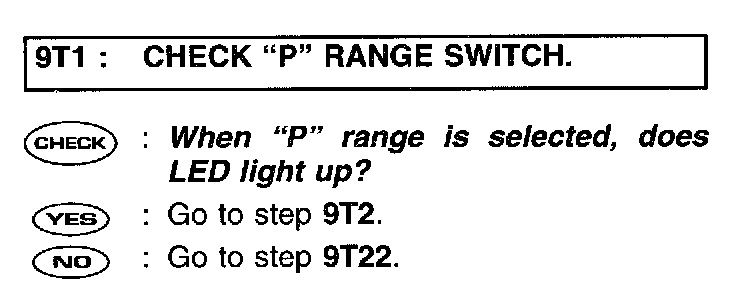

Step 9T1:

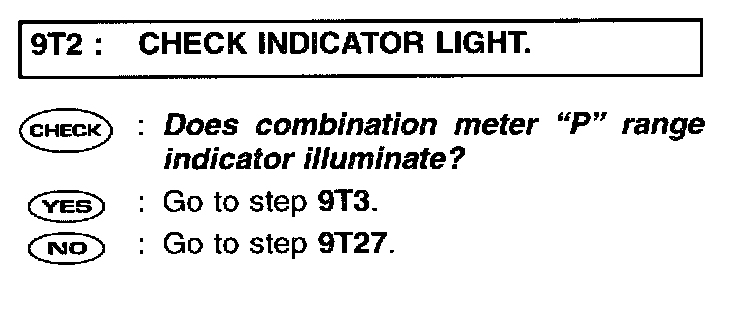

Step 9T2:

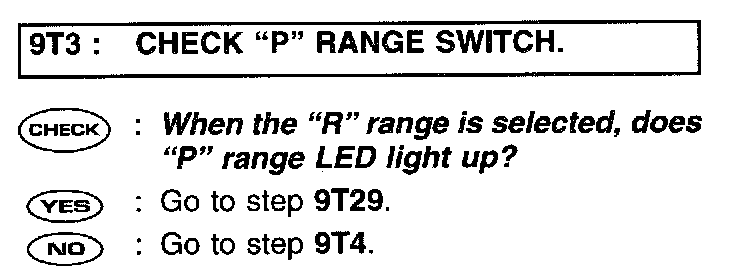

Step 9T3:

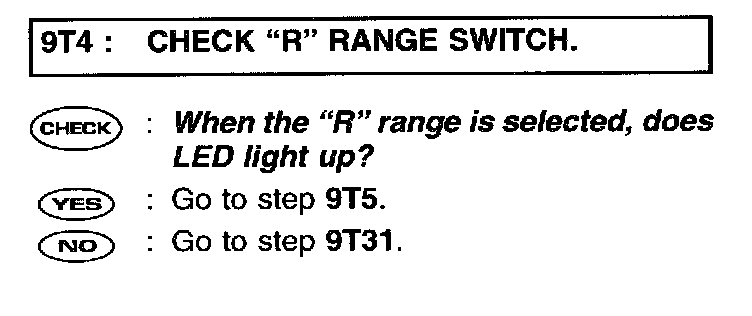

Step 9T4:

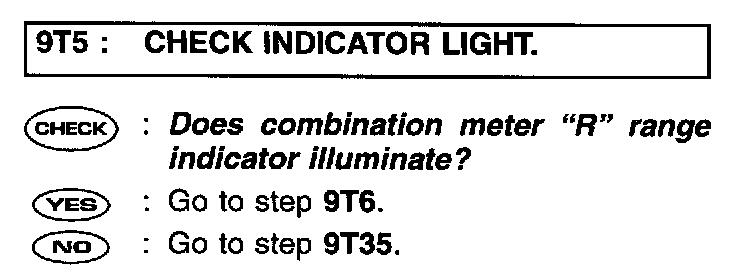

Step 9T5:

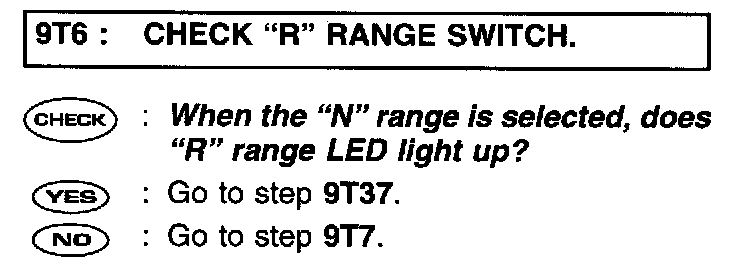

Step 9T6:

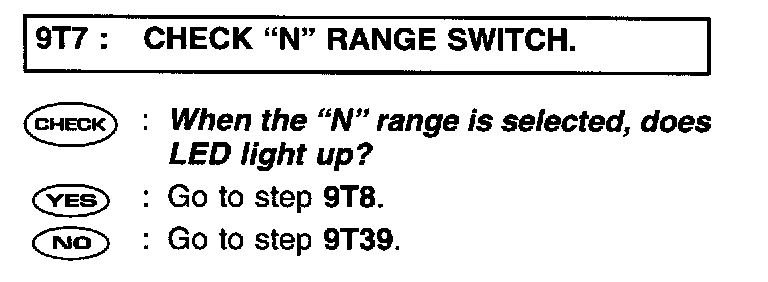

Step 9T7:

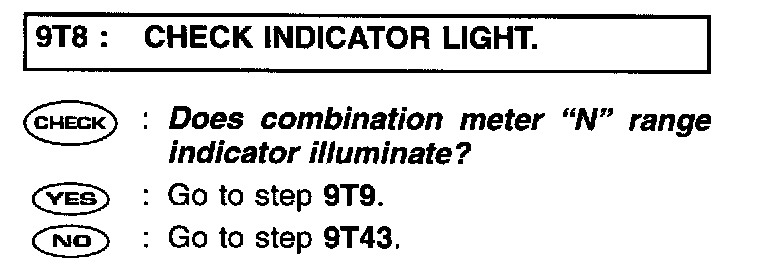

Step 9T8:

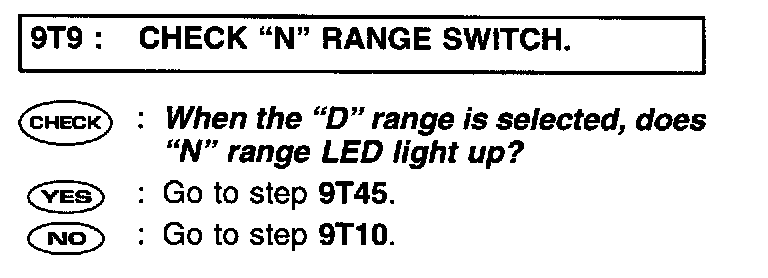

Step 9T9:

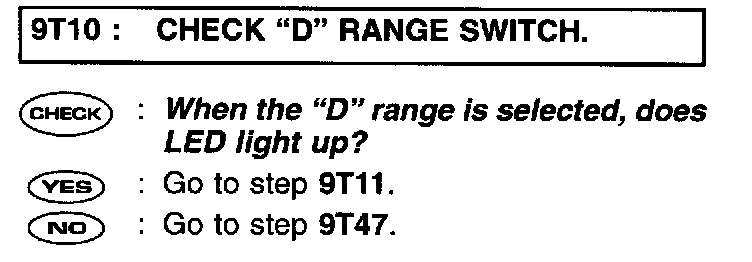

Step 9T10:

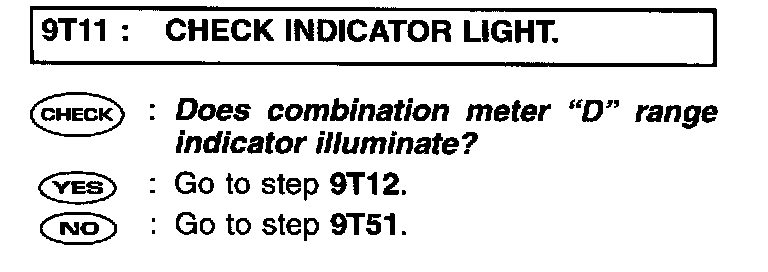

Step 9T11:

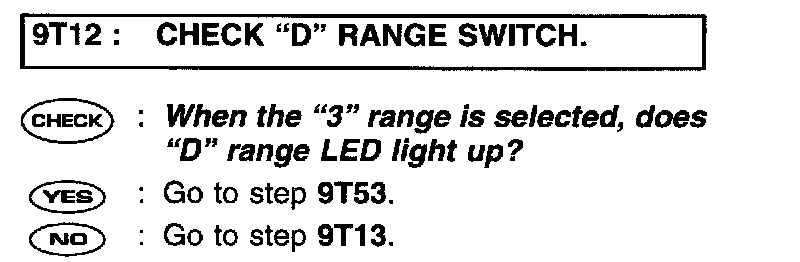

Step 9T12:

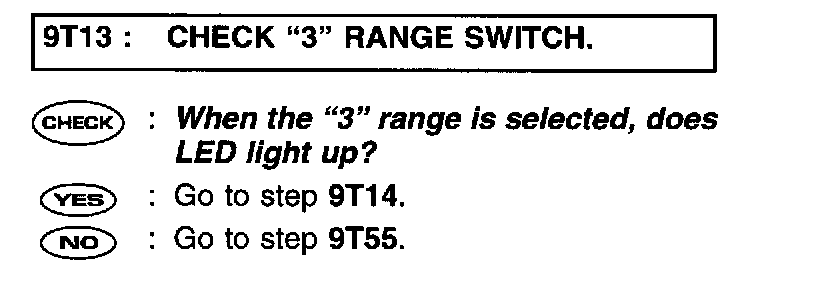

Step 9T13:

Step 9T14:

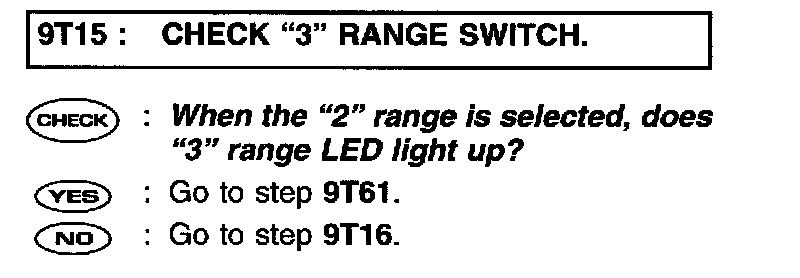

Step 9T15:

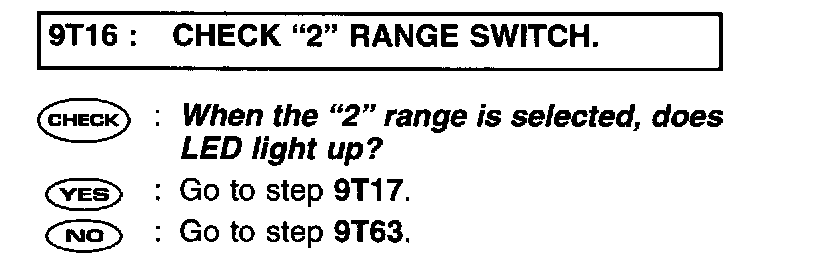

Step 9T16:

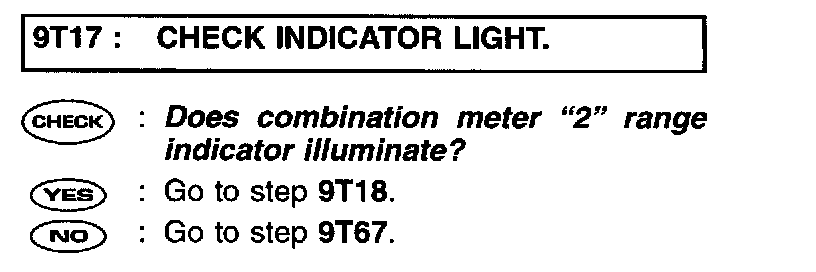

Step 9T17:

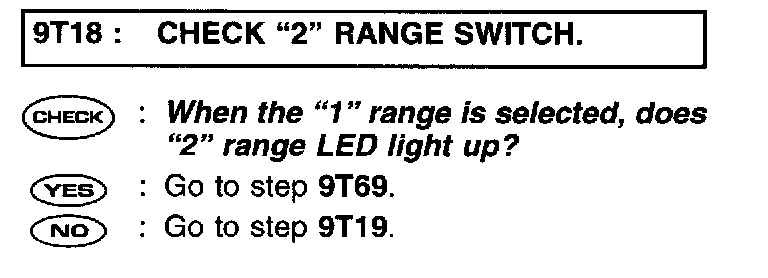

Step 9T18:

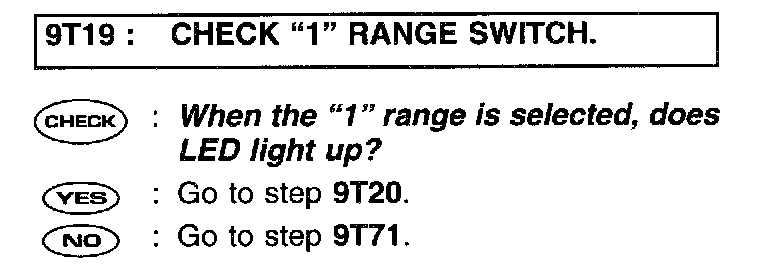

Step 9T19:

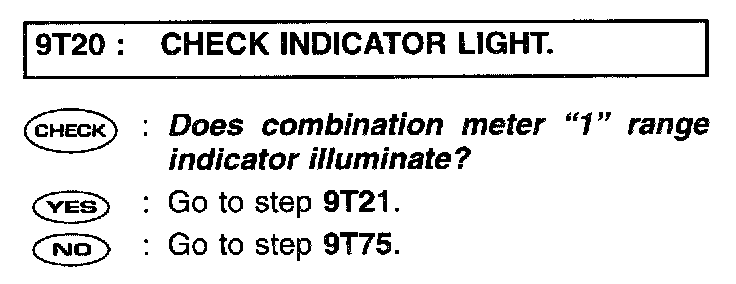

Step 9T20:

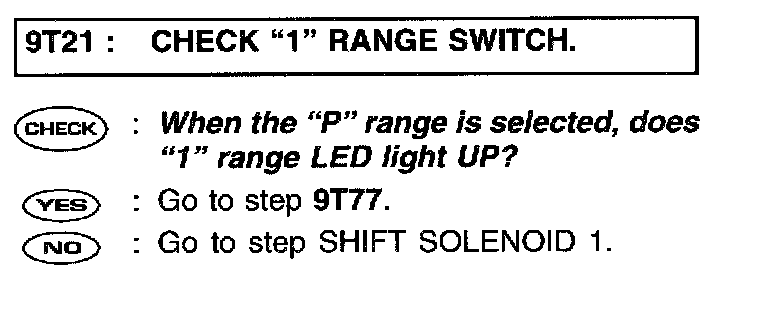

Step 9T21:

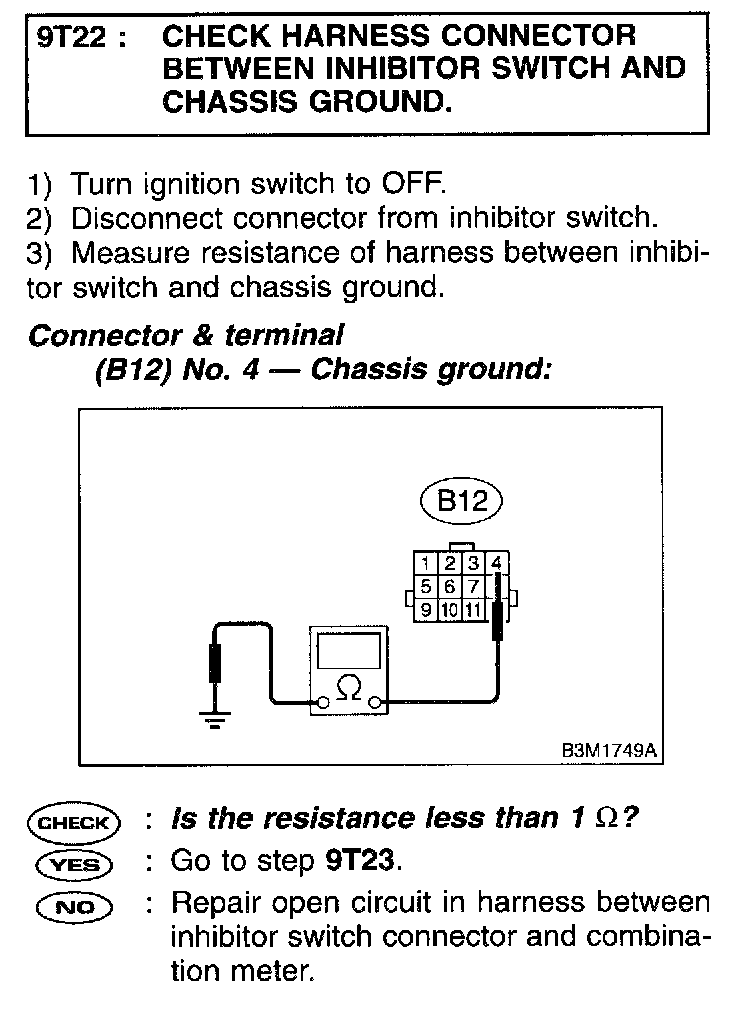

Step 9T22:

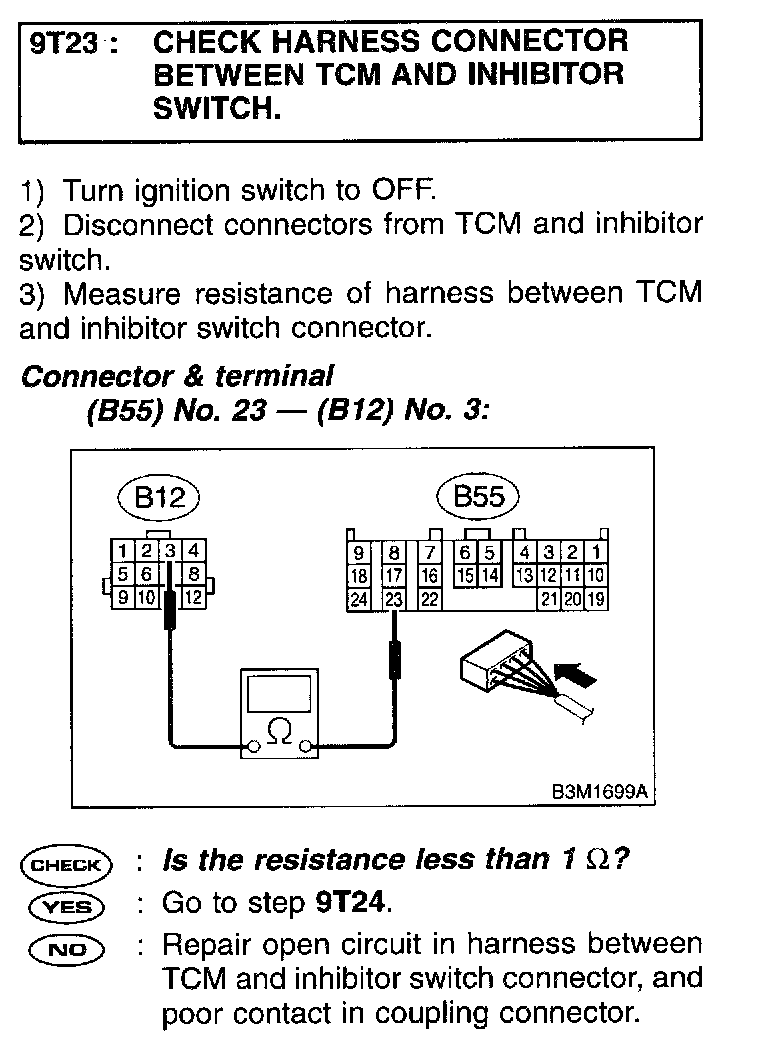

Step 9T23:

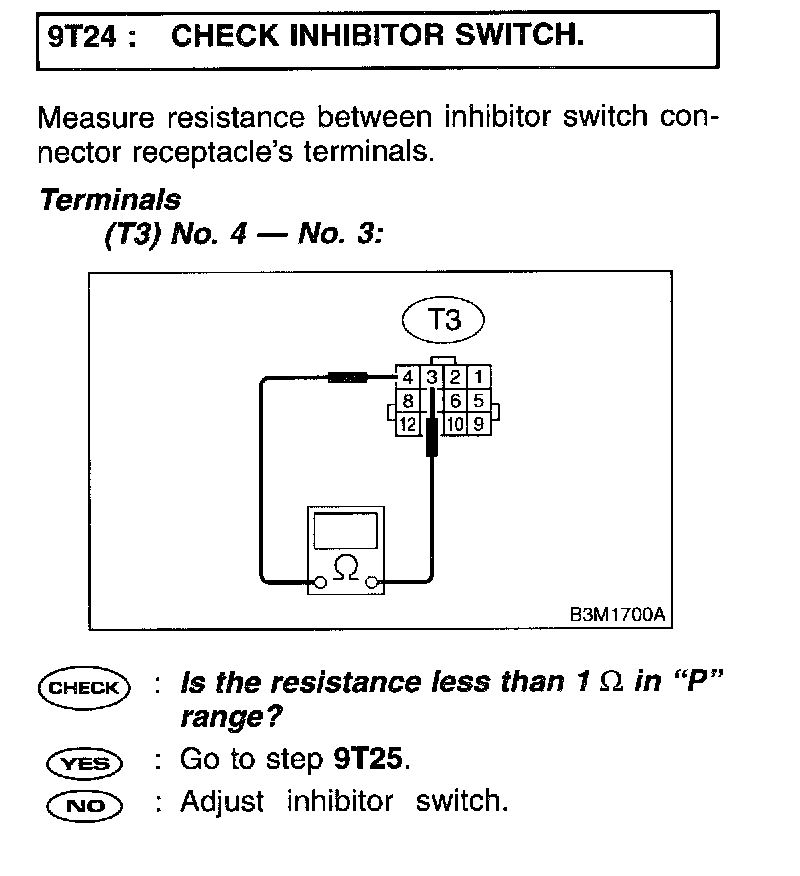

Step 9T24:

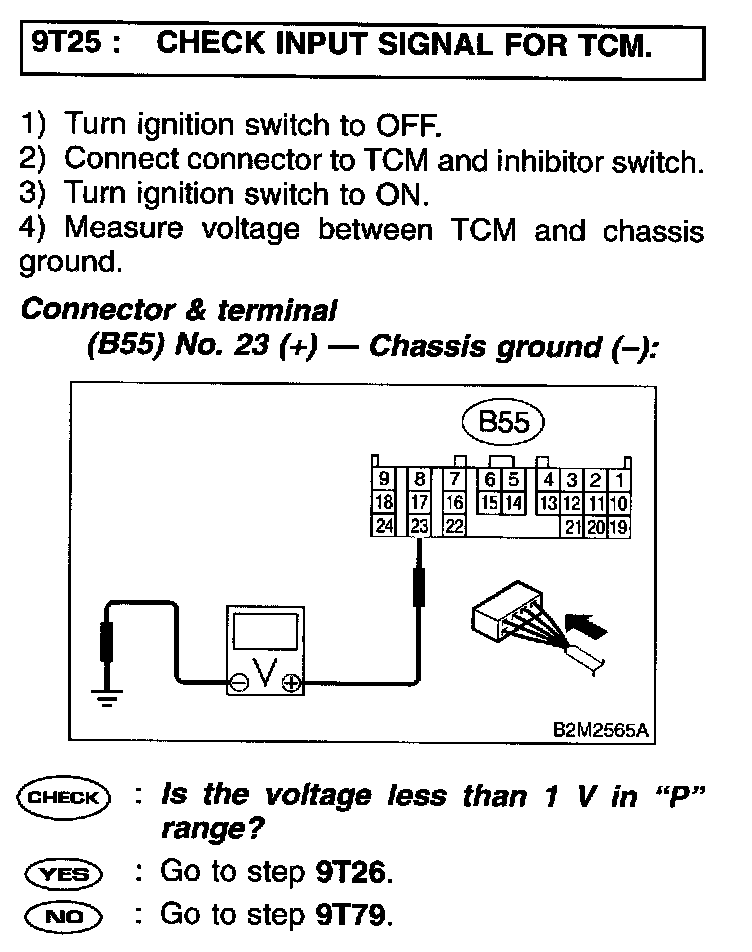

Step 9T25:

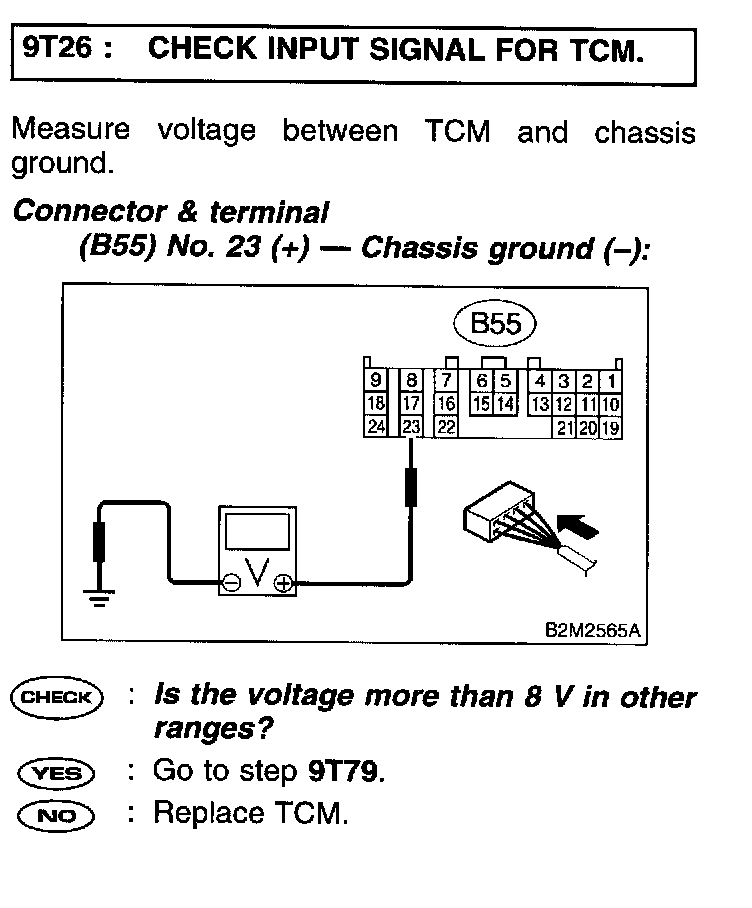

Step 9T26:

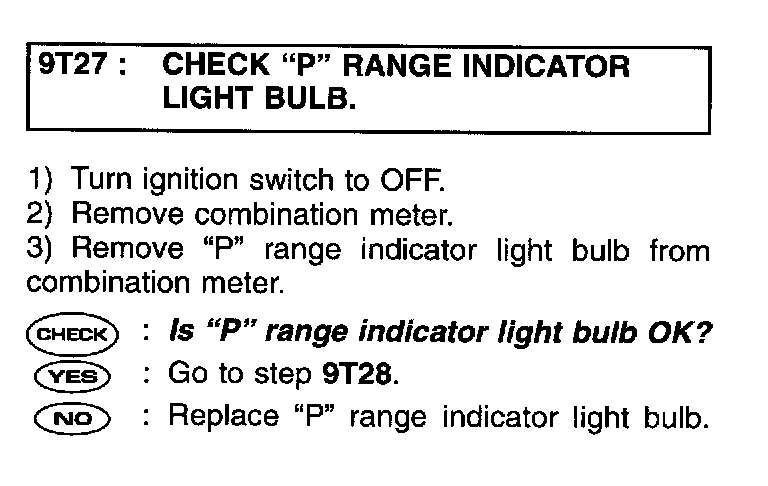

Step 9T27:

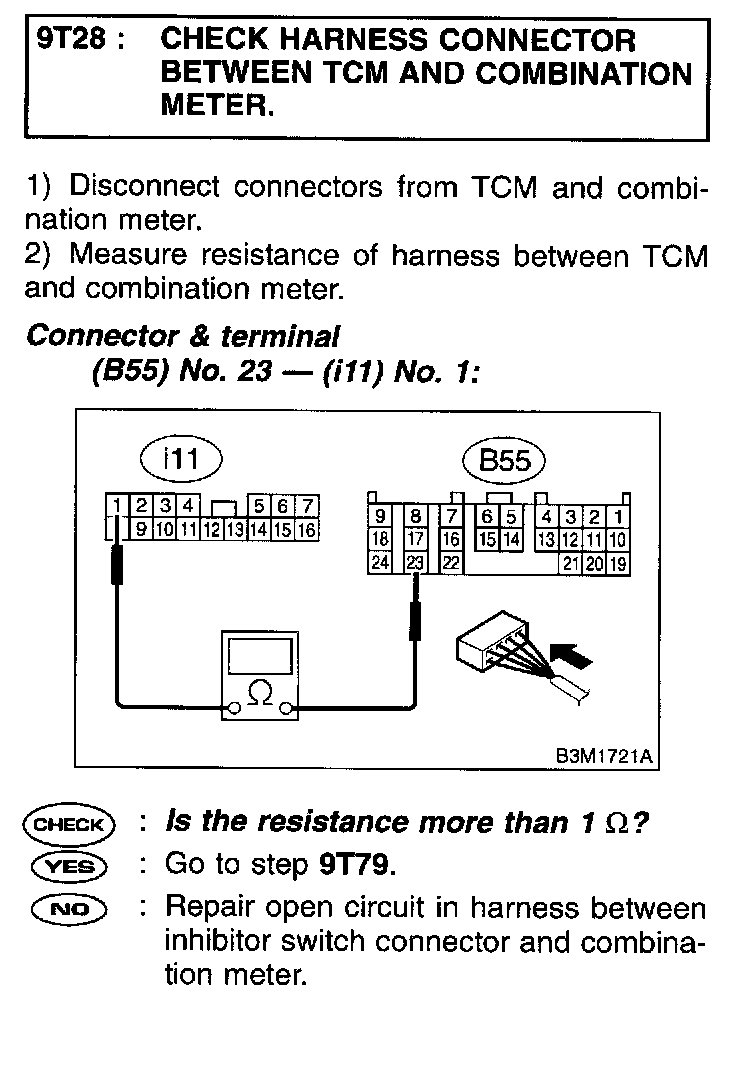

Step 9T28:

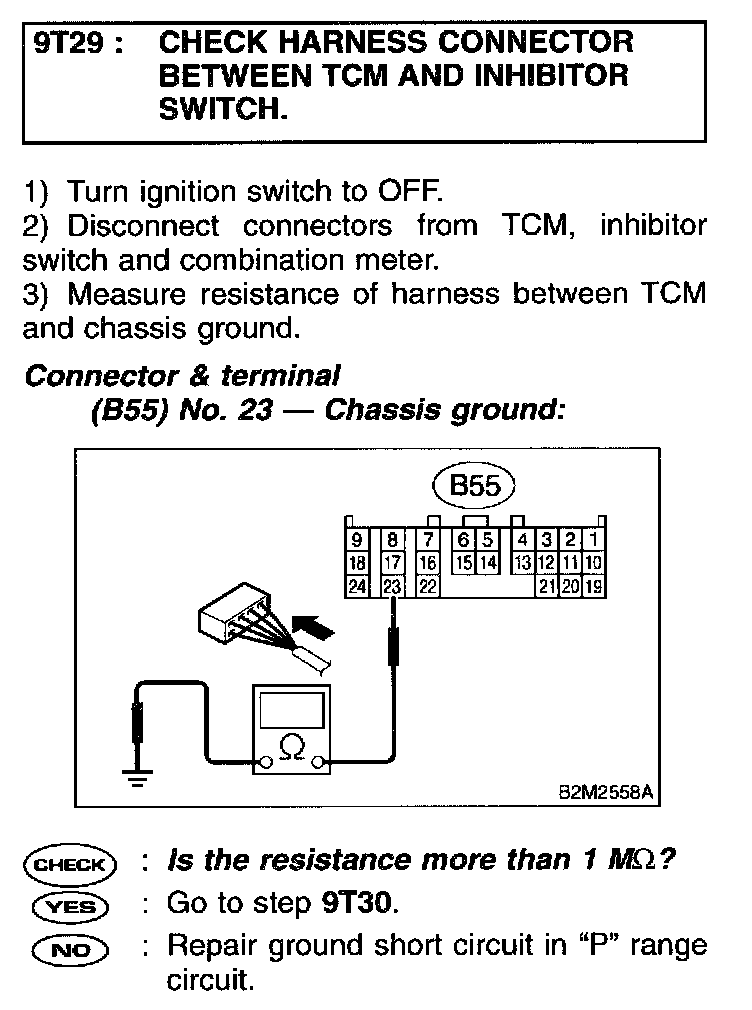

Step 9T29:

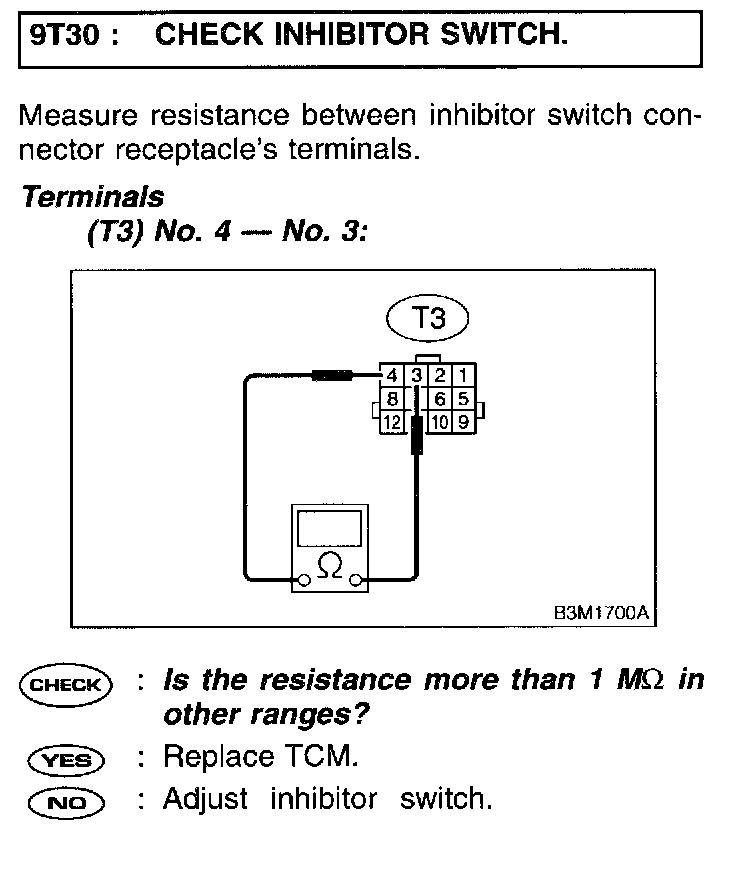

Step 9T30:

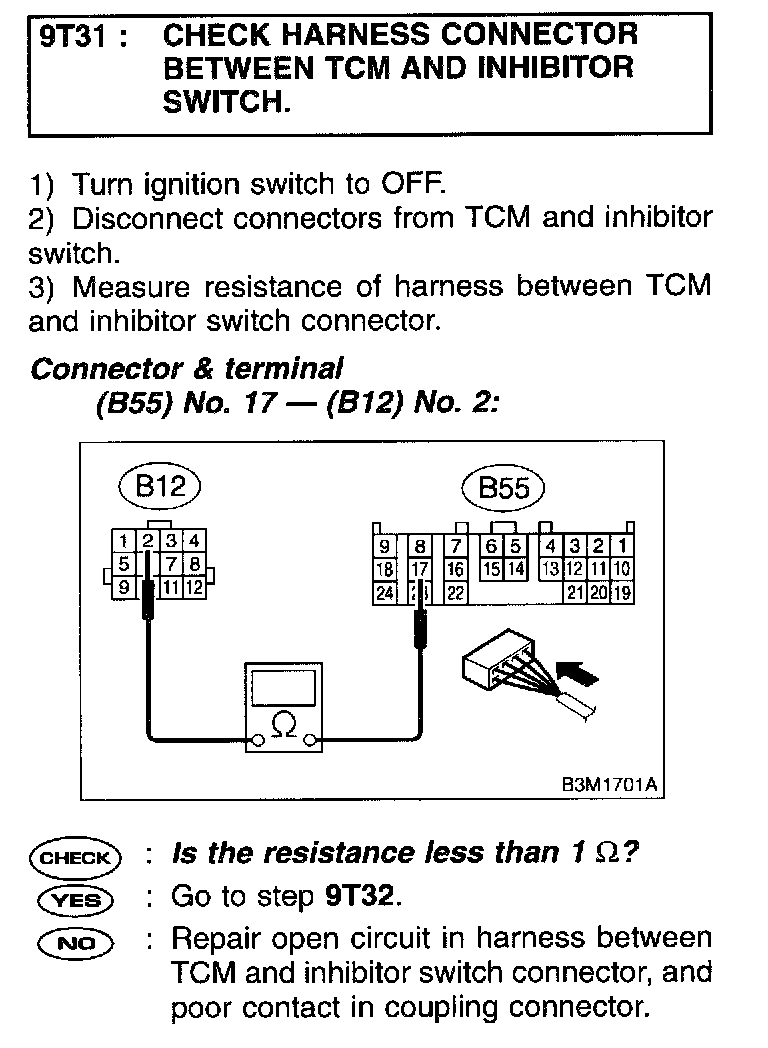

Step 9T31:

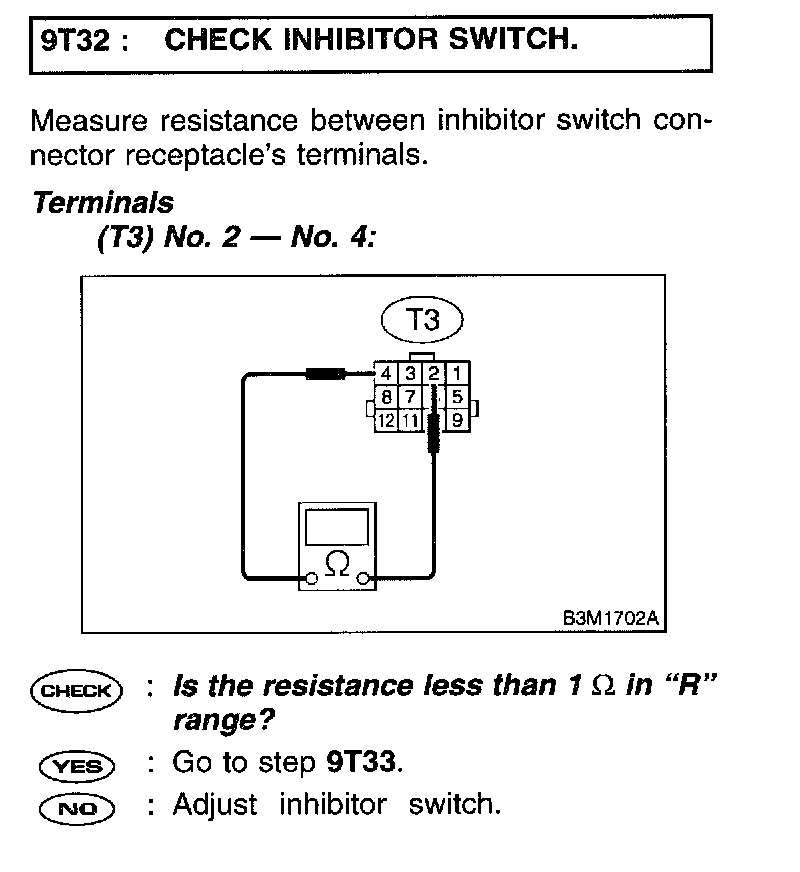

Step 9T32:

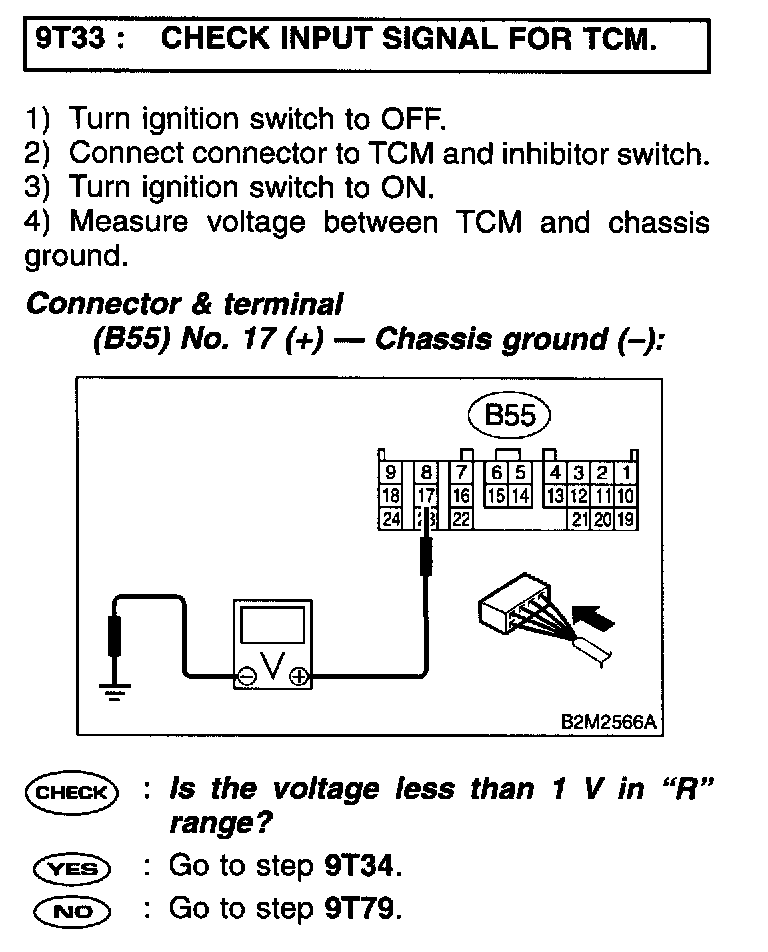

Step 9T33:

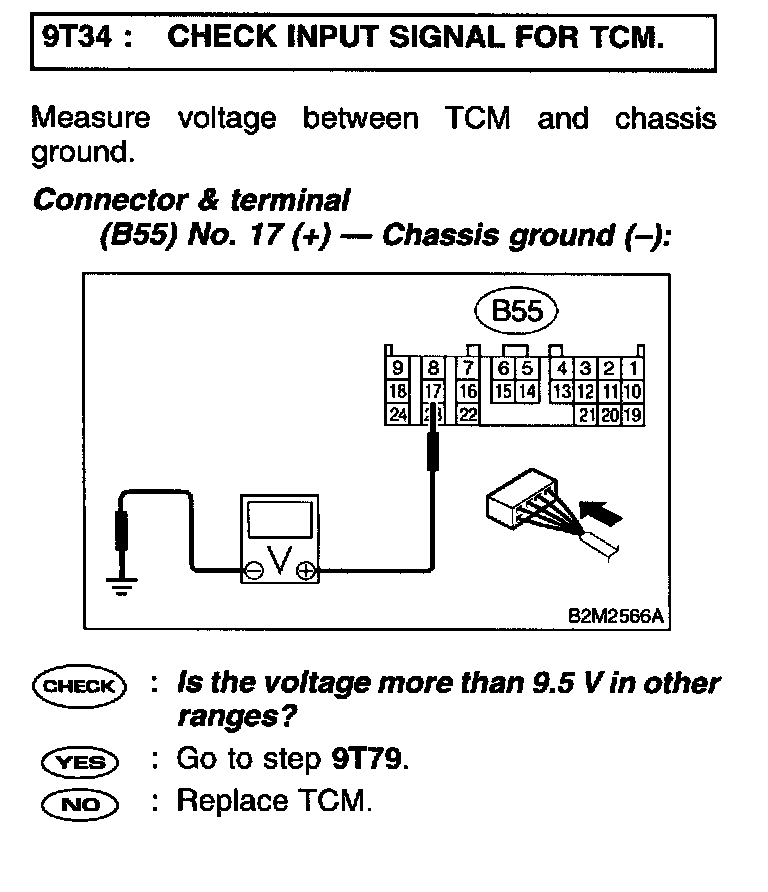

Step 9T34:

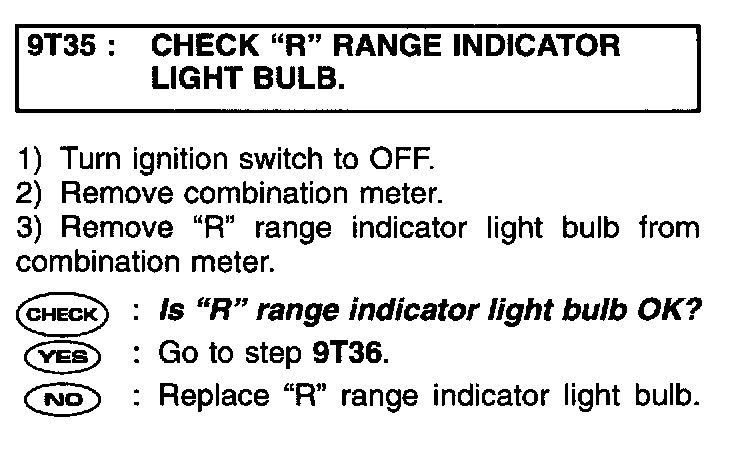

Step 9T35:

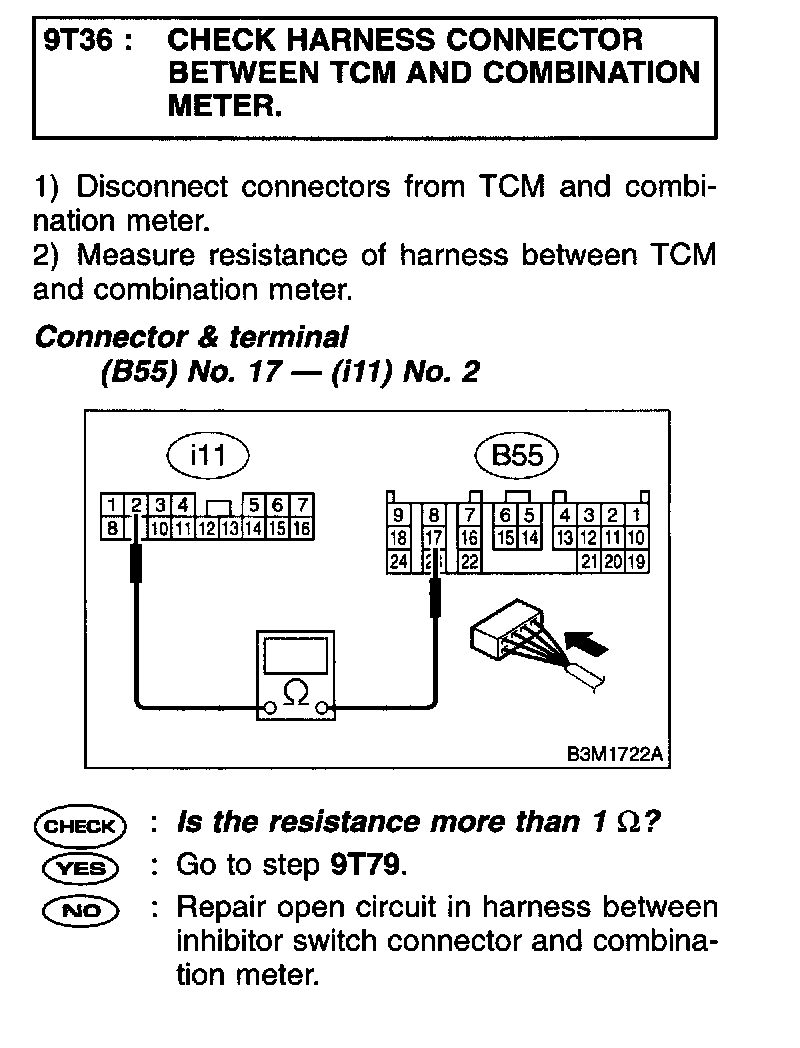

Step 9T36:

Step 9T37:

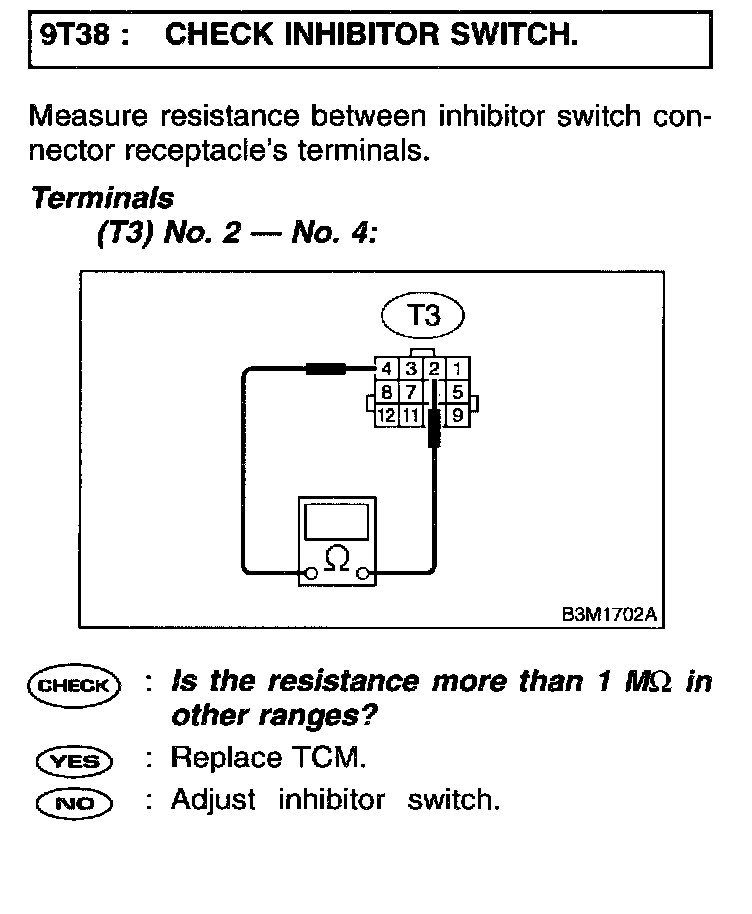

Step 9T38:

Step 9T39:

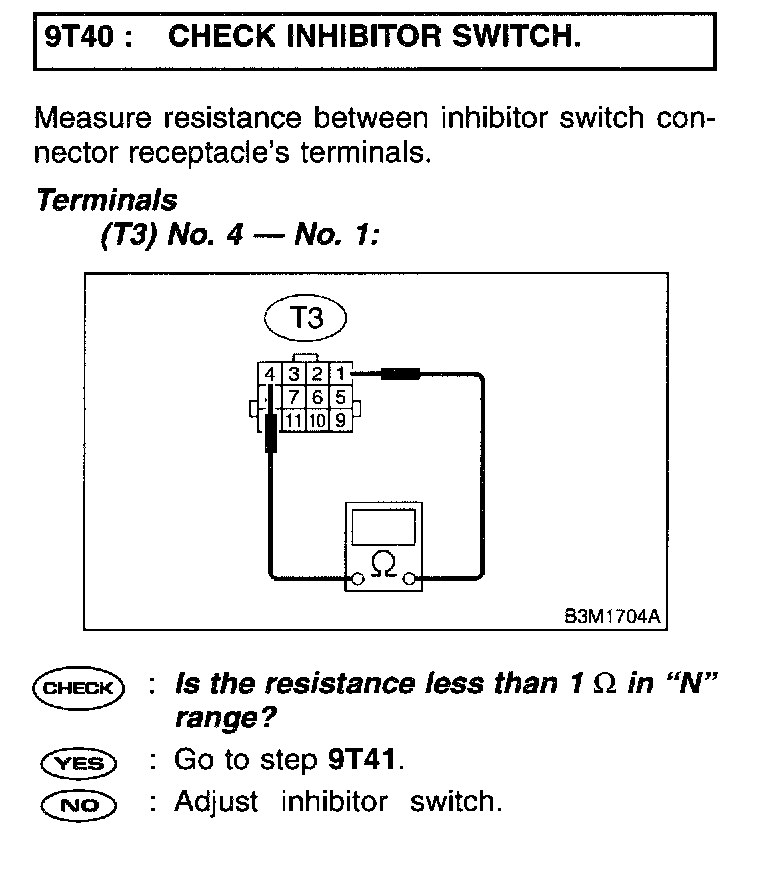

Step 9T40:
