Check FWD Switch

DIAGNOSIS
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or short.

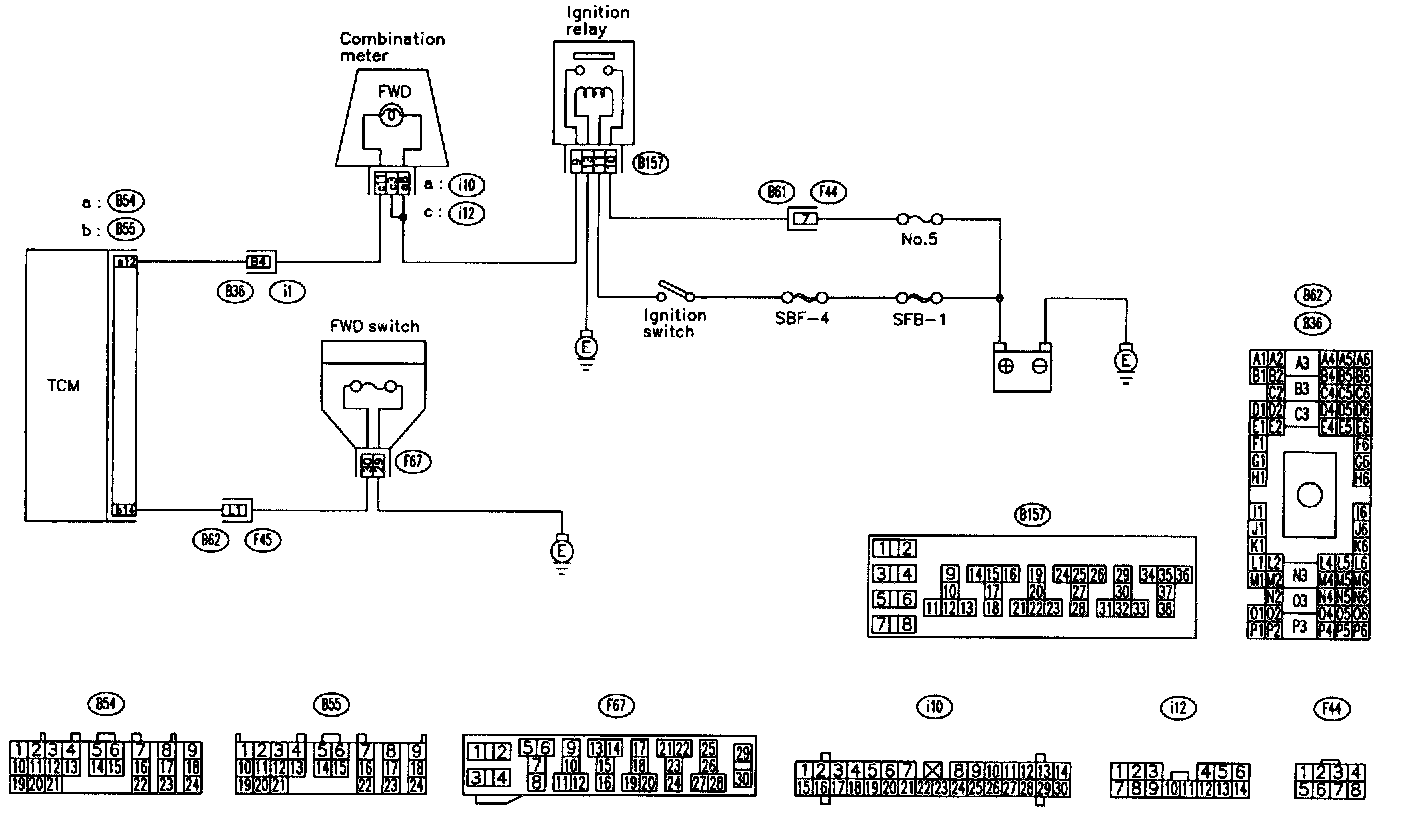

WIRING DIAGRAM

TEST STEPS:

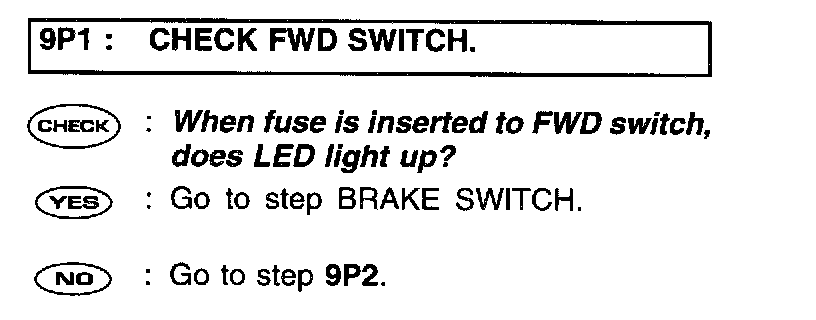

Step 9P1:

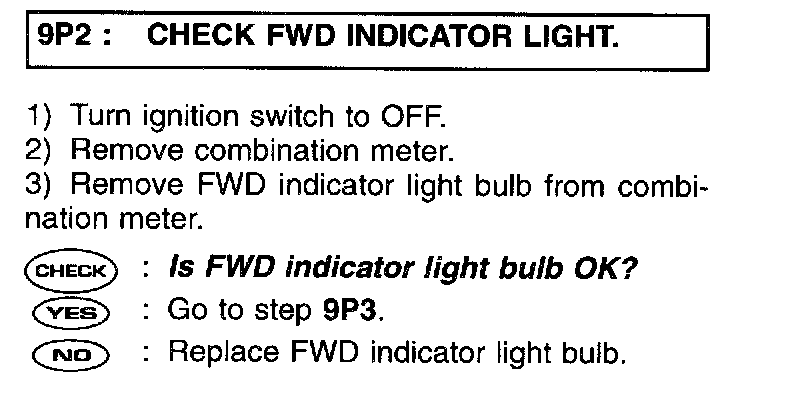

Step 9P2:

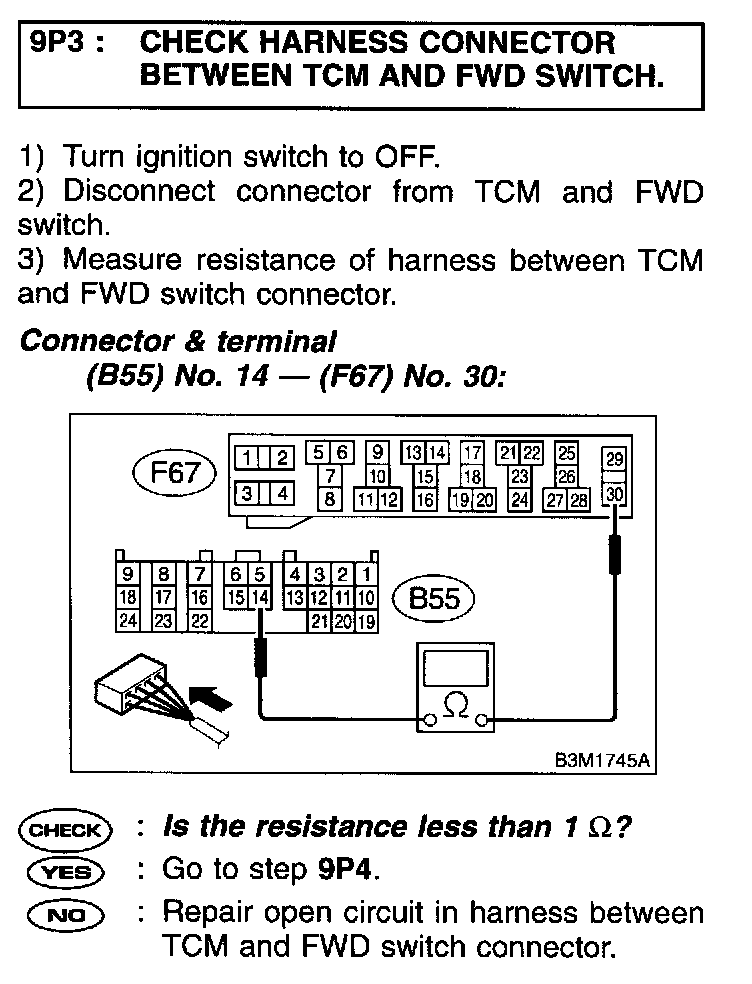

Step 9P3:

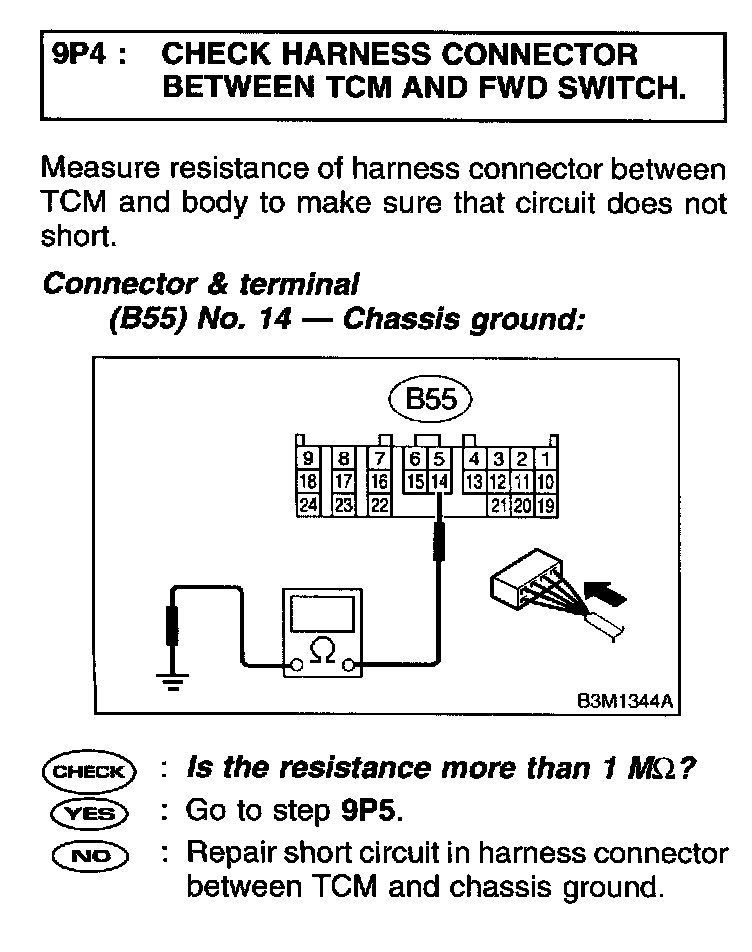

Step 9P4:

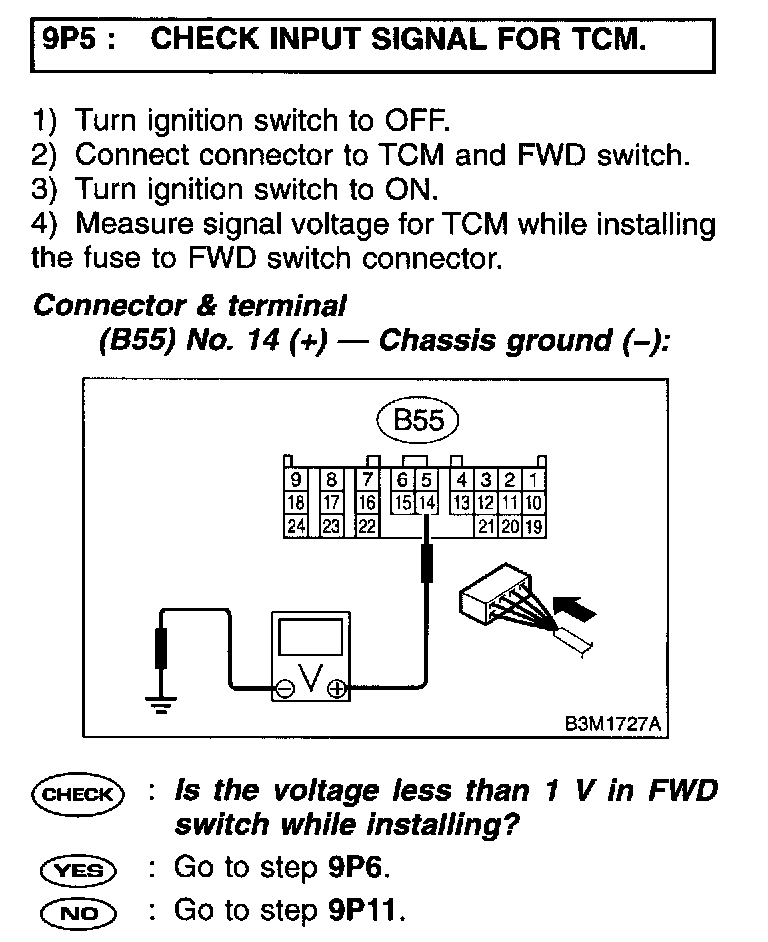

Step 9P5:

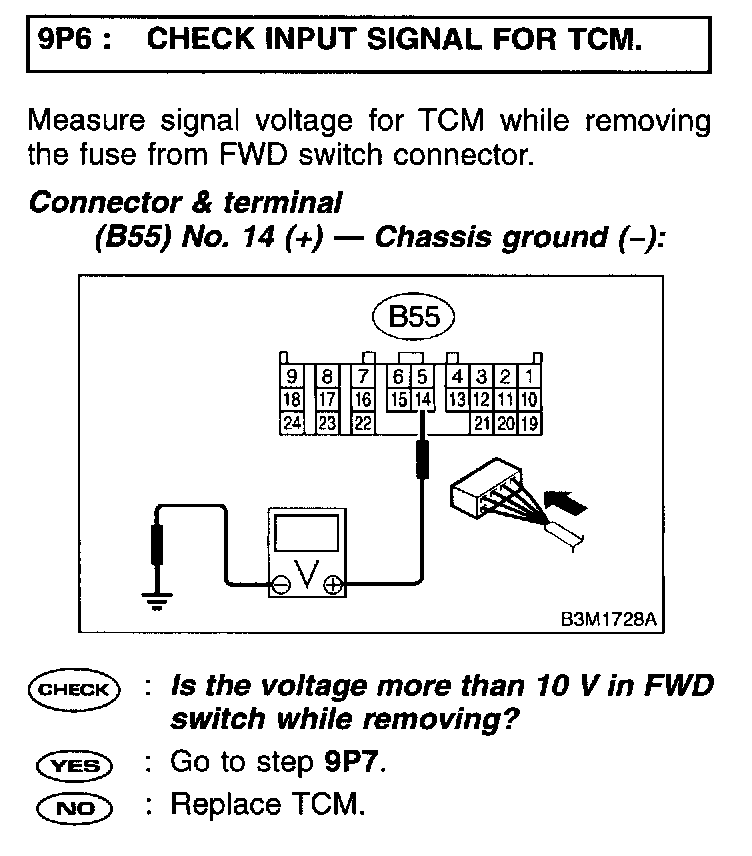

Step 9P6:

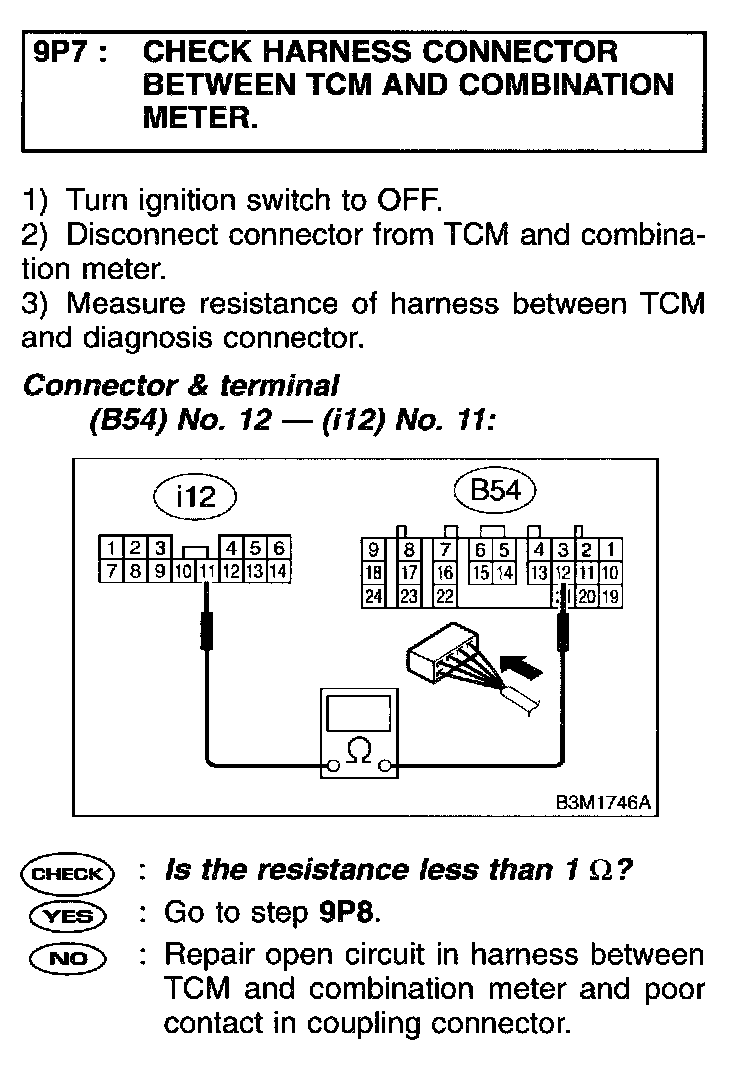

Step 9P7:

Step 9P8:

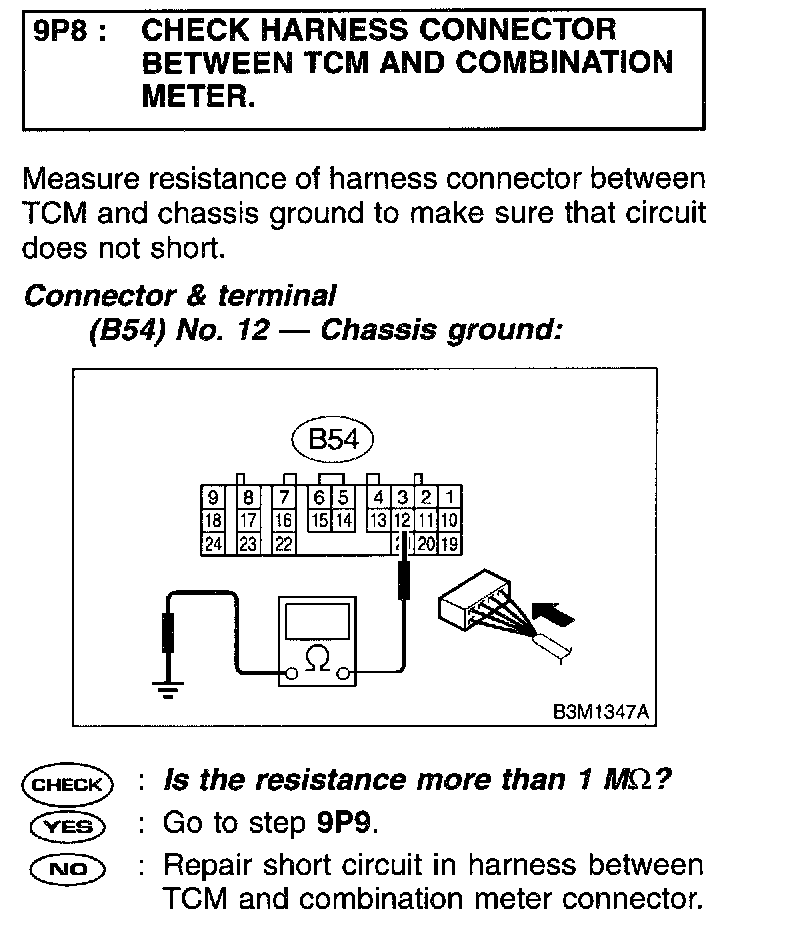

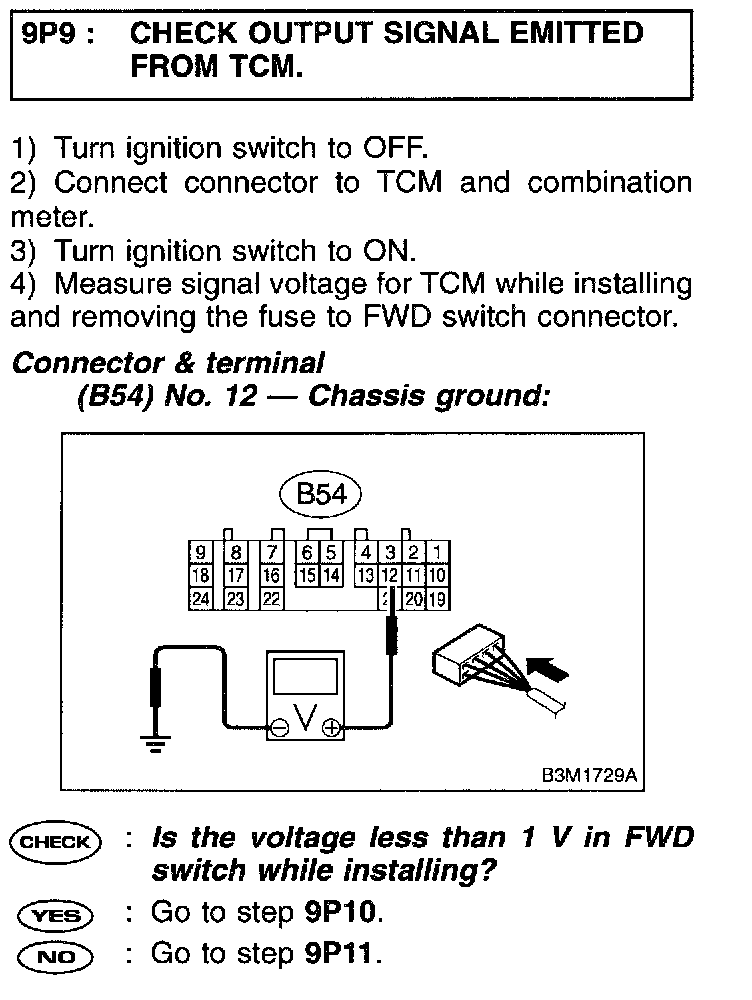

Step 9P9:

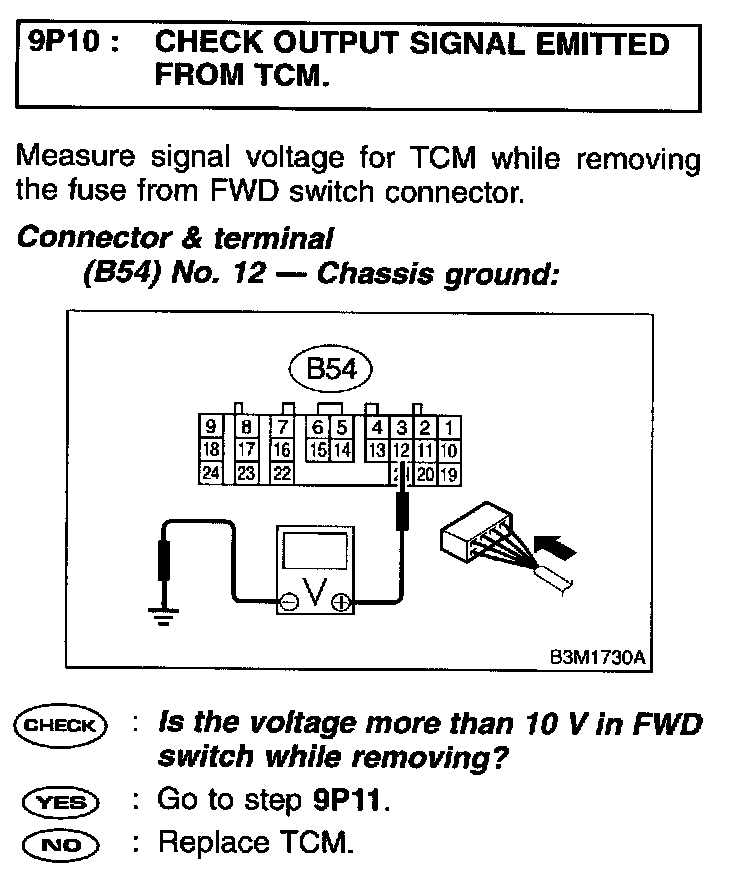

Step 9P10:

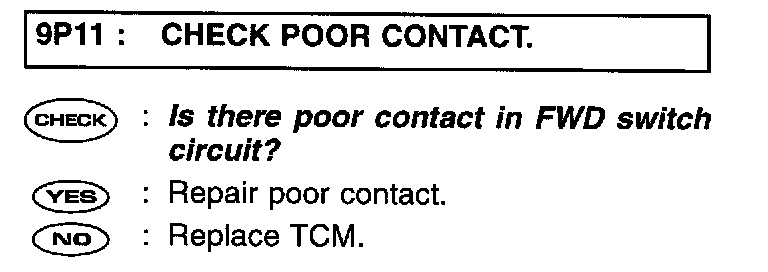

Step 9P11:
