Air Injection Control Valve: Description and Operation

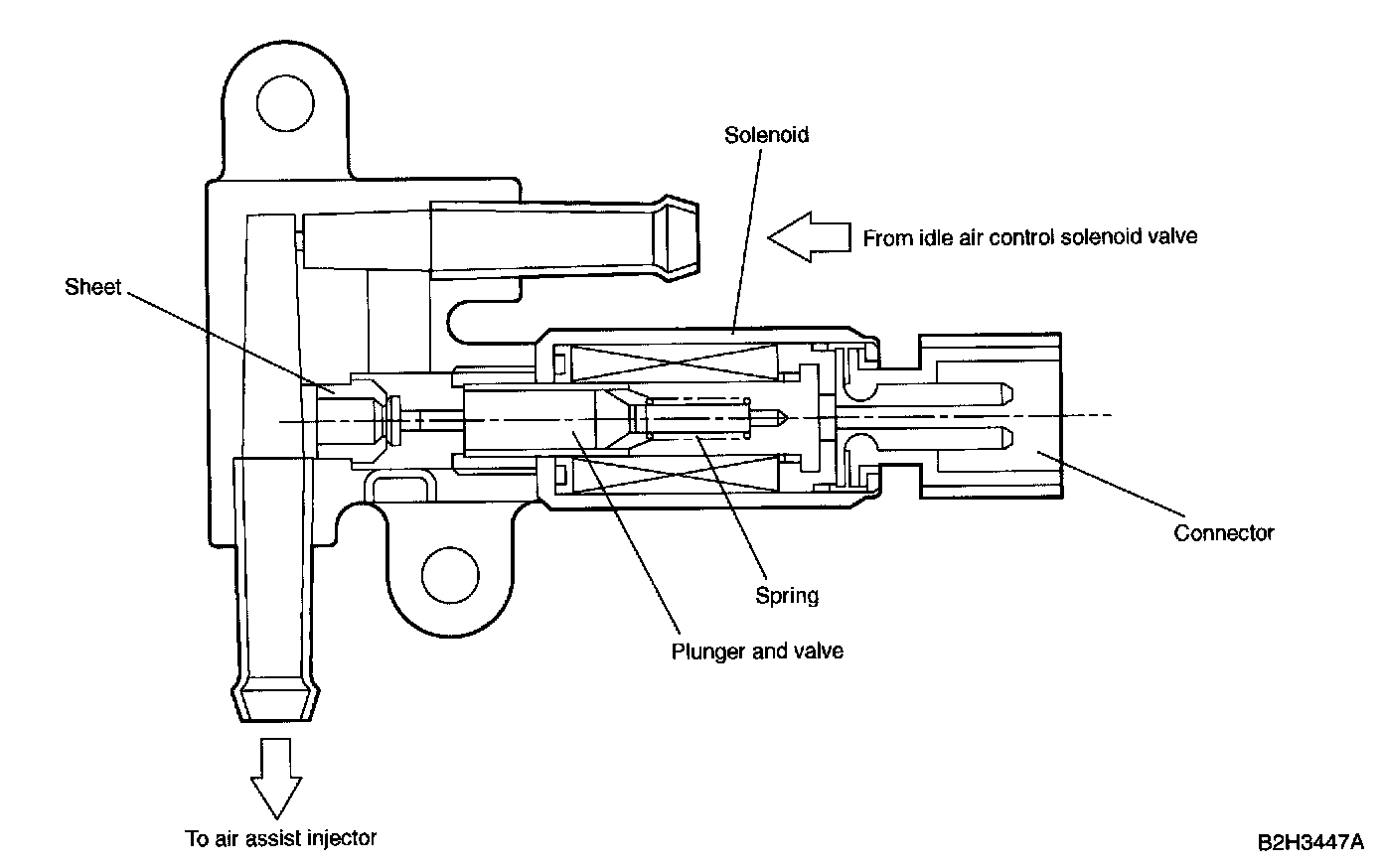

The air assist injector solenoid valve is located in the piping between the throttle body and the air assist injector and secured on the intake manifold.
This solenoid valve is opened or closed according to signals from ECU, adjusting the air flow rate supplied to the air assist injector.
