Engine Load
Engine Load

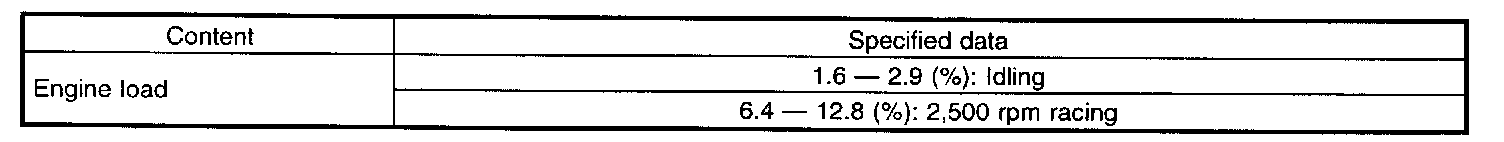

Engine Condition Data:
Measuring condition:
-
After warm-up the engine.
-
Gear position is in
"N"
or
"P"
position.
-
A/C is turned
OFF
.
-
All accessory switches are turned
OFF
.
