TCM Pinout Values

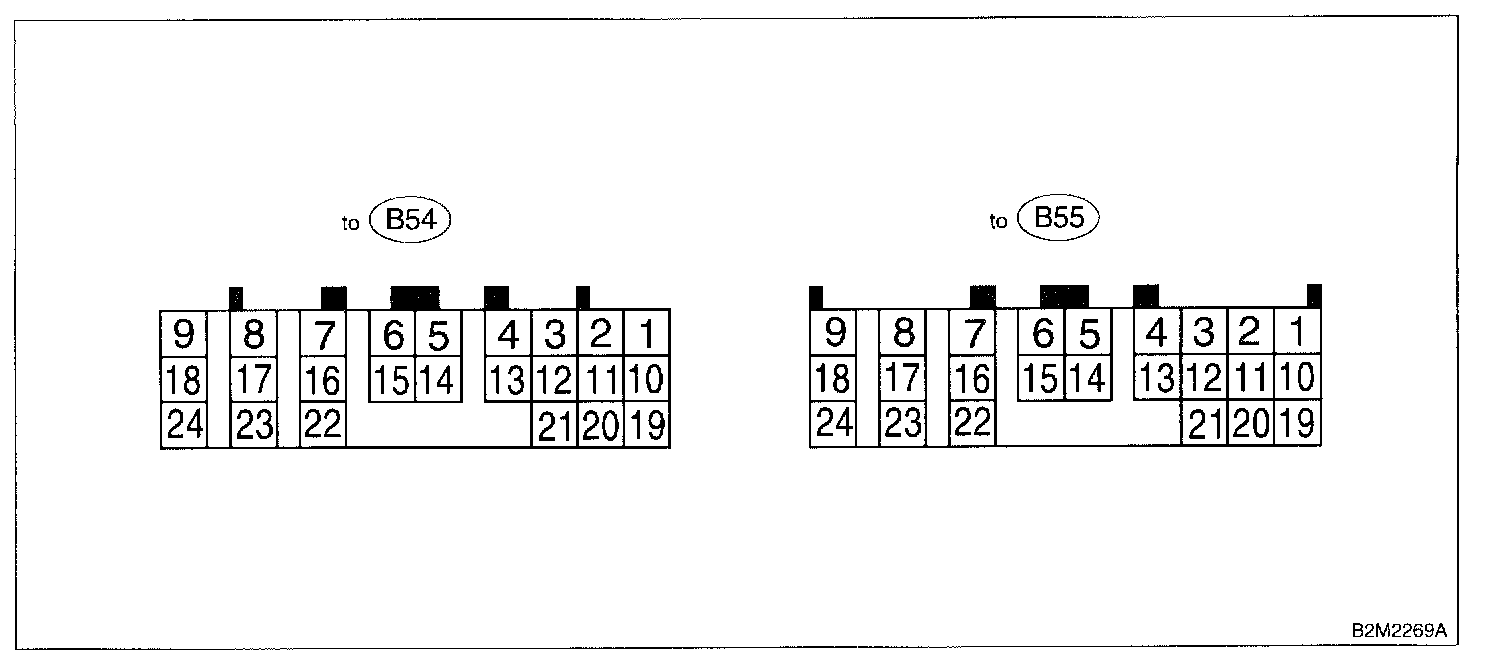

TCM Connector View:

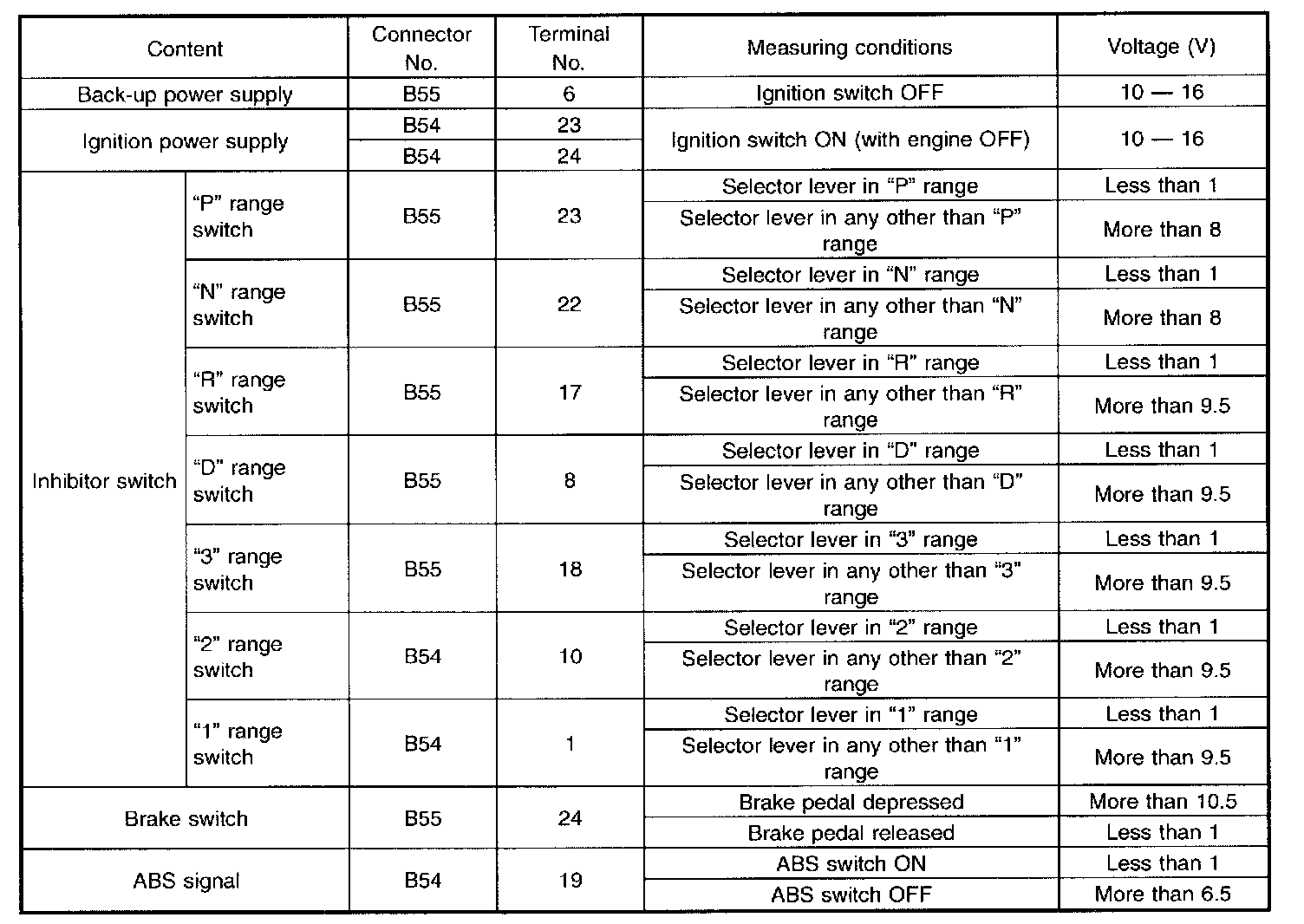

TCM Connector Pin-Outs (Part 1 Of 3):




TCM Connector Pin-Outs (Part 2 Of 3):

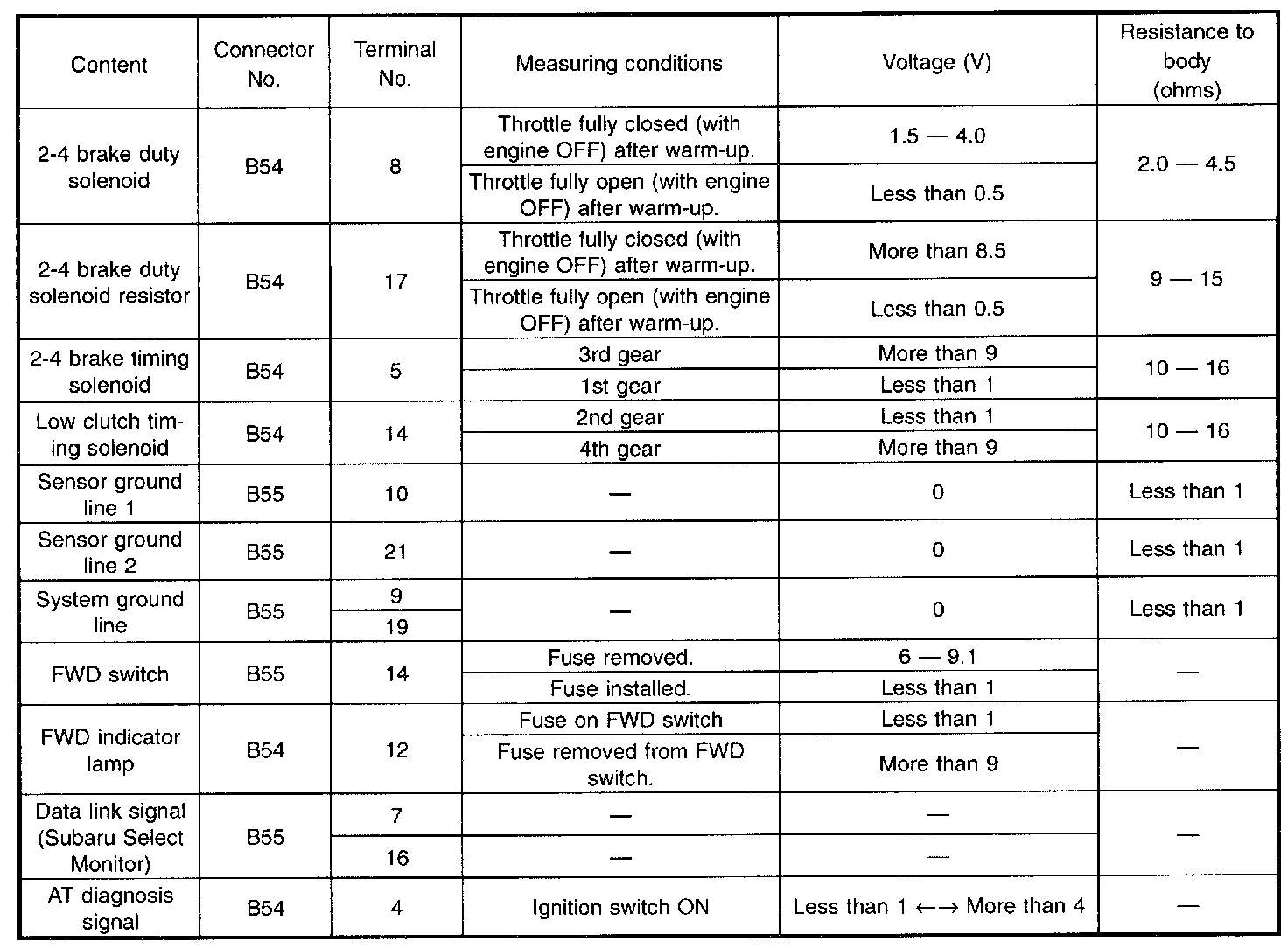

TCM Connector Pin-Outs (Part 3 Of 3):





NOTE: Check with ignition switch ON.
