Engine Control Module (ECM) I/O Signal
>>
MT Vehicles
MT Vehicles

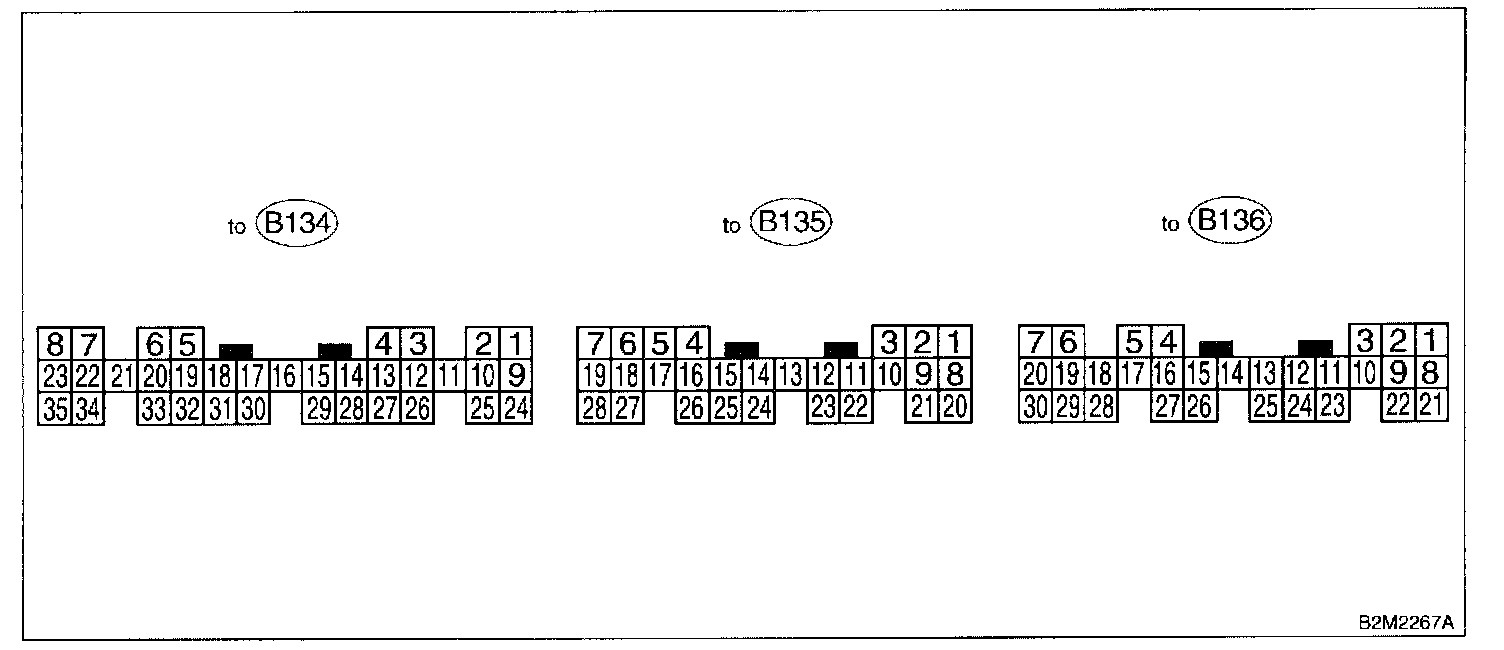

ECM Connector View:

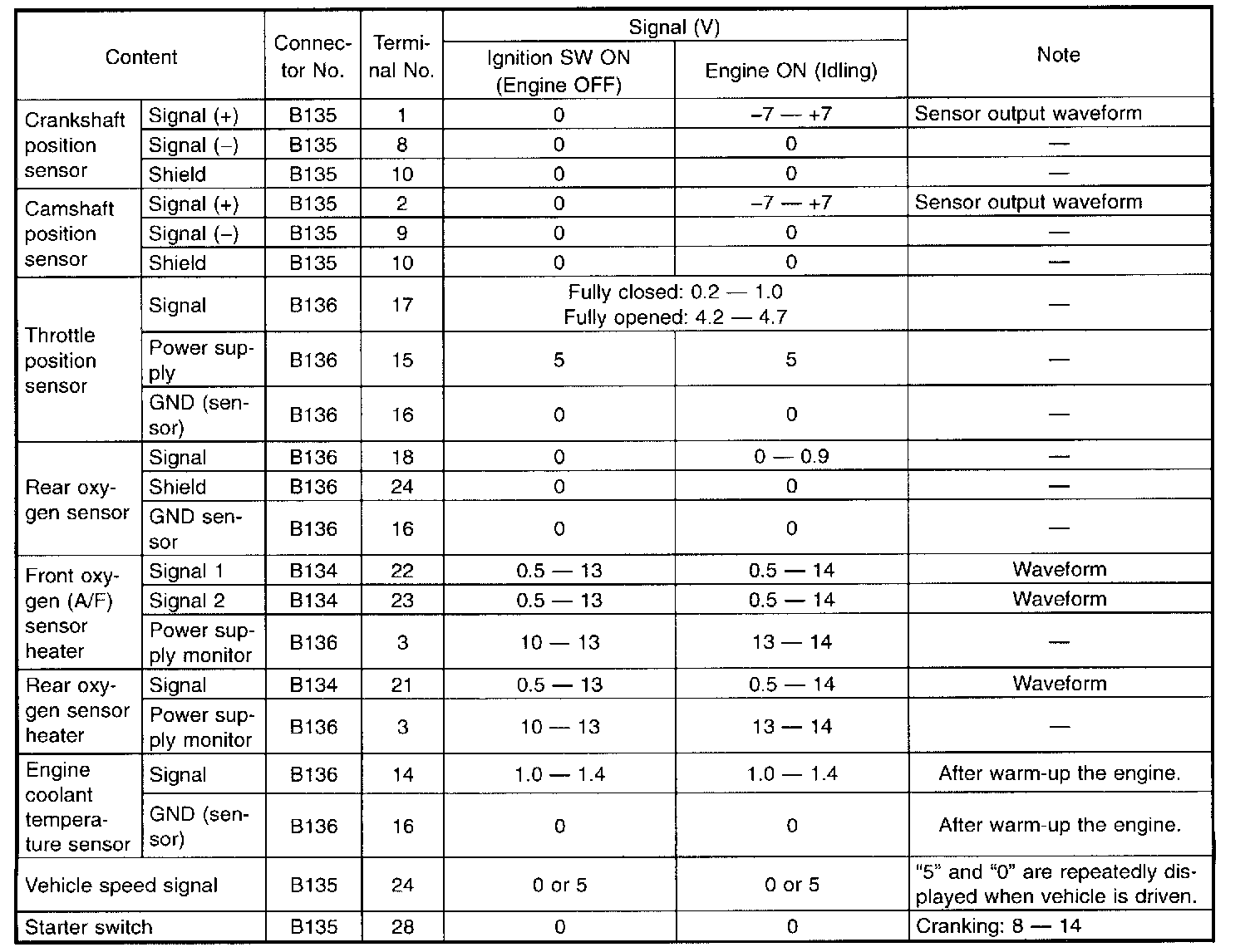

ECM Connector Pins-Outs (Part 1 Of 3):

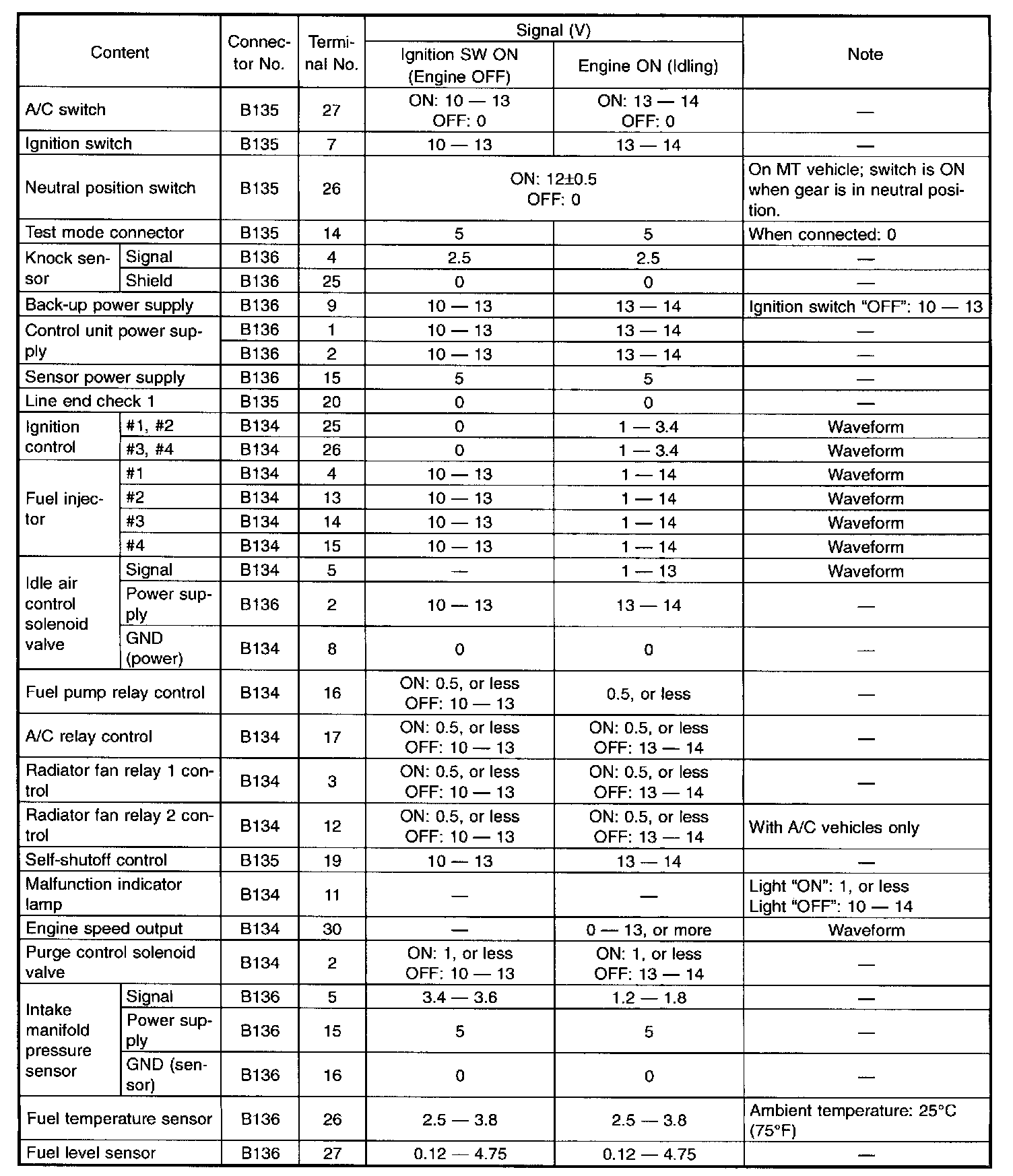

ECM Connector Pin-Outs (Part 2 Of 3):

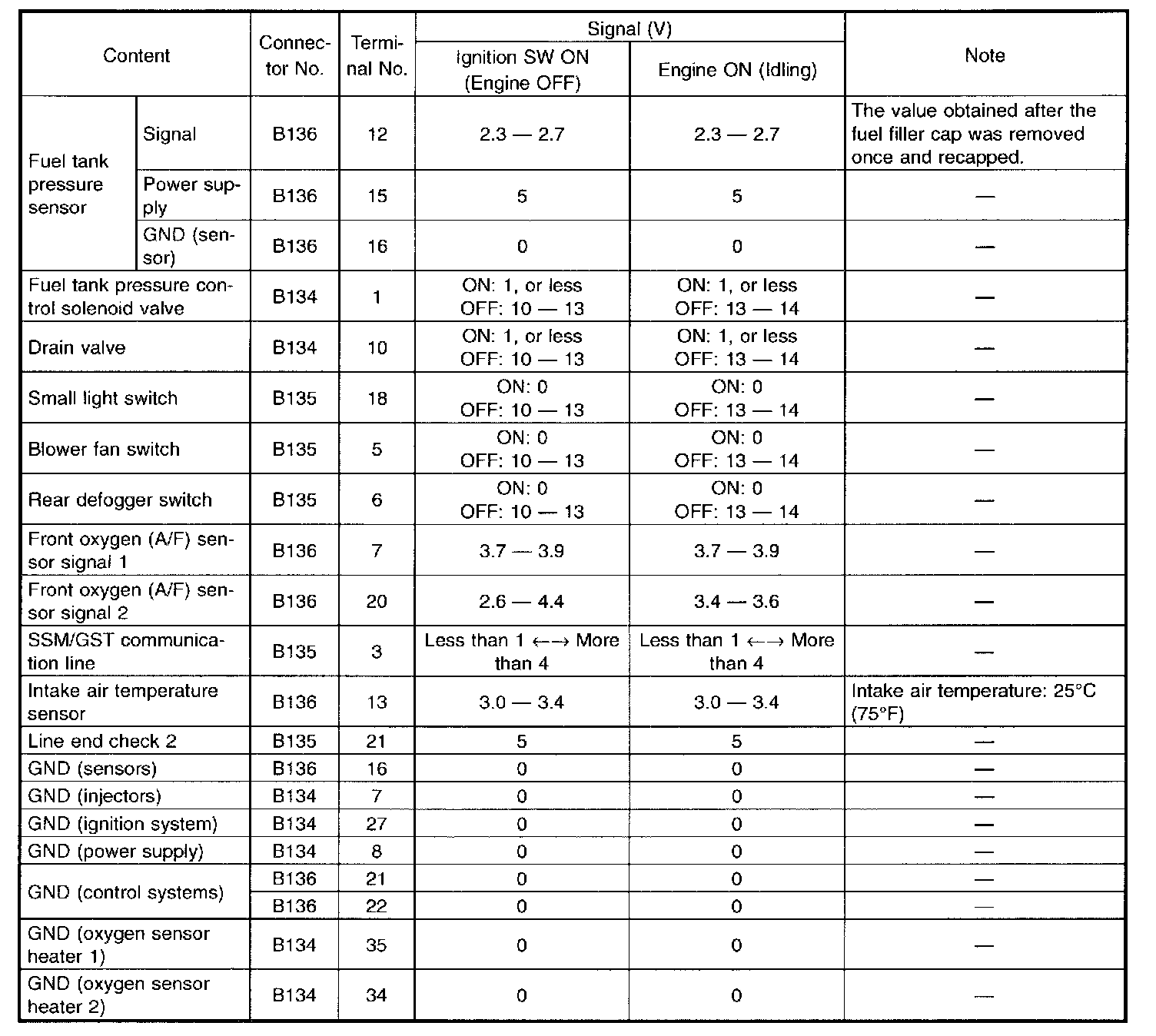

ECM Connector Pin-Outs (Part 3 Of 3):
