MT vehicles

1. Disconnect battery ground cable.

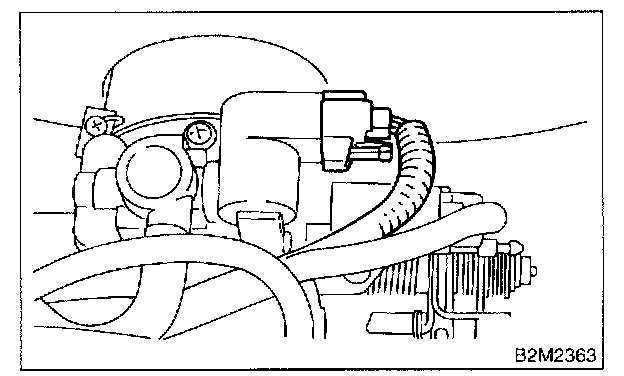

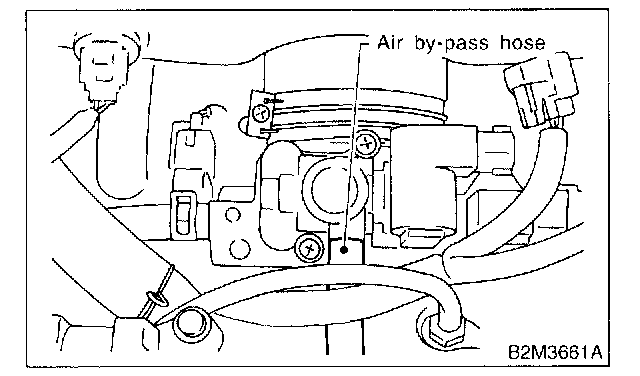

2. Disconnect connector from idle air control solenoid valve.

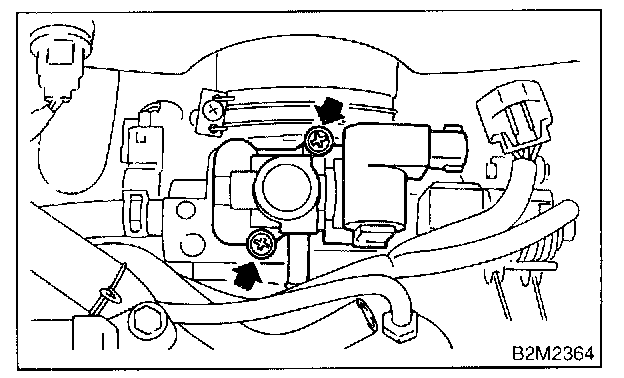

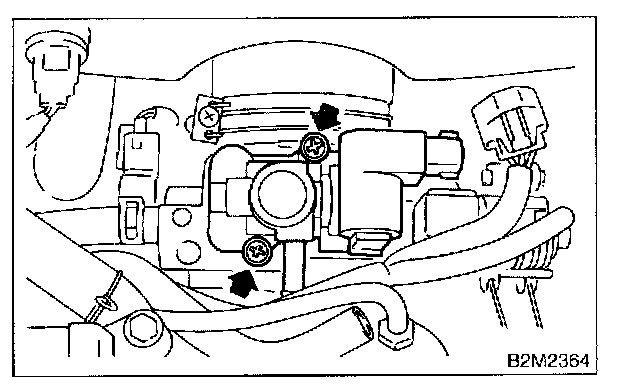

3. Disconnect air by-pass hose from idle air control solenoid valve.





4. Remove idle air control solenoid valve from throttle body.





5. Installation is in the reverse order of removal.

CAUTION: Replace gasket with a new one.

Tightening torque:
6.0 ± 0.8 N.m (O.6 ± 0.08 kg.m, 4.4 ± 0.6 ft.lb)
