Home >> Subaru >> 2000 >> Legacy Brighton Wagon AWD F4-2.5L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Description and Operation >> Warning and Indicator Light

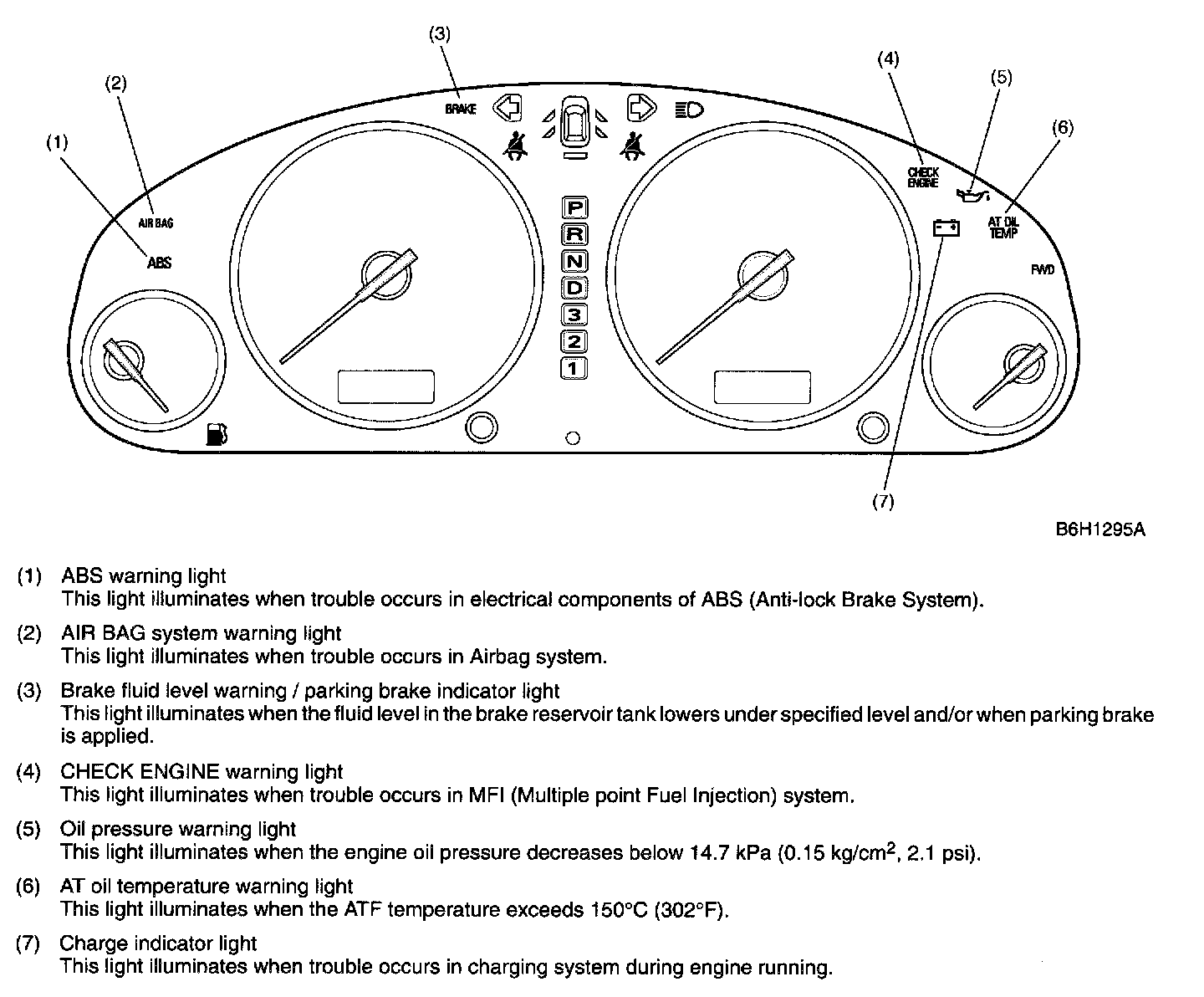

Warning and Indicator Light

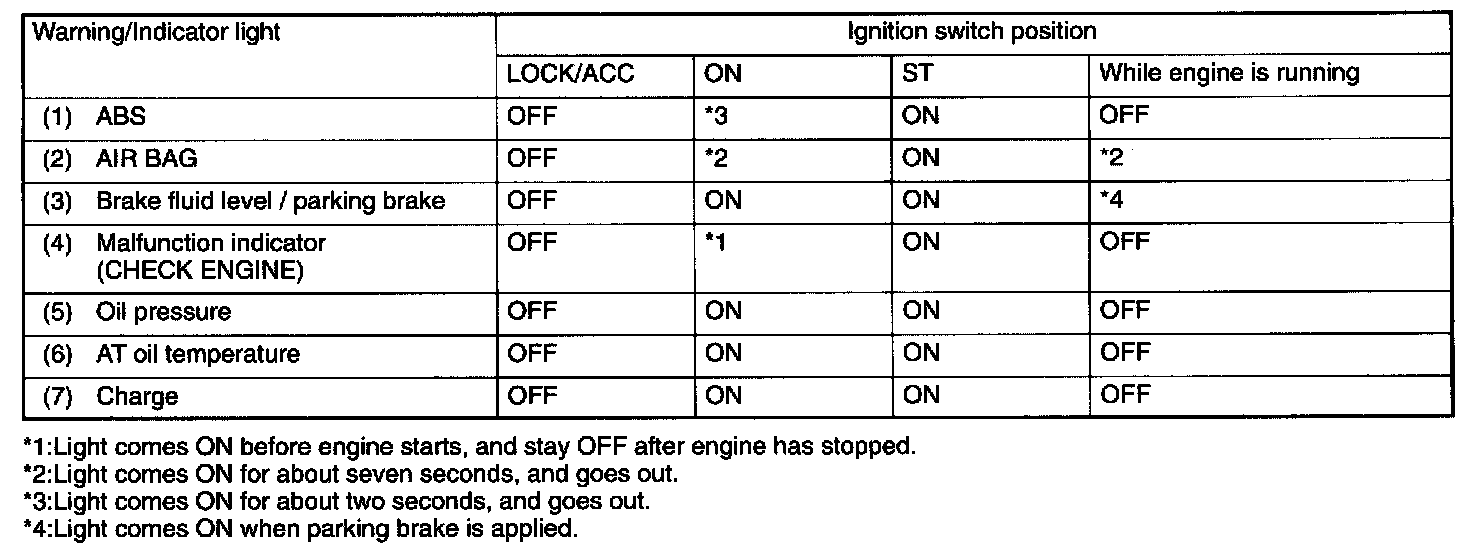

According to ignition switch position, the warning and indicator lights will come on and/or go off under normal conditions as follows:
