No Trouble Code

Diagnosis:
- ABS warning light circuit is shorted.

Trouble Symptom:
- ABS warning light remains on.
- NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

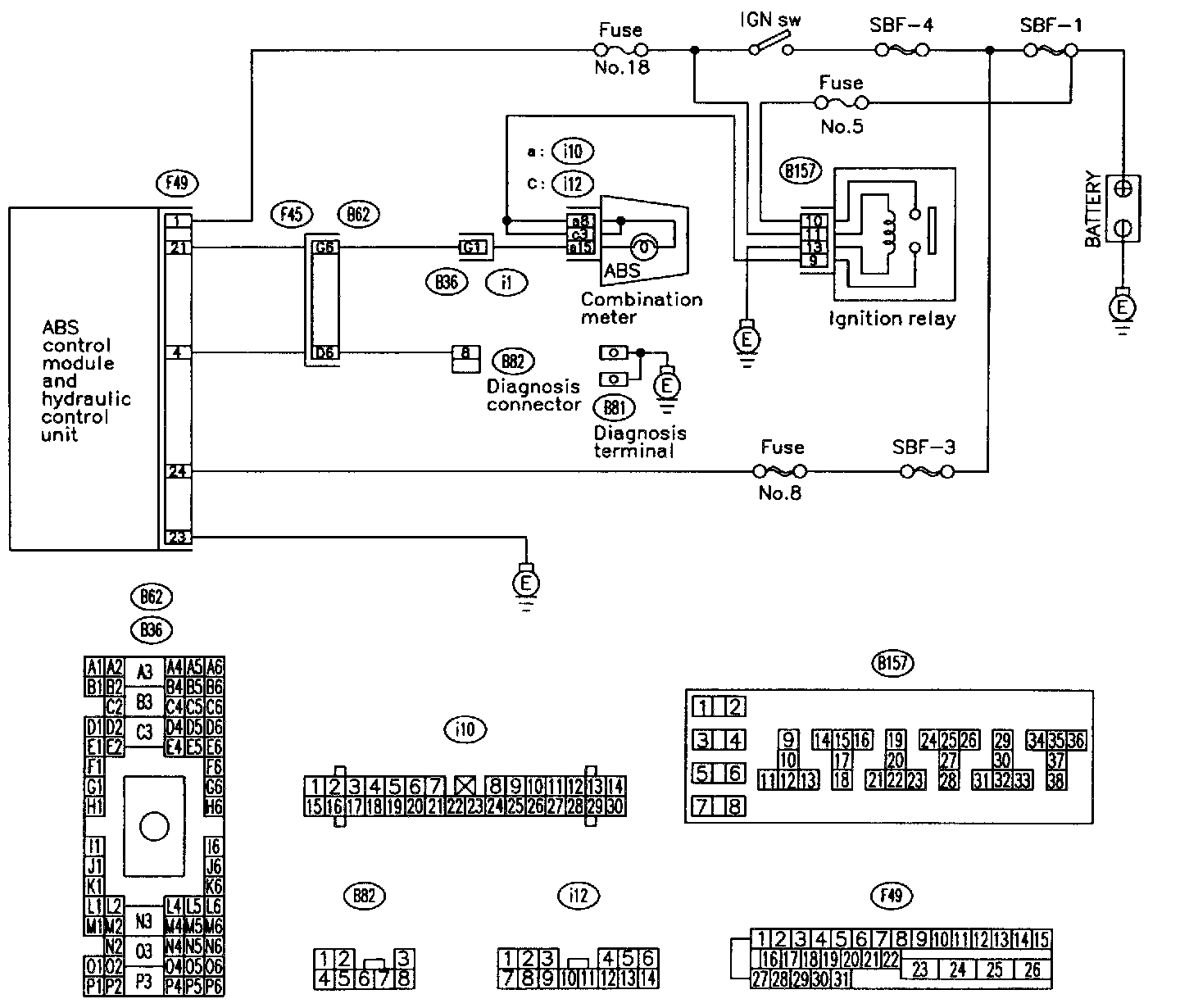

Wiring Diagram:

Test Steps:

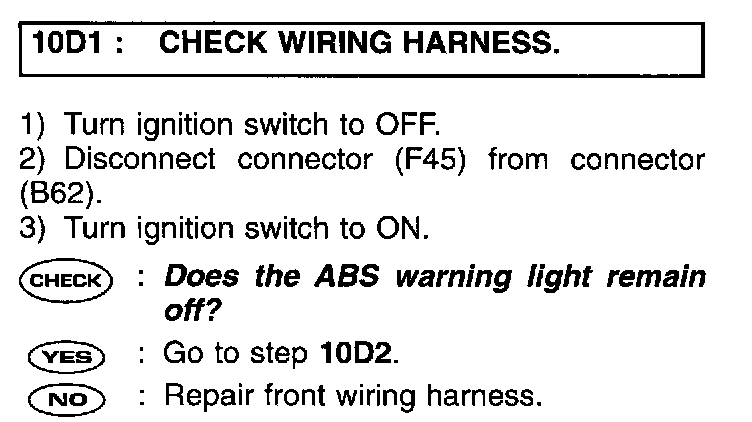

Step 10D1:

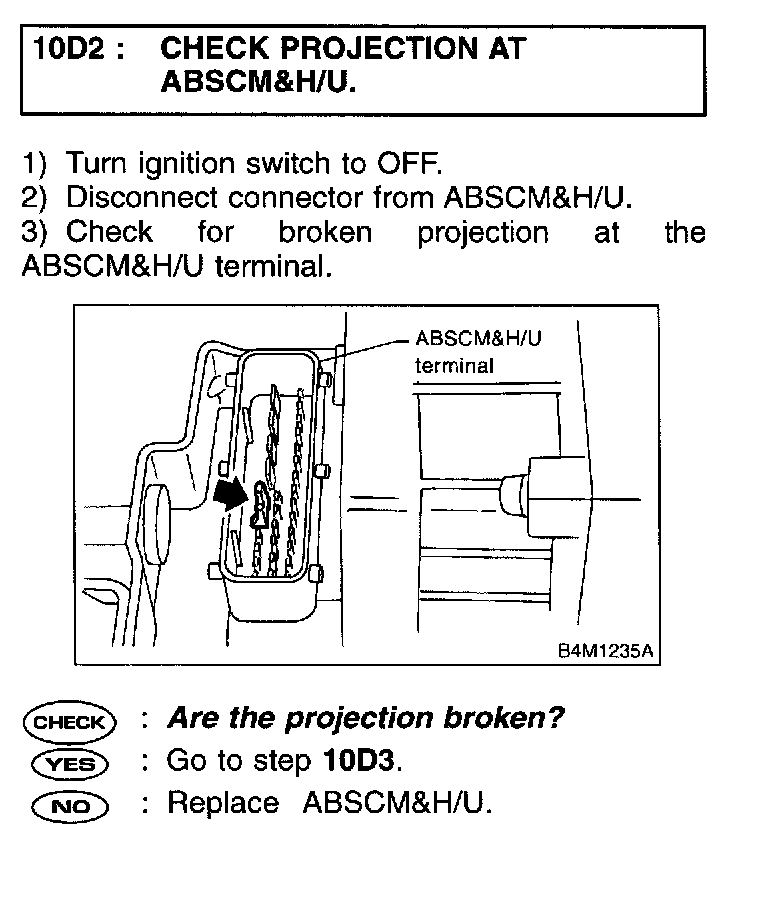

Step 10D2:

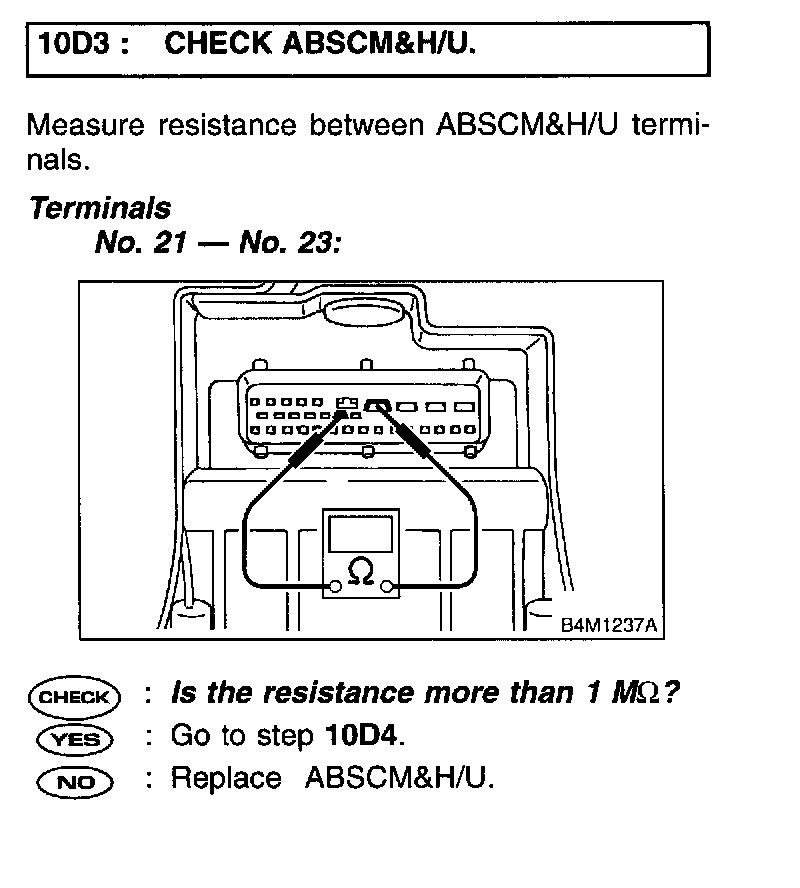

Step 10D3:

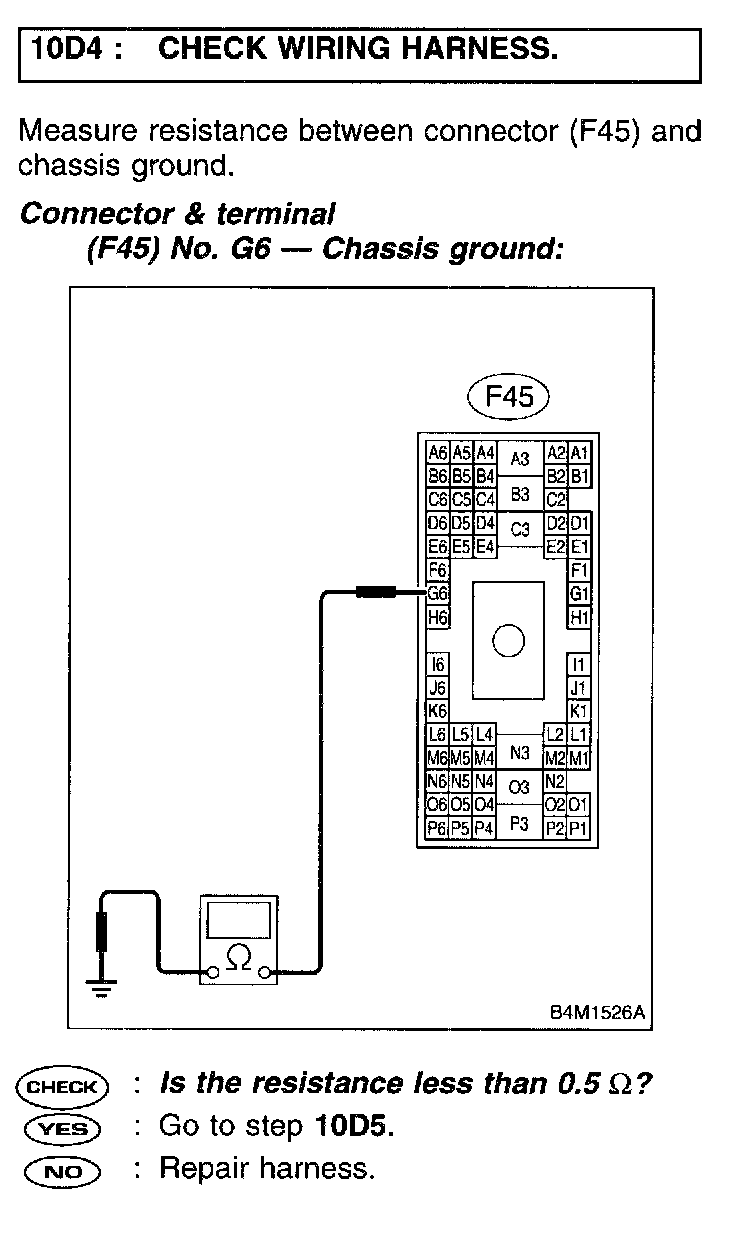

Step 10D4:

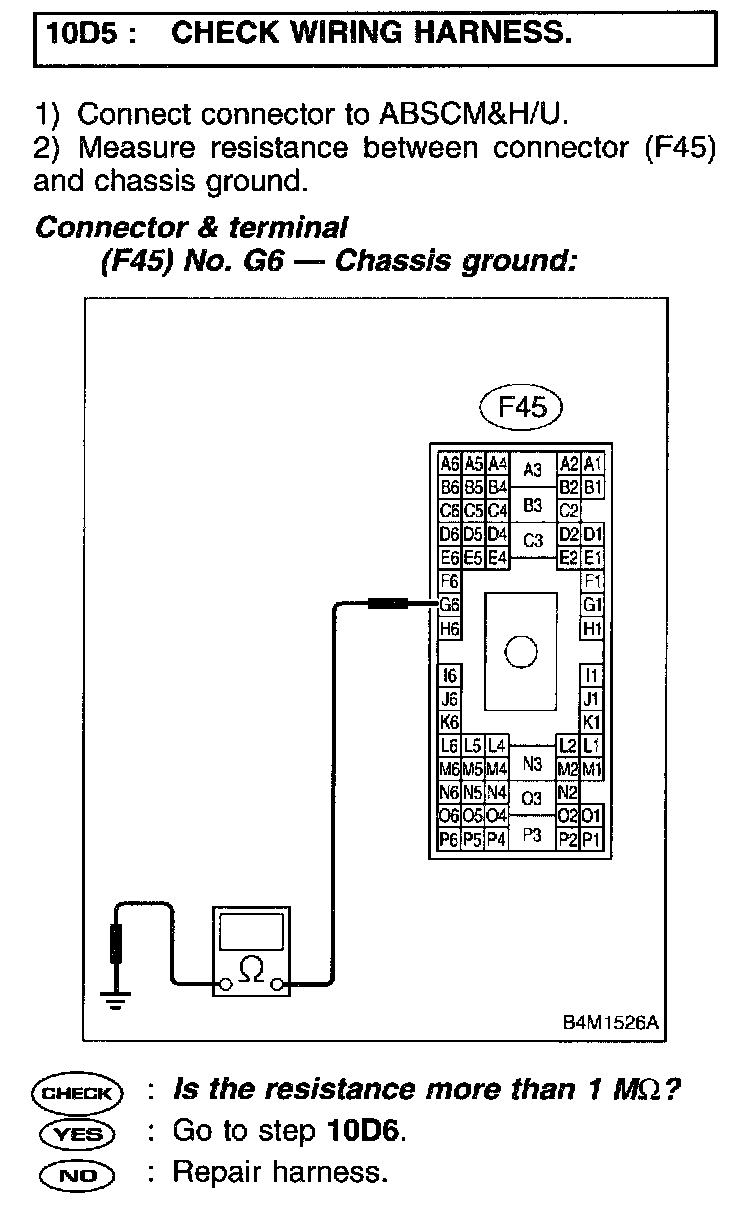

Step 10D5:

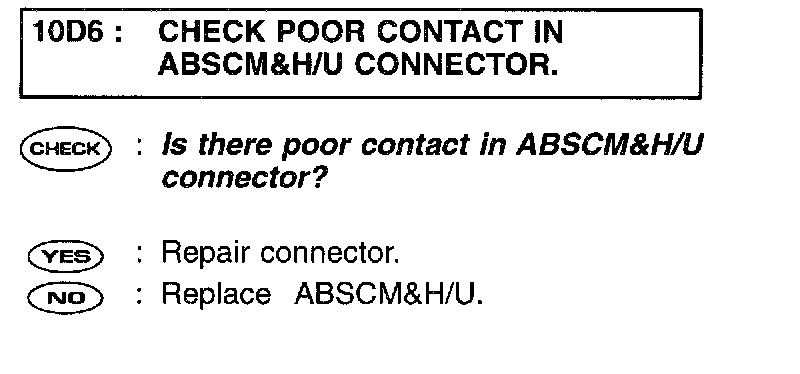

Step 10D6:
