Communication For Initializing Impossible

Diagnosis:
- Faulty harness connector

Trouble Symptom:
- ABS warning light remains on.

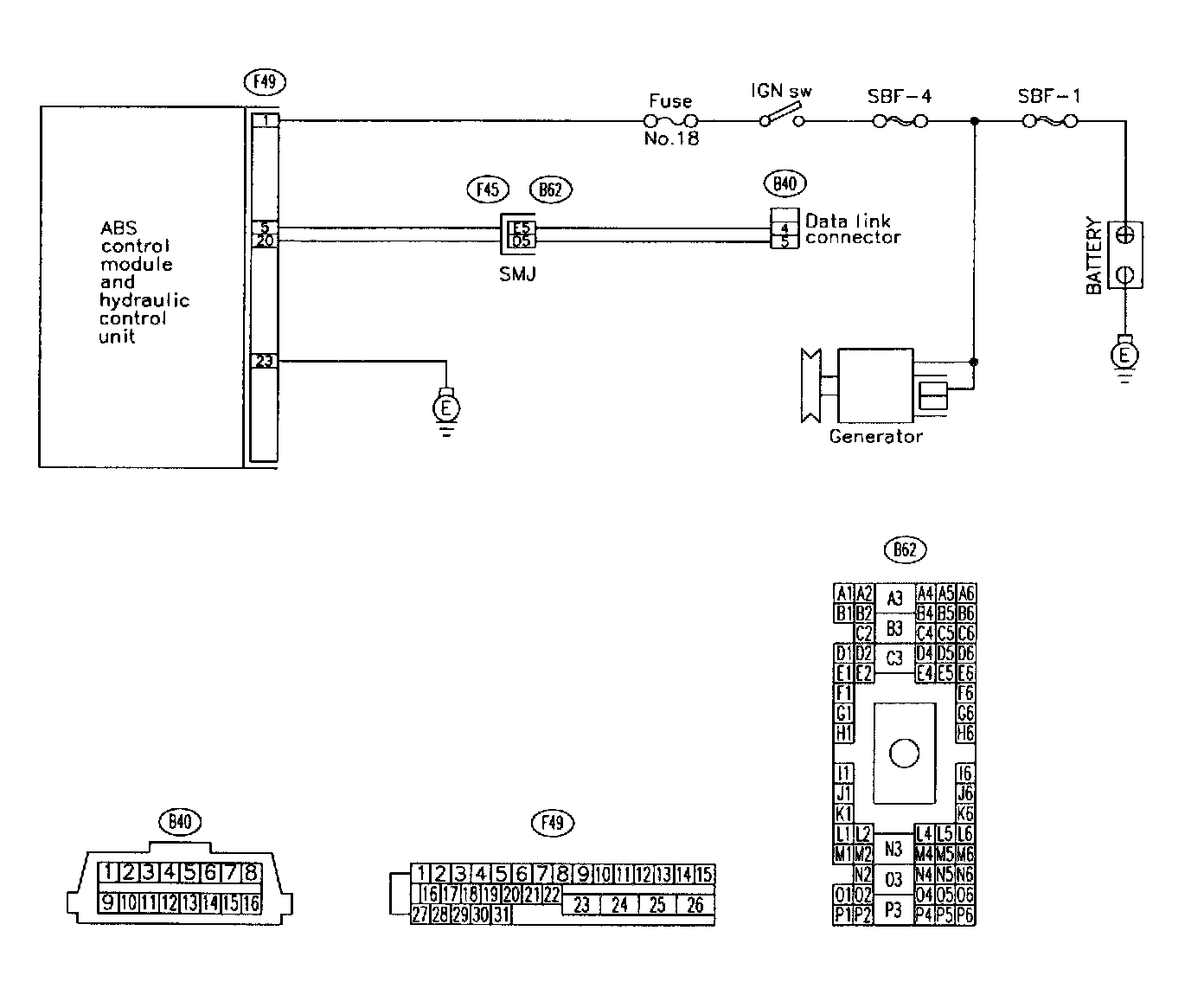

Wiring Diagram:

Test Steps:

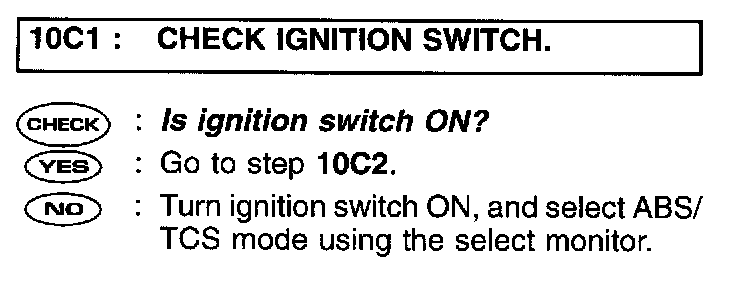

Step 10C1:

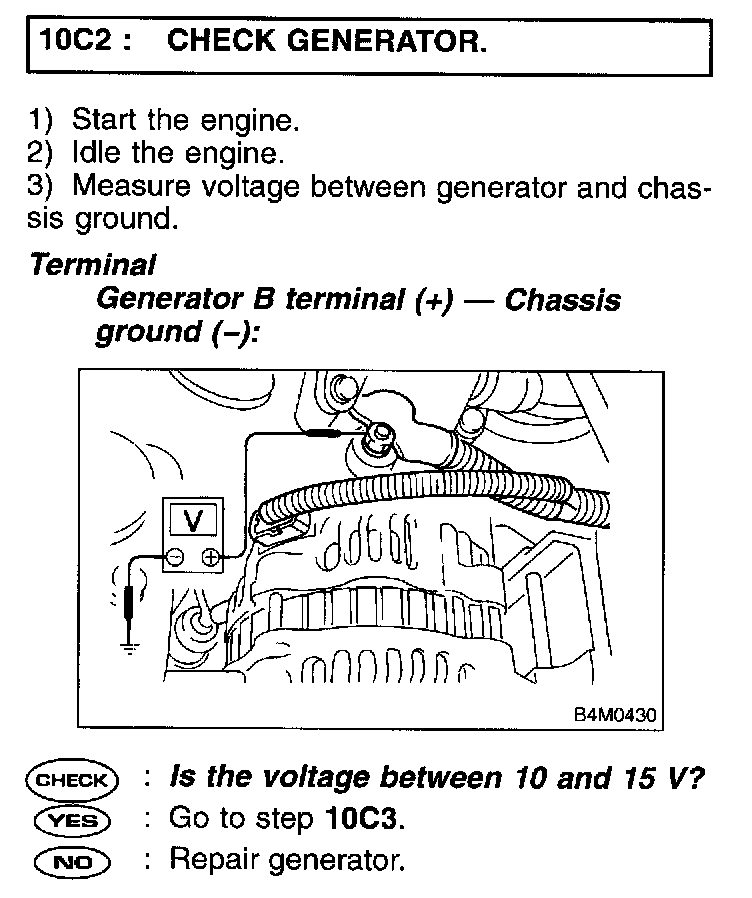

Step 10C2:

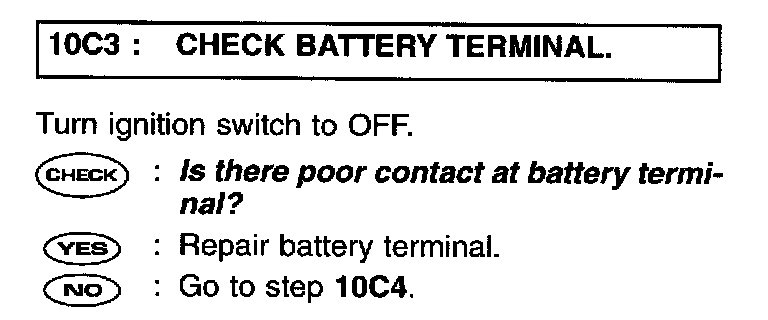

Step 10C3:

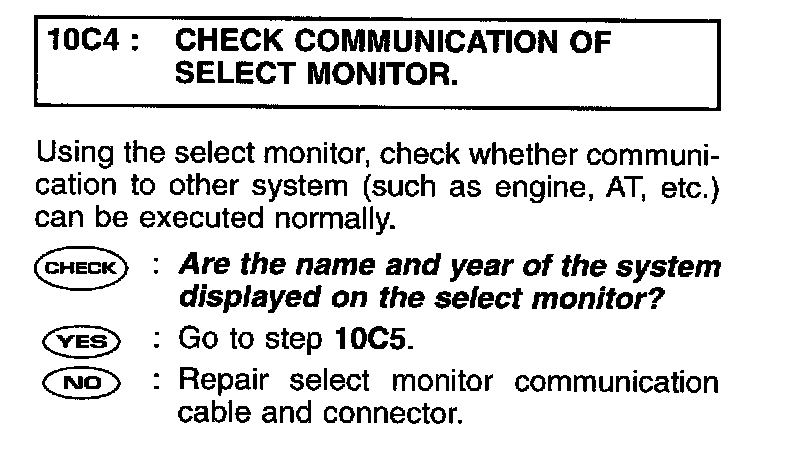

Step 10C4:

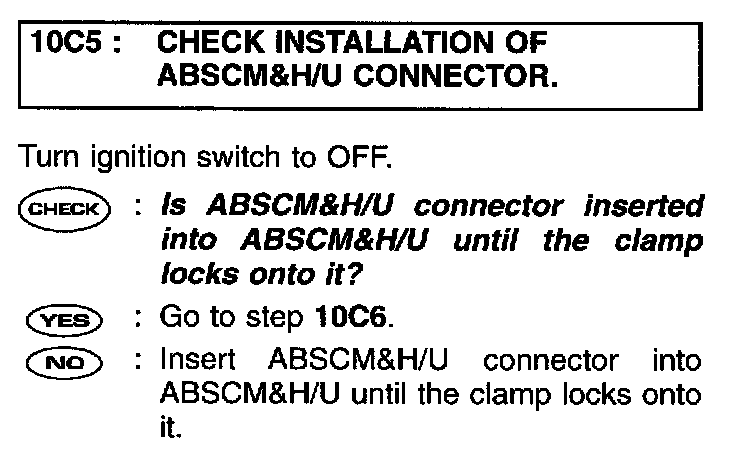

Step 10C5:

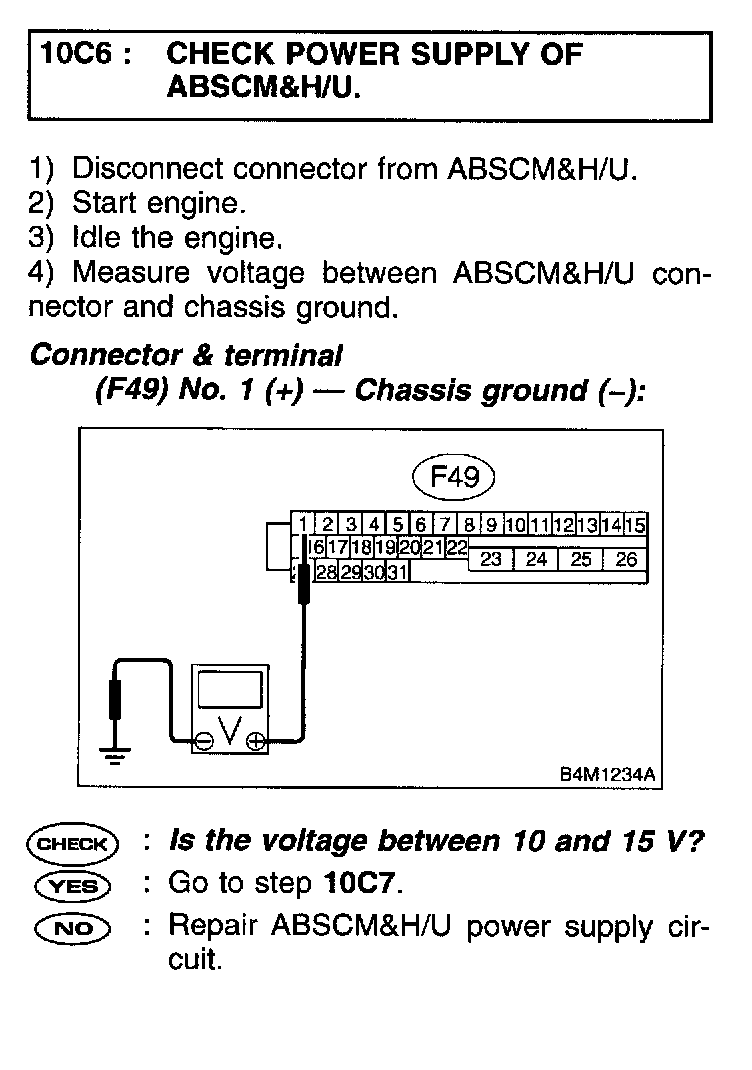

Step 10C6:

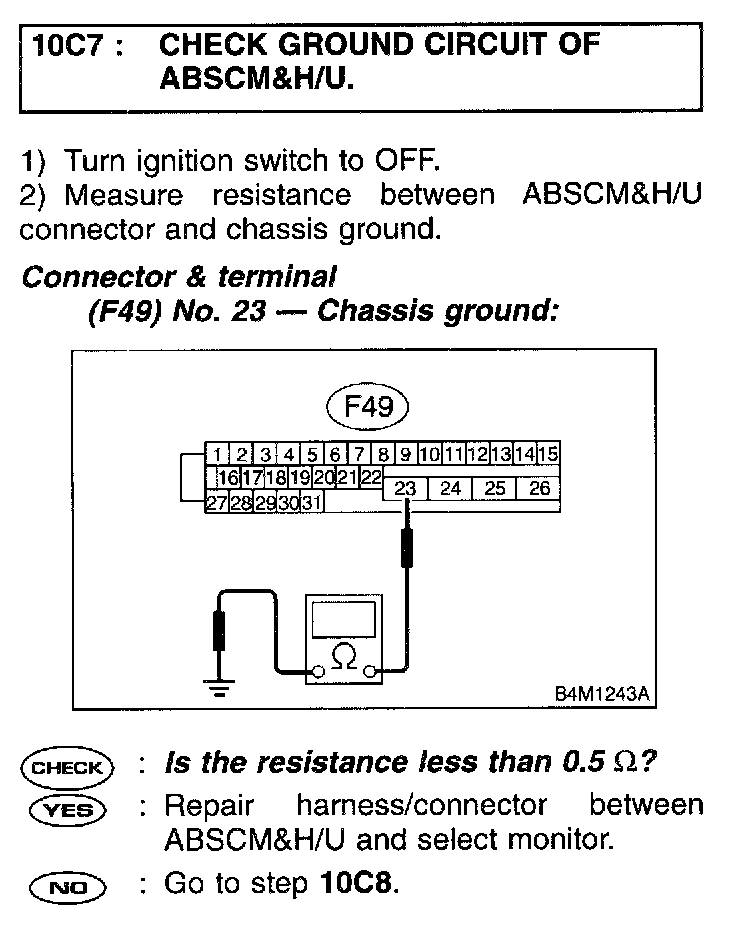

Step 10C7:

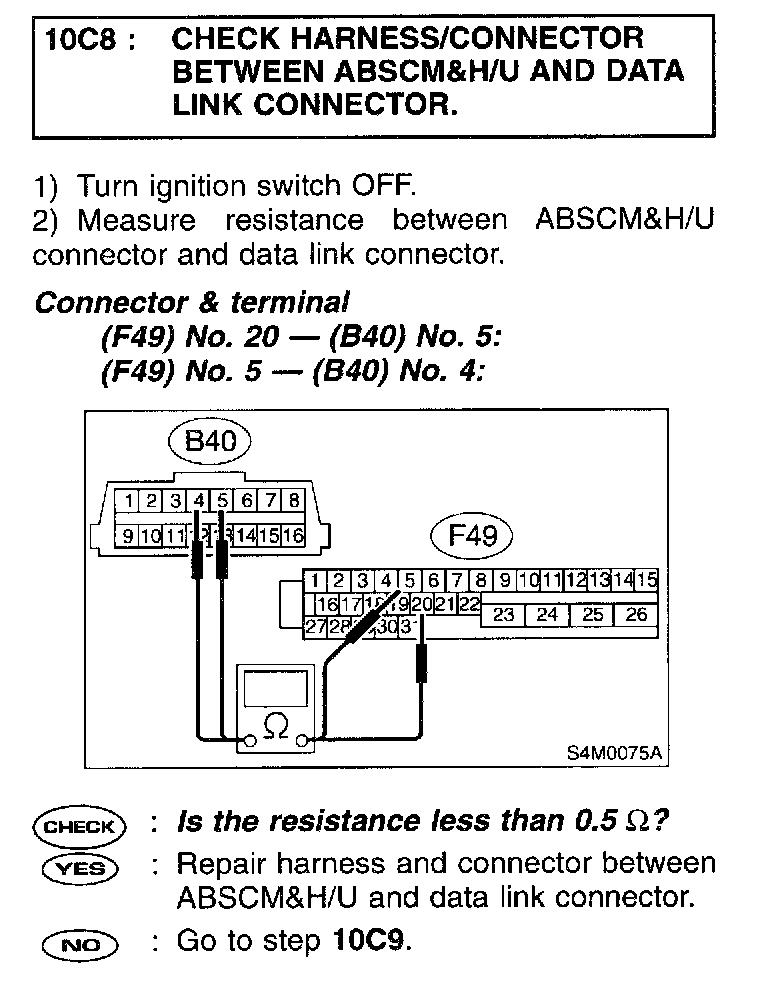

Step 10C8:

Step 10C9:
