Trouble Code Does Not Appear

Diagnosis:
- Diagnosis circuit is open.

Trouble Symptom:
- The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.

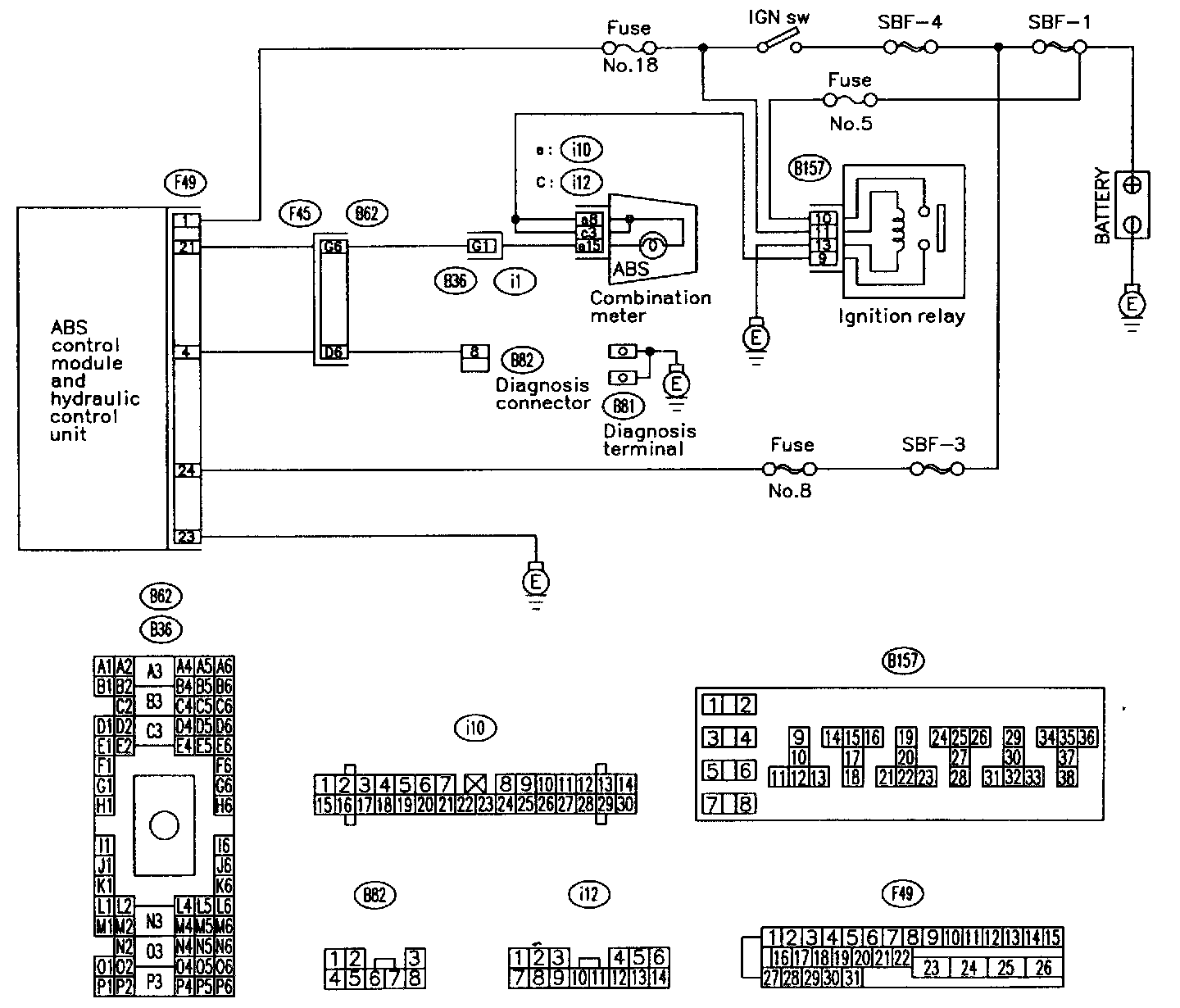

Wiring Diagram:

Test Steps:

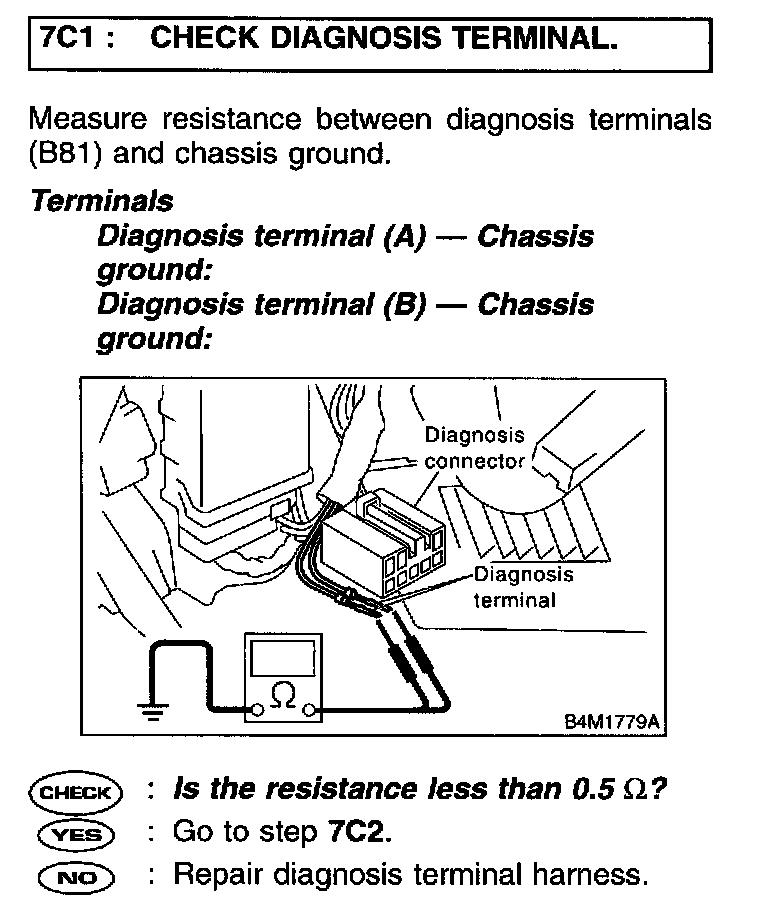

Step 7C1:

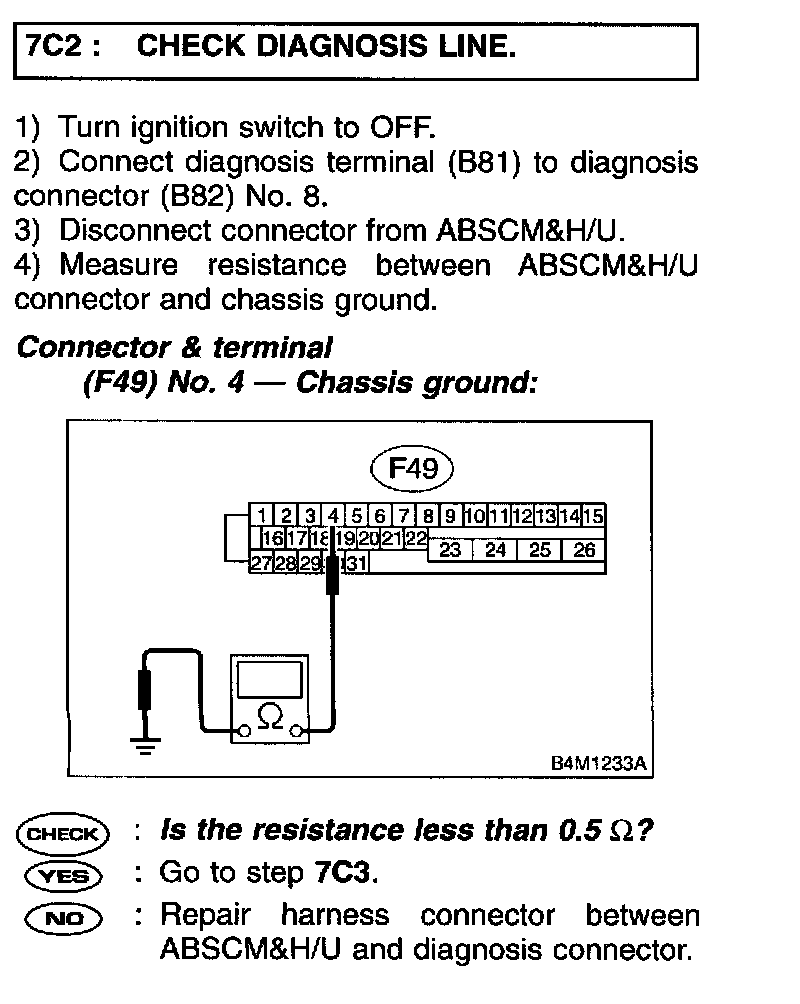

Step 7C2:

Step 7C3:
