ABS Warning Light Does Not Go Off

Diagnosis:
- ABS warning light circuit is open or shorted.

Trouble Symptom:
- When starting the engine and while ABS warning light is kept ON.

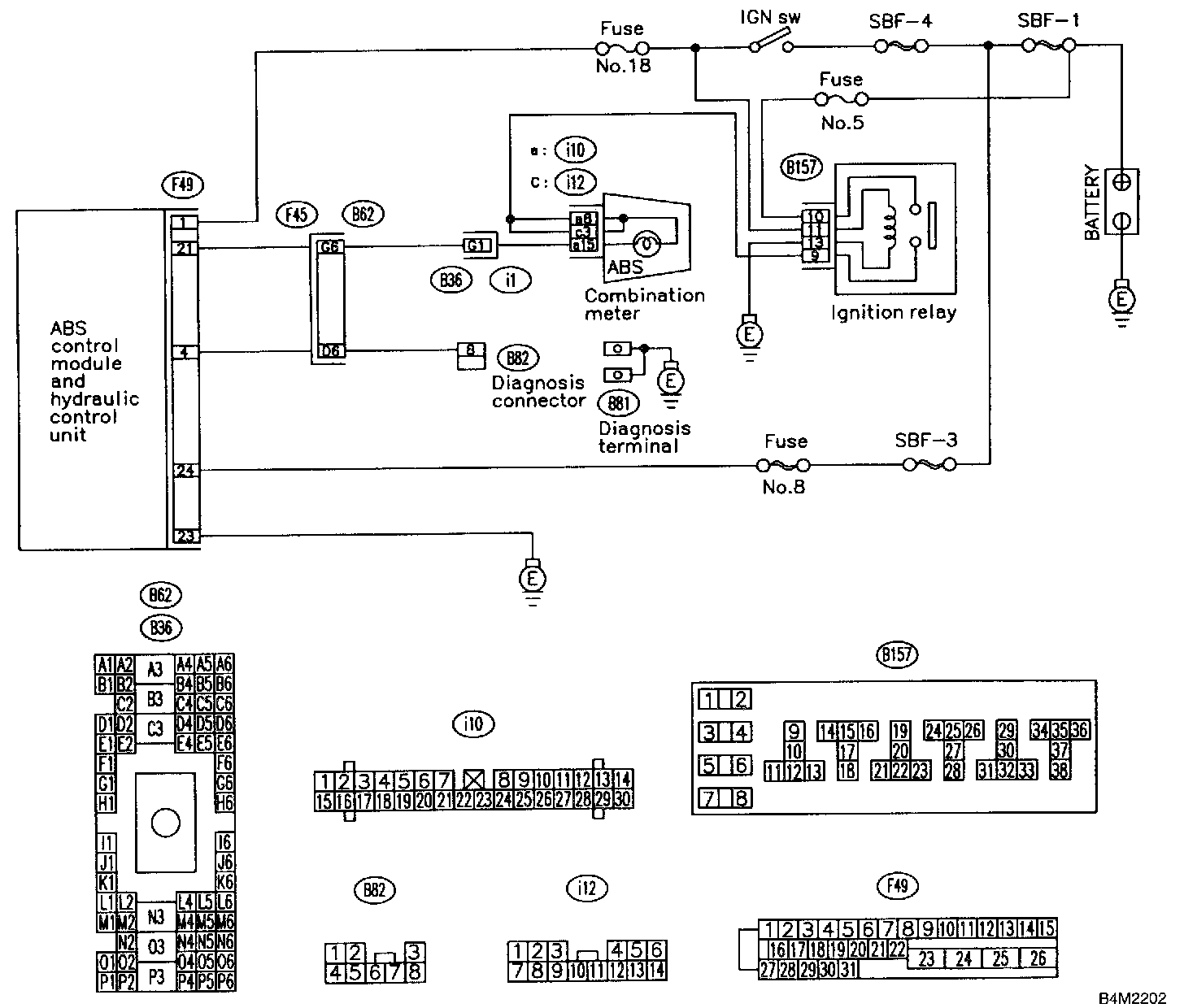

Wiring Diagram:

Test Steps:

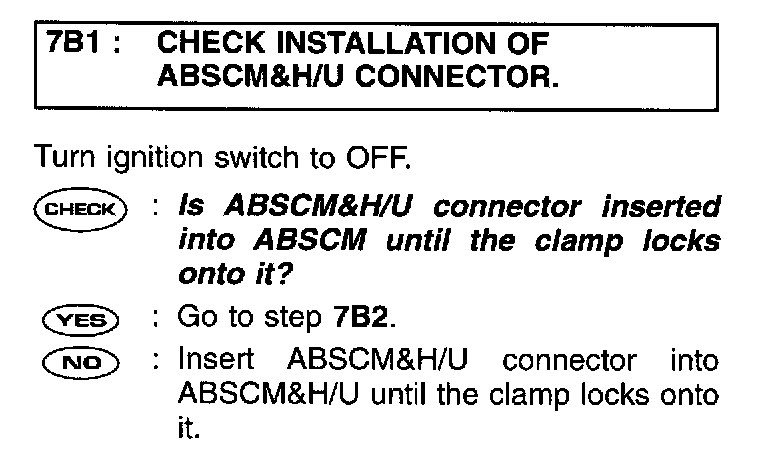

Step 7B1:

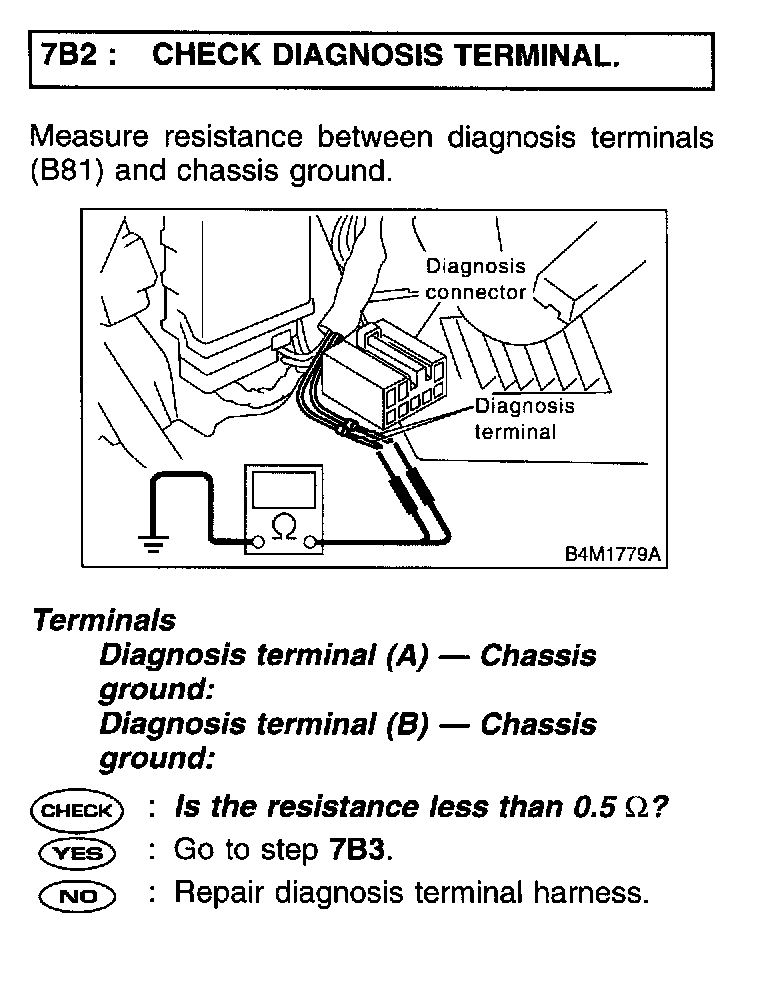

Step 7B2:

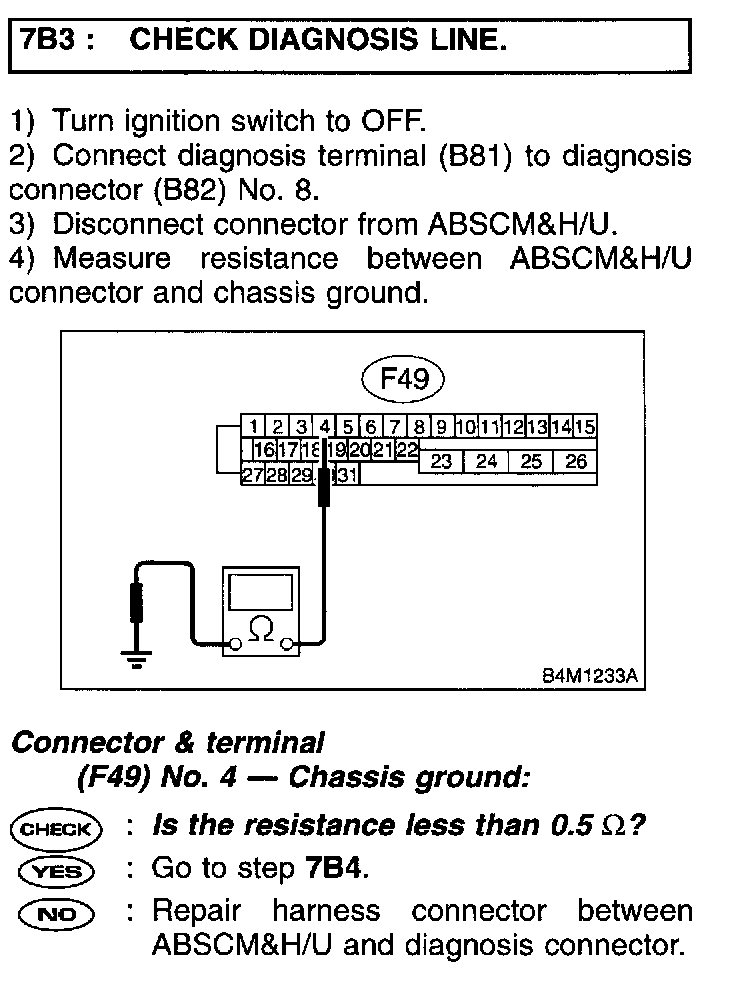

Step 7B3:

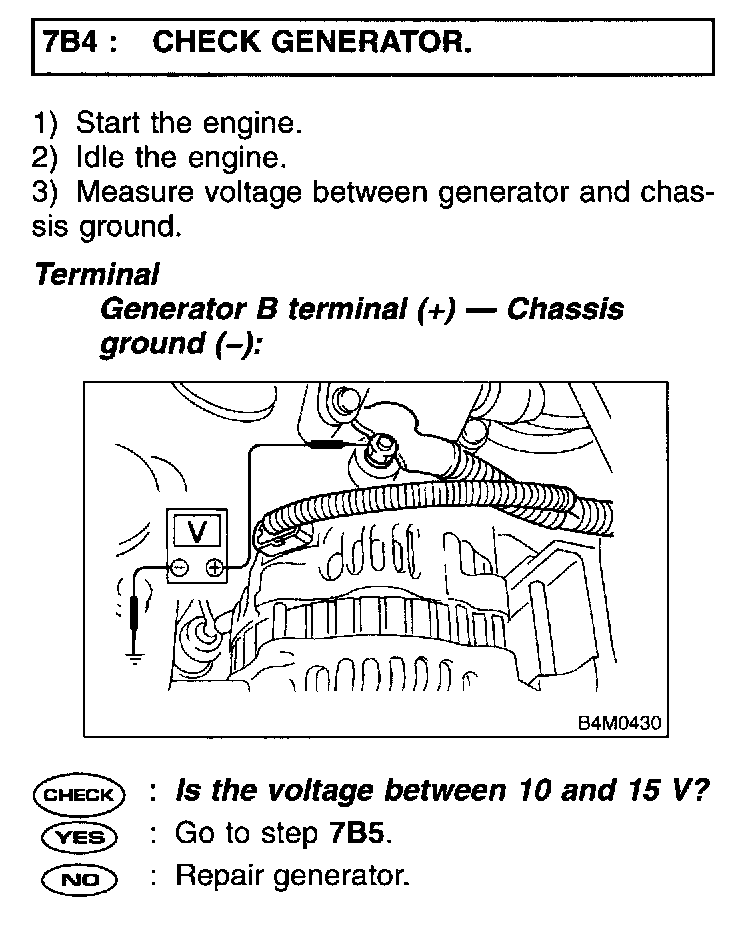

Step 7B4:

Step 7B5:

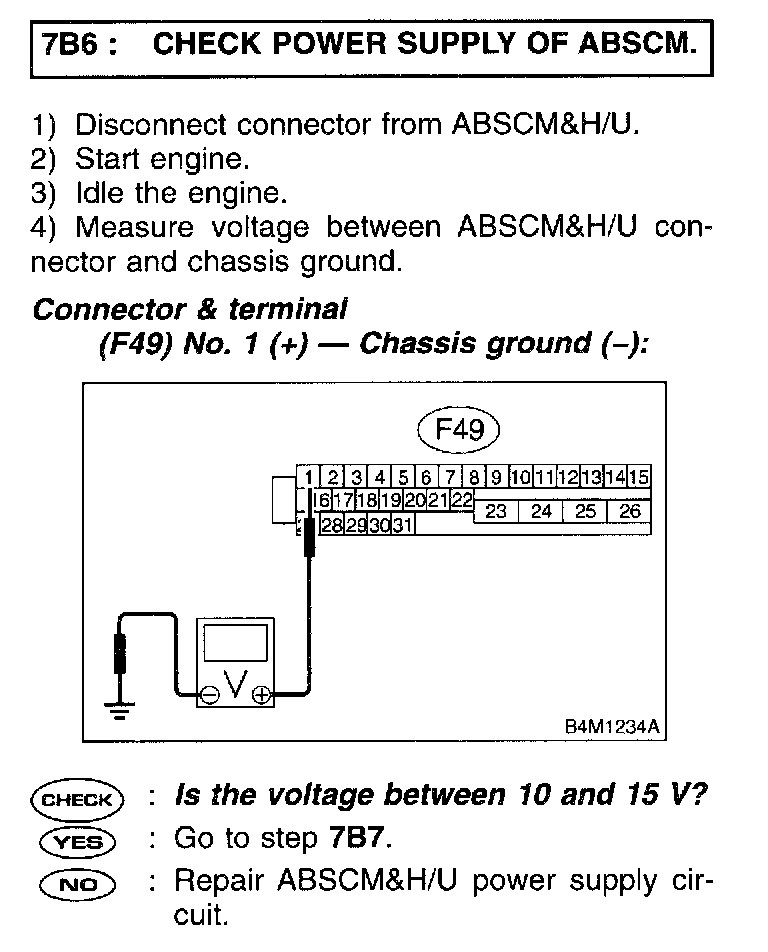

Step 7B6:

Step 7B7:

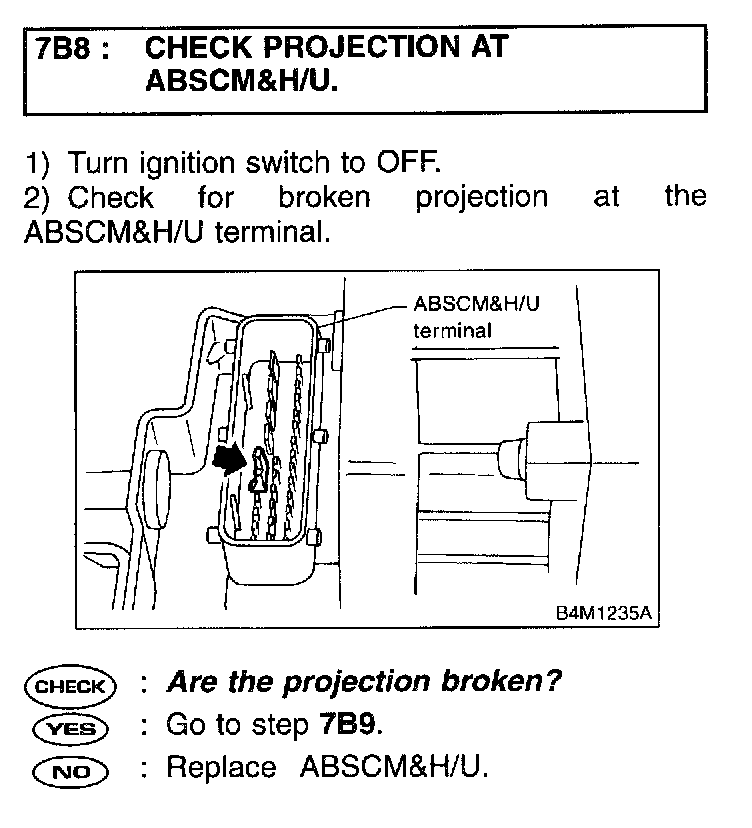

Step 7B8:

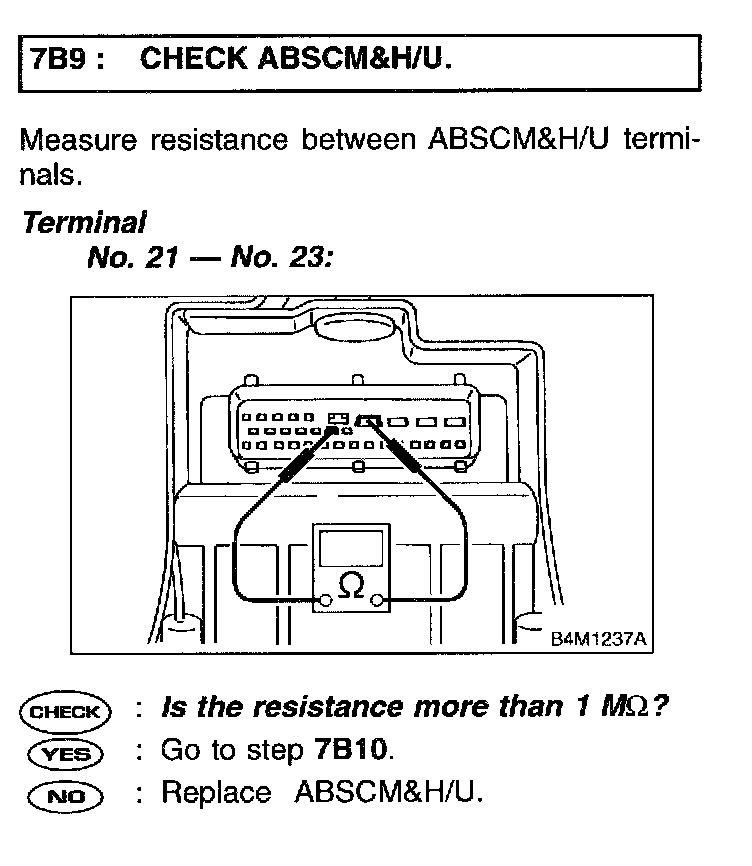

Step 7B9:

Step 7B10:

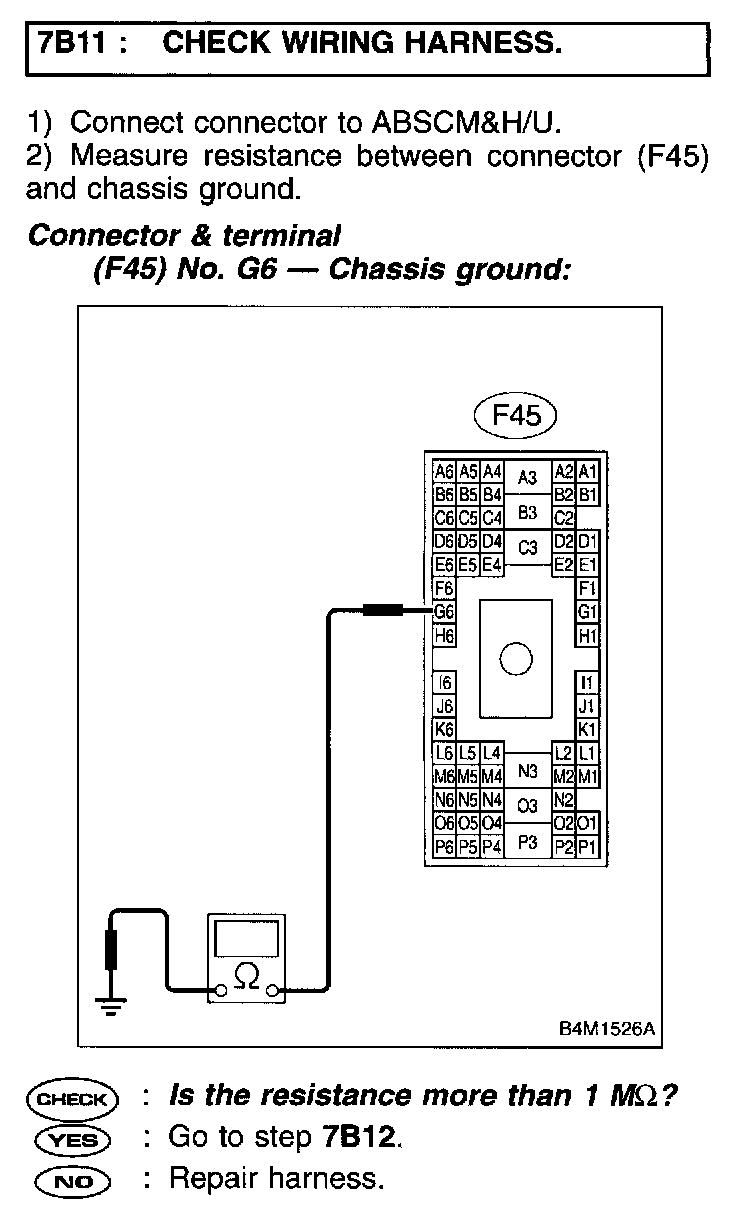

Step 7B11:

Step 7B12:
