Liftgate Window Glass: Service and Repair

Removal

1. Remove rear wiper motor.
2. Disconnect connector from rear defogger terminal.




3. Remove glass in the same manner as in windshield.

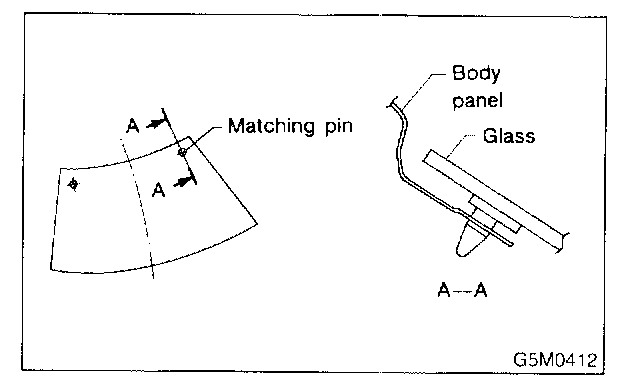

NOTE: A matching pin is cemented to corners of glass on compartment side. Use a piano wire when cutting each pin.

Installation

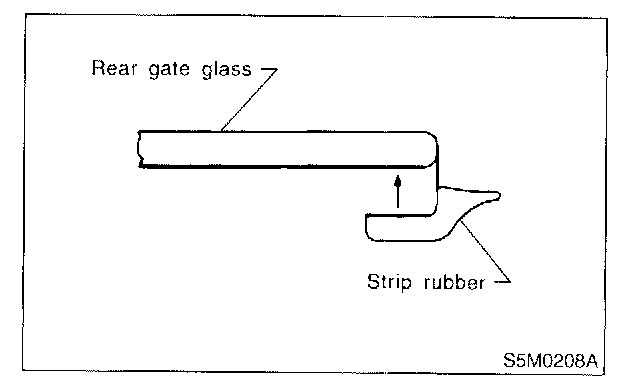

1. Install a new rubber strip by aligning it with the end of the gate glass.

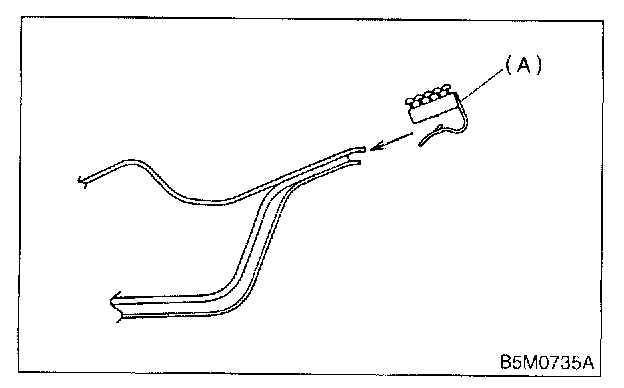

2. Fit fastener (A) in window frame flange at locator position.

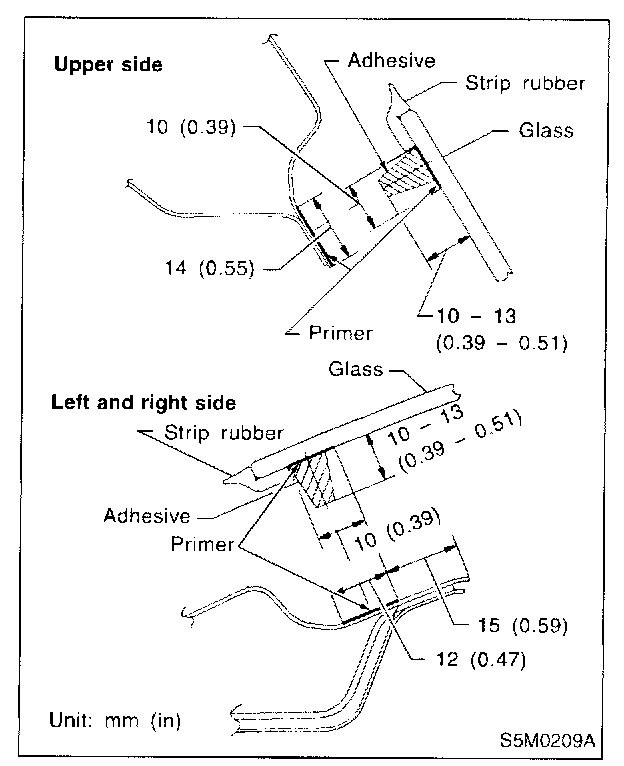

3. Install glass in same manner as windshield.

NOTE: After setting locator and fastener in position, lightly press the perimeters so locator and fastener are in close contact with mating part surface.

4. About one hour after installation, test for water leakage. Leave vehicle for 24 hours before using it.
5. Connect rear defogger connections.
6. Install rear gate trim and rear wiper.
