Diagnostics Item 4 (6E)

6E1: CHECK IGNITION SWITCH.
1. Remove ignition switch.

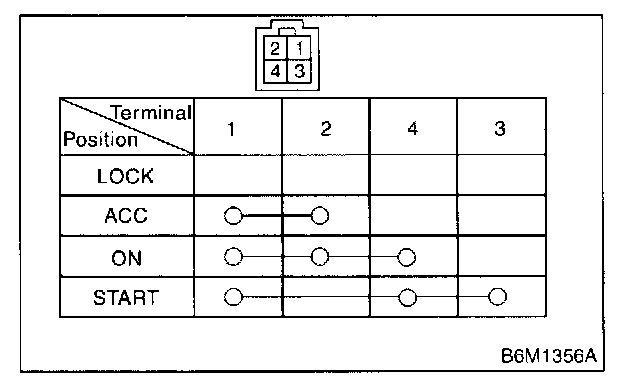

2. Turn ignition key to each position and check continuity between terminals of ignition switch connector.

CHECK: Is the ignition switch faulty?

YES: Replace ignition switch.

NO: Replace keyless entry control module.
