Diagnostics Item 3 (6D)

6D1: CHECK DOOR SWITCH.

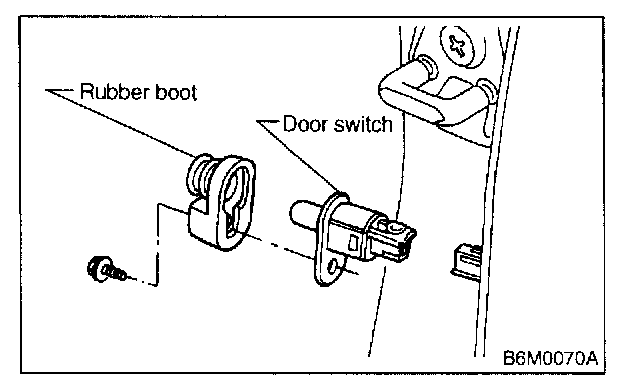

1. Remove door switch.

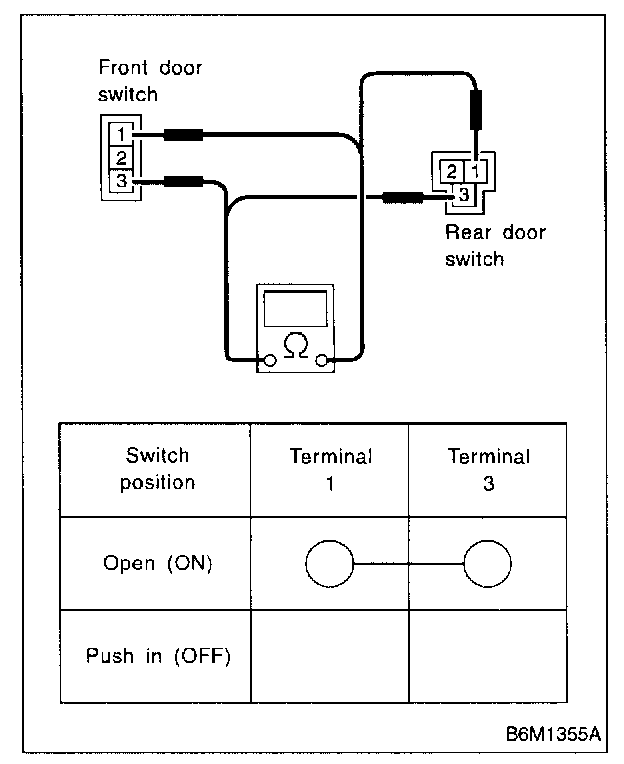

Terminals [No.1 - No.3]:

2. Move switch and check continuity between terminals of door switch.

CHECK: Does any fault exist in the door switch?

YES: Replace door switch.

NO: Replace keyless entry control module.
