Alarm Horn: Service and Repair

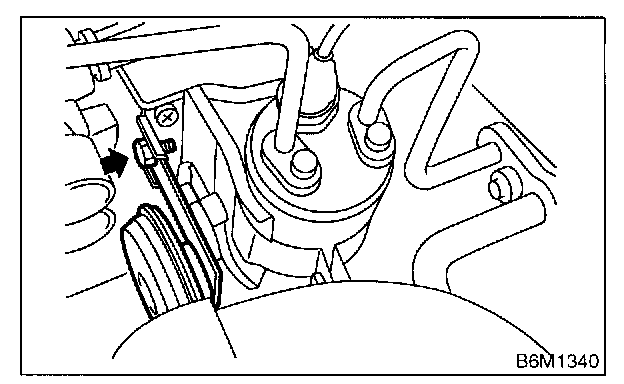

SECURITY HORN
1.
Disconnect battery ground cable.
2.
Remove bolt and then detach
security horn
while disconnecting connector.
3.
Installation is in the reverse order of removal.
