Rear Seat Belt

REMOVAL AND INSTALLATION




1. Remove rear cushion from vehicle.

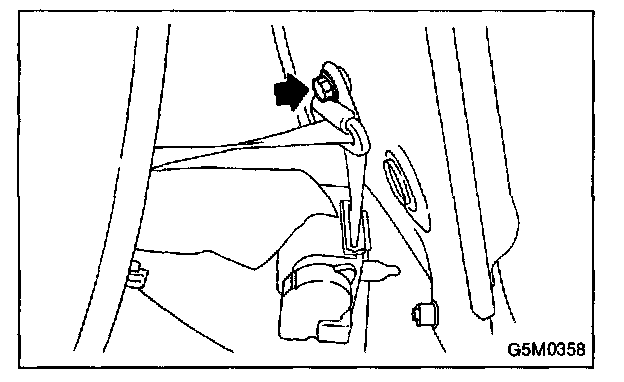

2. Remove rear backrest from vehicle.
3. Remove rear pillar upper trim.

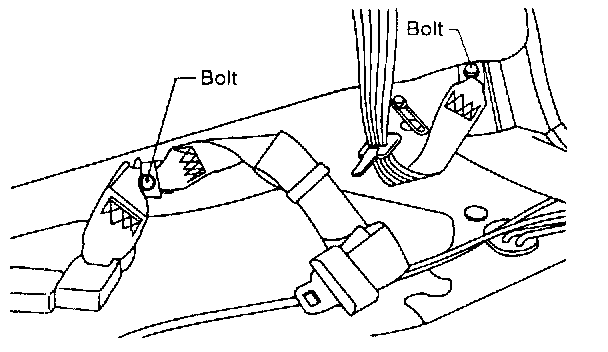

4. Remove outer anchor bolts.

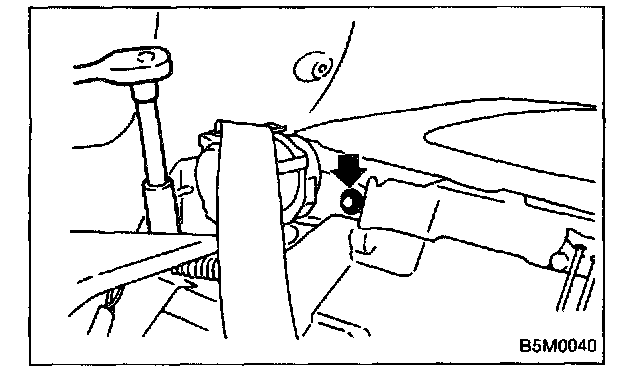

5. Remove ELR.




6. Remove anchor bolt of outer belt and then remove outer belt assembly.
7. Remove inner belt.
8. Installation is in the reverse order of removal.
