Front Wiper and Washer
ON-CAR SERVICESADJUSTMENT

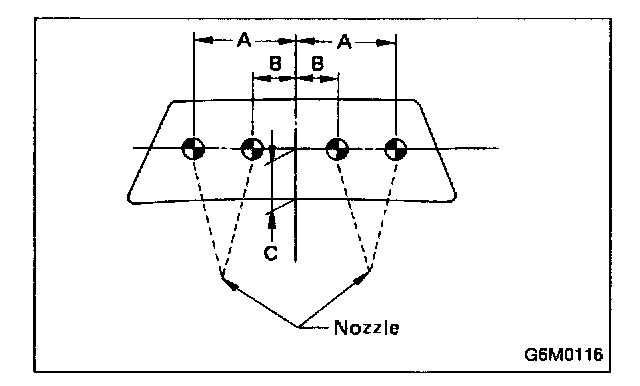

4. Adjust washer ejecting point on windshield glass as shown in figure.
Ejecting point:
A : 375 mm (14.76 in)
B : 150 mm (5.91 in)
C : 380 mm (14.96 in)
ADJUSTMENT
4. Adjust washer ejecting point on windshield glass as shown in figure.
Ejecting point:
A : 375 mm (14.76 in)
B : 150 mm (5.91 in)
C : 380 mm (14.96 in)
