Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Chart With Select Monitor >> Check Int Man Pressure Signal (2.2L California Spec. Vehicles)

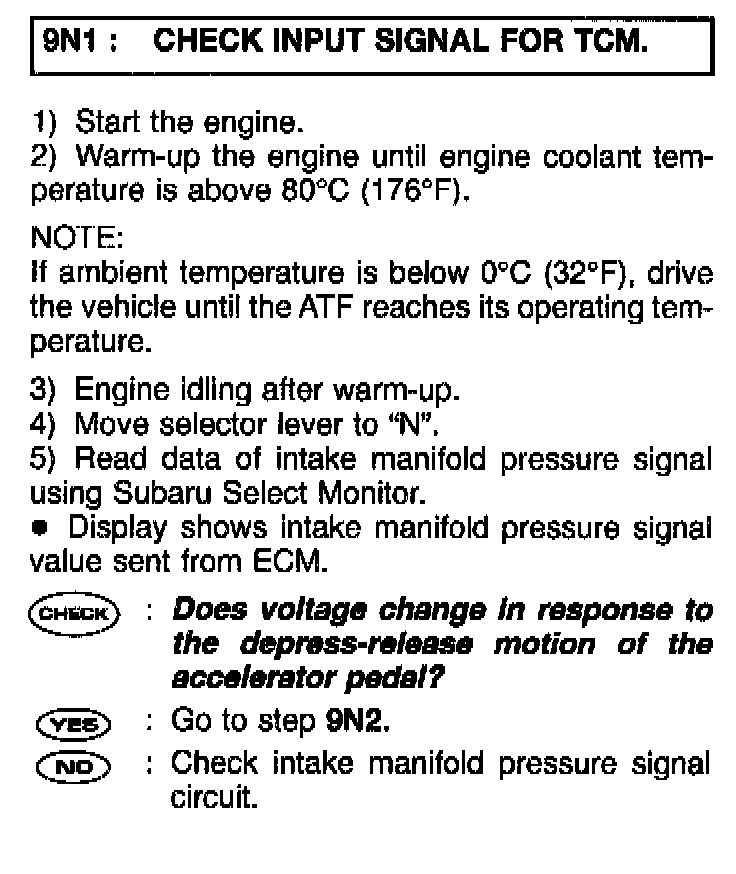

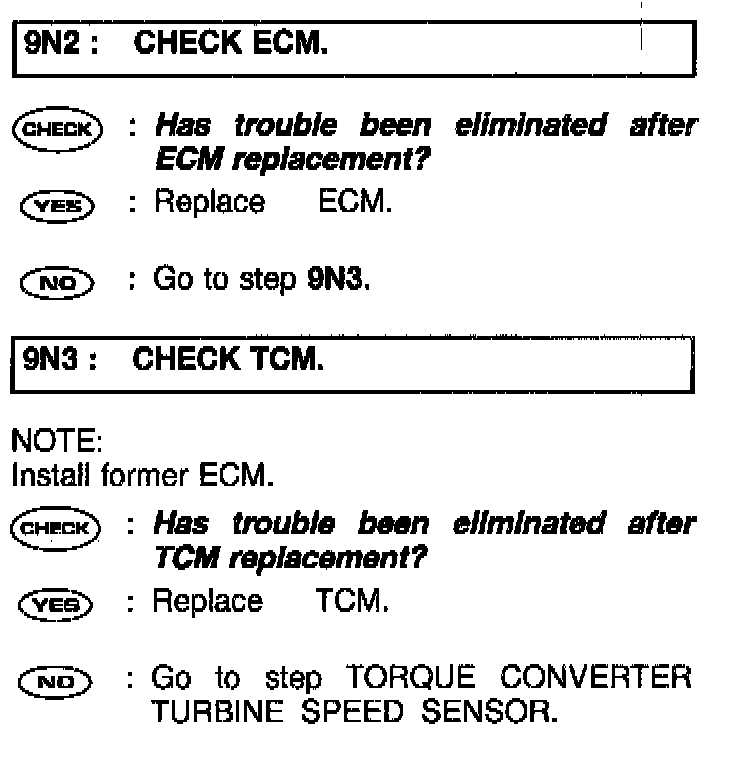

Check Int Man Pressure Signal (2.2L California Spec. Vehicles)








CHECK INTAKE MANIFOLD PRESSURE SIGNAL (2200 cc CALIFORNIA SPEC. VEHICLES)
