Check FWD Switch

CHECK FWD SWITCH














DIAGNOSIS:
- LED does not come on even if FWD switch is ON.
- FWD switch circuit is open or short.

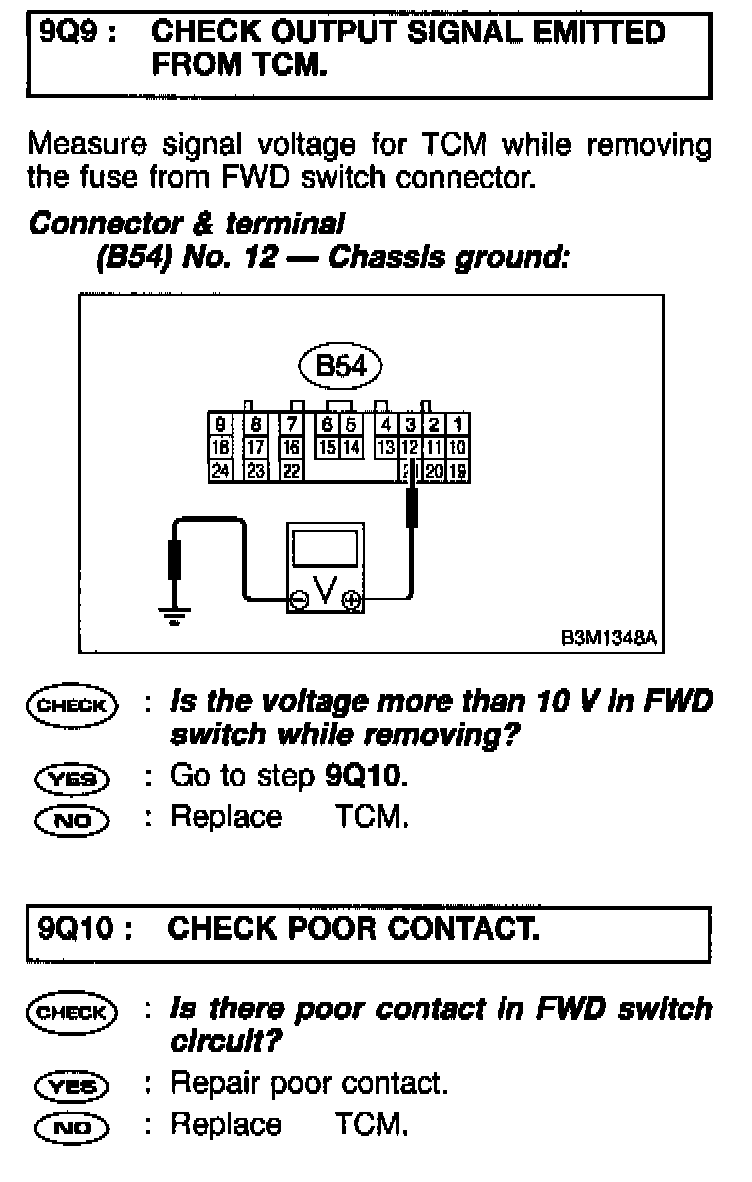

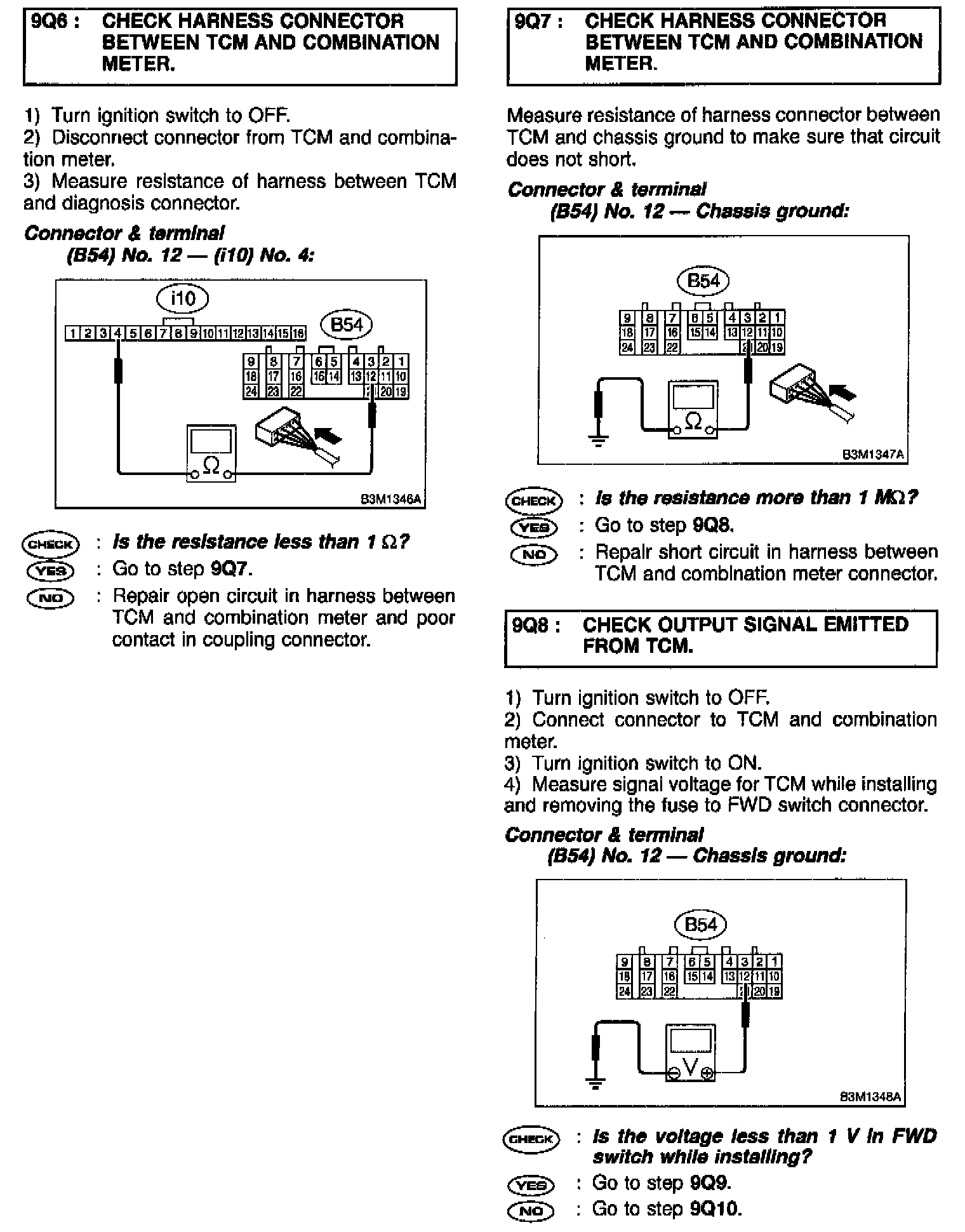

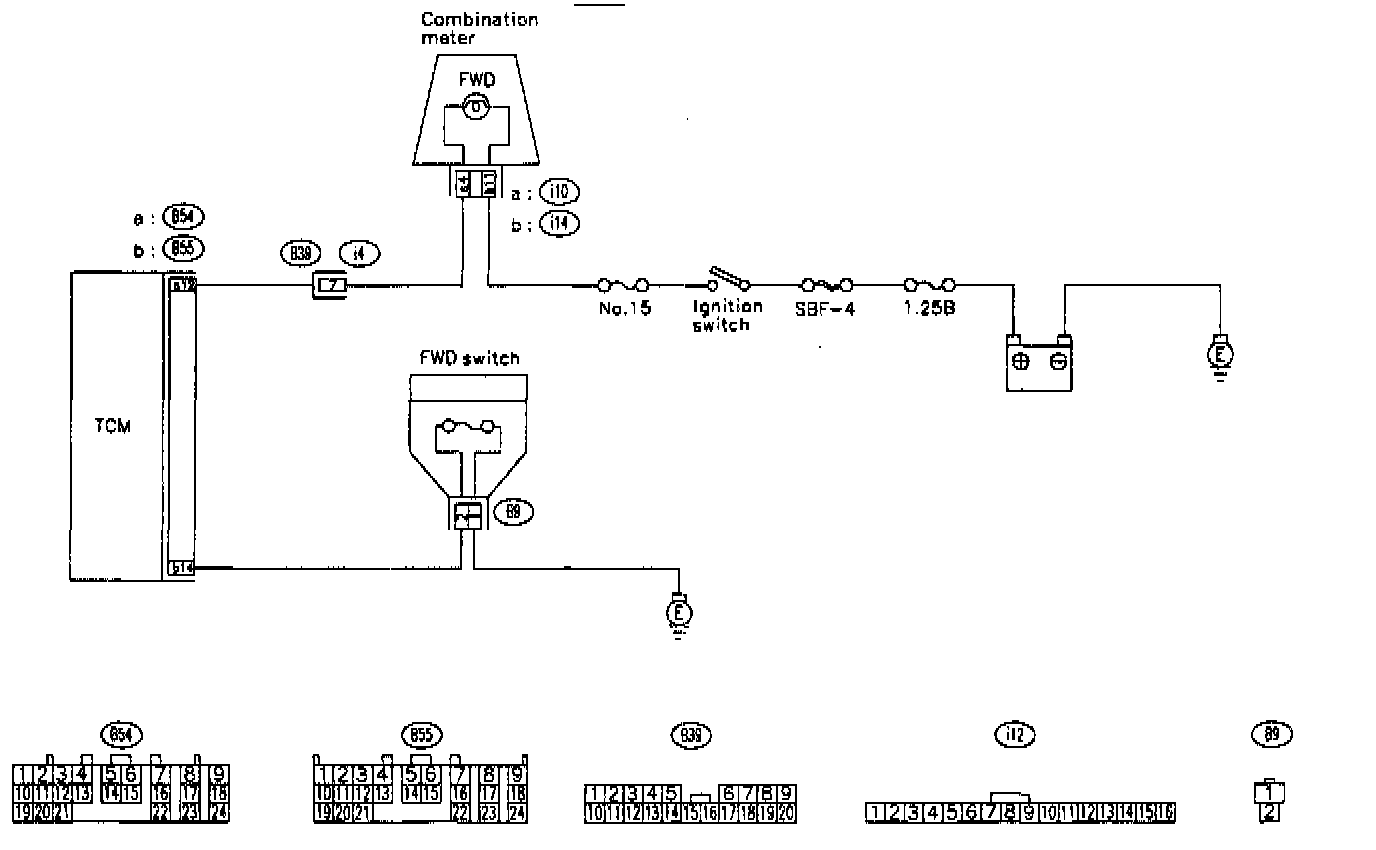

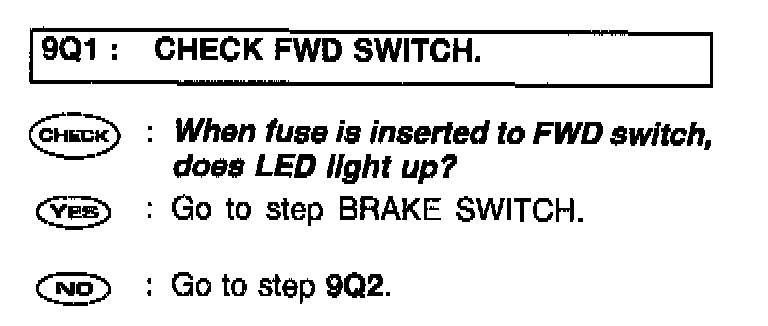

WIRING DIAGRAM:
