Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Specifications >> Mechanical Specifications >> Transfer Case Technical Data

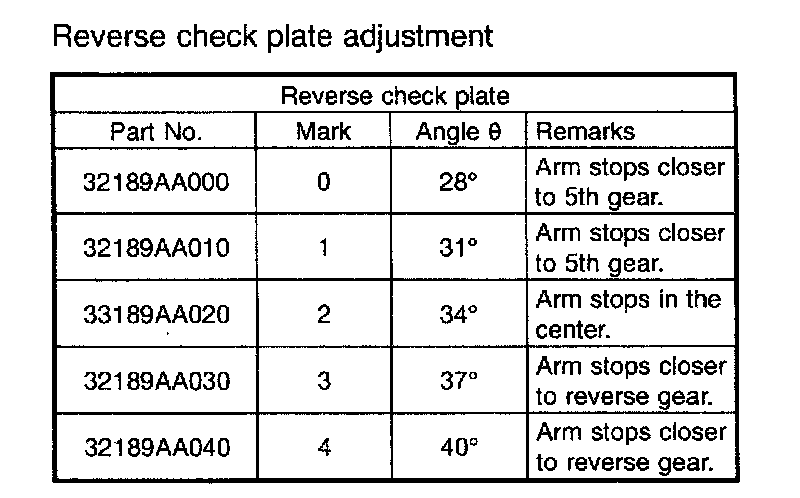

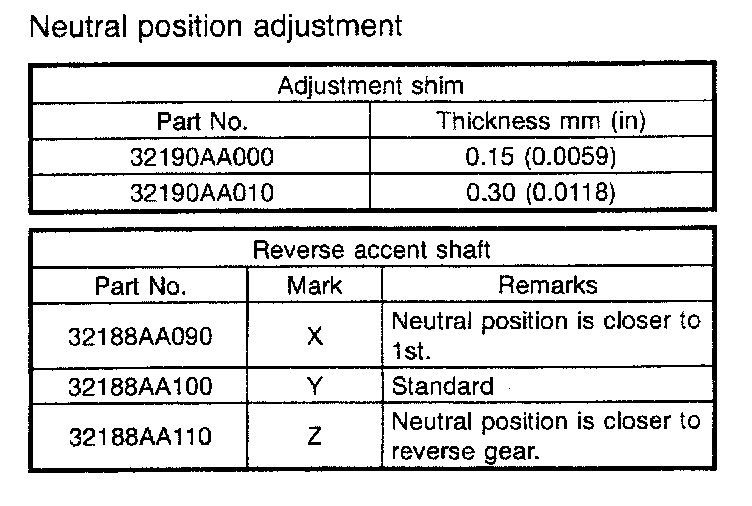

Transfer Case Technical Data

5-spd M/T, Transfer Case:





5-spd M/T, Transfer Case:
