Center Differential (AWD Model)

A: DISASSEMBLY AND ASSEMBLY

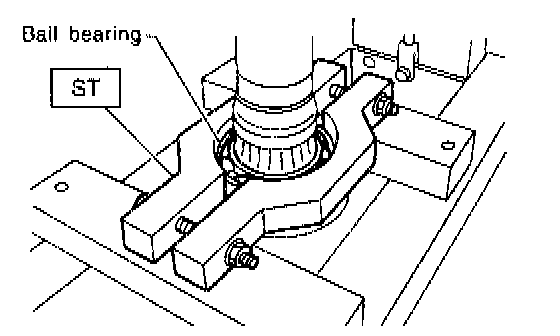

1. Remove ball bearing using ST.

CAUTION: Do not reuse ball bearing.

ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER





2. Install ball bearing to center differential assembly.

NOTE: Do not disassemble center differential because it is a non-disassemble part.
