Universal Joint: Testing and Inspection

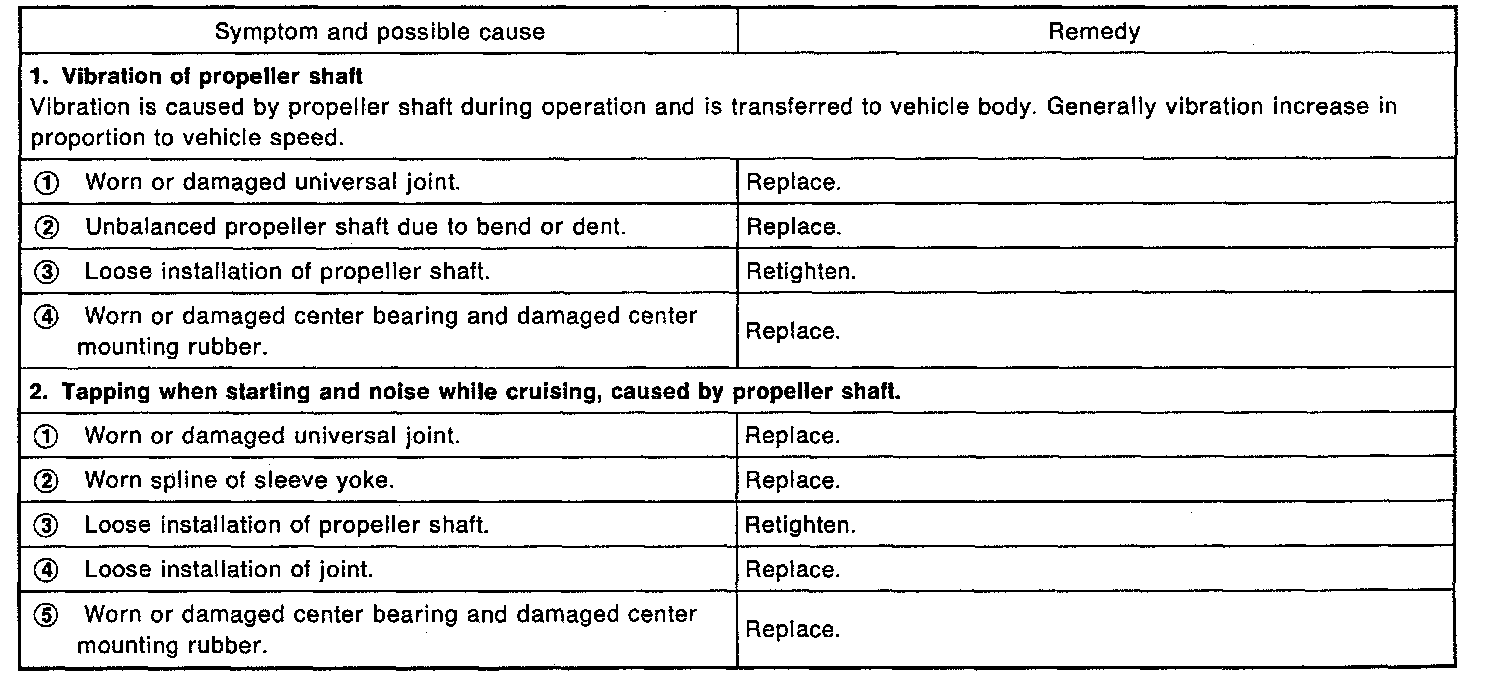

PROPELLER SHAFT
NOTE:
Vibration while cruising may be caused by an unbalanced tire, improper tire inflation pressure, improper wheel alignment, etc.
